TEXL – LED BATTENS WEATHERPROOF
Features
The Texl is an enclosed cylindrical luminaire with integrated control gear designed to withstand high pressure water. Offering a clear polycarbonate diffuser, the Texl is suited to a wide variety of wet and dusty industrial applications.
• PC lens
• IP69
• 1450psi high pressure wash-down

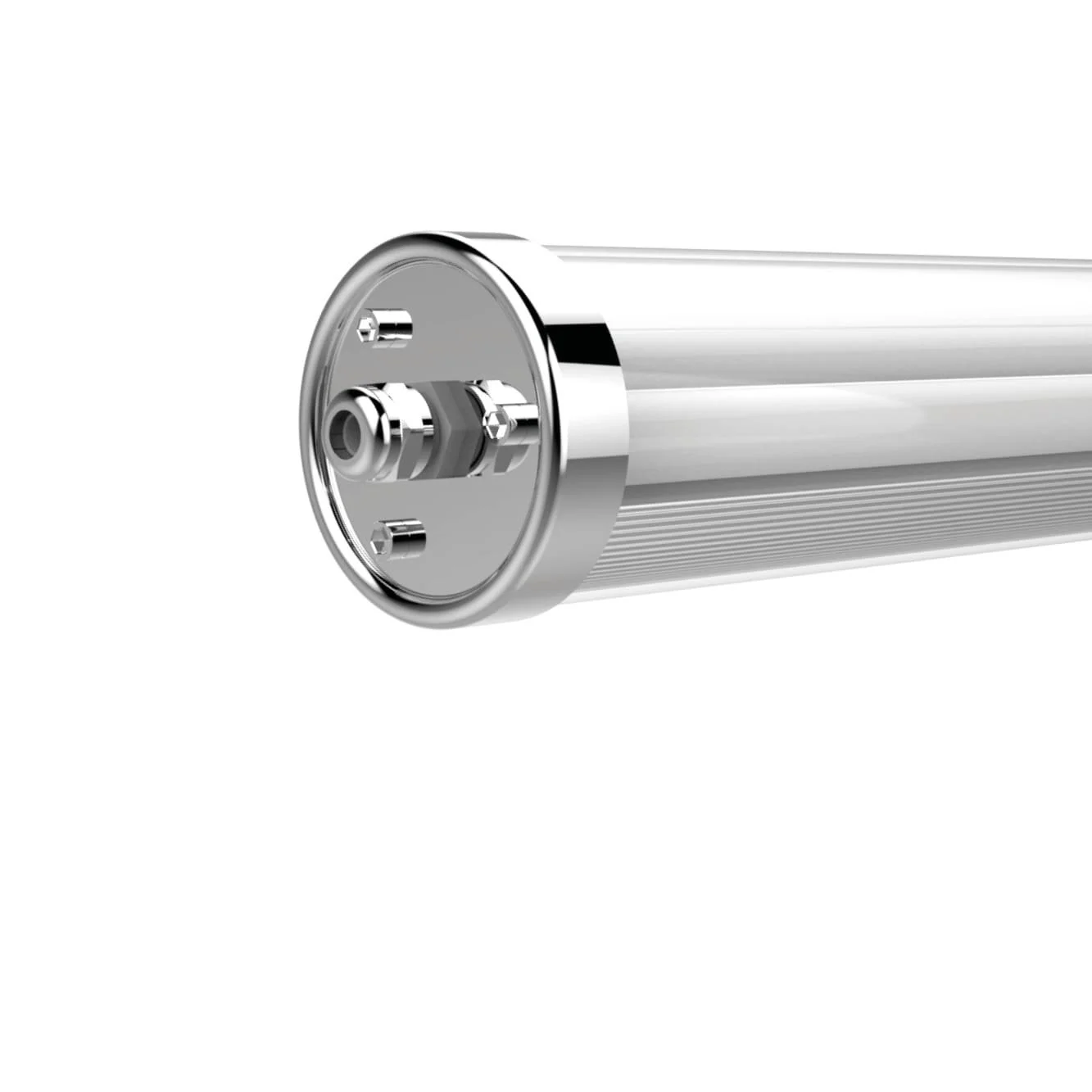

• 316 Stainless steel end caps
• HACCP and NSF approved
• Strong impact resistance IK10
• ENEC approved to ensure top quality
Typical Applications
Mining
MIA (Mining Infrastructure Area)
Coal
Open Cuts
Metalliferous
Iron Ore
Industrial
Processing Plants
Materials Handling
Lithium Processing
Power Generation
Energy & Utilities
Water & Waste Water
Ports
Wharfs & Waterways
Chemical & Processing
High Wash Down Area
Chemical Plants
Abattoirs
Poultry & Processing Plants
Spirals
Food & Beverage
Specifications
| Model: | PLITXL20 | PLITXL36 | PLITXL48 |
|---|---|---|---|
| Optical Characteristics | |||
| Rated Wattage | 20W | 36W | 48W |
| Lumens | 2600 | 4680 | 6240 |
| System Efficacy | 130Lm/W | ||

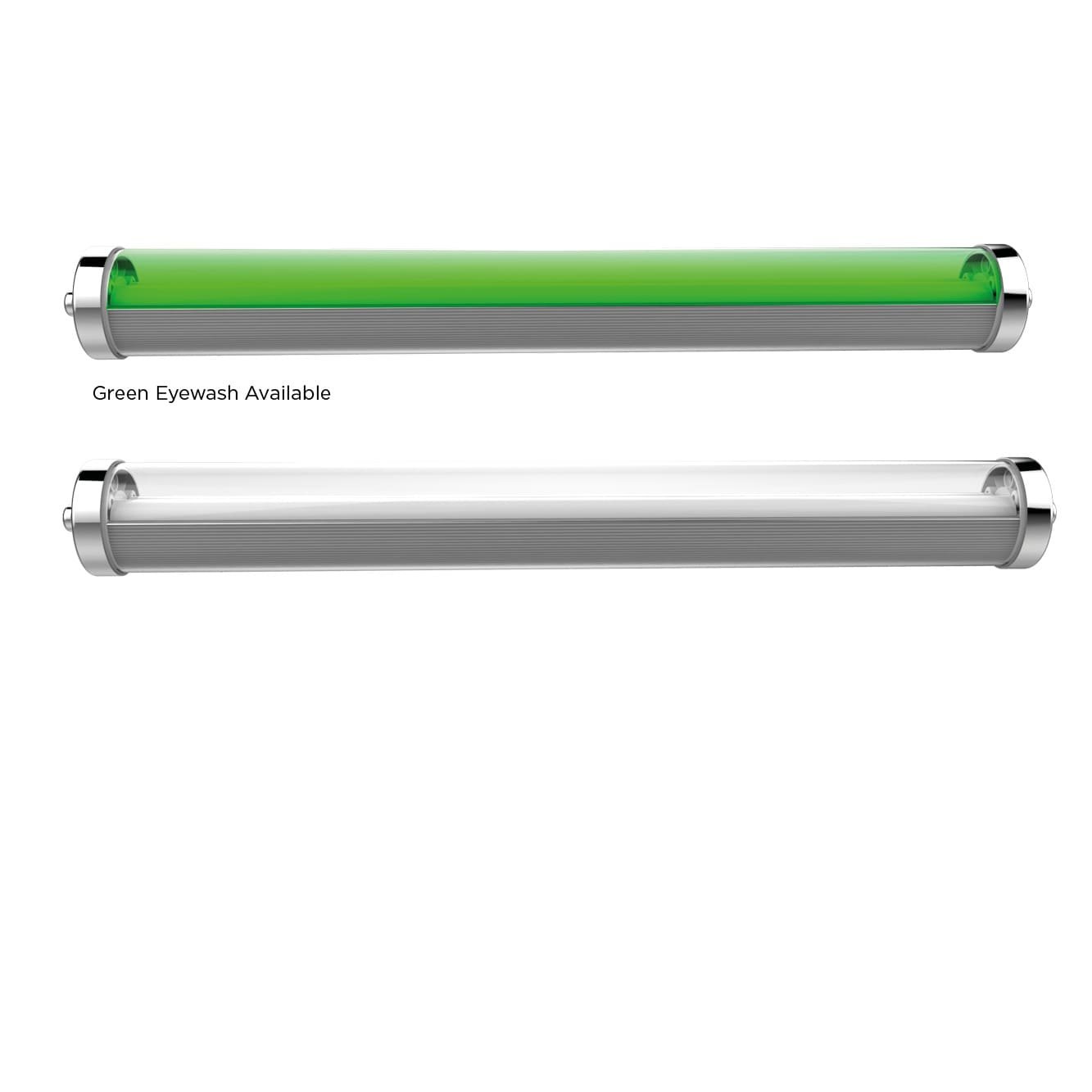

| Colour Temperature CCT | 5000K (6500K / 4000K / 3000K / Green Eyewash) | ||
| CRI (Ra) | >80 | ||
| Reported L70 | >50,000 Hours | ||
| Lens Optic Type | PC Lens / Tempered Glass / PMMA | ||
| Electrical Characteristics | |||
| Input | 220–240VAC | ||
| Frequency | 50Hz | ||
| Power Factor | >0.95 @230Vac | ||
| Total Harmonic Distortion | ≤15% | ||
| Environment | |||
| IP Rating | IP69 | ||
| Impact Rating | IK10 | ||
| Operating Temperature | -20°C to 35°C | ||
| Product Material and Mounting | |||
| Option 1 | Ceiling Mounted | ||
| Option 2 | Suspension | ||
| Product Material | 316 Stainless Steel End Caps | ||
| Lens / Optics Material | PC Lens (Tempered Glass, PMMA Optional) | ||
| Dimensions and Weights | |||
| Product Dimensions | 600×70×70 | 1200×70×70 | 1500×70×70 |
| Product Weight | 2.0KG | 1.6KG | 1.9KG |
| Packaging Dimensions (Ctn 6) | 818×411×286 | 1418×411×286 | 1718×411×286 |
| Gross Weight (Ctn 6) | 12.0KG | 9.6KG | 11.4KG |
| Warranty and Certifications | |||
| Warranty | 5 Year Warranty | ||
| Certifications | SAA / CE | ||
