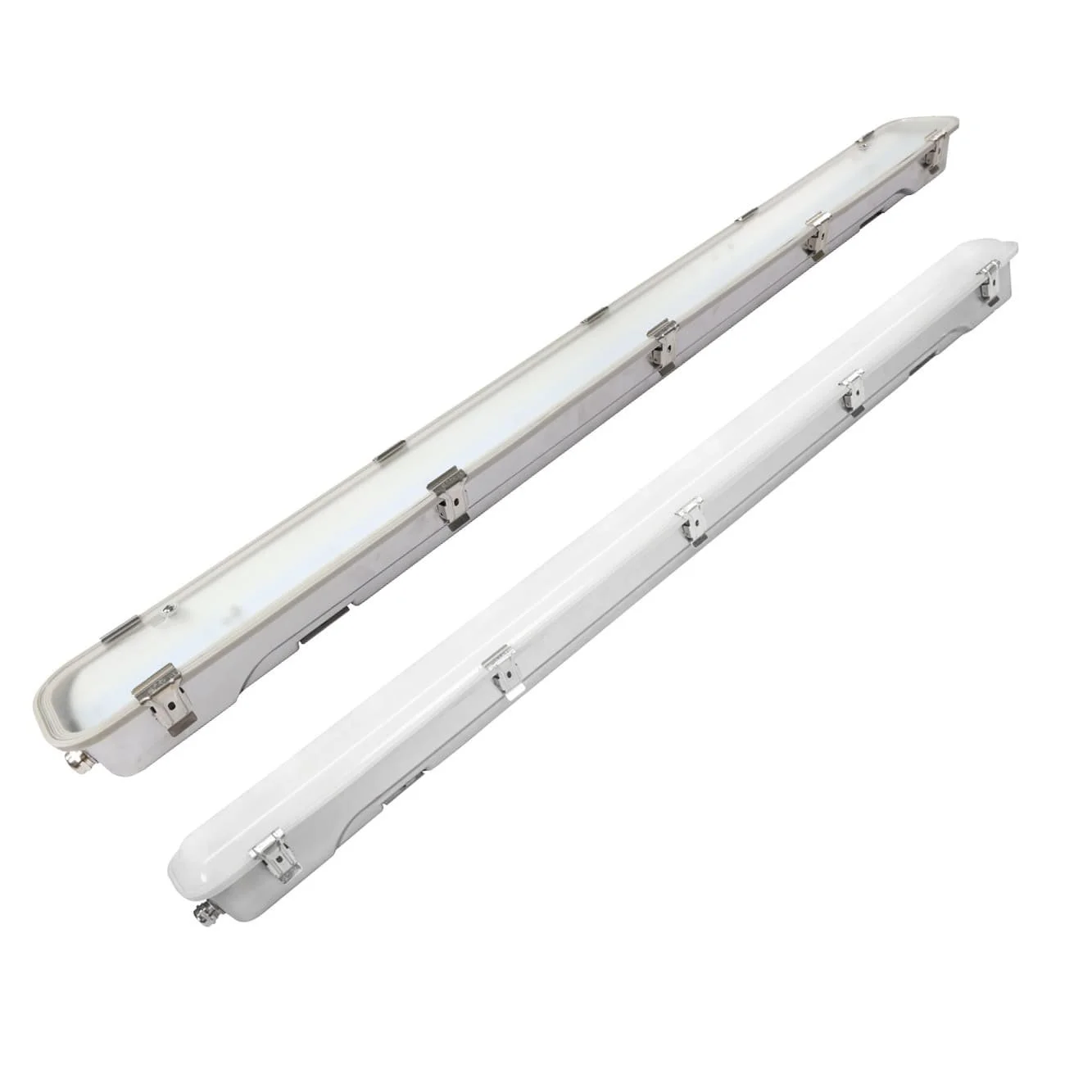

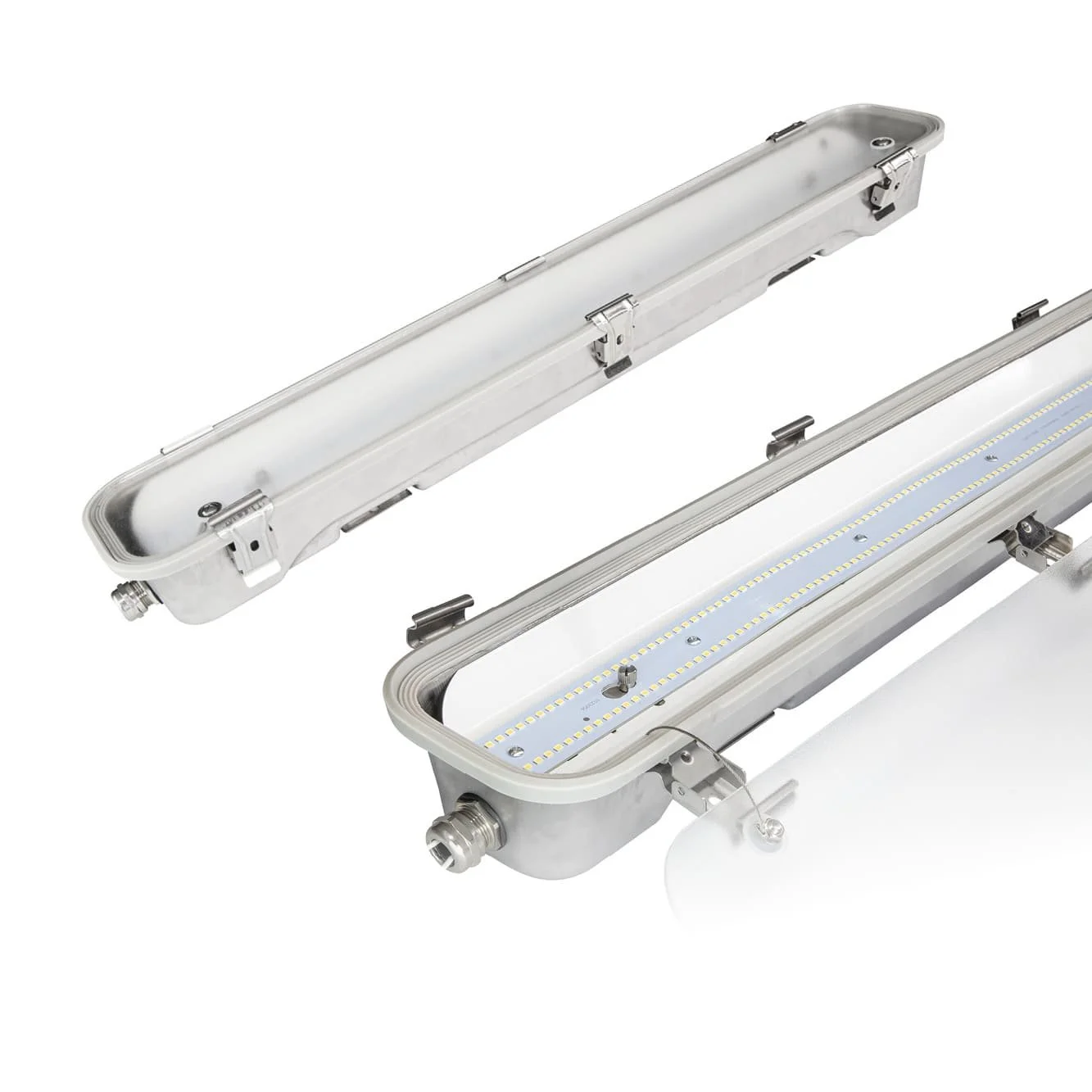

INHIBITOR – LED BATTENS WEATHERPROOF

18 Mar

Features

The Inhibitor is an IP65 stainless steel waterproof luminaire suitable for high humidity outdoor environments and is designed to withstand extreme temperatures. It is resistant to impact, provides a 50,000 hour lifetime, and has over 70% energy savings compared to lighting with similar lumen output. The Inhibitor features high luminous efficacy, low power consumption, and is pollution-free making it the perfect solution for a wide range of applications.

Typical Applications

Mining
MIA (Mining Infrastructure Area)
Coal
Open Cuts
Metalliferous
Iron Ore
Industrial
Processing Plants
Materials Handling
Lithium Processing
Power Generation
Energy & Utilities
Water & Waste Water
Ports
Wharfs & Waterways
Chemical & Processing

Specifications


        Model
        PLINH25
        PLINH35
        PLINH45
        PLINH50
        PLINH62

    Optical Characteristics

        Rated Wattage
        25W
        35W
        45W
        50W
        62W

        Lumens
        3500
        4900
        6300
        7000
        8680

        System Efficacy
        140 lm/W

        Colour Temperature CCT
        6500K / 5700K / 5000K / 4000K / 3000K

        CRI (Ra)
        >80

        Reported L70
        >50,000 Hours

        Lens Optic Type
        120° Polycarbonate Diffuser

Electrical Characteristics

        Input
        220–240VAC

        Frequency
        50Hz

        Power Factor
        >0.90

        Total Harmonic Distortion
        <20%

Environment

        IP Rating
        IP65

        Impact Rating
        IK08

        Operating Temperature
        -40°C to 55°C

Product Material and Mounting

        Option 1
        Ceiling Mount Bracket

        Product Material
        304 Stainless Steel

        Lens / Optics Material
        Tempered Glass or PC Lens

Dimensions and Weights

        Product Dimensions
        Refer to dimensions below

        Product Weight
        2.2kg
        3.6kg

        4.8kg

        Packaging Dimensions
        725×330×290
        1325×165×150
        1625×165×150

        Gross Weight
        10.3kg (Ctn 10)
        4.2kg

        5.5kg

Warranty and Certifications

        Warranty
        5 Year Warranty

        Certifications
        SAA

Model	PLINH25	PLINH35	PLINH45	PLINH50	PLINH62
Optical Characteristics
Rated Wattage	25W	35W	45W	50W	62W
Lumens	3500	4900	6300	7000	8680
System Efficacy	140 lm/W
Colour Temperature CCT	6500K / 5700K / 5000K / 4000K / 3000K
CRI (Ra)	>80
Reported L70	>50,000 Hours
Lens Optic Type	120° Polycarbonate Diffuser
Electrical Characteristics
Input	220–240VAC
Frequency	50Hz
Power Factor	>0.90
Total Harmonic Distortion	<20%
Environment
IP Rating	IP65
Impact Rating	IK08
Operating Temperature	-40°C to 55°C
Product Material and Mounting
Option 1	Ceiling Mount Bracket
Product Material	304 Stainless Steel
Lens / Optics Material	Tempered Glass or PC Lens
Dimensions and Weights
Product Dimensions	Refer to dimensions below
Product Weight	2.2kg	3.6kg			4.8kg
Packaging Dimensions	725×330×290	1325×165×150	1625×165×150
Gross Weight	10.3kg (Ctn 10)	4.2kg			5.5kg
Warranty and Certifications
Warranty	5 Year Warranty
Certifications	SAA
