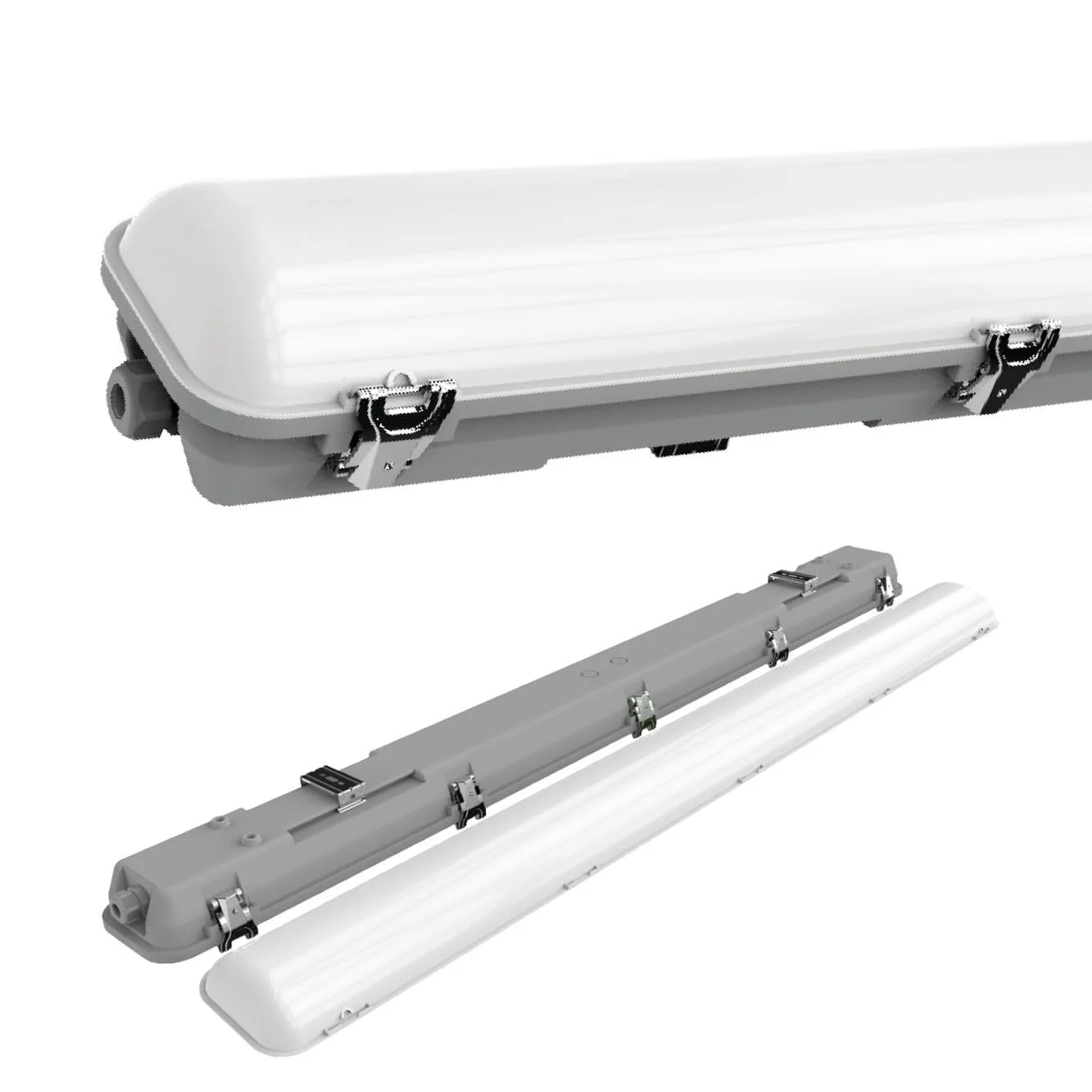

KESTREL – LED BATTENS WEATHERPROOF

20 Mar

Features

The Kestrel is a high performance, corrosion resistant, IP65 waterproof batten. With GRP housing the Kestrel is designed to withstand aggressive atmospheres laden with salts, acids, and mineral oils. The Kestrel is suitable for locations that are exposed to liquids and gases that contain potentially corrosive chemicals.

Typical Applications

Mining
MIA (Mining Infrastructure Area)
Coal
Open Cuts
Metalliferous
Iron Ore
Industrial
Processing Plants
Materials Handling
Lithium Processing
Power Generation
Energy & Utilities
Water & Waste Water
Ports, Wharfs & Waterways
Chemical & Processing

Specifications



        Model No.
        PLIKES15
        PLIKES24
        PLIKES20
        PLIKES36
        PLIKES50
        PLIKES30
        PLIKES50
        PLIKES65



    Optical Characteristics

        Rated Wattage
        15W
        24W
        20W
        36W
        50W
        30W
        50W
        65W


        Lumens
        1950
        3120
        2600
        4680
        6500
        3900
        6500
        8450


        System Efficacy
        130 lm/W


        Colour Temperature
        5000K (6500K / 5700K / 4000K / 3000K)


        CRI (Ra)
        >80


        Reported L70
        >50,000 Hours


        Lens Optic Type
        120°

Electrical Characteristics

        Input
        220–240V


        Frequency
        50/60Hz


        Power Factor
        >0.95


        GWT
        850°C

Environment

        IP Rating
        IP65


        Impact Rating
        IK08


        Operating Temperature
        -15°C to 35°C

Product Material and Mounting

        Option 1
        Bracket Mount


        Option 2
        Suspension Chain


        Product Material
        GRP Housing (Glass Reinforced Plastic)


        Lens / Optics Material
        Corrosion Resistant PMMA Diffuser

Dimensions and Weights

        Product Dimensions
        600×116×100
        1200×116×100
        1500×116×100


        Product Weight
        1.5kg
        3.0kg
        4.0kg


        Packaging Dimensions
        630×268×232
        1230×268×232
        1530×268×232


        Gross Weight
        2.0kg
        3.5kg
        4.5kg

Warranty and Certifications

        Warranty
        5 Year Warranty


        Certifications
        SAA / CE / RoHS




Model No.	PLIKES15	PLIKES24	PLIKES20	PLIKES36	PLIKES50	PLIKES30	PLIKES50	PLIKES65
Optical Characteristics
Rated Wattage	15W	24W	20W	36W	50W	30W	50W	65W
Lumens	1950	3120	2600	4680	6500	3900	6500	8450
System Efficacy	130 lm/W
Colour Temperature	5000K (6500K / 5700K / 4000K / 3000K)
CRI (Ra)	>80
Reported L70	>50,000 Hours
Lens Optic Type	120°
Electrical Characteristics
Input	220–240V
Frequency	50/60Hz
Power Factor	>0.95
GWT	850°C
Environment
IP Rating	IP65
Impact Rating	IK08
Operating Temperature	-15°C to 35°C
Product Material and Mounting
Option 1	Bracket Mount
Option 2	Suspension Chain
Product Material	GRP Housing (Glass Reinforced Plastic)
Lens / Optics Material	Corrosion Resistant PMMA Diffuser
Dimensions and Weights
Product Dimensions	600×116×100	1200×116×100	1500×116×100
Product Weight	1.5kg	3.0kg	4.0kg
Packaging Dimensions	630×268×232	1230×268×232	1530×268×232
Gross Weight	2.0kg	3.5kg	4.5kg
Warranty and Certifications
Warranty	5 Year Warranty
Certifications	SAA / CE / RoHS

Download brochure

KESTREL - LED BATTENS WEATHERPROOF

Download Technical Files

LOG IN TO ACCESS ALL THE TECHNICAL FILES
