CHIEF – HAZARDOUS AREA

3 Mar

Features

The Sphinx is an IP69 waterproof mobile machinery floodlight and is designed for heavy duty machinery in industrial environments. It features a 9-32 VDC operating voltage range, 30 degree spot beam (60 degree flood beam are available), stainless steel adjustable mounting brackets and is rubber gasket vibration resistant.

Typical Applications

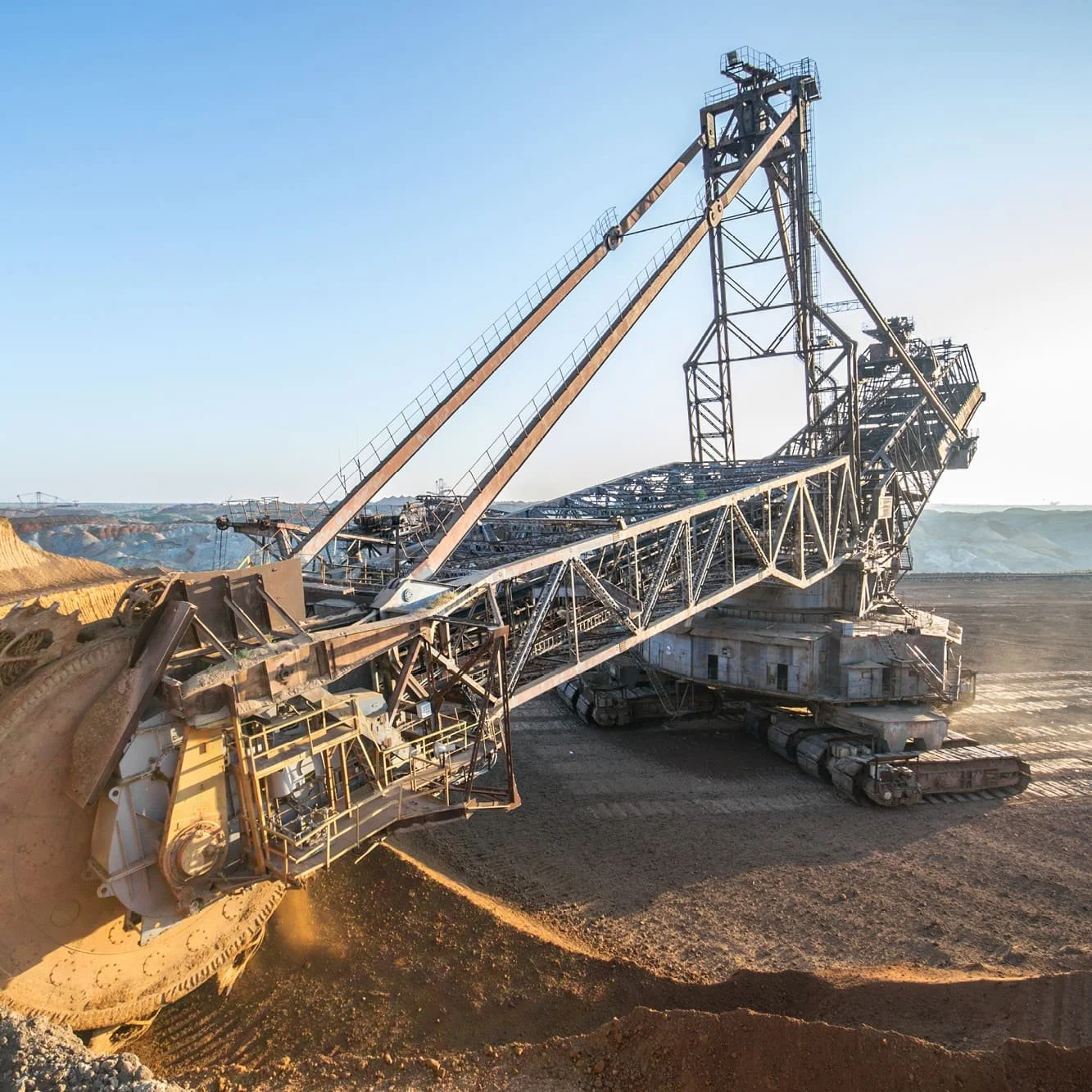

Draglines
Shovels
Dozers
Trucks
Forklifts
Water Carts
Wheel Loaders
Light Vehicle Fleet
Mobile Machinery
Front End Loaders
Drill Rigs
Lighting Towers

Specifications


        Model
        PLICHI24
        PLICHI36
        PLICHI36
        PLICHI50
        PLICHI60
        PLICHI72
        PLICHI80

    Optical Characteristics

        Rated Wattage
        24W36W36W50W60W72W80W

        Lumens
        2640396039605500660079208800

        System Efficacy
        110Lm/W

        Colour Temperature CCT
        5000K (6000K / 4000K / 3000K)

        CRI (Ra)
        >75

        Reported L70
        >50,000 Hours

        Lens Optic Type
        180°

Electrical Characteristics

        Input
        100–277VAC

        Frequency
        50 / 60Hz

        Power Factor
        >0.95

        Total Harmonic Distortion
        N/A

Environment

        IP Rating
        IP66

        Impact Rating
        IK10

        Operating Temperature
        -40°C to 55°C

Product Material and Mounting
Option 1Ceiling Mount A/B
Option 2Wall Mount A/B
Option 3Pendant Pole Mount
Option 4Pendant Chain Mount
Option 5Beam Clamp Mount
Option 6Pole Mount

        Product Material
        Aluminium Housing

        Lens / Optics Material
        Clear Lens or Diffused Lens

Dimensions and Weights

        Product Dimensions
        385 × 126 × 88
        685 × 126 × 88
        1285 × 126 × 88

        Product Weight
        2.8KG
        4.5KG
        7.5KG

        Gross Weight
        4.0KG
        6.0KG
        9.7KG

Warranty and Certifications

        Warranty
        5 Year Warranty

        Certifications
        IECEx / CE / RoHS

        Classification
        Zone 1 & 21 / Zone 2 & 22

        Rating

          IECEx/Gas: II 2 G Ex eb mb op is IIC T5 / T6 Gb

          IECEx/Dust: II 2 D Ex op is tb IIIC T80°C Db

Model	PLICHI24	PLICHI36	PLICHI36	PLICHI50	PLICHI60	PLICHI72	PLICHI80
Optical Characteristics
Rated Wattage	24W	36W	36W	50W	60W	72W	80W
Lumens	2640	3960	3960	5500	6600	7920	8800
System Efficacy	110Lm/W
Colour Temperature CCT	5000K (6000K / 4000K / 3000K)
CRI (Ra)	>75
Reported L70	>50,000 Hours
Lens Optic Type	180°
Electrical Characteristics
Input	100–277VAC
Frequency	50 / 60Hz
Power Factor	>0.95
Total Harmonic Distortion	N/A
Environment
IP Rating	IP66
Impact Rating	IK10
Operating Temperature	-40°C to 55°C
Product Material and Mounting
Option 1	Ceiling Mount A/B
Option 2	Wall Mount A/B
Option 3	Pendant Pole Mount
Option 4	Pendant Chain Mount
Option 5	Beam Clamp Mount
Option 6	Pole Mount
Product Material	Aluminium Housing
Lens / Optics Material	Clear Lens or Diffused Lens
Dimensions and Weights
Product Dimensions	385 × 126 × 88	685 × 126 × 88	1285 × 126 × 88
Product Weight	2.8KG	4.5KG	7.5KG
Gross Weight	4.0KG	6.0KG	9.7KG
Warranty and Certifications
Warranty	5 Year Warranty
Certifications	IECEx / CE / RoHS
Classification	Zone 1 & 21 / Zone 2 & 22
Rating	IECEx/Gas: II 2 G Ex eb mb op is IIC T5 / T6 Gb IECEx/Dust: II 2 D Ex op is tb IIIC T80°C Db
