SCOUT – WALL PACK LIGHTS
Features

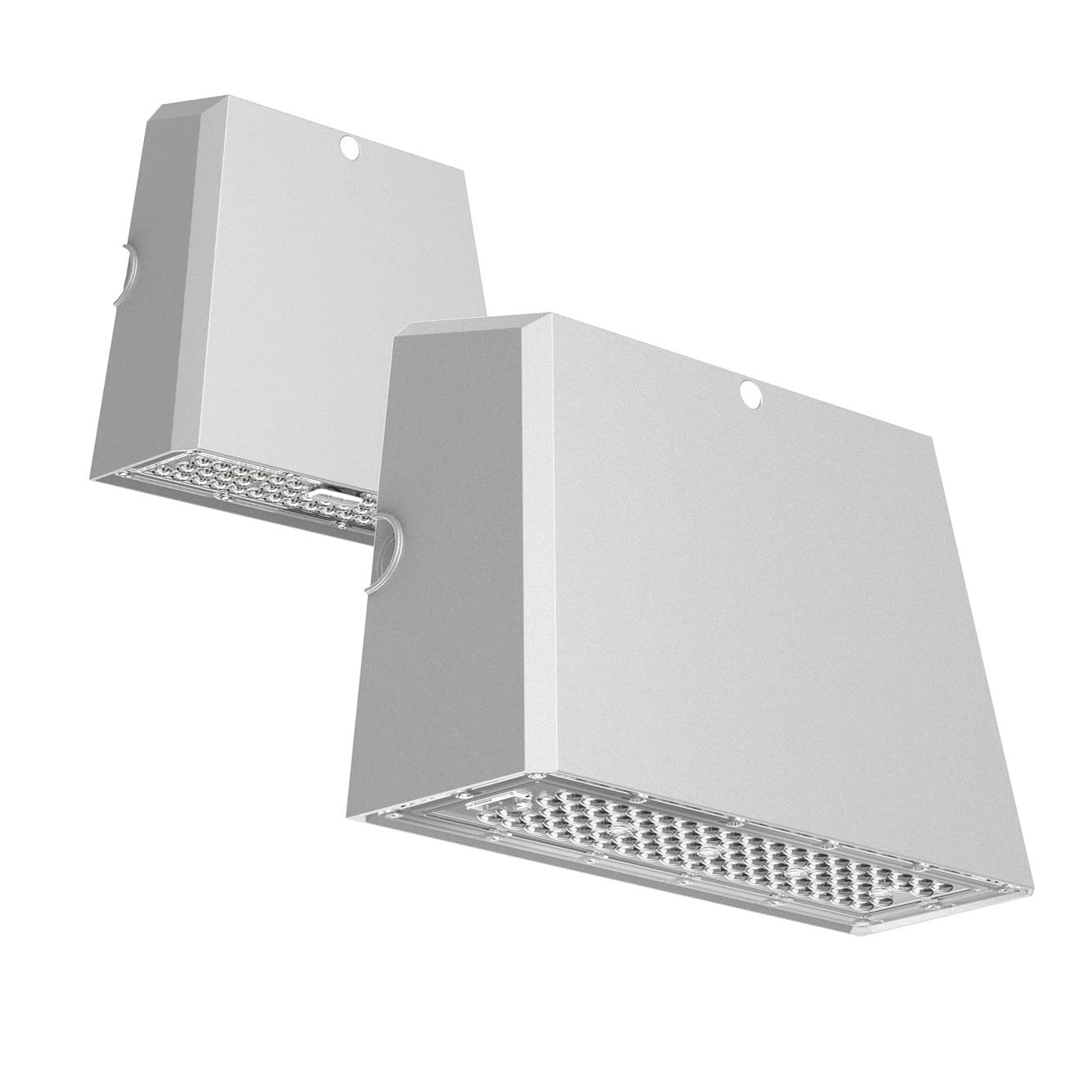

The Scout is a low profile and light weight LED Wall Pack luminaire which is designed for long life usage with minimal maintenance and great performance. It features a gray cast aluminum coating and has a high lumen output which makes it perfect for Security, Pathway and Perimeter lighting applications by brightening doorways and pedestrian walkways.
Typical Applications
Security
Pathway Lighting
Perimeter Lighting
Building Facades
Specifications
| Model | PLISCT10 | PLISCT20 | PLISCT30 | PLISCT40 | PLISCT70 |
|---|---|---|---|---|---|
| Optical Characteristics | |||||
| Rated Wattage | 10W | 20W | 30W | 40W | 70W |
| Lumens | 1250 | 2500 | 3750 | 5000 | 8750 |
| System Efficacy | 125Lm/W | ||||
| Colour Temperature | 5000K (4000K) | ||||
| CRI (Ra) | >70 | ||||
| Reported L70 | >50,000 Hours | ||||
| Lens Optic Type | 30° × 150° | 45° × 150° | |||
| Electrical Characteristics | |||||
| Input | 100–240VAC | ||||
| Frequency | 50Hz | ||||
| Power Factor | <0.90 | ||||
| Total Harmonic Distortion | 10% | ||||
| Environment | |||||
| IP Rating | IP66 | ||||
| Impact Rating | IK08 | ||||
| Operating Temperature | -30°C to 45°C | ||||
| Product Material and Mounting | |||||
| Option 1 | Surface Mount | ||||
| Product Material | Aluminum | ||||
| Lens / Optics Material | PC Lens | ||||
| Dimensions and Weights | |||||
| Product Dimensions | 196 × 96 × 186 | 282 × 125 × 205 | |||
| Product Weight | 3.3KG | 6.5KG | |||
| Packaging Dimensions | 505 × 395 × 230 (Ctn 6) | 330 × 155 × 235 (Ctn 1) | |||
| Gross Weight | 19.8KG | 7.0KG | |||
| Warranty and Certifications | |||||
| Warranty | 5 Year Warranty | ||||
| Certifications | CE / ROHS | ||||
