SOLARNATOR – SOLAR LED
Features

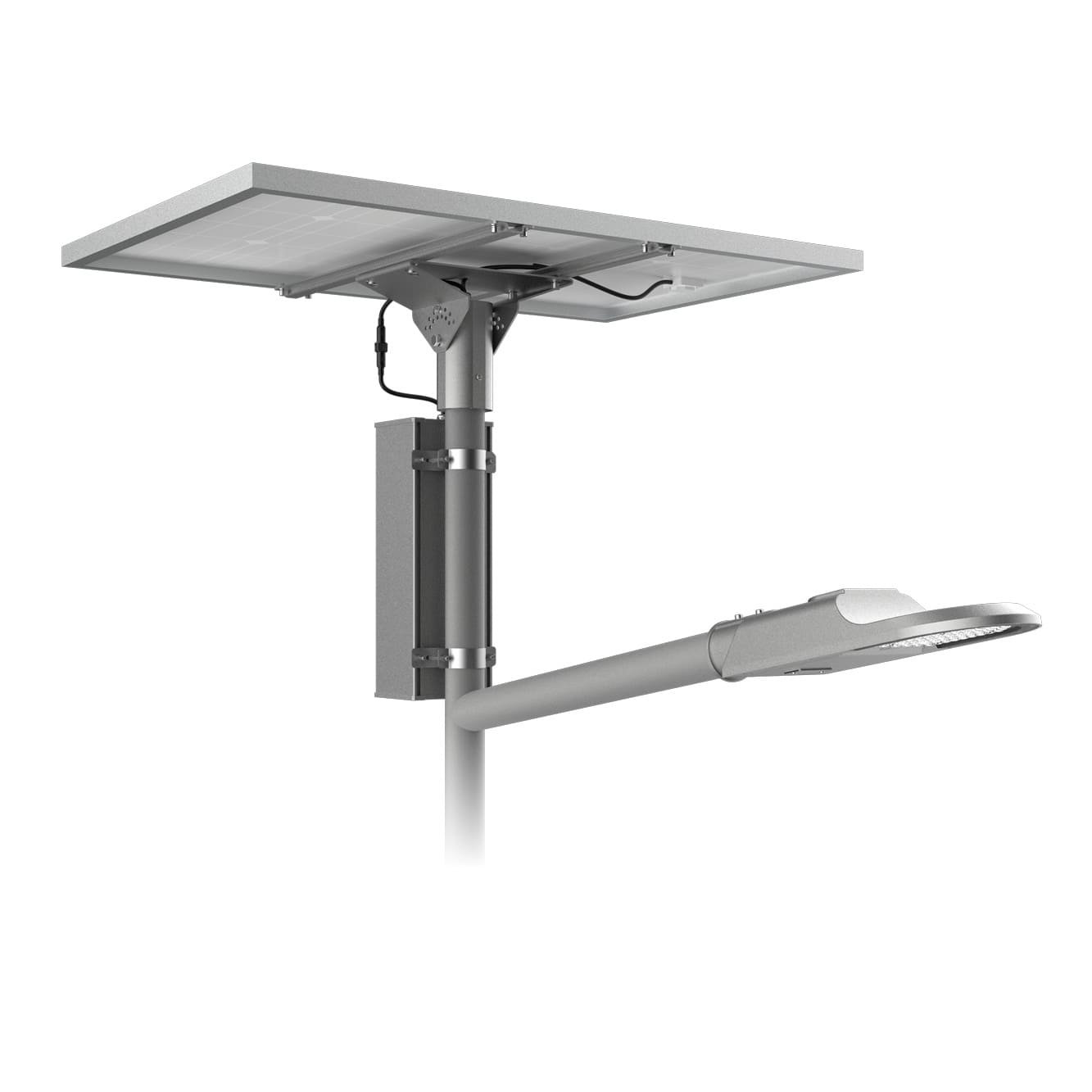

The Galactic Plus is a die-cast aluminum all in one solar light. It features an anti-UV polycarbonate lens with precision individual optics for uniform illumination and is designed for industrial applications that may have limited access to electrical supply. The PIR/microwave motion sensor and smart lighting controller are built in for remote monitoring, fault tracking and precise positioning, and an automatic fault alarm via a smart cloud platform to access on your mobile device or computer.
Typical Applications
Urban and Rural Roads,
Highways
Water Dikes
Bridges, Parks
Industrial Areas
City Squares
Residential Areas
Specifications
| Model | PLISOL20 | PLISOL30 |
|---|---|---|
| Optical Characteristics | ||
| Rated Wattage | 20W | 30W |
| Lumens | 3000 | 4500 |
| System Efficacy | 150Lm/W | |
| Colour Temperature CCT | 6500K / 4000K / 3000K | |
| CRI (Ra) | >70 (>80 Optional) | |
| Reported L70 | >50,000 Hours (Ta=30°C, L70) | |
| Lens Optic Type | Type II | |
| Solar Characteristics | ||
| Solar Panel | 50W | 90W |
| Photovoltaic Panel | Monocrystalline Photovoltaic Panel | |
| LiFePO4 Battery | 25AH / 160WH | 36AH / 230WH |
| Charging Time | 6–7 Hours | |
| Run Time (Full Power) | 12 Hours | |
| Maximum Autonomy | 7 Rainy Days | |
| Environment | ||
| IP Rating | IP66 | |
| Impact Rating | IK08 | |
| Operating Temperature | -20°C to 50°C | |
| Product Material and Mounting | ||

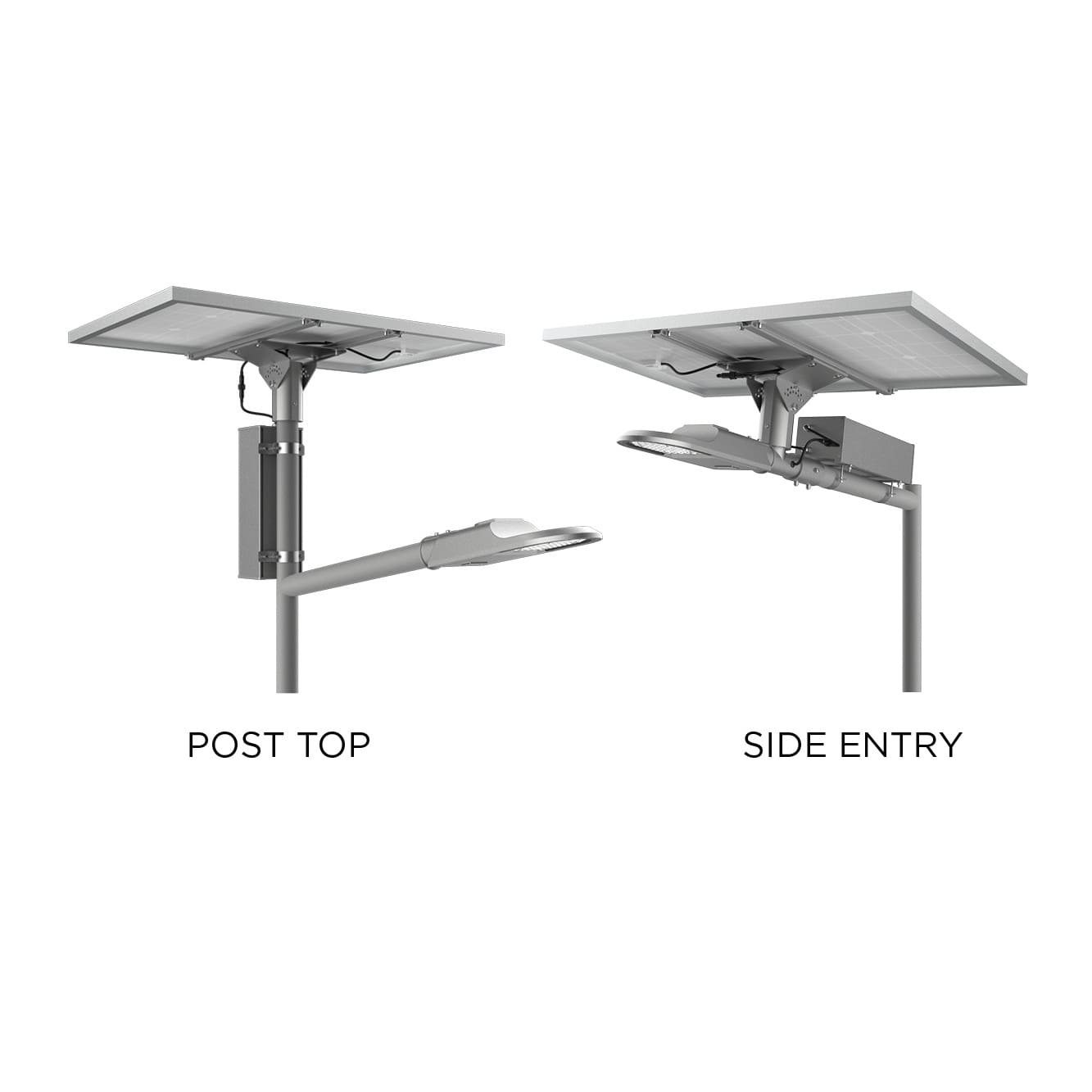

| Option 1 | Side Entry (60MM Spigot + Bracket) | |
| Option 2 | Post Top (60MM Spigot + Bracket) | |
| Product Material | Aluminium Alloy | |
| Lens / Optics Material | Polycarbonate Lens | |
| Dimensions and Weights | ||
| Product Dimensions | Refer to dimensions below | |
| Product Weight | 16.0KG | 20.6KG |
| Gross Weight | 19.8KG | 24.9KG |
| Warranty & Certifications | ||
| Warranty | 5 Year Warranty | |
| Certifications | CE | |
