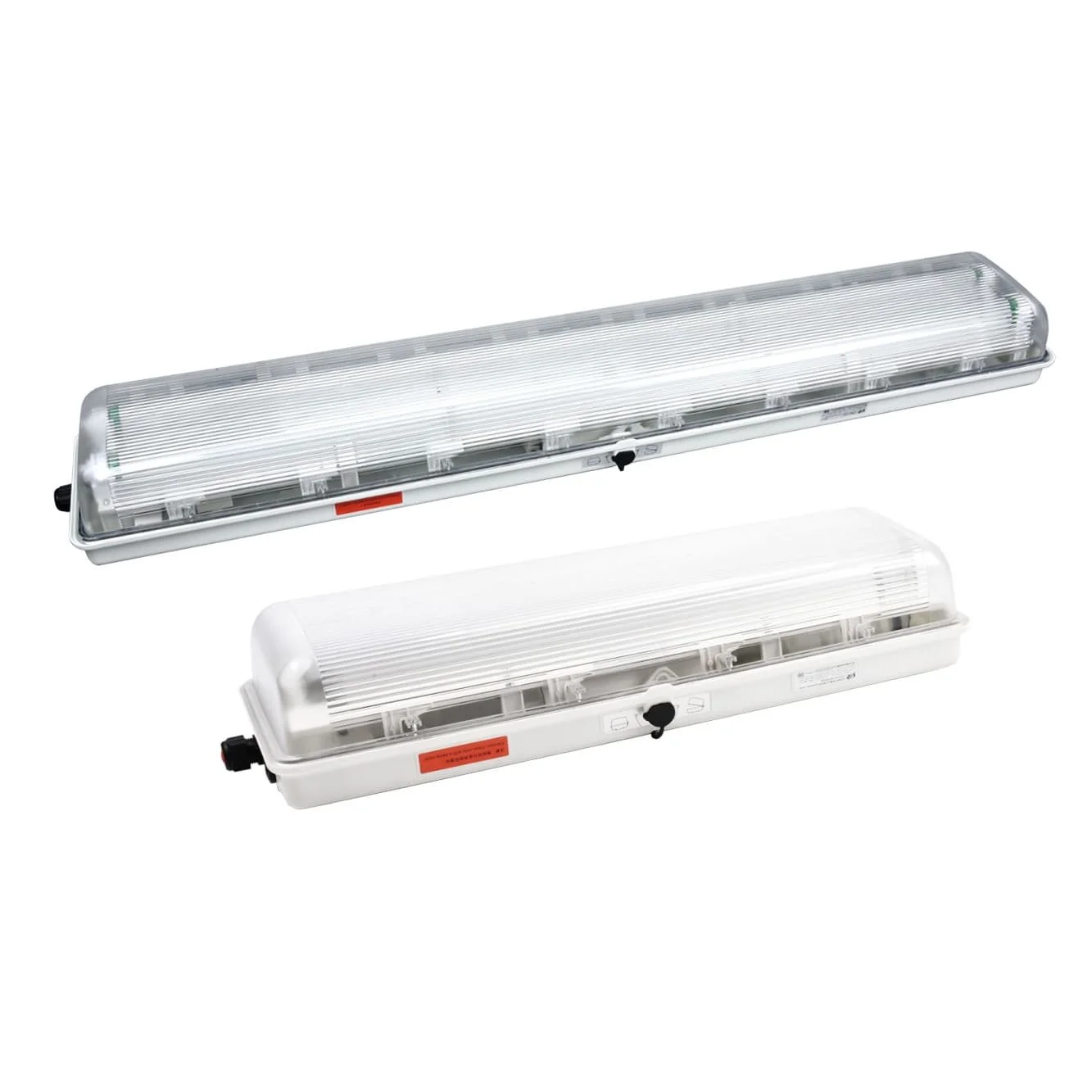

FALCON X – HAZARDOUS AREA
Features

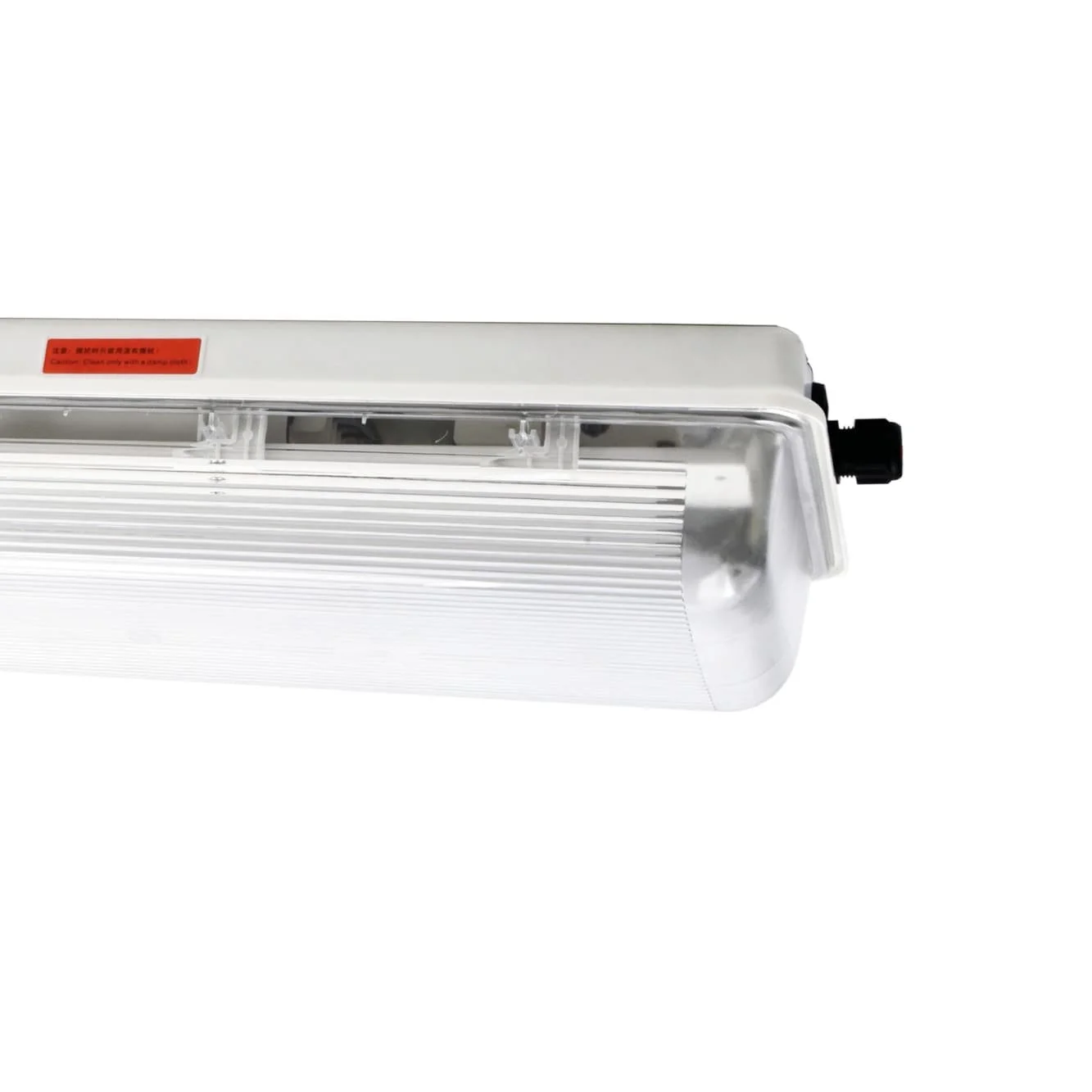

The Falcon X is a corrosion resistant luminaire designed for use in hazardous areas that are subject to flammable liquids, gases, vapors and combustible dusts. It features a corrosion resistant GRP body and polycarbonate diffuser with a central locking device that disconnects the supply when the luminaire is opened.
Typical Applications
Mining
MIA (Mining Infrastructure Area)
Coal
Open Cuts
Metalliferous
Iron Ore
Industrial
Processing Plants
Materials Handling
Lithium Processing
Power Generation
Energy & Utilities
Water & Waste Water
Ports
Wharfs & Waterways
Chemical & Processing
Specifications
| Model | PLIFALX30 | PLIFALX60 |
|---|---|---|
| Optical Characteristics | ||
| Rated Wattage | 30W | 60W |
| Lumens | 3000 | 4800 |
| System Efficacy | 100 lm/W | 80 lm/W |
| Colour Temperature CCT | 5700K | |
| CRI (Ra) | >75 | |
| Reported L70 | >50,000 Hours | |
| Lens Optic Type | PC | |
| Electrical Characteristics | ||
| Input | 100–250V AC | |
| Frequency | 50Hz | |
| Power Factor | >0.95 | |
| Total Harmonic Distortion | 20% | |
| Environment | ||
| IP Rating | IP66 | |
| Impact Rating | IK10 | |
| Operating Temperature | -20°C to 55°C | |
| Product Material and Mounting | ||
| Option 1 | Adjustable Clamp Mount | |
| Option 2 | Chain Mount | |
| Option 3 | Adjustable Bracket | |
| Option 4 | Pipe Mount | |
| Option 5 | Ceiling Mount | |
| Option 6 | Wall Mount | |
| Product Material | Full Plastic Explosion Proof | |
| Lens / Optics Material | PC Diffuser | |
| Dimensions and Weights | ||
| Product Dimensions | 705×225×152 | 1308×225×152 |
| Product Weight | 5.5kg | 9.1kg |
| Packaging Dimensions | 748×272×195 | 1358×272×195 |
| Gross Weight | 6.1kg | 10.0kg |
| Warranty and Certifications | ||
| Warranty | 18 Month Warranty | |
| Certifications | IECEx | |
| Classifications | Zone 1 & 21 / Zone 2 & 22 | |
| Rating |
IECEx / Gas: Ex db eb mb op is q IIC T6/T5 Gb IECEx / Dust: Ex tb IIIC T80°C/T85°C Db ATEX / Gas: II 2G Ex db eb mb op is q IIC T6/T5 Gb |
|
