PHOENIX PLUS – HIGH-POWER FLOODLIGHTS

28 Mar

Features

The Phoenix Plus is a sleek and reliable compact floodlight with an efficiency of up to 135Lm/W. An excellent temperature range of -30°C to +50°C makes the Phoenix Plus a lighting solution suitable for a wide range of Industrial and Mining applications.

Typical Applications

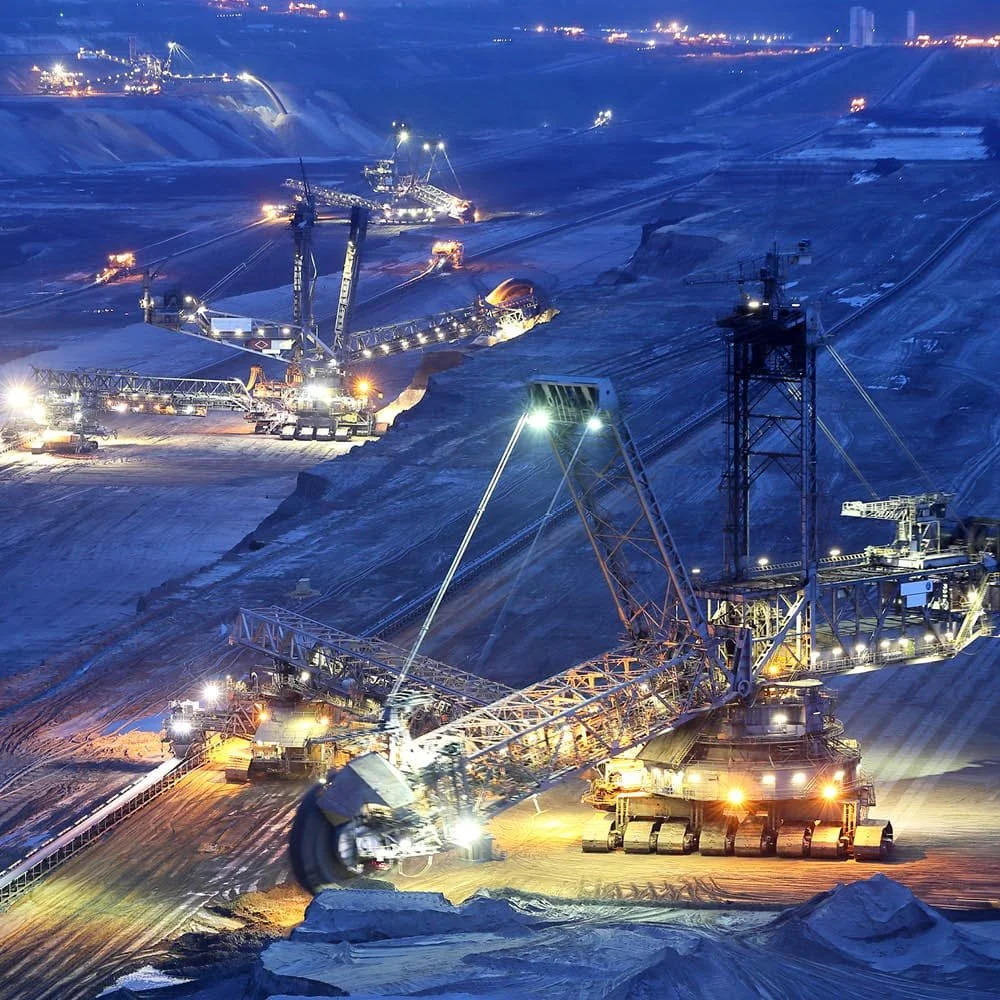

Mining
MIA (Mining Infrastructure Area)
Coal
Open Cuts
Metalliferous
Iron Ore
Industrial
Processing Plants
Materials Handling
Lithium Processing
Power Generation
Energy & Utilities
Water & Waste Water
Ports, Wharfs & Waterways
Chemical & Processing
Ports & Wharves
Airports
Car Parks
General Area Lighting
Container Terminals

Specifications



        Model
        PLIPHX50
        PLIPHX100
        PLIPHX150
        PLIPHX200
        PLIPHX300


    Optical Characteristics

        Rated Wattage
        50W
        100W
        150W
        200W
        300W


        Lumens
        6750
        13500
        20250
        27000
        40500


        System Efficacy
        135 lm/W


        Colour Temperature
        5000K (4000K / 3000K / 2200K Amber Turtle Friendly)


        CRI (Ra)
        >70


        Reported L70
        >50,000 Hours


        Lens Optic Type
        30° / 60° / 65° × 120° / 65° × 120° FT / 15° / 30° / 60° / 90°

Electrical Characteristics

        Input
        100–240VAC


        Frequency
        50Hz


        Power Factor
        >0.92


        Total Harmonic Distortion
        10%

Environment

        IP Rating
        IP66


        Impact Rating
        IK08


        Operating Temperature
        -30°C to 50°C

Product Material and Mounting

        Option 1
        Trunnion Bracket Mount


        Option 2
        Pole Spigot Adaptor (42mm, 60mm, 76mm)


        Product Material
        Aluminium Alloy


        Lens / Optics Material
        Toughened Glass, PC Lens

Dimensions and Weights

        Product Dimensions
        314×240×63
        418×330×77
        451×330×77
        494×395×87
        567×465×97


        Product Weight
        2.6kg
        3.9kg
        4.5kg
        6.3kg
        9.5kg


        Packaging Dimensions
        364×280×105
        474×368×120
        516×380×130
        568×430×140
        652×510×160


        Gross Weight
        2.9kg
        4.5kg
        5.2kg
        7.2kg
        10.6kg

Warranty and Certifications

        Warranty
        5 Year Warranty


        Certifications
        CE / SAA / RoHS




Model	PLIPHX50	PLIPHX100	PLIPHX150	PLIPHX200	PLIPHX300
Optical Characteristics
Rated Wattage	50W	100W	150W	200W	300W
Lumens	6750	13500	20250	27000	40500
System Efficacy	135 lm/W
Colour Temperature	5000K (4000K / 3000K / 2200K Amber Turtle Friendly)
CRI (Ra)	>70
Reported L70	>50,000 Hours
Lens Optic Type	30° / 60° / 65° × 120° / 65° × 120° FT / 15° / 30° / 60° / 90°
Electrical Characteristics
Input	100–240VAC
Frequency	50Hz
Power Factor	>0.92
Total Harmonic Distortion	10%
Environment
IP Rating	IP66
Impact Rating	IK08
Operating Temperature	-30°C to 50°C
Product Material and Mounting
Option 1	Trunnion Bracket Mount
Option 2	Pole Spigot Adaptor (42mm, 60mm, 76mm)
Product Material	Aluminium Alloy
Lens / Optics Material	Toughened Glass, PC Lens
Dimensions and Weights
Product Dimensions	314×240×63	418×330×77	451×330×77	494×395×87	567×465×97
Product Weight	2.6kg	3.9kg	4.5kg	6.3kg	9.5kg
Packaging Dimensions	364×280×105	474×368×120	516×380×130	568×430×140	652×510×160
Gross Weight	2.9kg	4.5kg	5.2kg	7.2kg	10.6kg
Warranty and Certifications
Warranty	5 Year Warranty
Certifications	CE / SAA / RoHS
