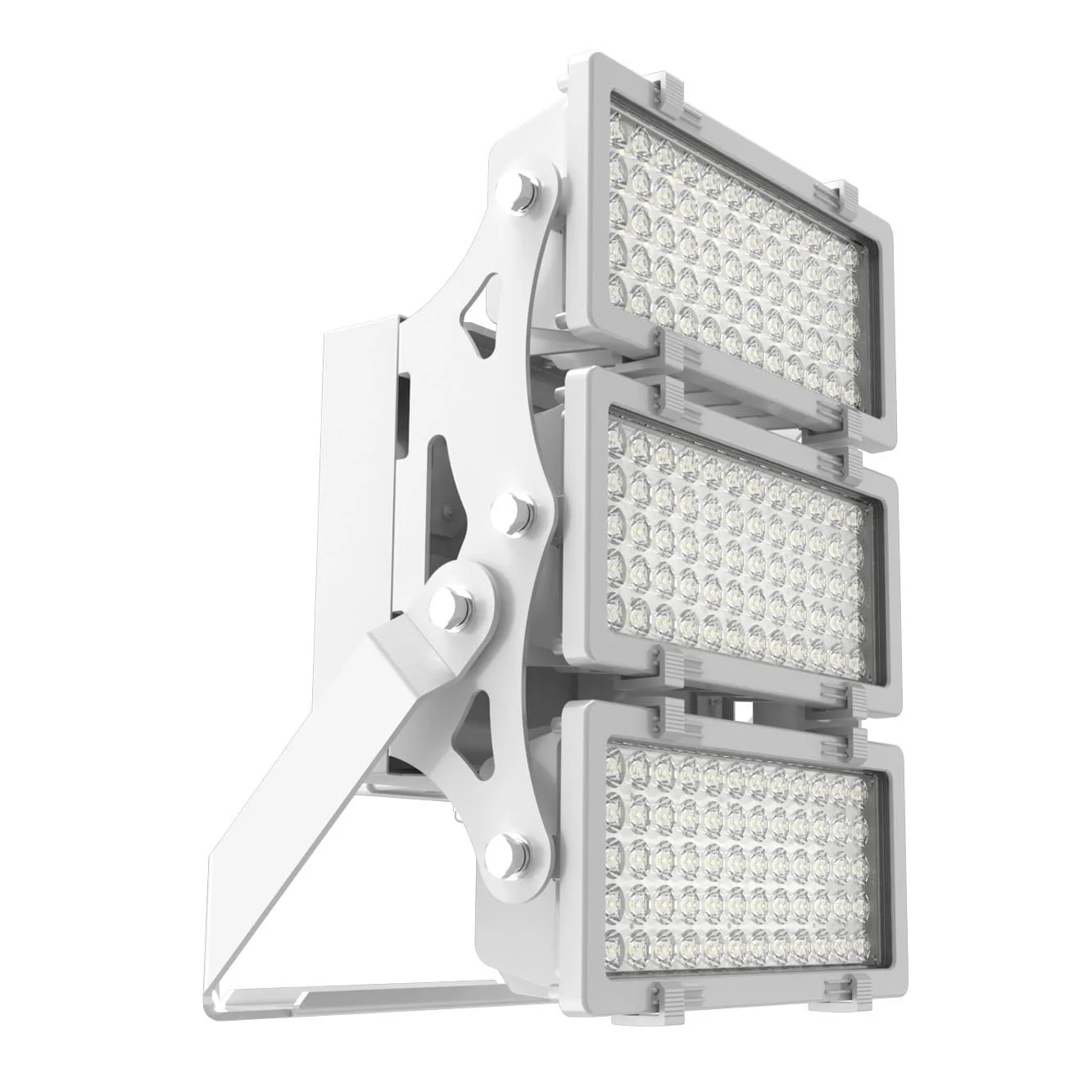

RAIDER SERIES – HIGH-POWER FLOODLIGHTS

28 Mar

Features

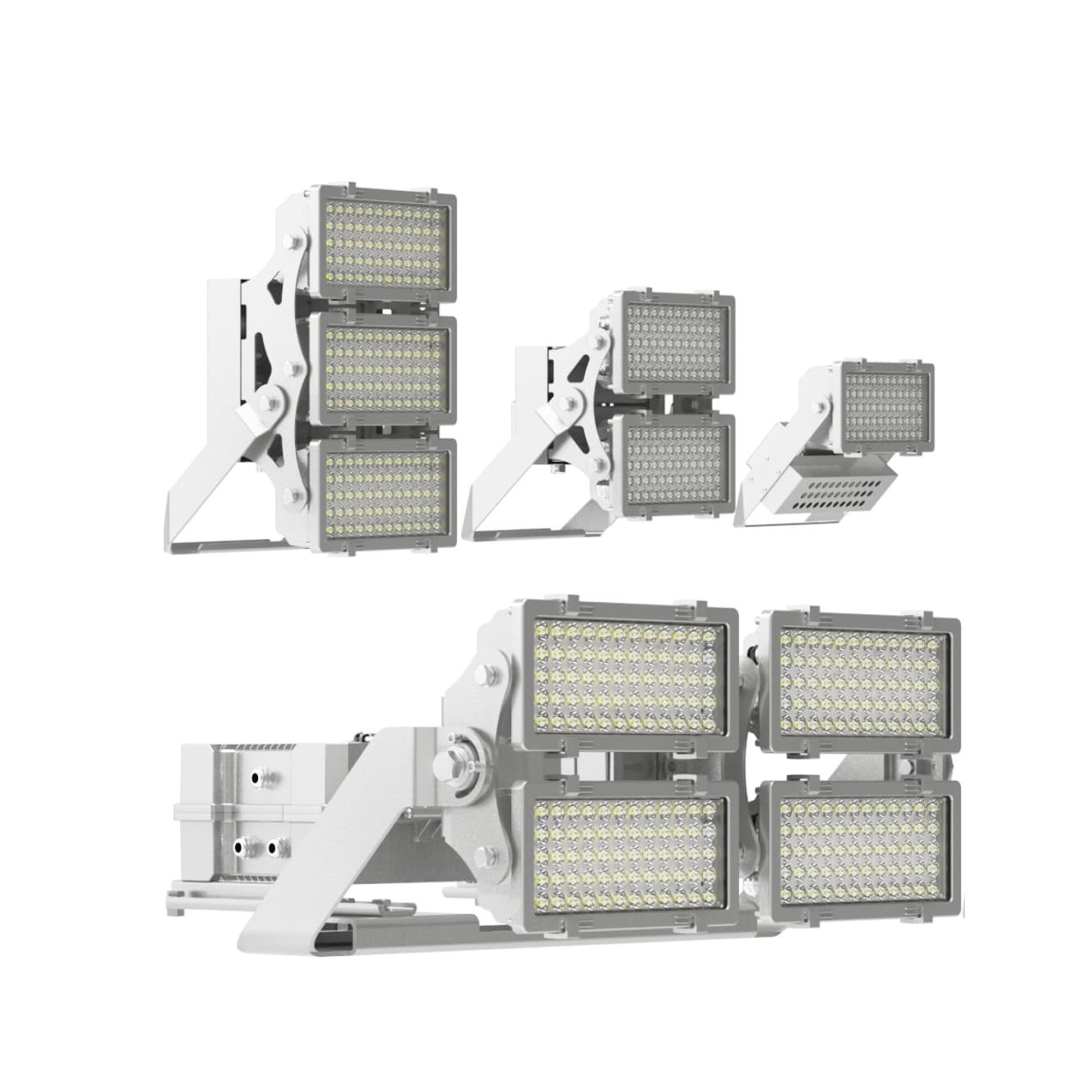

The Raider Series LED floodlight is designed specifically for use in high mounting applications where large volumes of light are required. Featuring a modular design ranging from 200W – 1200W, the Raider offers unlimited adjustability for any large scale lighting application.

Typical Applications

Mining
MIA (Mining Infrastructure Area)
Coal
Open Cuts
Metalliferous
Iron Ore
Industrial
Processing Plants
Materials Handling
Lithium Processing
Power Generation
Energy & Utilities
Water & Waste Water
Ports, Wharfs & Waterways
Chemical & Processing
Ports & Wharves
Airports
Car Parks
General Area Lighting
Container Terminals

Specifications



        Model
        PLIRDR200
        PLIRDR400
        PLIRDR600
        PLIRDR800
        PLIRDR1200


    Optical Characteristics

        Rated Wattage
        200W
        400W
        600W
        800W
        1200W


        Lumens
        27000
        54000
        81000
        108000
        162000


        System Efficacy
        135 lm/W


        Colour Temperature
        5000K (4000K / 3000K)


        CRI (Ra)
        >70


        Reported L70
        >50,000 Hours


        Lens Optic Type
        10° / 15° / 15° × 40° / 30° / 45° / 60°

Electrical Characteristics

        Input
        100–240VAC


        Frequency
        50Hz


        Power Factor
        >0.92


        Total Harmonic Distortion
        10%

Environment

        IP Rating
        IP65


        Impact Rating
        IK08


        Operating Temperature
        -30°C to 40°C

Product Material and Mounting

        Option 1
        Trunnion Mount Bracket


        Product Material
        Aluminium Alloy


        Lens / Optics Material
        PMMA

Dimensions and Weights

        Product Dimensions
        321×316×118
        419×340×222
        529×340×226
        674×385×368
        674×387×473


        Product Weight
        4.1kg
        9.4kg
        15.3kg
        22.0kg
        27.0kg


        Packaging Dimensions
        360×160×375
        478×270×390
        598×280×400
        760×620×300
        760×710×300


        Gross Weight
        4.7kg
        10.6kg
        16.8kg
        26.0kg
        30.0kg

Warranty and Certifications

        Warranty
        5 Year Warranty


        Certifications
        SAA / CE / RoHS




Model	PLIRDR200	PLIRDR400	PLIRDR600	PLIRDR800	PLIRDR1200
Optical Characteristics
Rated Wattage	200W	400W	600W	800W	1200W
Lumens	27000	54000	81000	108000	162000
System Efficacy	135 lm/W
Colour Temperature	5000K (4000K / 3000K)
CRI (Ra)	>70
Reported L70	>50,000 Hours
Lens Optic Type	10° / 15° / 15° × 40° / 30° / 45° / 60°
Electrical Characteristics
Input	100–240VAC
Frequency	50Hz
Power Factor	>0.92
Total Harmonic Distortion	10%
Environment
IP Rating	IP65
Impact Rating	IK08
Operating Temperature	-30°C to 40°C
Product Material and Mounting
Option 1	Trunnion Mount Bracket
Product Material	Aluminium Alloy
Lens / Optics Material	PMMA
Dimensions and Weights
Product Dimensions	321×316×118	419×340×222	529×340×226	674×385×368	674×387×473
Product Weight	4.1kg	9.4kg	15.3kg	22.0kg	27.0kg
Packaging Dimensions	360×160×375	478×270×390	598×280×400	760×620×300	760×710×300
Gross Weight	4.7kg	10.6kg	16.8kg	26.0kg	30.0kg
Warranty and Certifications
Warranty	5 Year Warranty
Certifications	SAA / CE / RoHS
