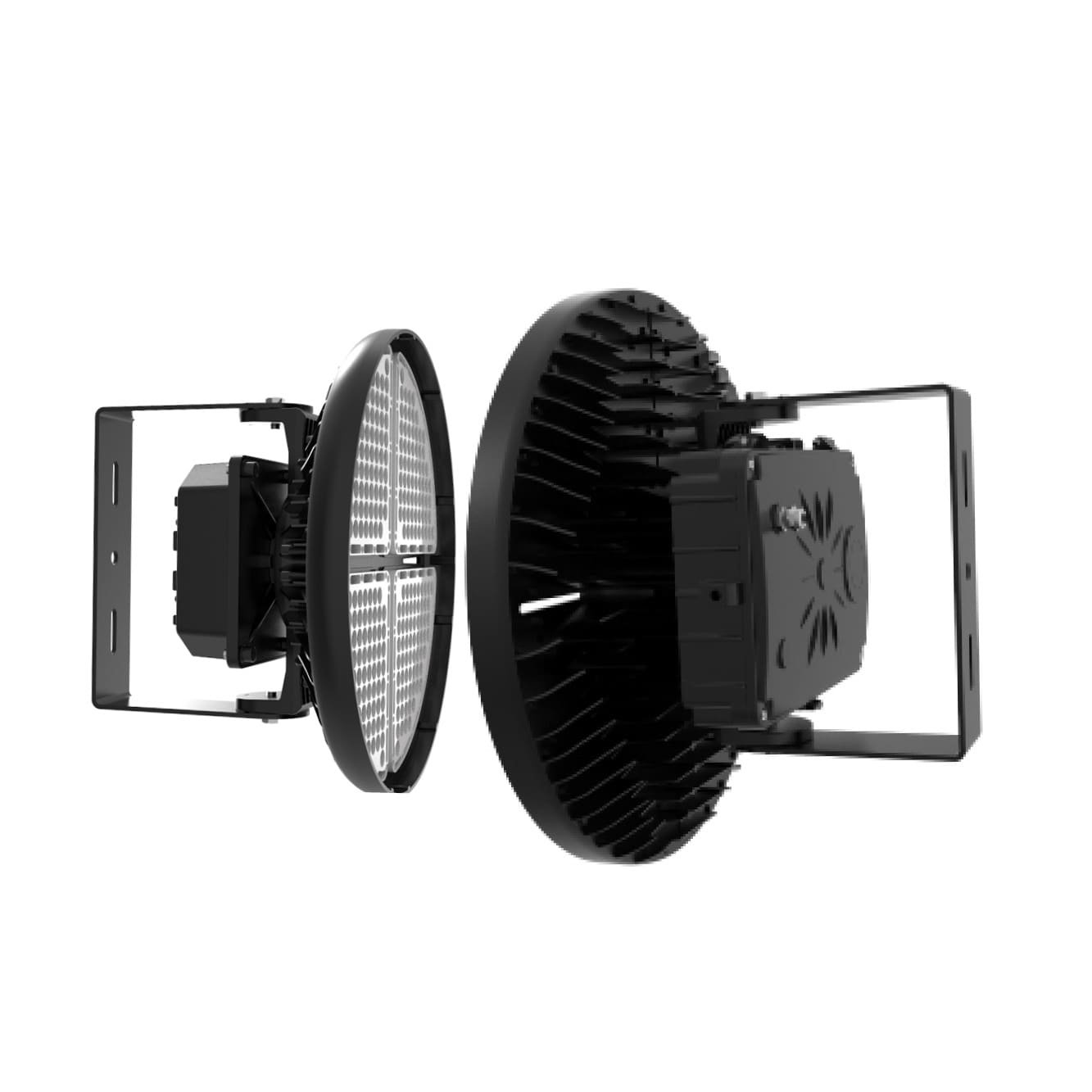

HAWK JNR – HIGH-POWER FLOODLIGHTS
Features
The Hawk Jnr LED floodlight is designed to deliver a superior high output and also features a unique optical design that virtually eliminates glare with minimal impact on performance. It is available in a variety of flood distributions for lighting applications such as Large Area Lighting and Mining applications.
Typical Applications

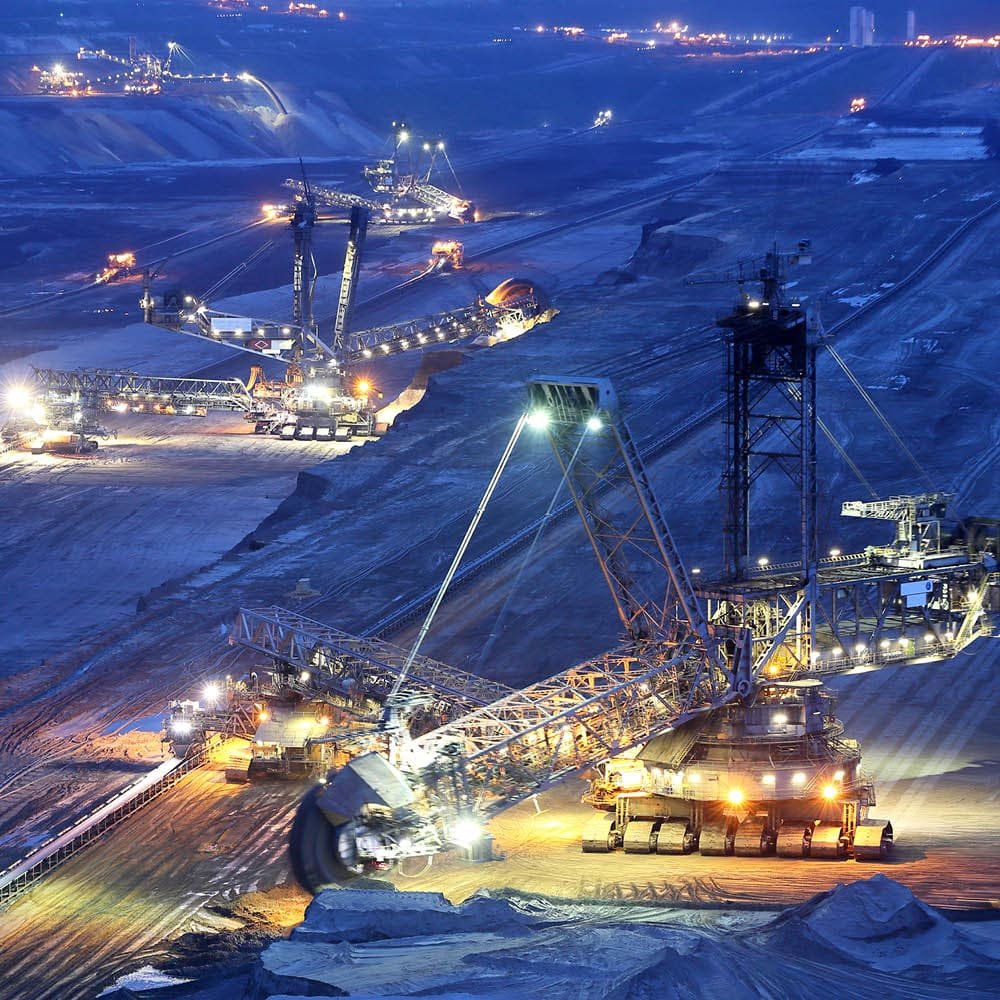

Mining
Mining Infrastructure Area
Coal
Open Cuts
Metalliferous
Iron Ore
Industrial
Processing Plants
Materials Handling
Lithium Processing
Power Generation
Energy & Utilities
Water & Waste Water
Ports
Wharfs & Waterways
Chemical & Processing
Ports & Wharves
Airports
Car Parks
General Area Lighting
Container Terminals
Specifications
| Model | PLIHWKJ315 | PLIHWKJ460 | PLIHWKJ580 | PLIHWKJ720 |
|---|---|---|---|---|
| Optical Characteristics | ||||
| Rated Wattage | 315W | 460W | 580W | 720W |
| Lumens | 51975 | 75900 | 95700 | 118800 |
| System Efficacy | 165 lm/W | |||
| Colour Temperature CCT | 5700K (5000K / 4000K / 3000K) | |||
| CRI (Ra) | >70 (>80 Optional) | |||
| Reported L70 | >50,000 Hours | |||
| Lens Optic Type | 15° / 30° / 60° | |||
| Electrical Characteristics | ||||
| Input | 100–270VAC (200–480V Optional) | |||
| Frequency | 50Hz | |||
| Power Factor | >0.96 | |||
| Total Harmonic Distortion | <20% | |||
| Environment | ||||
| IP Rating | IP66 | |||
| Impact Rating | IK10 | |||
| Operating Temperature | -40°C to 50°C | |||
| Product Material and Mounting | ||||
| Option 1 | Trunnion Mount Bracket | |||
| Option 2 | Rotatable Bracket | |||
| Product Material | Powder-Coated Die Cast Aluminium (Black) | |||
| Lens / Optics Material | Polycarbonate Lens | |||
| Dimensions and Weights | ||||
| Product Dimensions (mm) | 468×468×343 | 550×550×336 | ||
| Product Weight | 14.0kg | 18.0kg | ||
| Packaging Dimensions | 540×540×415 | 620×620×405 | ||
| Gross Weight | 15.9kg | 21.6kg | ||
| Warranty and Certifications | ||||
| Warranty | 5 Year Warranty | |||
| Certifications | CE / RoHS | |||
