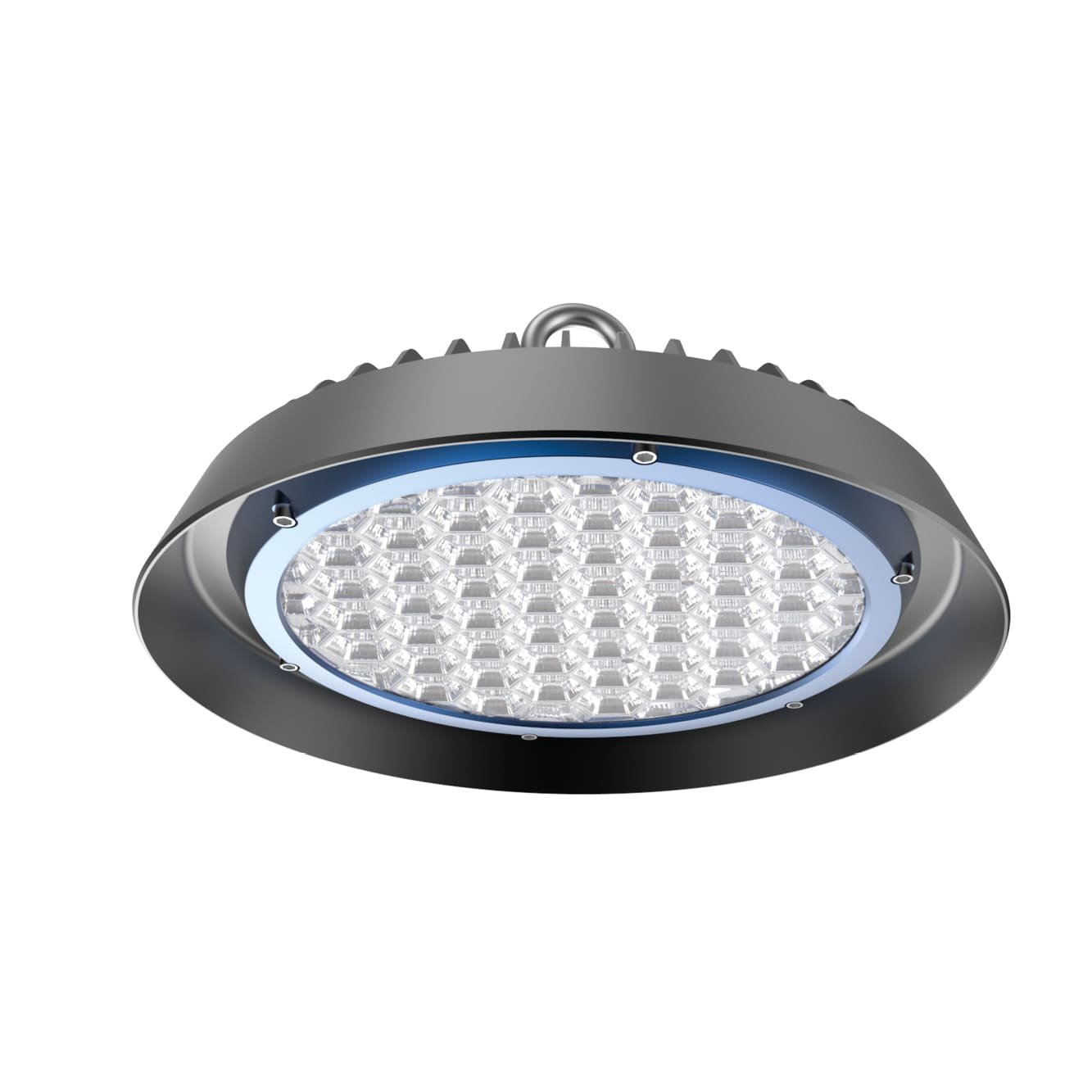

HARRIER PLUS – LED HIGH & LOW BAYS
Features
The Harrier Plus is a robust LED High Bay Floodlight designed for industrial environments. It features marine grade aluminum housing and a polyester powder-coat finish which provides chemical resistance in corrosive environments. It features over-current, over-voltage and temperature protection to protect the driver and LEDs in case the supply voltage fluctuates and where the voltage transients can damage sensitive electronics.
High Voltage Options Available
Typical Applications
Heavy Vehicle Workshops
MIA Infrastructure
Warehouses & Stores
General Workshops
Factories
Heavy Industry
Overhead Cranes
Airports
Specifications
| Model: | PLIHPL100 | PLIHPL150 | PLIHPL200 | PLIHPL240 |
|---|---|---|---|---|
| Optical Characteristics | ||||
| Rated Wattage | 100W | 150W | 200W | 240W |
| Lumens | 16000 | 24000 | 32000 | 38400 |
| System Efficacy | 160Lm/W | |||
| Colour Temperature CCT | 5000K (6000K / 4000K) | |||
| CRI (Ra) | >70 (>80, >90 Optional) | |||
| Reported L70 | >50,000 Hours | |||
| Lens Optic Type | 60° / 90° / 110° | |||
| Electrical Characteristics | ||||
| Input | 100–240VAC | |||
| Frequency | 50Hz | |||
| Power Factor | >0.95 | |||
| Total Harmonic Distortion | <15% | |||
| Environment | ||||
| IP Rating | IP65 | |||
| Impact Rating | IK08 | |||
| Operating Temperature | -30°C to 50°C | |||
| Product Material and Mounting | ||||
| Option 1 | Eyebolt | |||
| Option 2 | Ceiling Mount U Bracket | |||
| Product Material | Aluminum | |||
| Lens / Optics Material | PC Lens | |||
| Dimensions and Weights | ||||
| Product Dimensions | 280×280×180 | 360×360×190 | ||
| Product Weight | 3.08KG | 4.78KG | ||
| Packaging Dimensions | 380×380×280 | 460×460×300 | ||
| Gross Weight | 4.58KG | 6.5KG | ||
| Warranty and Certifications | ||||
| Warranty | 5 Year Warranty | |||
| Certifications | CE / RoHS | |||
