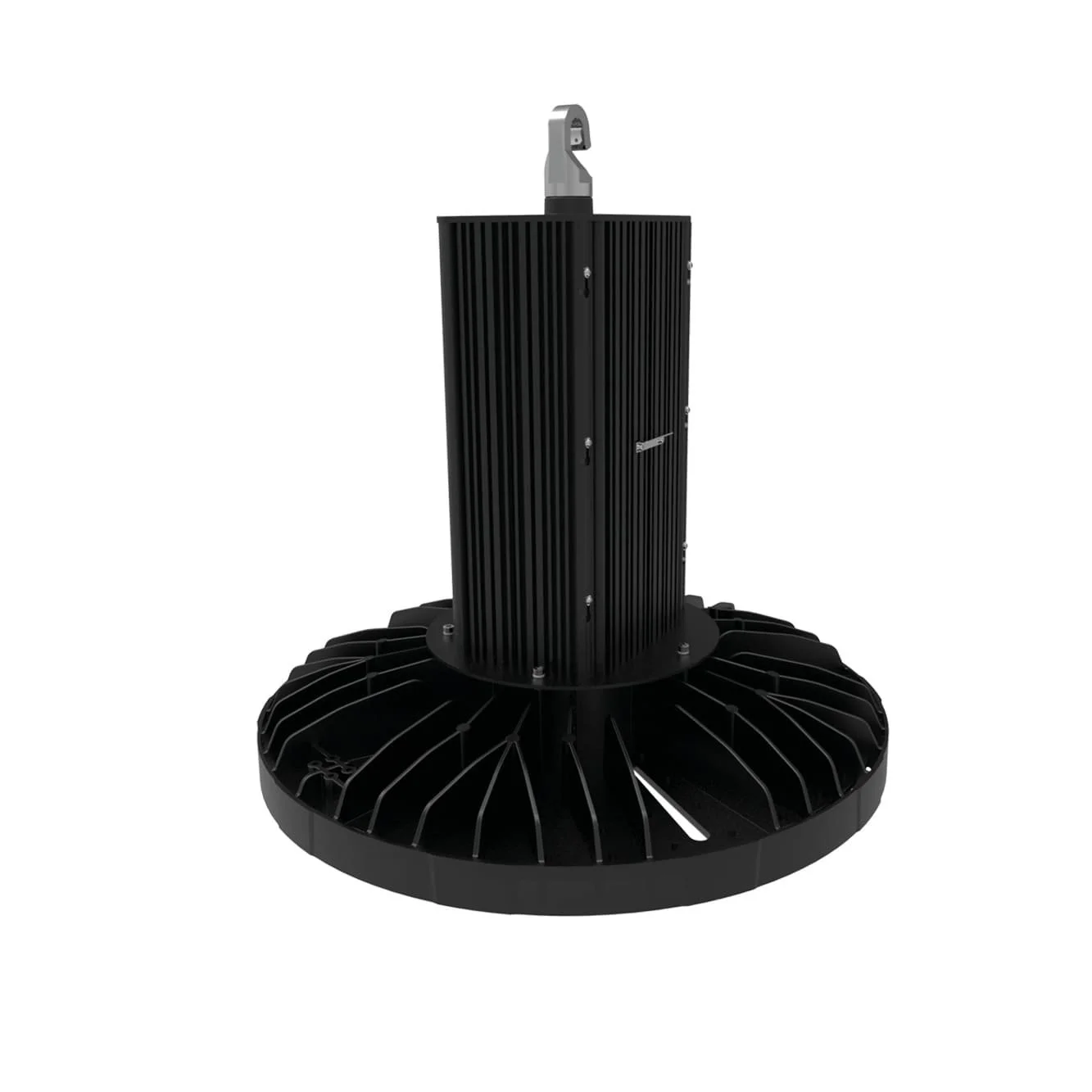

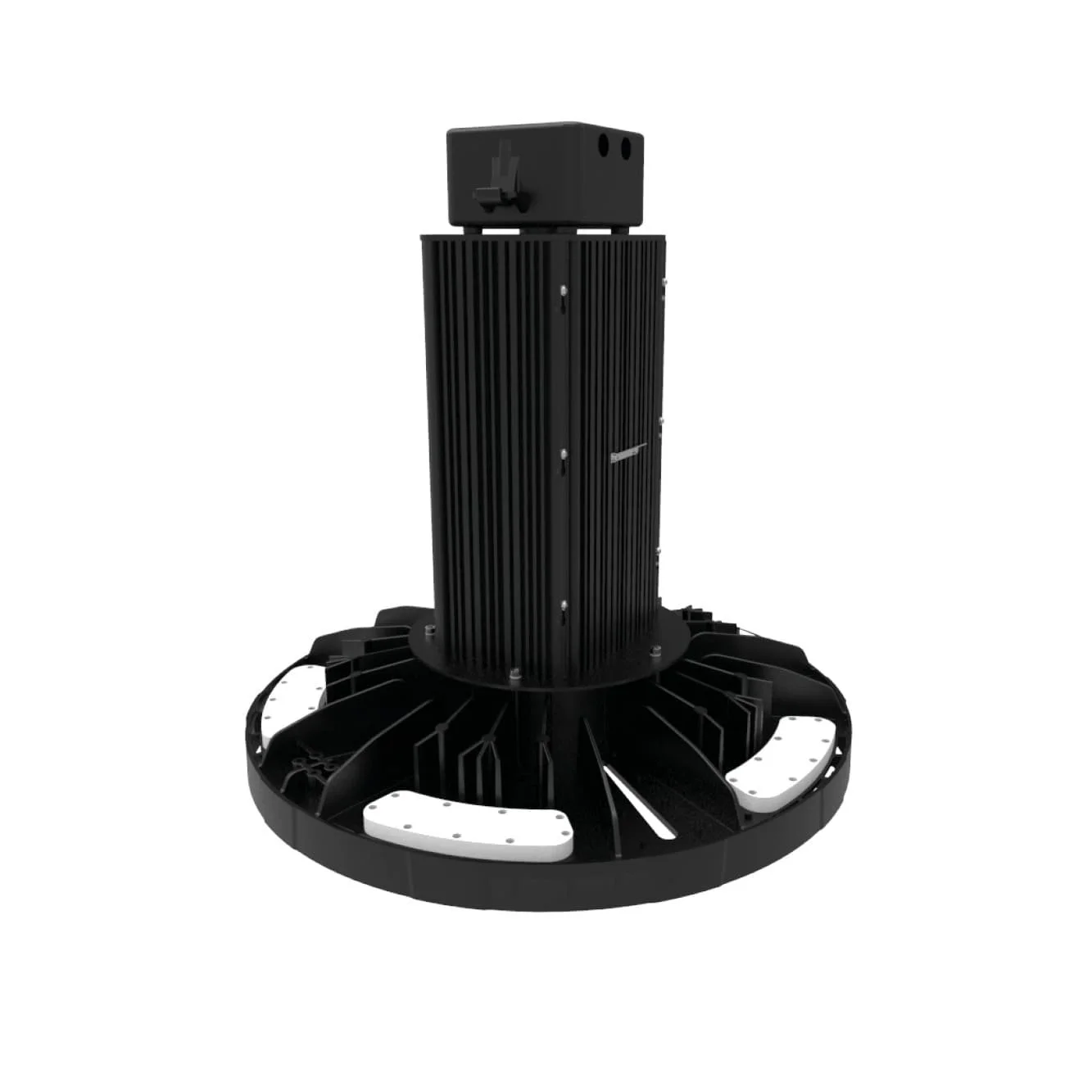

GUARDIAN – LED HIGH & LOW BAYS
Features
The Guardian is a high efficacy LED High Bay Floodlight, specifically designed for Industrial Lighting applications such as Factories, Warehouses and Workshops. It features a unique optical design that virtually eliminates glare with minimal impact on performance.

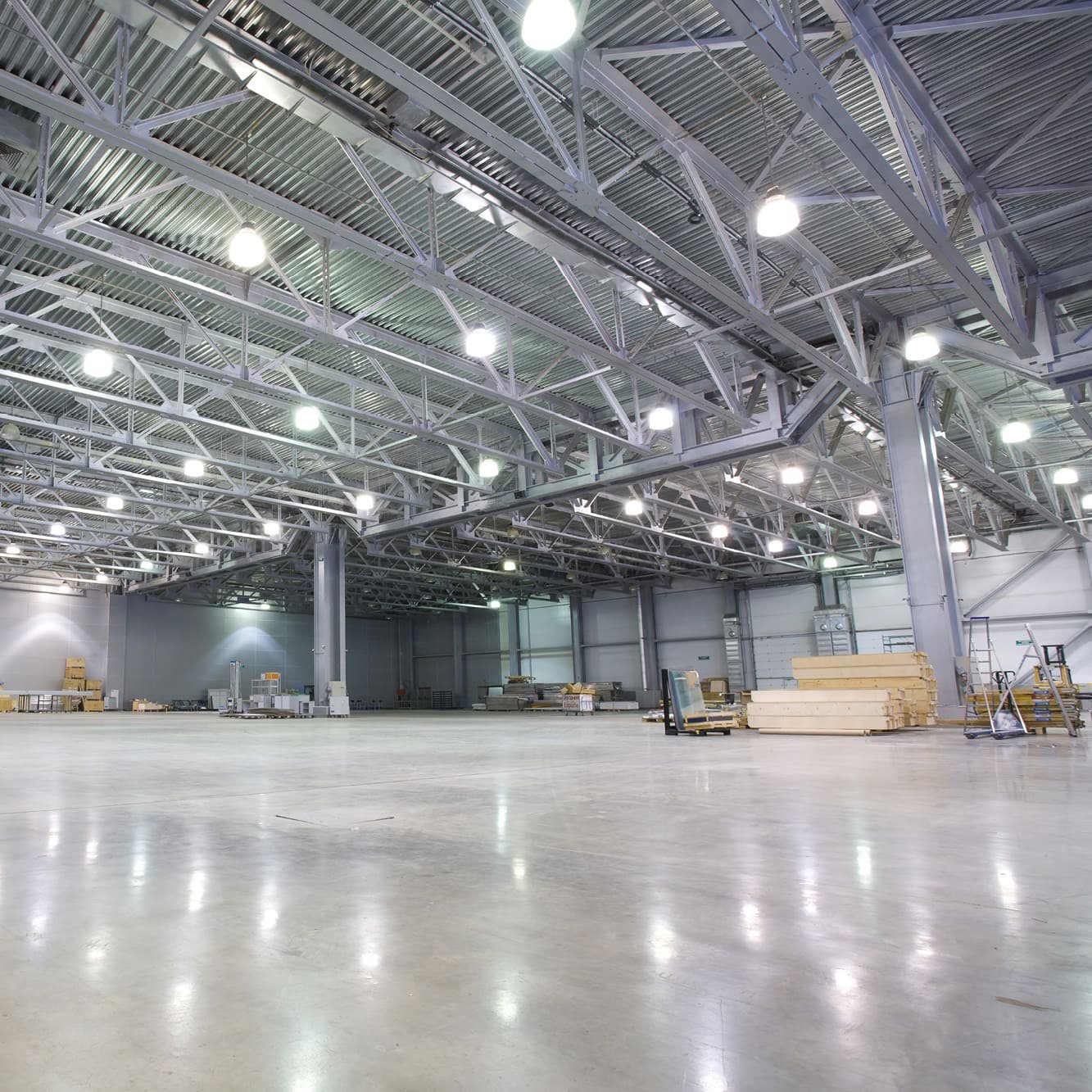

Typical Applications
Heavy Vehicle Workshops
MIA Infrastructure
Warehouses & Stores
General Workshops
Factories
Heavy Industry
Overhead
Cranes
Specifications
| Model: | PLIGRDN300 | PLIGRDN400 | PLIGRDN460 |
|---|---|---|---|
| Optical Characteristics | |||
| Rated Wattage | 300W | 400W | 460W |
| Lumens | 50400 | 64800 | 74060 |
| System Efficacy | 168Lm/W | 162Lm/W | 161Lm/W |
| Colour Temperature CCT | 5700K (5000K / 4000K / 3000K) | ||
| CRI (Ra) | >70 (>80, >90 Optional) | ||
| Reported L70 | >50,000 Hours | ||
| Lens Optic Type | 15° / 30° / 60° / 90° | ||
| Electrical Characteristics | |||
| Input | 100–277VAC (347/480V Optional) | ||
| Frequency | 50Hz | ||
| Power Factor | >0.95 | ||
| Total Harmonic Distortion | <20% | ||
| Environment | |||
| IP Rating | IP65 | ||
| Impact Rating | IK08 | ||
| Operating Temperature | -40°C to 50°C | ||
| Product Material and Mounting | |||
| Option 1 | Eyebolt | ||
| Product Material | Aluminum | ||
| Lens / Optics Material | PC Lens | ||
| Dimensions and Weights | |||
| Product Dimensions | Refer to Dimensions | ||
| Product Weight | 20.0KG | ||
| Packaging Dimensions | 756 × 756 × 340 | ||
| Gross Weight | 22.2KG | ||
| Warranty and Certifications | |||
| Warranty | 5 Year Warranty | ||
| Certifications | SAA / CE / RoHS | ||
