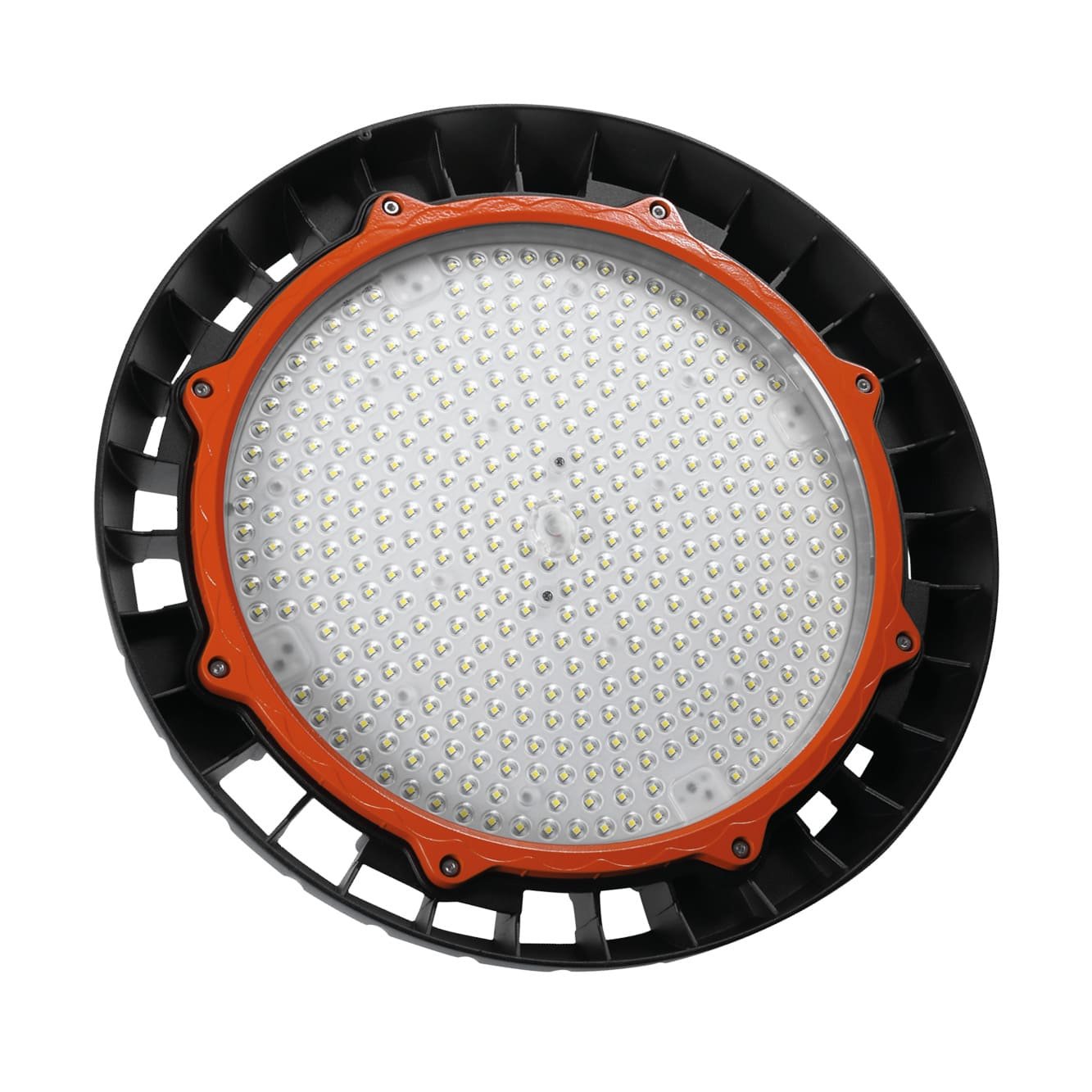

HARRIER EXTREME – LED HIGH & LOW BAYS
Features
The Harrier Extreme is a high efficacy LED High Bay Floodlight designed for Industrial and Indoor Lighting. It features a superior high output and a unique optical design that virtually eliminates glare with minimal impact on performance.
Typical Applications

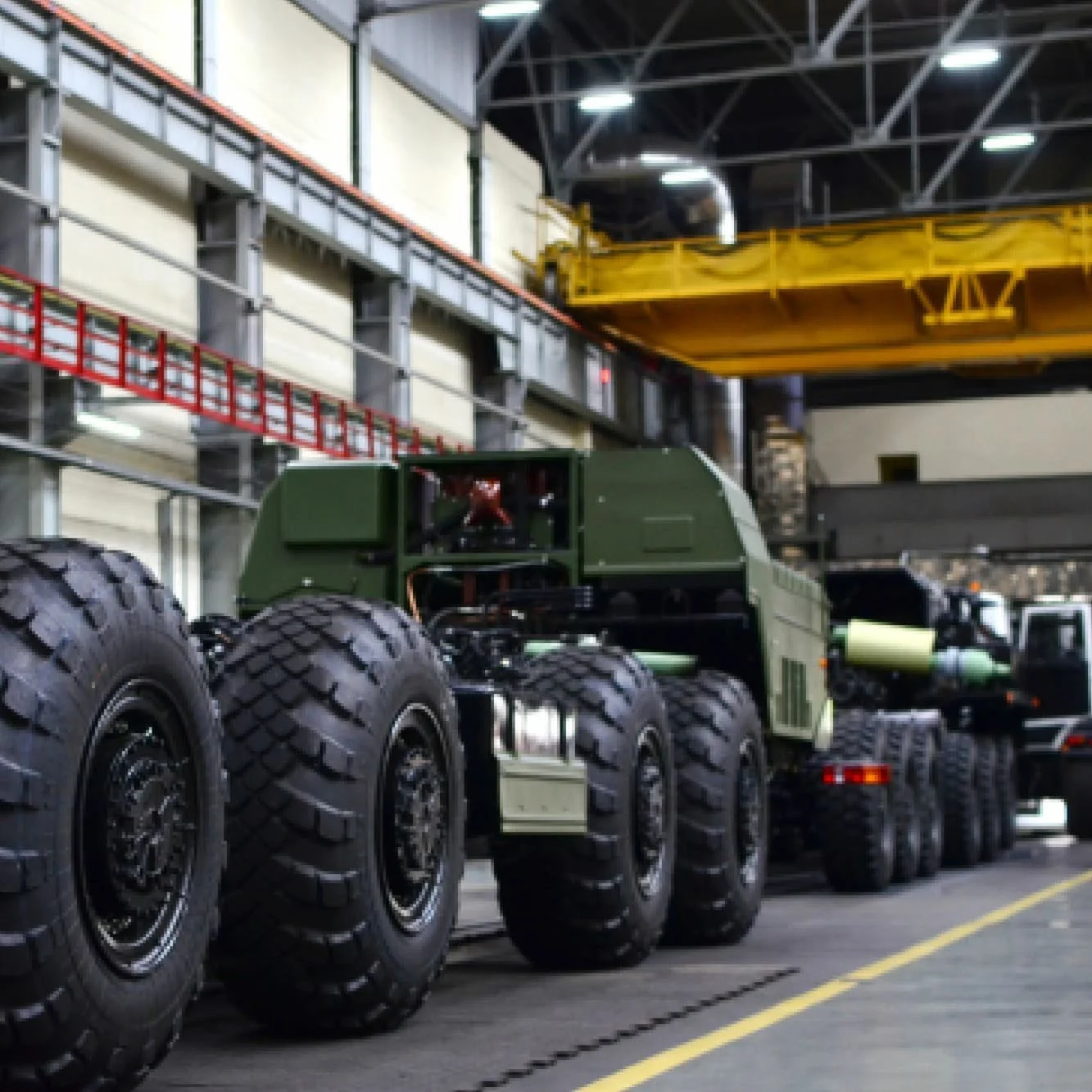

Heavy Vehicle Workshops
MIA Infrastructure
Warehouses & Stores
General Workshops
Factories
Heavy Industry
Overhead
Cranes
Airports
Specifications
| Model: | PLIHEX60 | PLIHEX100 | PLIHEX150 | PLIHEX200 | PLIHEX240 |
|---|---|---|---|---|---|
| Optical Characteristics | |||||
| Rated Wattage | 60W | 100W | 150W | 200W | 240W |
| Lumens | 10020 | 15800 | 24900 | 33200 | 39120 |
| System Efficacy | 167Lm/W | 158Lm/W | 166Lm/W | 166Lm/W | 163Lm/W |
| Colour Temperature CCT | 5000K (5700K / 4000K / 3000K) | ||||
| CRI (Ra) | >70 (>80 Optional) | ||||
| Reported L70 | >50,000 Hours | ||||
| Lens Optic Type | 60° / 90° / 120° | ||||
| Electrical Characteristics | |||||
| Input | 100–277VAC (347/480V Optional) | ||||
| Frequency | 50Hz | ||||
| Power Factor | >0.96 | ||||
| Total Harmonic Distortion | <20% | ||||
| Environment | |||||
| IP Rating | IP40 | IP65 | |||
| Impact Rating | IK08 | ||||
| Operating Temperature | -40°C to 50°C | ||||
| Product Material and Mounting | |||||

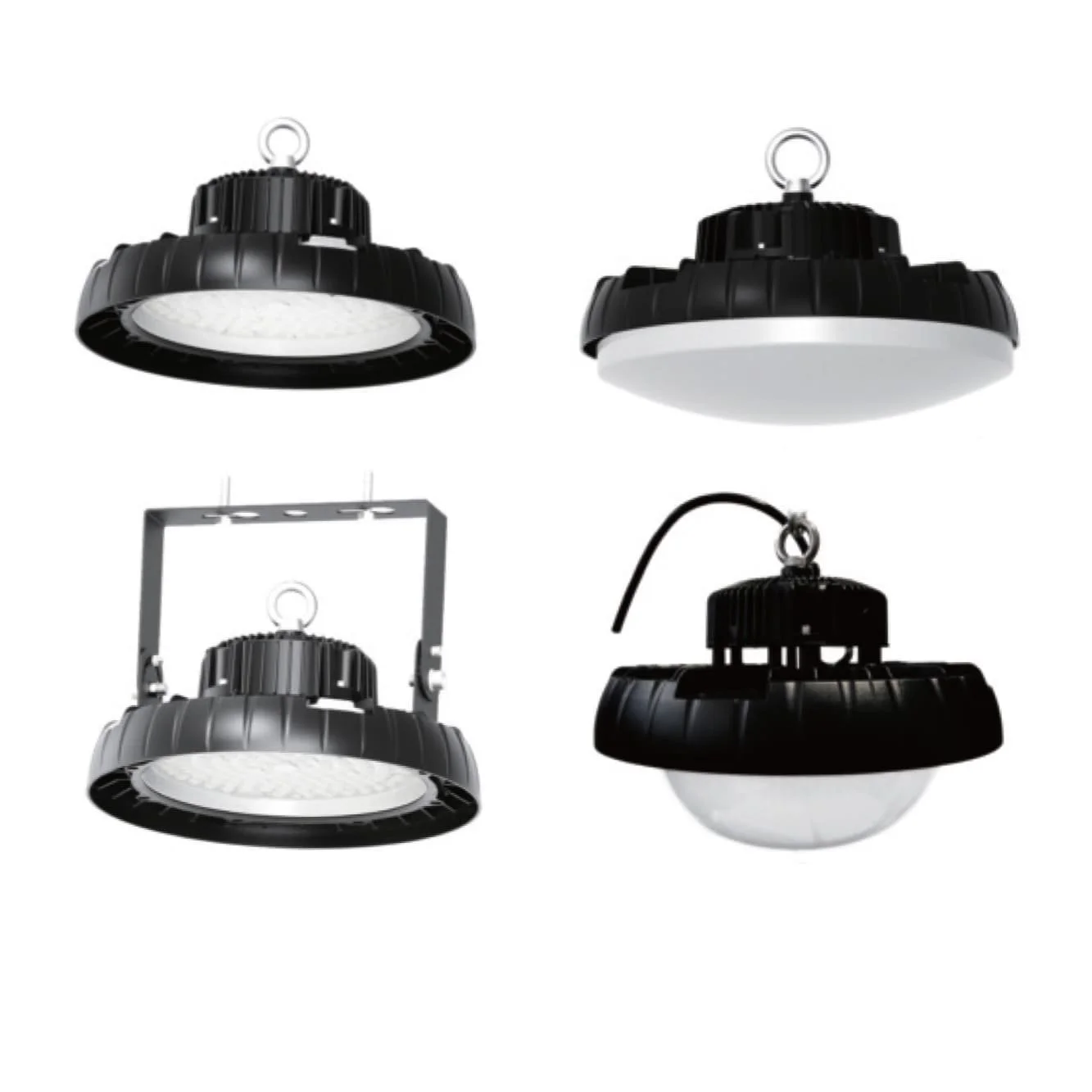

| Option 1 | Eyebolt | ||||
| Option 2 | U Bracket | ||||
| Product Material | Aluminum Housing | ||||
| Lens / Optics Material | Toughened Glass and PC Lens | ||||
| Dimensions and Weights | |||||
| Product Dimensions | Refer to dimensions below | ||||
| Product Weight | 2.9KG | 4.6KG | 6.2KG | ||
| Packaging Dimensions | 400×400×300 | 480×480×310 | 580×580×330 | ||
| Gross Weight | 3.8KG | 6.0KG | 7.2KG | ||
| Warranty and Certifications | |||||
| Warranty | 5 Year Warranty | ||||
| Certifications | SAA / CE / RoHS | ||||
