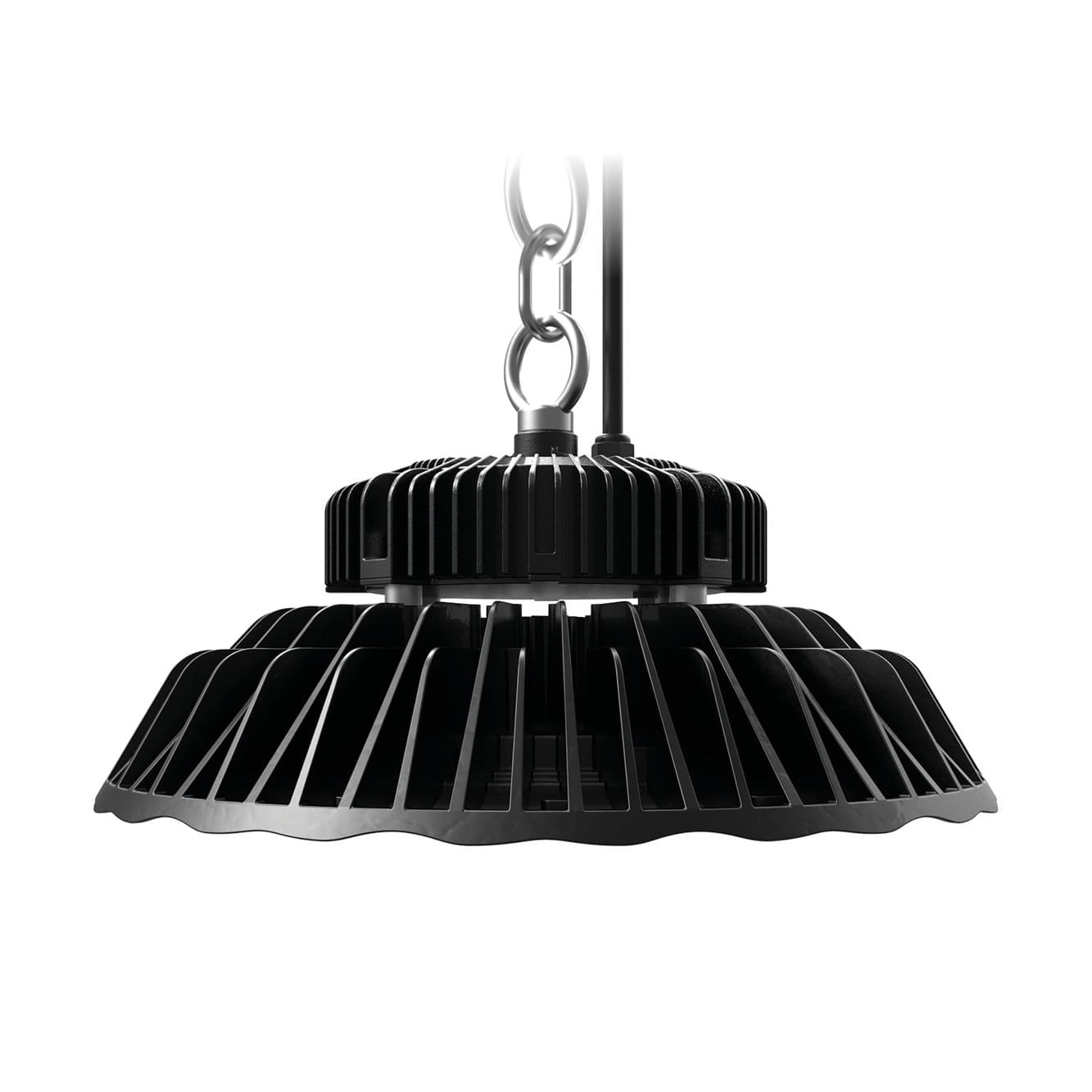

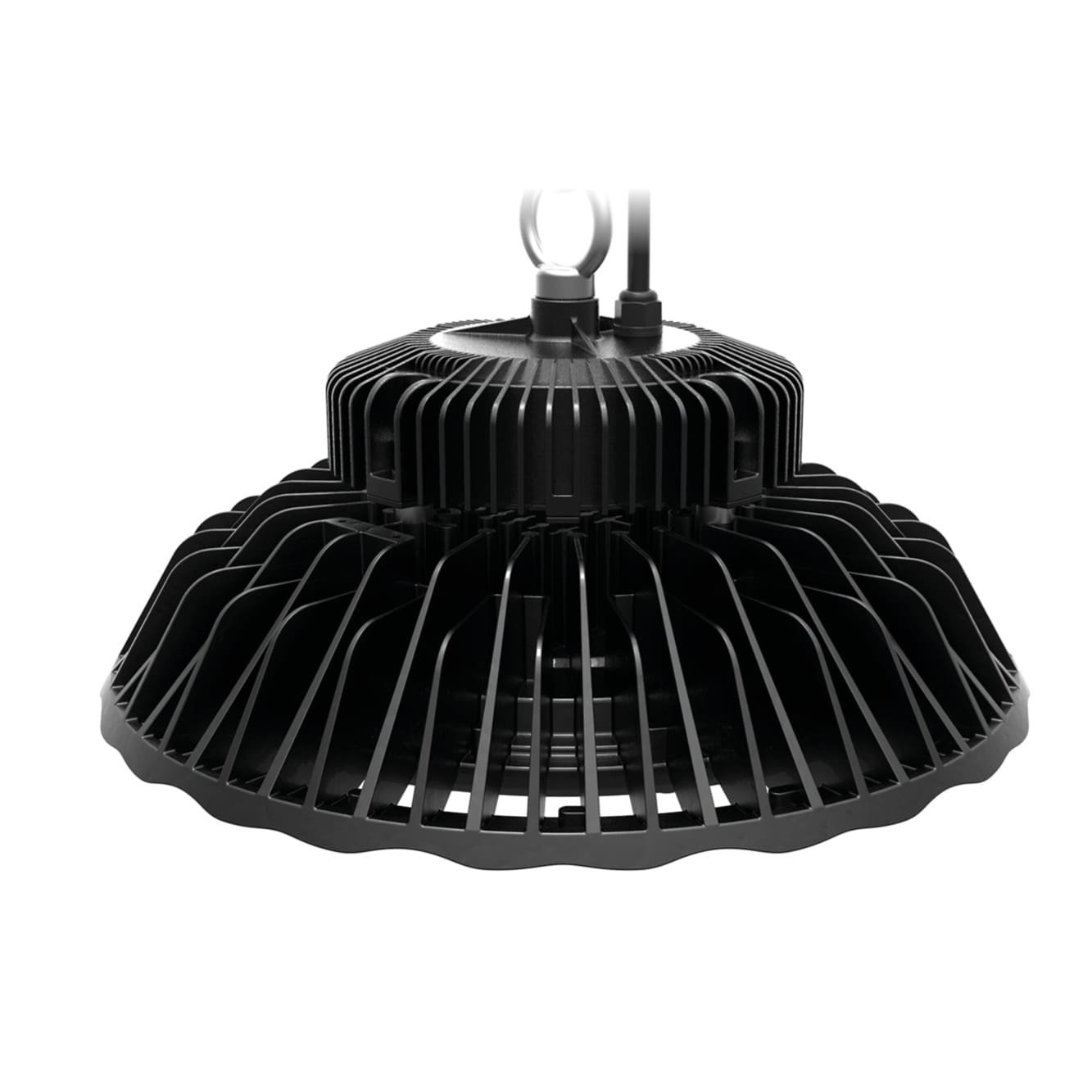

ROVER – LED HIGH & LOW BAYS
Features
The Rover is a low-profile and durable state of the art fixture. It is designed to quickly and easily upgrade existing H.I.D and fluorescent fixtures. The LED high bay combines high light output LED technology with remarkable energy savings for a quick return on investment. Offered in narrow and wide beam distributions, the Rover can include a dimming feature and be equipped with a motion sensor. The Dali control provides you with the convenience of smart lighting and maximizes your energy consumption savings.

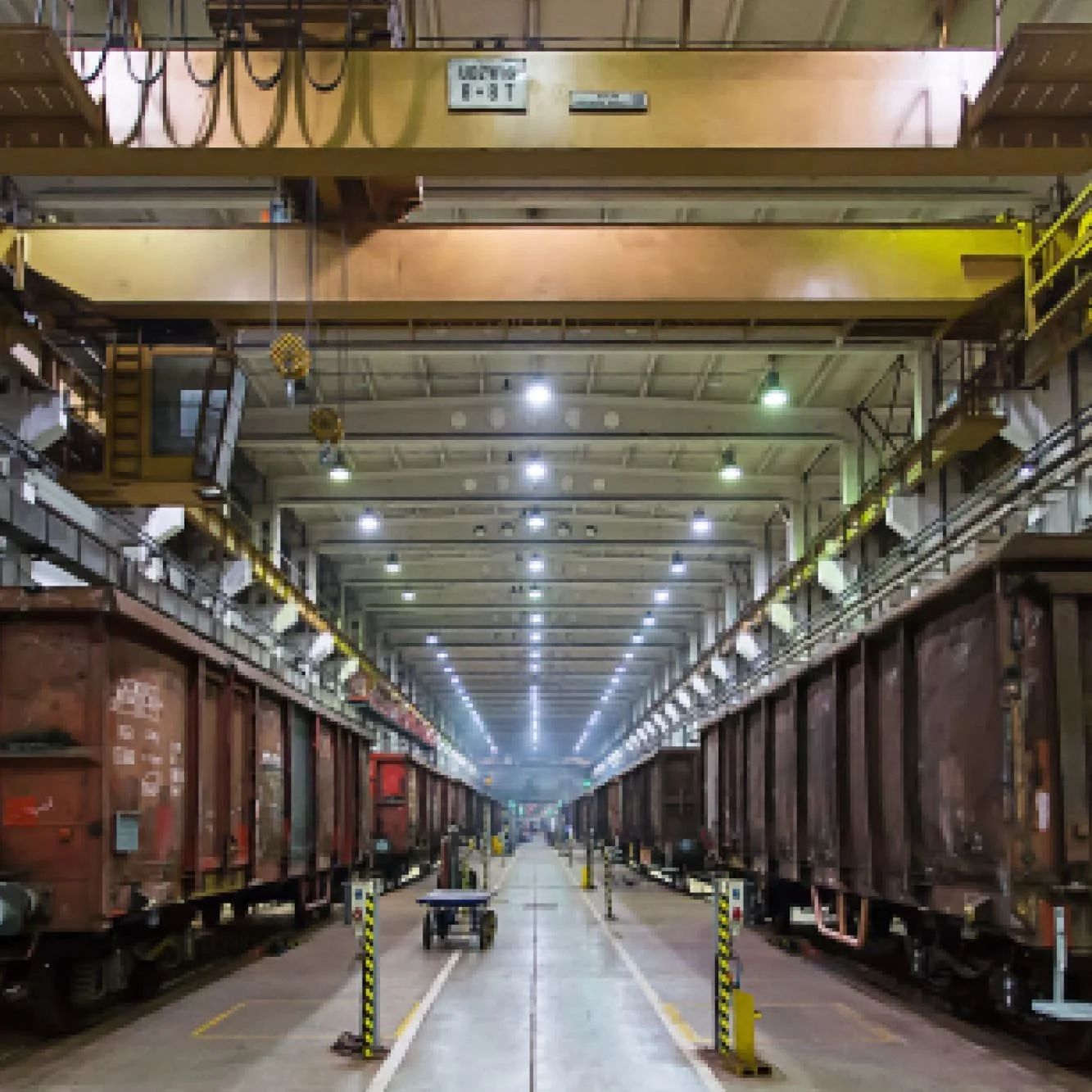

Typical Applications
Heavy Vehicle Workshops
MIA Infrastructure
Warehouses & Stores
General Workshops
Factories
Heavy Industry
Overhead Cranes
Airports
Specifications
| Model: | PLIROV100 | PLIROV120 | PLIROV150 | PLIROV200 | PLIROV240 | PLIROV300 |
|---|---|---|---|---|---|---|
| Optical Characteristics | ||||||
| Rated Wattage | 100W | 120W | 150W | 200W | 240W | 300W |
| Lumens | 14000 | 16800 | 21000 | 28000 | 33600 | 42000 |
| System Efficacy | 140Lm/W | |||||
| Colour Temperature CCT | 5000K (4000K / 3000K) | |||||
| CRI (Ra) | >70 (>80 Optional) | |||||
| Reported L70 | >50,000 Hours | |||||
| Lens Optic Type | 50° / 90° / 120° | |||||
| Electrical Characteristics | ||||||
| Input | 100–240VAC | |||||
| Frequency | 50 / 60Hz | |||||
| Power Factor | >0.9 | |||||
| Total Harmonic Distortion | <20% | |||||
| Environment | ||||||
| IP Rating | IP65 | |||||
| Impact Rating | IK10 | |||||
| Operating Temperature | -30°C to 50°C | |||||
| Product Material and Mounting | ||||||
| Option 1 | Eyebolt | |||||
| Option 2 | Ceiling Mount Bracket (45° or 180°) | |||||
| Product Material | Aluminum Housing | |||||
| Lens / Optics Material | Tempered Glass (PC Lens Optional) | |||||
| Dimensions and Weights | ||||||
| Product Dimensions | Refer to dimensions below | |||||
| Product Weight | 7.0KG | 7.3KG | 7.6KG | |||
| Packaging Dimensions | 440×255×449 | |||||
| Gross Weight | 7.9KG | 8.7KG | 9.6KG | |||
| Warranty and Certifications | ||||||
| Warranty | 5 Year Warranty | |||||
| Certifications | SAA / CE / RoHS | |||||
