TYRANT

Solar Lighting

4 Apr

Features

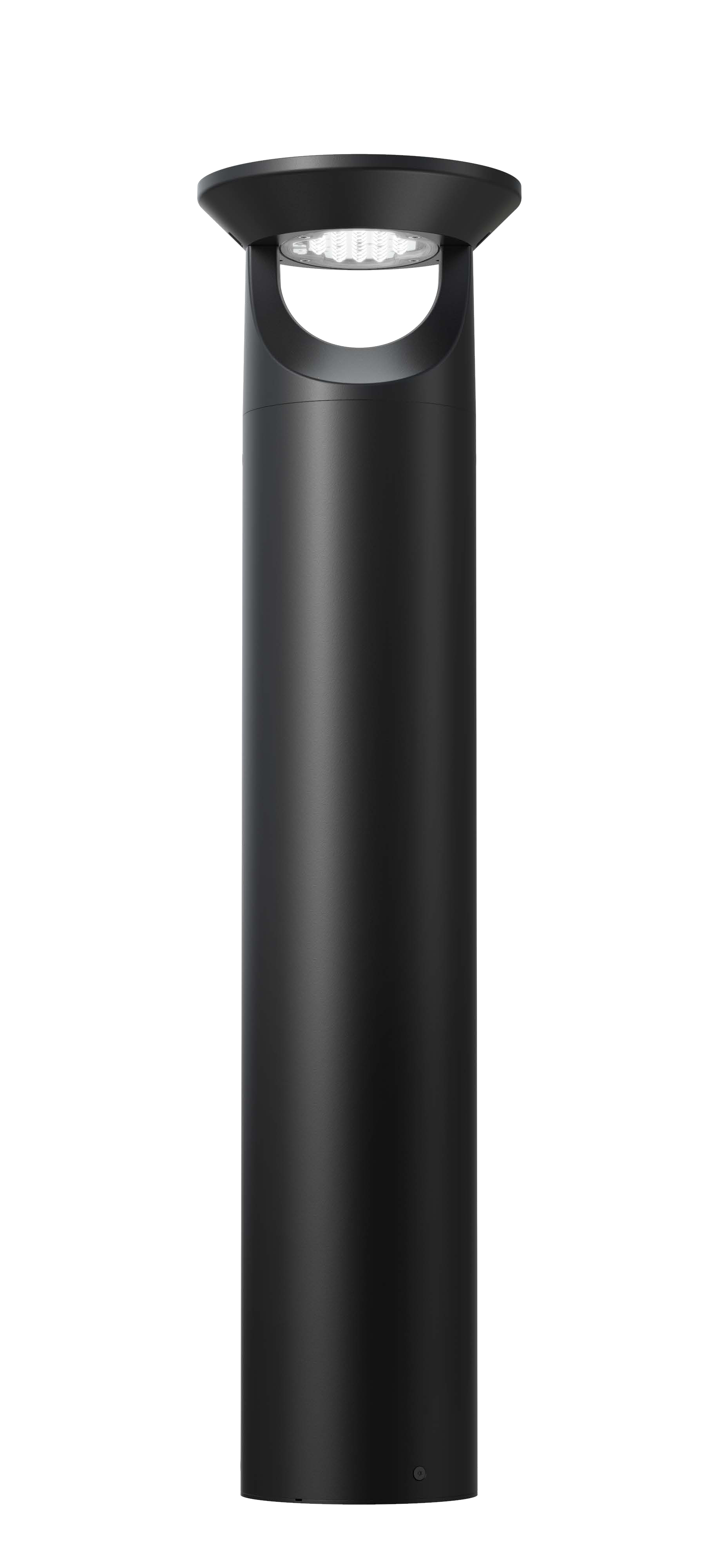

The Tyrant is a new generation LED solar bollard that features an IP66 protection rating, mono-crystalline solar panel and UV resistant PC material.The Tyrant is a great option for pathway areas, gardens, sidewalks, building entrances and more.

Typical Applications

Pathways
Gardens
Bridges
Parks
Sidewalks
Jetties
Driveways
Industrial Areas
City Squares
Residential Areas
Mine Sites
Marinas
General Area
Stairways
Play Grounds

ACCESSORIES

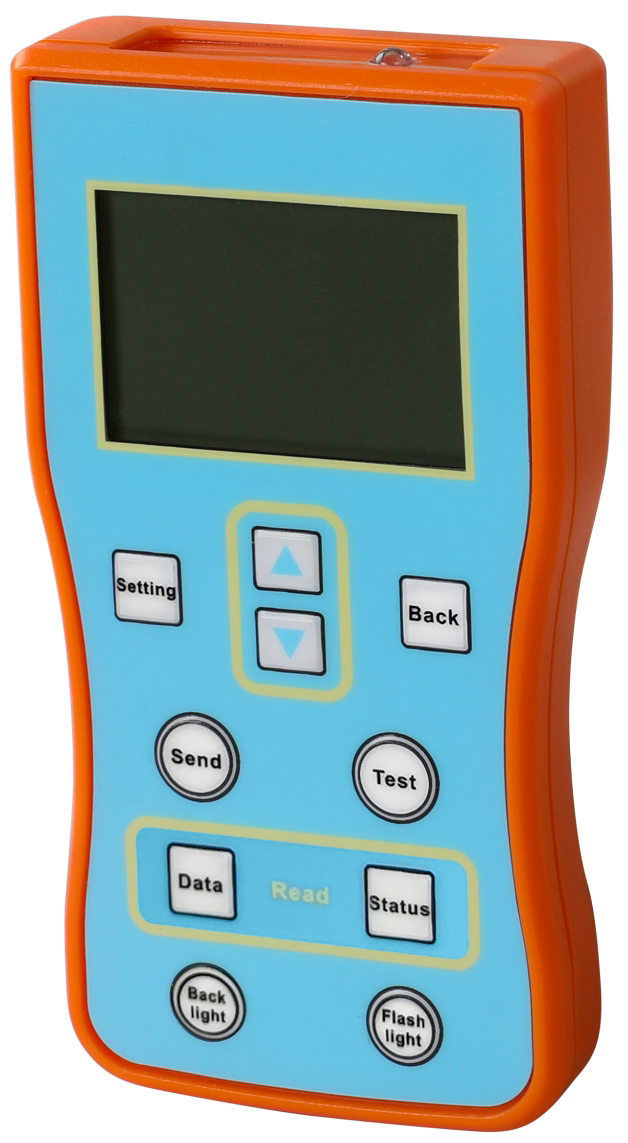

Remote Control
Remote control for solar LED bollard light

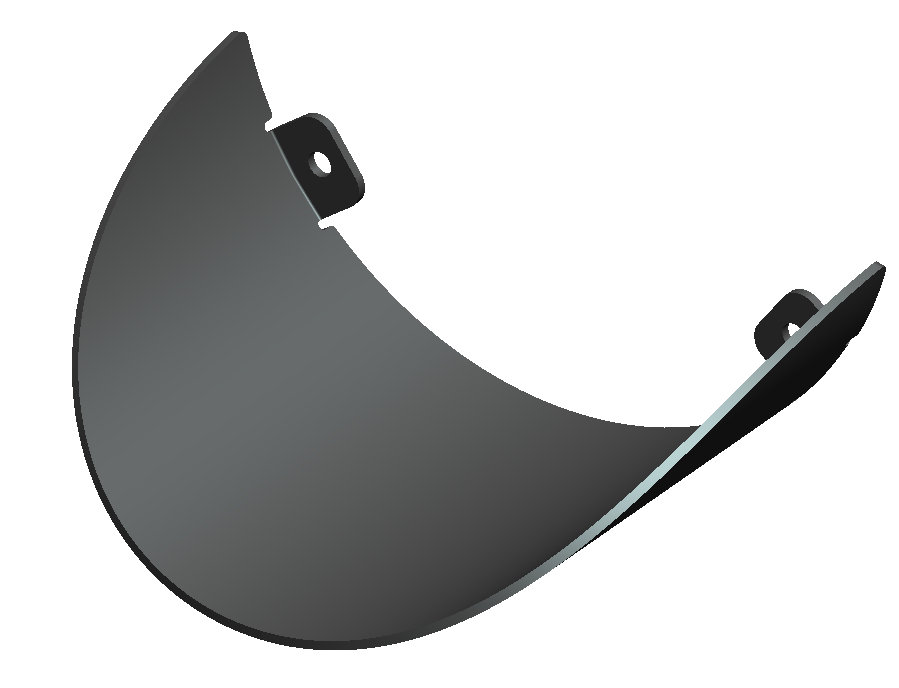

Round House Side Shield
To reduce glare light

Specifications


    Electrical Information
Model No.PLI-TYR
Power Consumption(±20%)3W
BatteryLiFePO4 battery
Battery Capacity38.4Wh

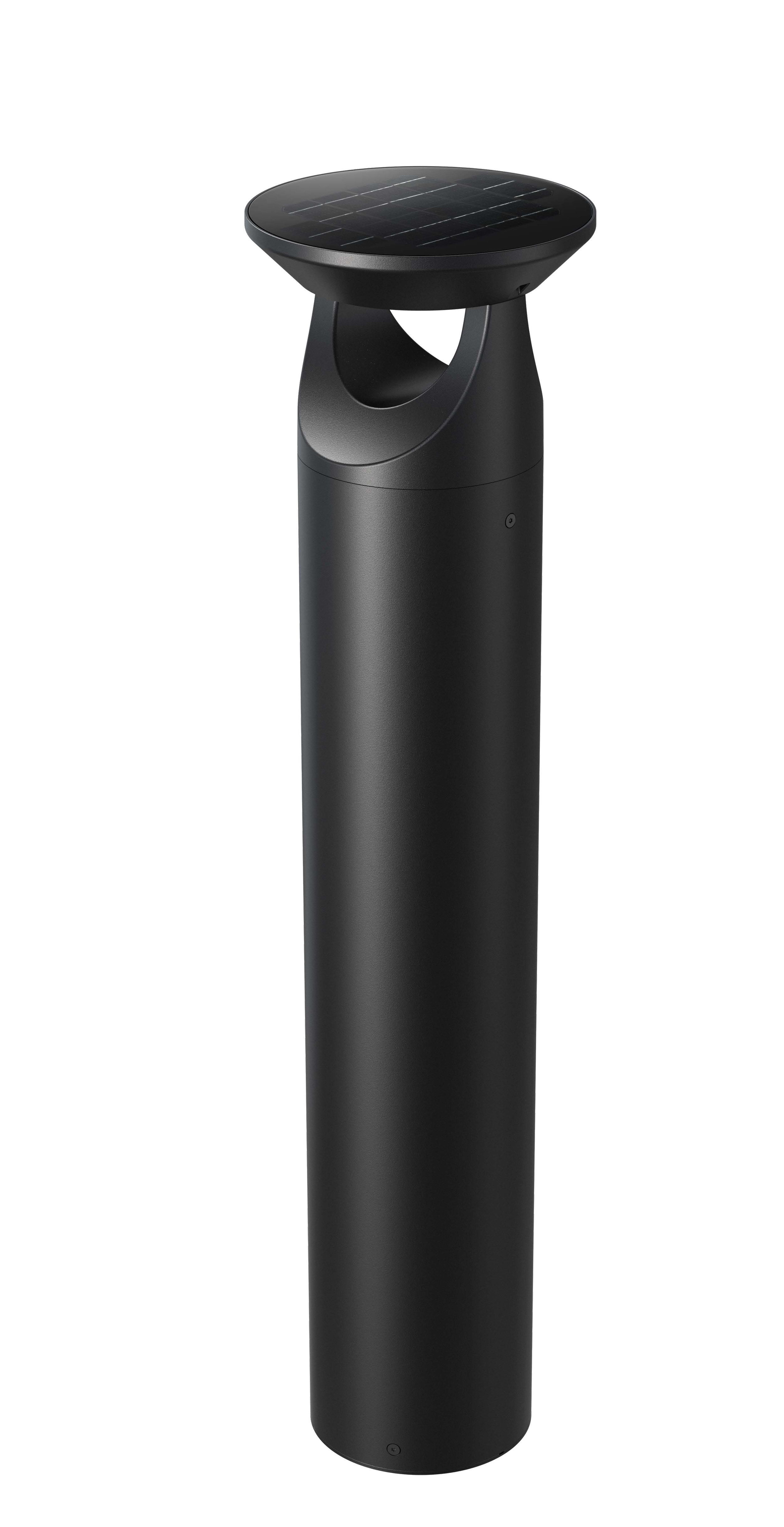

Solar PanelsMono-crystalline solar panel
Solar Panel Wattage5W
Charging Time>8 hours
Operating TimeNormal mode>11 hours, Intelligent mode 2-3 days

        Working Mode




      Lighting scheme
      Time 1
      Time 2
      Time 3
      Time 4
      Time 5
      Energy consumption
      Working hours in rainy days




      1 (Factory default)
      4H×100%
      0H×100%
      0H×100%
      0H×0%
      0H×100%
      14Wh
      2.7 Days


      2
      6H×30%
      6H×30%
      0H×100%
      0H×0%
      0H×100%
      12.6Wh
      3 Days


      3
      6H×50%
      6H×30%
      0H×100%
      0H×0%
      0H×100%
      16.8Wh
      2.3 Days


      4
      4H×70%
      4H×30%
      4H×30%
      0H×0%
      0H×100%
      18.2Wh
      2.1 Days


      5
      4H×100%
      2H×50%
      0H×100%
      0H×0%
      0H×100%
      17.5Wh
      2.2 Days


      6
      4H×100%
      2H×30%
      0H×100%
      TOT×0%
      1H×80%
      18.9Wh
      2 Days


      7
      4H×80%
      2H×30%
      0H×100%
      TOT×0%
      1H×80%
      16.1Wh
      2.4 Days





ControlNA
Optic Information
LED TypeLED 2835
Luminous Flux (±10%)340lm / 320lm / 420lm
Efficacy(4000K Ra80)105lm/W / 100lm/W / 130lm/W
Correlated Colour Temperature4000K (3000K, 5000K optional)
Colour Rendering IndexRa80 (Ra70 optional)
Beam AngleType V / Type IV / Type V
UGR levelNA
Dimensions and Mount

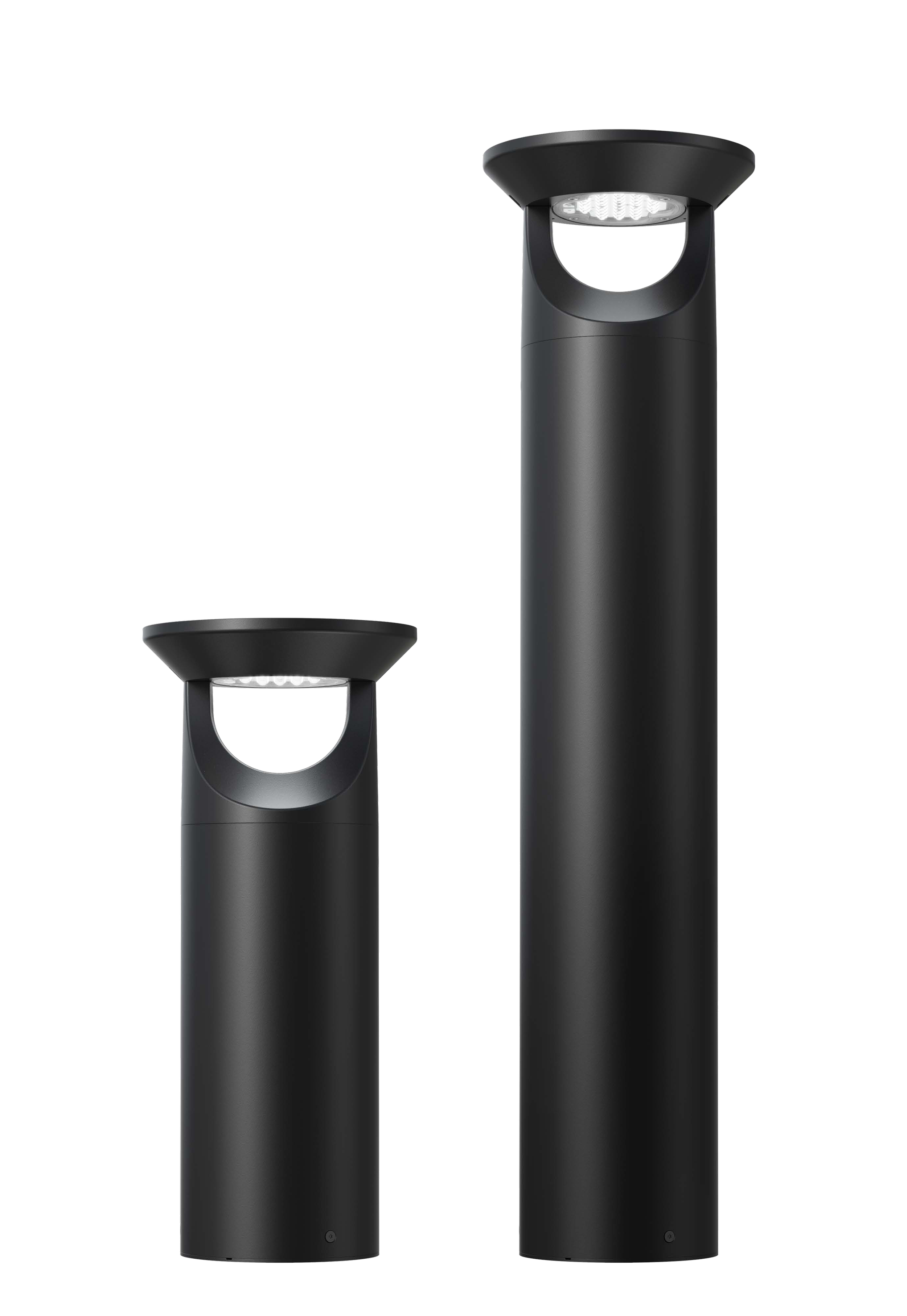

        Product Dimensions
        Φ230×520mm
        Φ230×920mm


        Luminaire Net Weight
        5.1±0.3kg
        6.6±0.3kg


        Export Carton Size
        Multiple carton sizes as per image


        Gross Weight
        6.4±0.3kg
        8.36±0.3kg

Mounting OptionMounting kit with anchor bolts

        Material

          Aluminum alloy

          Polycarbonate optical lens

          LiFePO4 battery

          Mono-crystalline solar panel


FinishPowder coating
Fixture ColorBlack
EPANA
IK RatingIK07
IP RatingIP66
Lifespan and Warranty
Operating Temperature0°C to +50°C

        Life Time of LED @Ta=25°C

          80,000hrs-L90

          169,000hrs-L80

          271,000hrs-L70


Warranty5 year warranty



Download brochure

TYRANT - SOLAR LIGHTING

Download brochure
