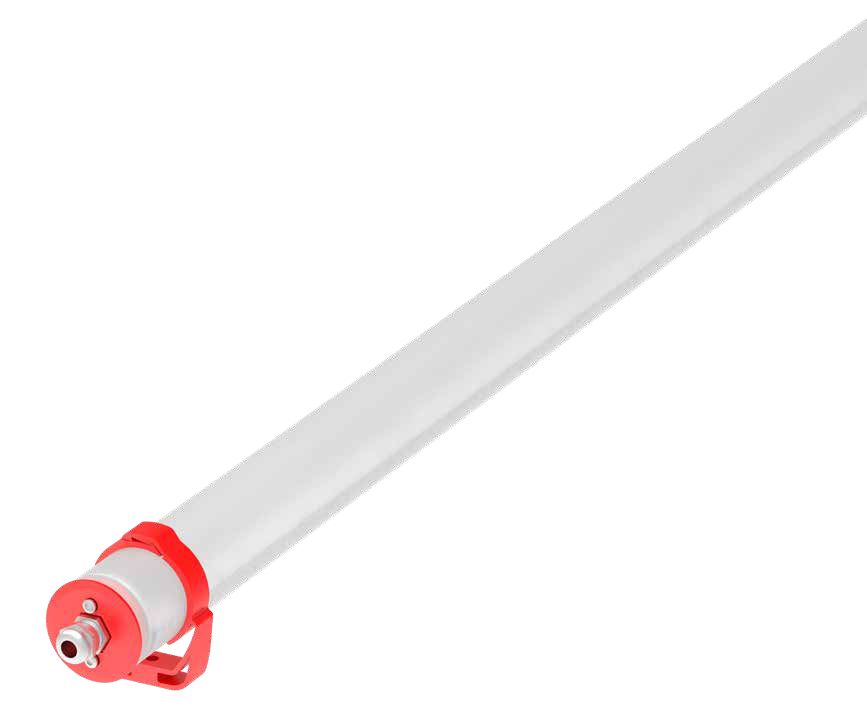

TUFFLUX WORKLIGHT
Features
The Tufflux Work light Engineered for the Toughest Industrial Environments purpose built to thrive in demanding industrial settings such as construction, mining, tunneling, and manufacturing. Engineered to excel in extreme conditions, this work light offers unrivaled impact resistance and durability.
Highly reliable, long life LED light source
Low energy draw with wide operating voltage range drivers
IP66 sealed, heavy duty extruded polycarbonate outercase
Compact, non-metallic, robust construction
Corrosion resistant and UV tolerant materials
Impact absorbing injection moulded end caps
Low maintenance
Low temperature rise
Typical Applications
Mining
Processing Plants
Materials Handling
Lithium Processing
Power Generation
Energy & Utilities
Water & Waste Water
Ports
Wharfs & Waterways
Chemical & Processing
High Wash Down Area
Chemical Plants
Abattoirs
Poultry & Processing Plants
Spirals
Food & Beverage
Ports & Wharves Cabinet Lighting
Electrical Enclosures
Visible Break Isolators
Specifications
| Model | PLITFL1240-DC | PLITFL1240-20-36VAC | PLITFL1240 | PLITFL2440-DC | PLITFL2440-20-36VAC | PLITFL2440 |
|---|---|---|---|---|---|---|
| Rated Wattage | 12W | 12W | 12W | 24W | 24W | 24W |
| Lumens | 1800 | 1800 | 1700 | 3600 | 3600 | 3400 |
| Input | 12-24VDC | 20-36VAC | 100-277VAC | 12-24VDC | 20-36VAC | 100-277VAC |
| Colour Temperature CCT | ||||||
| 4000K (5000K OPTIONAL) | ||||||
| CRI (Ra) | >70 | |||||
| Reported L70 | >50,000 Hours | |||||
| Lens Optic Type | 120° | |||||
| Environment | ||||||
| IP Rating | IP66 | |||||
| Impact Rating | IK08 | |||||
| Operating Temperature | -20°~ 40°C | |||||
| Product Material and Mounting | ||||||
| Product Material | Aluminium | |||||
| Lens Cover / Optics Material | PC Lens | |||||
| Dimensions and Weights | ||||||
| Product Dimensions (CM) | 700 x 48 x 48mm | 1300 x 48 x 48mm | ||||
| Product Weight | 0.522 | 0.85 | ||||
| Warranty & Certifications | ||||||
| Warranty | 2 Year Warranty | |||||
| Certification | SAA / CE | |||||
