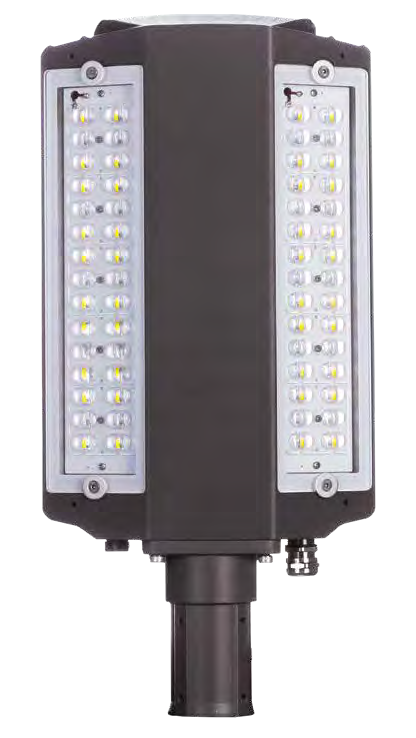

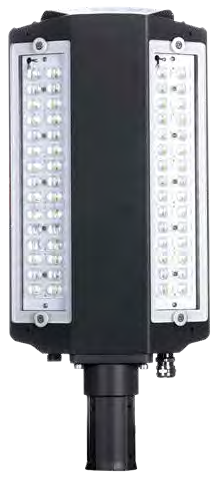

PHOENIX MASTER
Features
The Phoenix Master is a brand-new state of the art competitive universal solution for Tunnels, Conveyor & Plant lighting applications. The patented design appearance enables the lamp to have a self-cleaning function to avoid dust collection and its double anti-thunder technology allows the fixture to operate smoothly in extreme conditions. The Phoenix Master also features a built-in 3CCT colour temperature adjustment or the choice of 2200K Amber Turtle Friendly and Green Eyewash.
Typical Applications
Mining
MIA (Mining Infrastructure Area)
Coal
Open Cuts
Metalliferous
Iron Ore
Industrial
Processing Plants
Materials Handling
Lithium Processing
Power Generation
Energy & Utilities
Water & Waste Water
Ports
Wharfs & Waterways
Chemical & Processing
Ports & Wharves
Airports
Car Parks
General Area Lighting
Container Terminals
ACCESSORIES
SPIGOT ADAPTOR PLIPHXM/SP
STIRRUP MOUNT PLIPHXM/ST
TRUNNION MOUNT PLIPHXM/TM
PHOTO SENSOR PLIPHXM/P
MOTION SENSOR PLIPHX/M
DAYLIGHT SENSOR PLIPHXM/D
RS485 DIMMER PLIPHXM/R
NEMA RECEPTACLE PLIPHXM/N
VISOR PLIPHXM/VIS
Specifications
| Model | PLIPHX50 | PLIPHX70 |
|---|---|---|
| Optical Characteristics | ||
| Rated Wattage | 50W | 70W |
| Lumens | 6750 | 9450 |
| System Efficacy | 135Lm/W | |
| Colour Temperature CCT | 3CCT (2200K Amber Turtle Friendly / Green Eyewash) | |
| CRI (Ra) | >70 | |
| Reported L70 | >50,000 Hours | |
| Lens Optic Type | Type II / Type V | |
| Electrical Characteristics | ||
| Input | 100-240VAC | |
| Frequency | 50/60Hz | |
| Power Factor | >0.95 / 230VAC | |
| Total Harmonic Distortion | <15% | |
| Environment | ||
| IP Rating | IP66 | |
| Impact Rating | IK08 | |
| Operating Temperature | -40°C To 50°C (0°C To 50°C w Emergency Battery) | |
| Product Material and Mounting | ||
| Option 1 | Spigot Mount | |
| Option 2 | Trunnion Mount | |
| Option 3 | Stirrup Mount | |
| Product Material | Die Cast Aluminum | |
| Lens / Optics Material | Tempered Glass Lens | |
| Dimensions and Weights | ||
| Product Dimensions | 420*250*96 | |
| Product Weight | 5.5KG | |
| Packing Dimensions | 501*219*78 | |
| Gross Weight | 6.5KG | |
| Warranty and Certifications | ||
| Warranty | 5 Year Warranty | |
| Certifications | SAA | |
