MARS SOLAR
Features

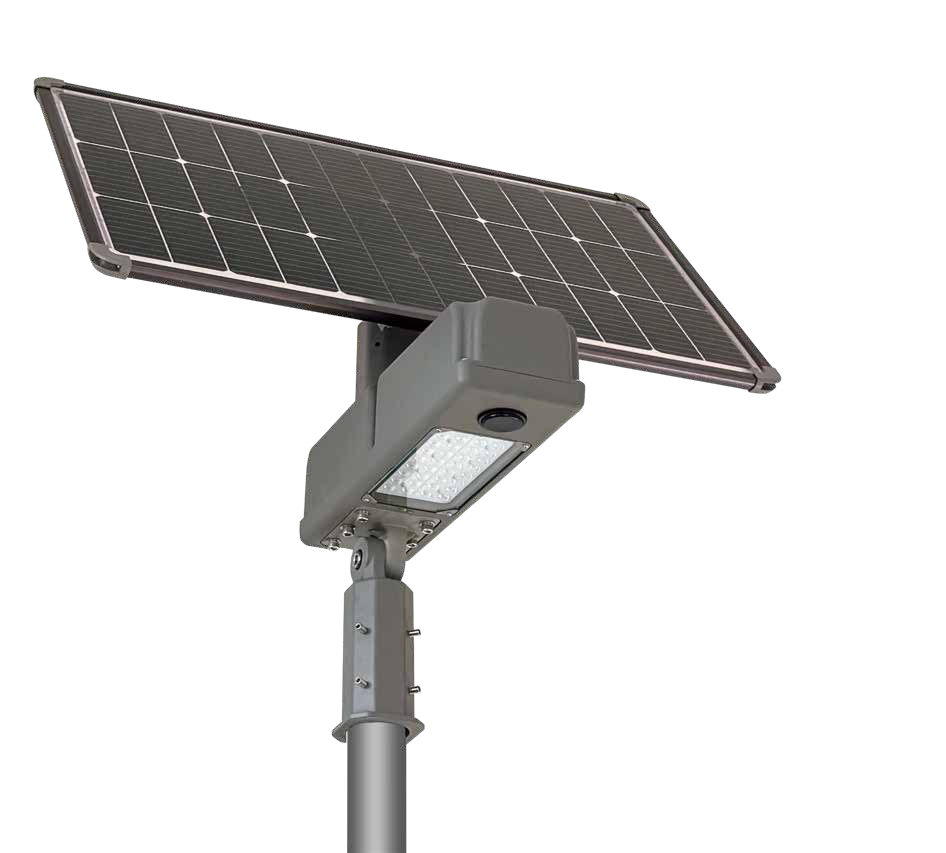

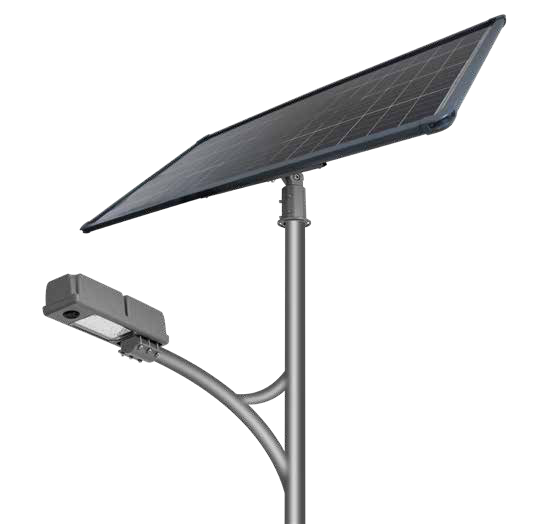

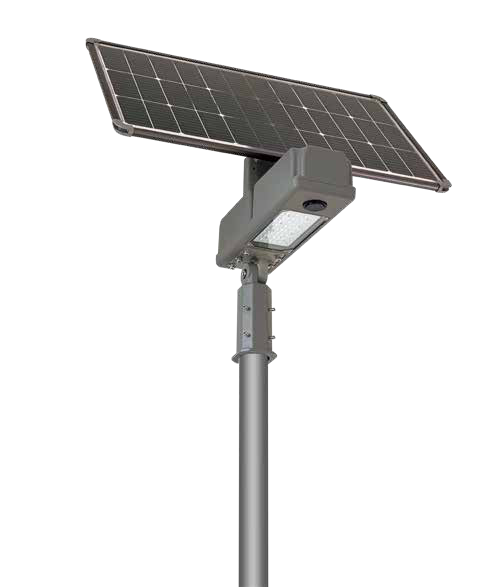

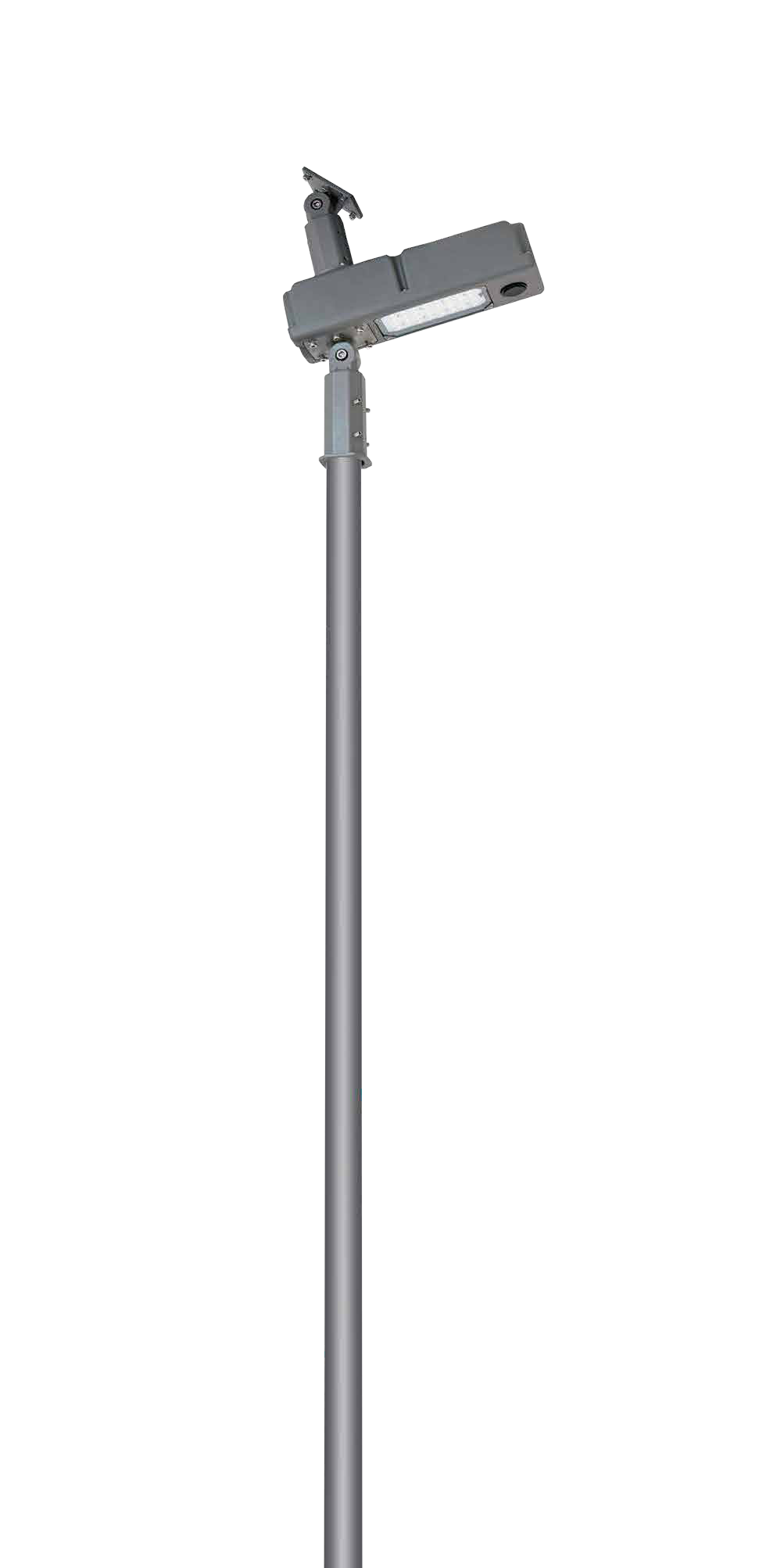

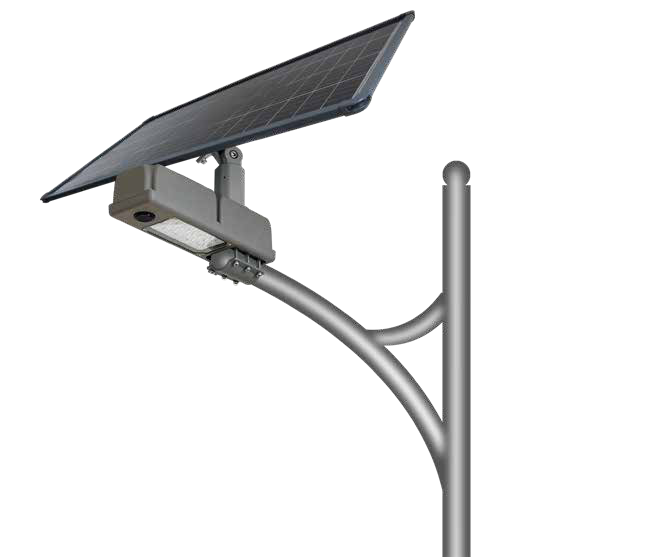

Mars Solar by Phoenix EMS is designed specifically for industrial applications. Its anti-glare, light pollution-free design is perfect for rugged environments, with easy plug-and-play installation. This all-inone, adjustable lighting system is plug-and-play, making installation and maintenance a breeze.
Powered by an advanced LiFePO4 battery, it offers over 2000 deep cycles, reducing maintenance costs and supporting eco-friendly practices with its fully recyclable design. With a die-cast aluminum body is corrosion-resistant, and the smart lighting management system maximizes battery life while enhancing energy efficiency. Optional wireless intelligent lighting management is available for added convenience and control.
Typical Applications
Urban and Rural Roads
Highways
Water Dikes
Bridges
Parks
Industrial Areas
City Squares
Residential Areas
Specifications
| Model | PLI-MAR-30 | PLI-MAR-60 |
|---|---|---|
| Rated Power | 30W | 60W |
| System Voltage | 36V | |
| Battery | 24AH / 614Wh, Lithium Iron Phosphate, >2000 deep cycles | 36AH / 914Wh, Lithium Iron Phosphate, >2000 deep cycles |
| Autonomy | 100% Time Full Brightness, 80% DoD Battery = 16h Smart Control Option = Upto 5 days based on working modes |
100% Time Full Brightness, 80% DoD Battery = 12h Smart Control Option = Upto 4 days based on working modes |

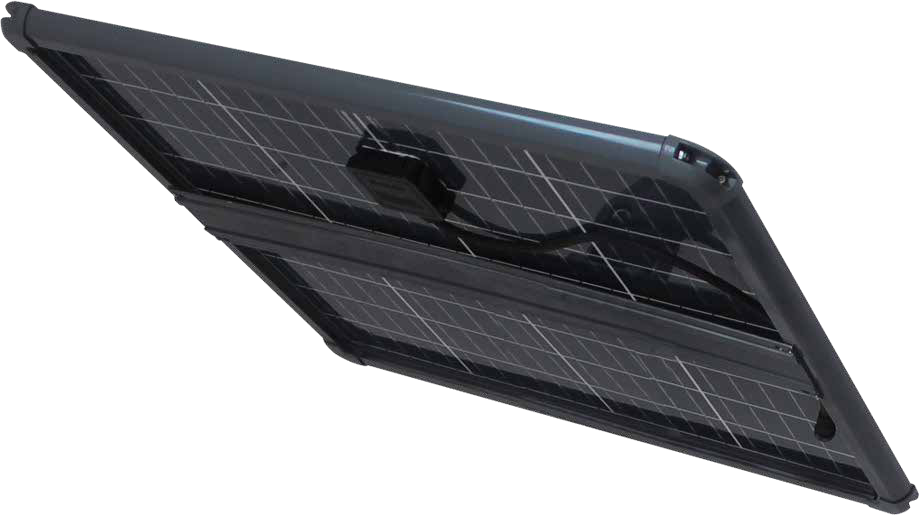

| Solar Panel | 200W , High-efficiency Bifacial Monocrystalline Solar Panel | |
| Controller | MPPT | |
| Lamp IP | IP68 | |
| IK Rating | IK10 | |
| Light Source | Philips 5050 LED Chip | |
| Luminous Efficiency | Upto 210 lm/W | |
| Light Distribution | Batwing | |
| Color Temperature | 2500K-6500K | |
| CRI | >75 | |
| Working Temperature | -25°C ~ +75°C | |
| LED Lifespan | >50,000hrs | |
| Mount diameter | 60-76mm | 60-76mm |
| Lamp dimension | 570x170x140mm | |
| Lamp Package dimension | 620x340x230mm | |
| Solar panel dimension | 1410*800 | |
| Solar panel Package dimension | 1440*830*105 | |
| Lamp + Solar panel Weight | 14.5+14=28.5kg | 16.5+14=30.5kg |
| Warranty | 5 years on solar Panel and 3 years on Battery | |
