RUNNING MAN II
Features

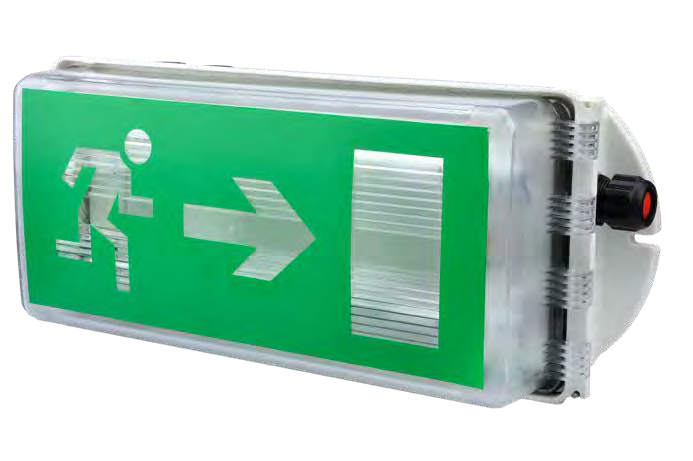

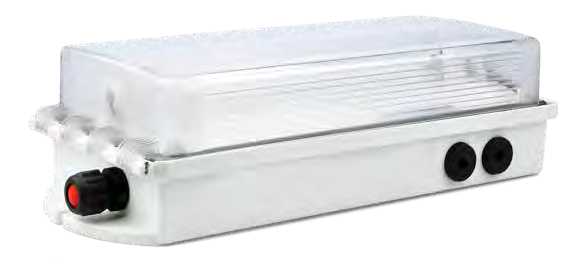

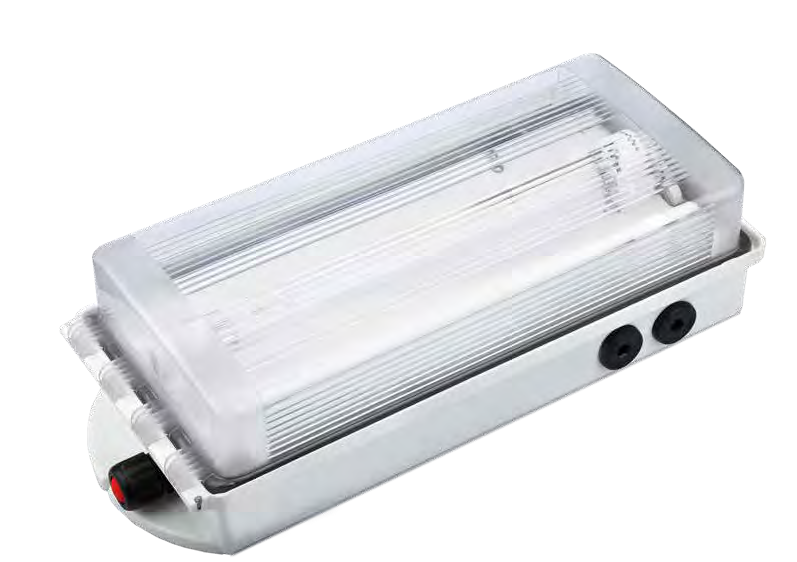

The Running Man II is a corrosion resistant emergency luminaire for use in hazardous areas that may be subject to flammable liquids, gases, vapors or combustible dusts. It features a corrosion resistant GRP body and polycarbonate diffuser with a central locking device that disconnects the supply when the luminaire is opened. Applications include Chemical and Petrochemical Processing, Storage Facilities, Industrial and Commercial.
Typical Applications
Switch Rooms
Control Rooms
Electrical Equipment Rooms
Tunnels
Industrial Warehouse
Office Complex
Workshops
ACCESSORIES
SURFACE MOUNT BRACKET PLIRM2/SM
EXIT DECAL PLIRM2/01
UP ARROW DECAL PLIRM2/02
DOWN ARROW DECAL PLIRM2/03
LEFT ARROW DECAL PLIRM2/04
RIGHT ARROW DECAL PLIRM2/05
Specifications
| Model | PLIRM2 |
|---|---|
| Optical Characteristics | |
| Rated Wattage | 3W |
| Lumens | 160 |
| System Efficacy | 53Lm/W |
| Colour Temperature CCT | 5700K |
| CRI (Ra) | >70 |
| Reported L70 | 50,000 Hours |
| Lens Optic Type | Polycarbonate |
| Viewing Distance | 30M |
| Electrical Characteristics | |
| Input | 110-240V |
| Frequency | 50/60Hz |
| Powerfactor | >0.95 |
| Total Harmonic Distortion | 20% |
| Environment | |
| IP Rating | IP66 |
| Impact Rating | IK10 |
| Operating Temperature | -20°C To 55°C |
| Product Material and Mounting | |
| Option 1 | Surface Mount |
| Product Material | Polycarbonate |
| Lens / Optics Material | PC Lens |
| Dimensions and Weights | |
| Product Dimensions | 447*183*96 |
| Product Weight | 3.5KG |
| Packaging Dimensions | 460*220*180 |
| Gross Weight | 3.2KG |
| Warranty and Certifications | |
| Warranty | 5 Year Warranty |
| Certifications | IECEx |
| Classification | Zone 1 & Zone 21 / Zone 2 & 22 |
| Rating |
IECEx/Gas: Ex eb ib op is II q C T4 Gb (without fuse and isolation switch) / Ex db eb ib mb op is q II C T4 Gb (with fuse and isolation switch) IECEx/Dust: Ex tb IIIC T80 Db (without fuse and isolation switch) / Ex tb IIIC T80 Db (with fuse and isolation switch). |
