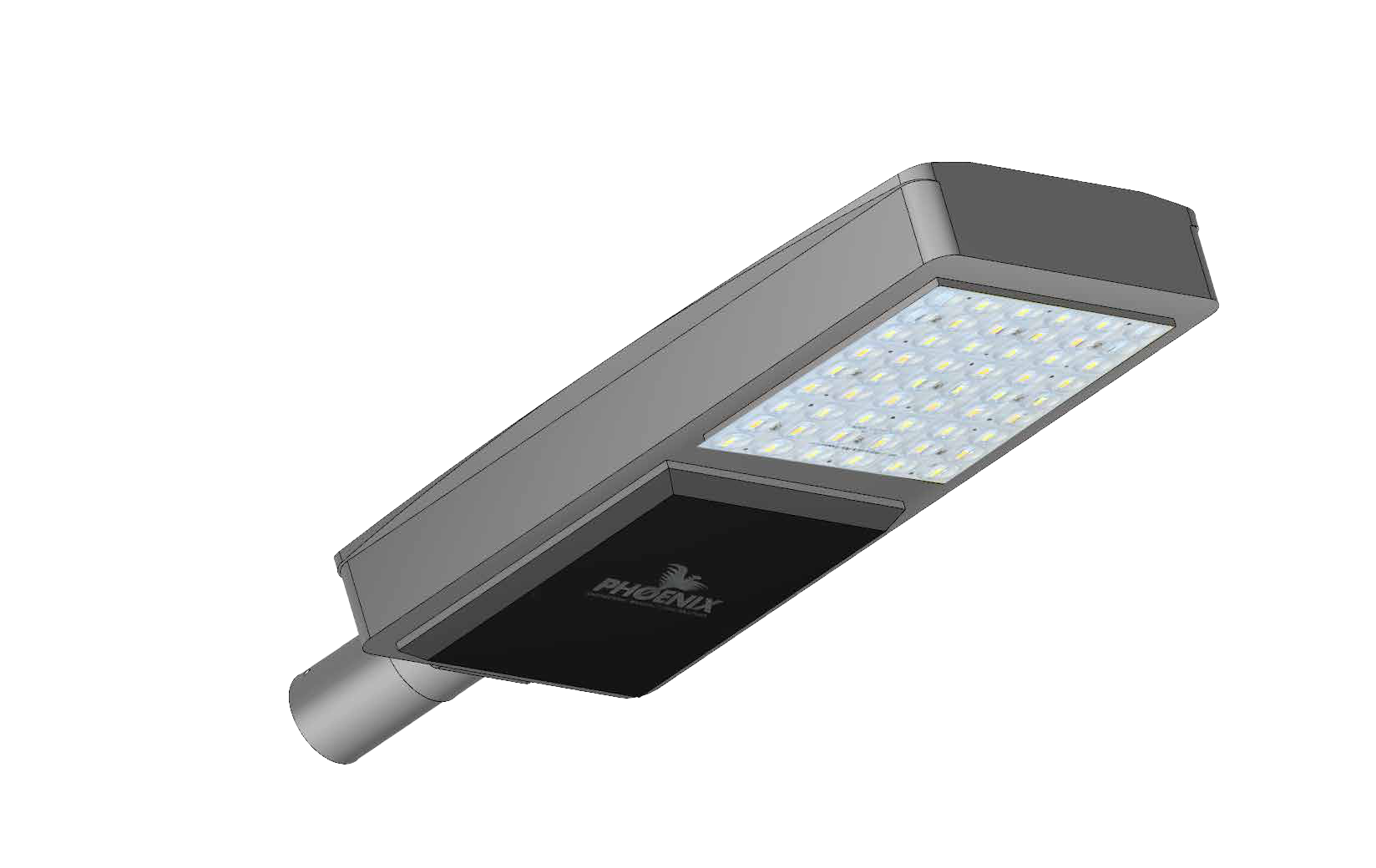

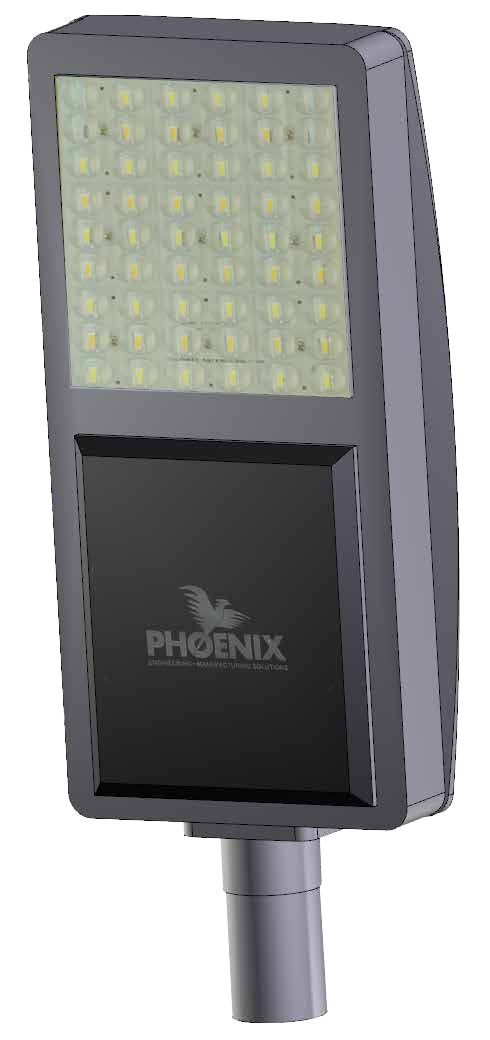

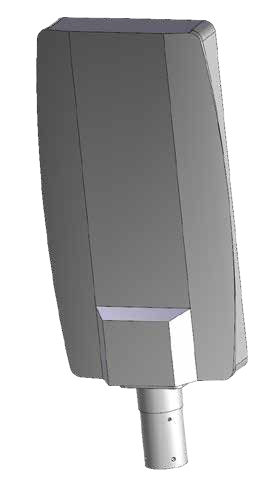

ILLUMINATOR SOLAR
Features
The Phoenix Illuminator Solar Series: The pinnacle of strength and trustworthiness in solar lighting solutions. The Illuminator Solar light is unmatched with customization, durability and reliability Setting a new benchmark in the solar market. Engineered to endure the harshest environments, the Phoenix Illuminator Solar Light guarantees continuous operation throughout the night, in any weather condition, all while emitting a potent brightness of up to 7100lm.
Typical Applications
Coal & Metalliferous Mine Process Plants
Quarries
Campsite Area Lighting
General Area Lighting Car Parks
Conveyors
Pedestrian Access Road Ways
Stacker/Reclaimers
Stairwells
Tunnels
Walkways Bulkheads
Urban and Rural Roads
Highways
Water Dikes
Bridges
Parks
Industrial Areas
City Squares
Residential Areas
Specifications
| Model | PL150-XX-T2-LX-PE / PL150-XX-T5-LX-PE |
|---|---|
| Optical Characteristics | |
| Rated Wattage | 50W |
| Lumens | 7100lm |
| System Efficacy | 142Lm/W @ 4000K |
| Colour Temperature CCT | 3CCT Colour Selectable 3000k, 4000k, 5000k |
| CRI (Ra) | >70 |
| Reported L70 | >50,000 Hours |
| Lens Optic Type | Type II / Type V |
| Lens / Optics Material | Tempered Glass (PC Lens Optional) |
| Control | |
| Control | PE Cell (optional) |
| Input | 24VDC |
| IP Rating | IP66 |
| Impact Rating | IK09 |
| Operating Temperature | -40°C To 50°C |
| Mounting Option | Spigot Mount (SP) |
| Product Material | Die Casting Aluminium Coated with Corrosion protected Paint |
| Light Dimensions and Weights | |
| Product Dimensions | 479*268*92 |
| Product Weight | 7.5KG |
| Packaging Dimensions | 690*335*170 |
| Gross Weight | 8.5KG |
| System Size | |
| Run Time | Custom Available in, 2-5 day run time (Based on 12 hours per day) |
| Battery | 100AH - 200AH Lithium Ion Battery |
| Panels | 150w- 300w Solar Panels |
| Solar Controller | MPPT Controller |
| Enclosures | Corrosion Protected IP66 Mild Steel or Stainless Steel 316 Optional |
| Mounting height | |
| Mounting height | Recommended from 4.5 to 10m mounting height |
| Warranty and Certifications | |
| Warranty | 3 Year Warranty |
| Certifications | SAA / EMC |
