GALACTIC PLUS
Features

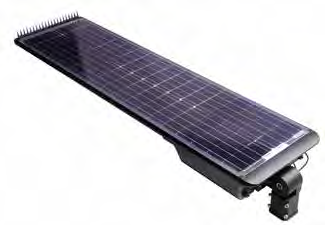

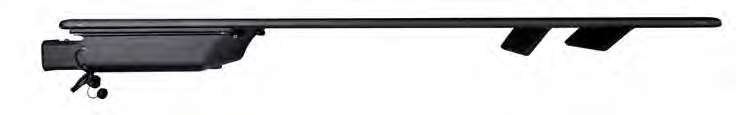

The Galactic Plus is a die-cast aluminum all in one solar light. It features an anti-UV polycarbonate lens with precision individual optics for uniform illumination and is designed for industrial applications that may have limited access to electrical supply. The PIR/microwave motion sensor and smart lighting controller are built in for remote monitoring, fault tracking and precise positioning, and an automatic fault alarm via a smart cloud platform to access on your mobile device or computer.
Typical Applications
Urban and Rural Roads
Highways
Water Dikes
Bridges
Parks
Industrial Areas
City Squares
Residential Areas

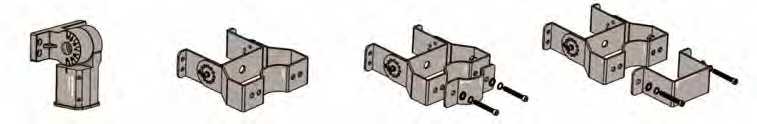

ACCESSORIES
UNIVERSAL MOUNTING BRACKET PLIGALP/UNI
WALL MOUNT BRACKET PLIGALP/WM
ROUND POLE BRACKET PLIGALP/RP
SQUARE POLE BRACKET PLIGALP/SP
DIMMABLE 1-10V DRIVER PLIGALP/D
MOTION SENSOR PLIGALP/M
CCTV CAMERA PLIGALP/CCTV
BIRD SCARER PLIGALP/BS
Specifications
| Model | PLIGALP10 | PLIGALP15 | PLIGALP20 | PLIGALP25 | PLIGALP30 | PLIGALP35 | PLIGALP40 | PLIGALP45 | PLIGALP50 | PLIGALP60 |
|---|---|---|---|---|---|---|---|---|---|---|
| Optical Characteristics | ||||||||||
| Rated Wattage | 10W | 15W | 20W | 25W | 30W | 35W | 40W | 45W | 50W | 60W |
| Lumens | 2100 | 3030 | 4000 | 4950 | 6060 | 7070 | 8120 | 9000 | 9900 | 12000 |
| System Efficacy | 210Lm/W | 202Lm/W | 200Lm/W | 198Lm/W | 202Lm/W | 202Lm/W | 203Lm/W | 200Lm/W | 198Lm/W | 200Lm/W |
| Colour Temperature CCT | 6500K / 5700K / 5000K / 4000K / 3000K | |||||||||
| CRI (Ra) | >70 (>80 Optional) | |||||||||
| Reported L70 | >50,000 Hours | |||||||||
| Lens Optic Type | 120° / Type II / Type III / Type IV | |||||||||
| Electrical Characteristics | ||||||||||
| Input | 12-24V | |||||||||
| Powerfactor | <0.95 | |||||||||
| Solar Characteristics | ||||||||||
| Solar Panel | 30W/18V | 30W/18V | 40W/18V | 40W/18V | 50W/18V | 50W/18V | 60W/18V | 60W/18V | 70W/18V | 80W/18V |
| Photovoltaic Panel | Double Crystal Photovoltaic Panel | |||||||||
| Li-ion Battery | 12.8V/150W | 12.8V/150W | 12.8V/230W | 12.8V/230W | 12.8V/307W | 12.8V/307W | 12.8V/384W | 12.8V/384W | 12.8V/461W | 12.8V/461W |
| Charging Time | 5.12 Hours | 5.12 Hours | 5.76 Hours | 5.76 Hours | 6.14 Hours | 6.14 Hours | 6.40 Hours | 6.40 Hours | 6.58 Hours | 6.72 Hours |
| Run Time (Full Power) | 15 Hours | |||||||||
| Maximum Autonomy | 7 Rainy Days | |||||||||
| Environment | ||||||||||
| IP Rating | IP65 | |||||||||
| Impact Rating | IK08 | |||||||||
| Operating Temperature | -40°C to 50°C | |||||||||
| Product Material and Mounting | ||||||||||
| Option 1 | Universal Bracket | |||||||||
| Option 2 | Wall Mount | |||||||||
| Option 3 | Round Pole Mount | |||||||||
| Option 4 | Square Pole Mount | |||||||||
| Product Material | Powder-Coated Die Cast Aluminium (Anti Corrosion Coating) | |||||||||
| Lens / Optics Material | PC Lens | |||||||||
| Dimensions and Weights | ||||||||||
| Product Dimensions | 633*365*211 | 793*365*211 | 948*365*211 | 1103*365*211 | 1263*365*211 | 1418*365*211 | ||||
| Product Weight | 12.0KG | 13.5KG | 15.0KG | 16.5KG | 18.1KG | 19.7KG | ||||
| Packaging Dimensions | 825*190*435 | 985*190*435 | 1140*190*435 | 1295*190*435 | 1455*190*435 | 1610*190*435 | ||||
| Gross Weight | 14.4KG | 16.2KG | 18.0KG | 19.9KG | 21.8KG | 23.6KG | ||||
| Warranty & Certifications | ||||||||||
| Warranty | 3 Year Warranty | |||||||||
| Certifications | CE / RoHS / FCC | |||||||||
