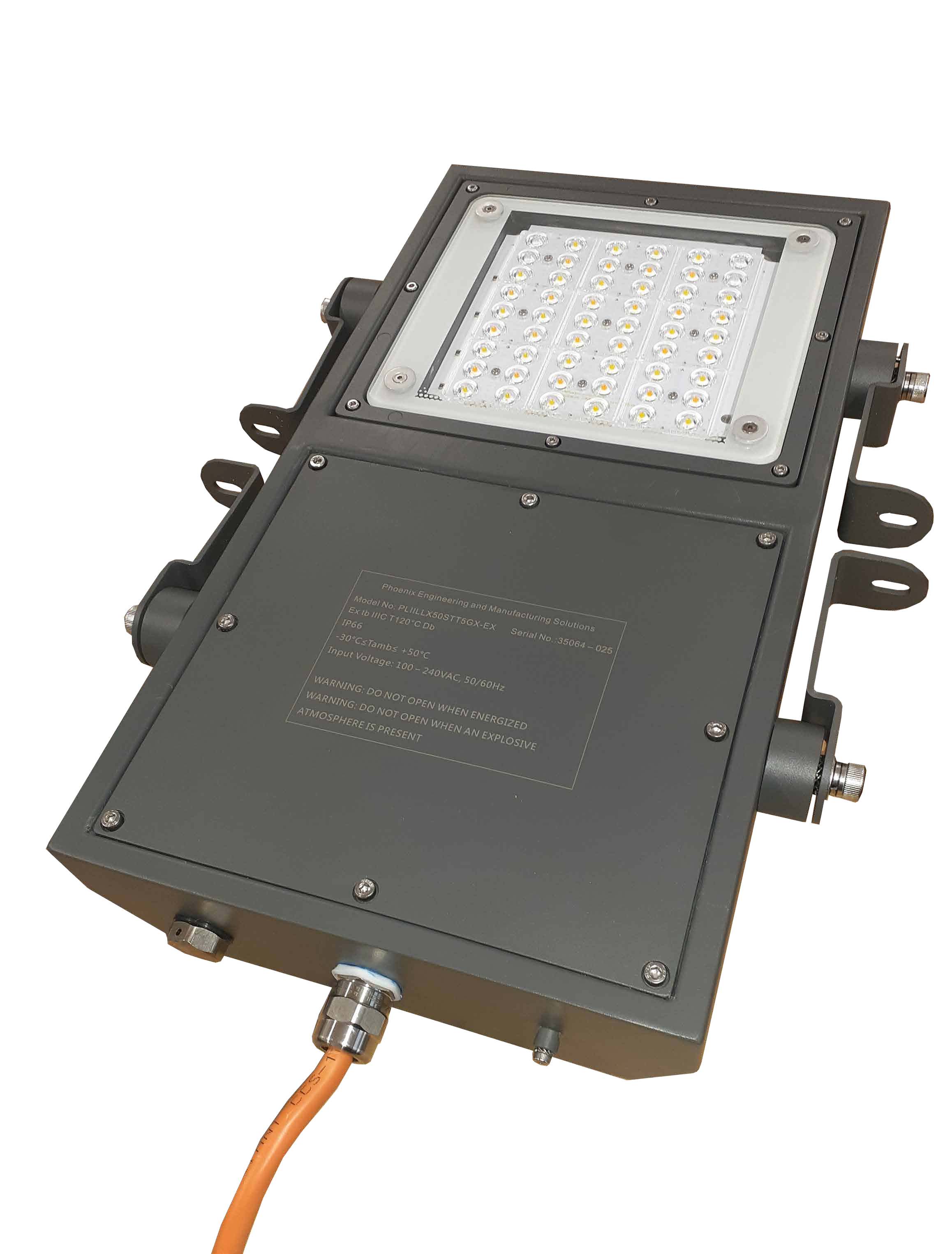

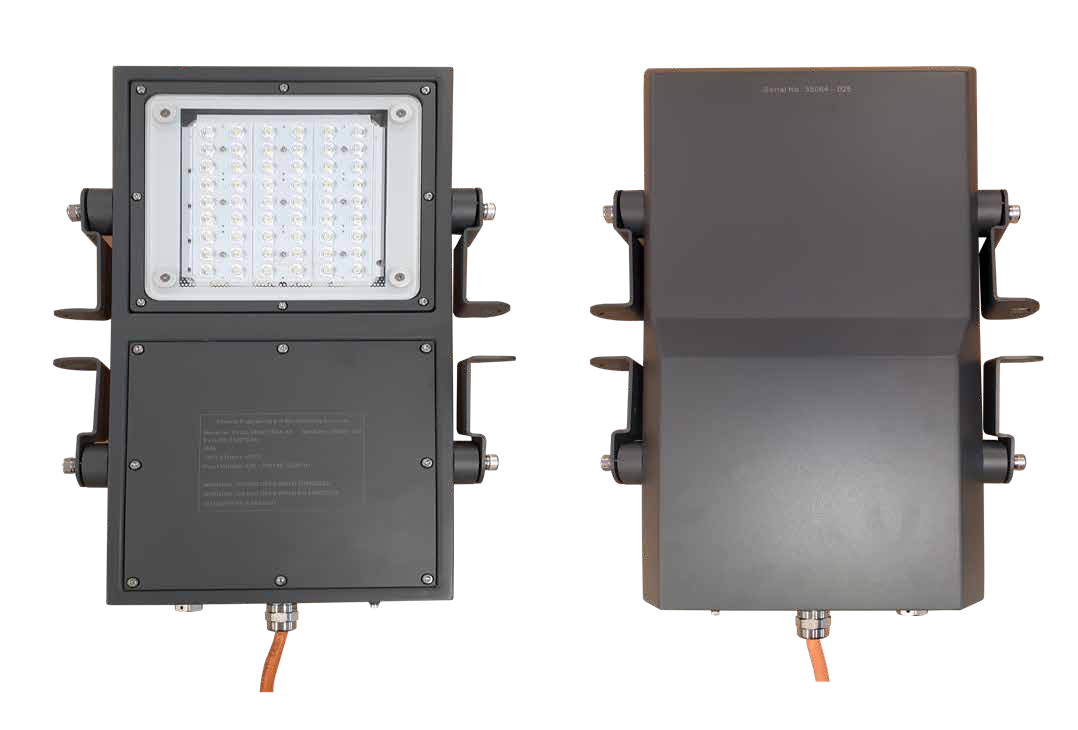

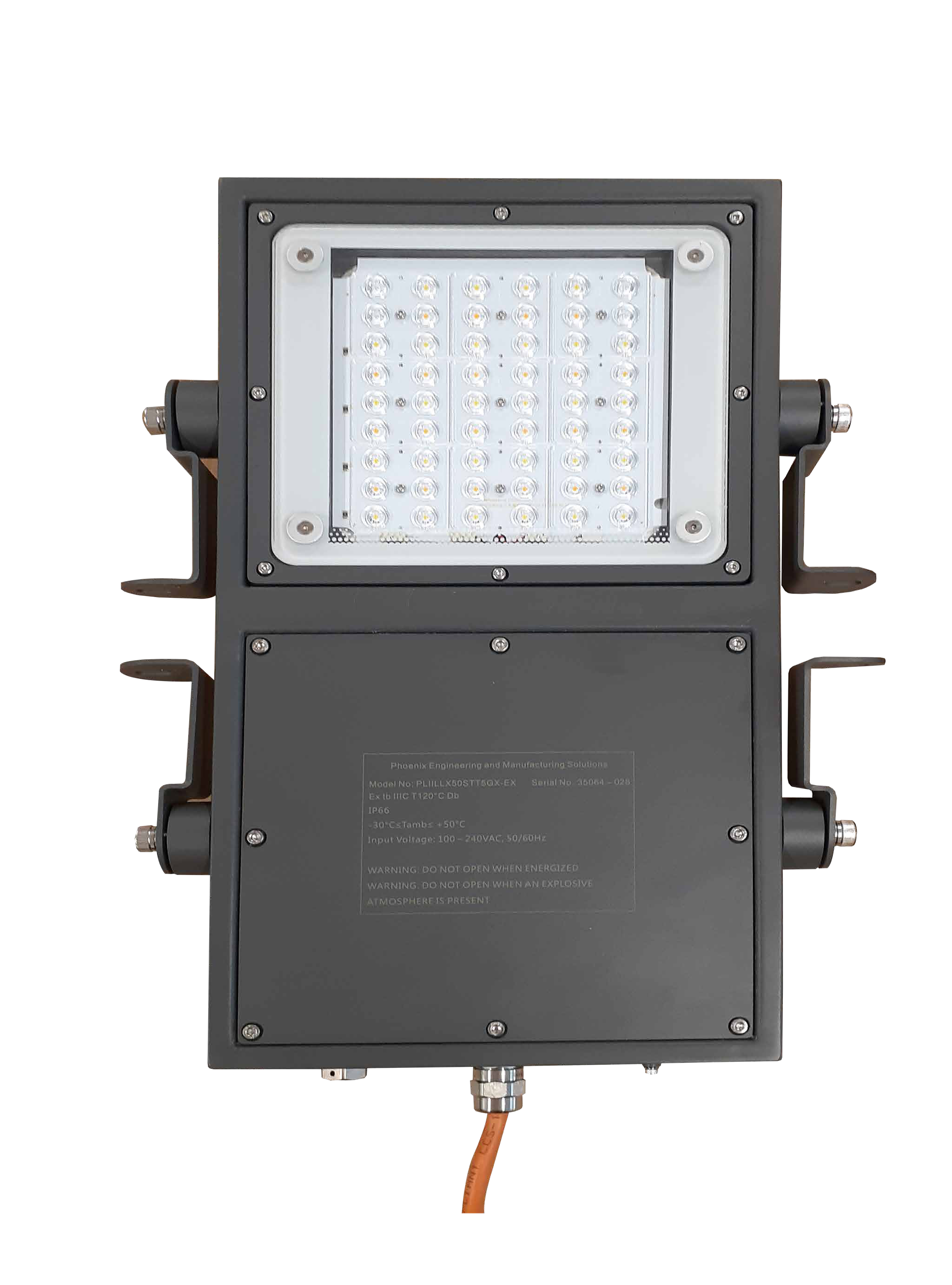

ILLUMINATOR EXTREME
Features
The Illuminator Extreme is the newest addition to the Phoenix EMS Industrial Lighting family. It is manufactured in 316 Stainless Steel and designed to push the light further than ever before with 15 Meter spacing across conveyor walkway and platform lighting.
The Illuminator Extreme reduces the number of light fittings by the use of superior optics and technology to reduce capital costs and provides a fitting that operates reliably in dusty, dry & hot Australian mining conditions.
Typical Applications
Mining
MIA (Mining Infrastructure Area)
Coal
Open Cuts
Metalliferous
Iron Ore
Industrial
Processing Plants
Materials Handling
Lithium Processing
Power Generation
Energy & Utilities
Water & Waste Water
Ports
Wharfs & Waterways
Chemical & Processing
Ports & Wharves
Airports
Car Parks
General Area Lighting
Container Terminals
ACCESSORIES
U BRACKET PLIILLX/UB
STIRRUP MOUNT PLIILLX/ST

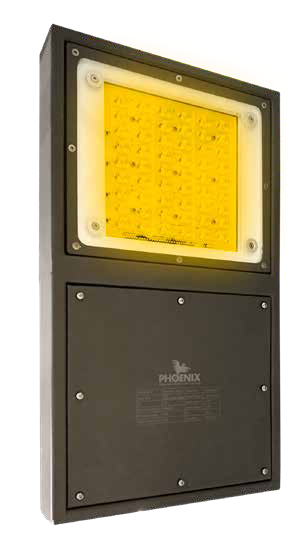

AMBER TURTLE FRIENDLY 2200K PLIILLX/A

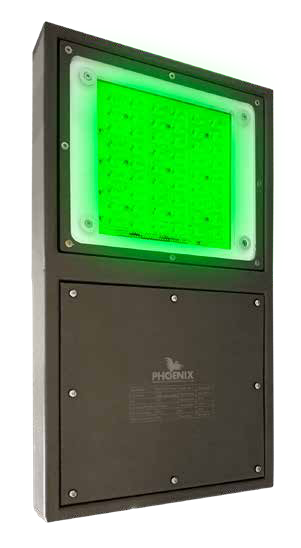

GREEN EYEWASH PLIILLX/G
Specifications
| Model | PLILLX50-XX-XX-EX |
|---|---|
| Optical Characteristics | |
| Rated Wattage | 50W |
| Lumens | 7850 |
| System Efficacy | 157Lm/W |
| Colour Temperature CCT | 3CCT (2200K Amber Turtle Friendly / Green Eyewash) |
| CRI (Ra) | >70 |
| Reported L70 | >50,000 Hours |
| Lens Optic Type | Type II / Type V |
| Electrical Characteristics | |
| Input | 90-305VAC |
| Frequency | 50Hz (Optional 60Hz) |
| Powerfactor | >0.95 / 230VAC |
| Total Harmonic Distortion | <15% |
| Environment | |
| IP Rating | IP66 |
| Impact Rating | IK08 (Optional IK09) |
| Operating Temperature | -40°C to 50°C (0°C to 50°C Emergency Battery) |
| Protection: |
Ex tb IIIC T120°C Db, -30°C ≤ Tamb ≤ +50°C (main power operated) Ex tb IIIC T60°C Db, -0°C ≤ Tamb ≤ +50°C (battery operated) |
| Certificate Number: | IECEx TSA 23.0032X |
| Product Material and Mounting | |
| Option 1 | U Bracket/Trunnion Mount |
| Option 2 | Stirrup Mount For Ceiling/Wall |
| Product Material | Powder-coated 316 Stainless Steel |
| Lens / Optics Material | PC Lens |
| Dimensions and Weights | |
| Product Dimensions | 508*280*92.3 |
| Product Weight | 7.5KG |
| Packaging Dimensions | 690*335*170 |
| Gross Weight | 8.5KG |
| Warranty and Certifications | |
| Warranty | 3 Years Warranty |
| Certifications | SAA / EMC |
