GALACTIC PLUS SOLAR STREET LIGHT

ON

Turn on the Anti-theft function. Once we turn on the key, if someone want to steal the solar light, once the lamp body rotates, it will always blink.

A: Human detection mode

When human/motion is detected,100% bright, No detection, 30% bright

B: Time control + Human detection mode

4 hours 100% and 30%
3 hours 70% and 30%
3 hours 50% and 20%
4 hours 30% and 10%

C: Time control mode

4 hours 100%
6 hours 70%
2 hours 50%

View fullsize

OFF

Turn off the Anti-theft function.

Note:

Factory default setting: Mode A .

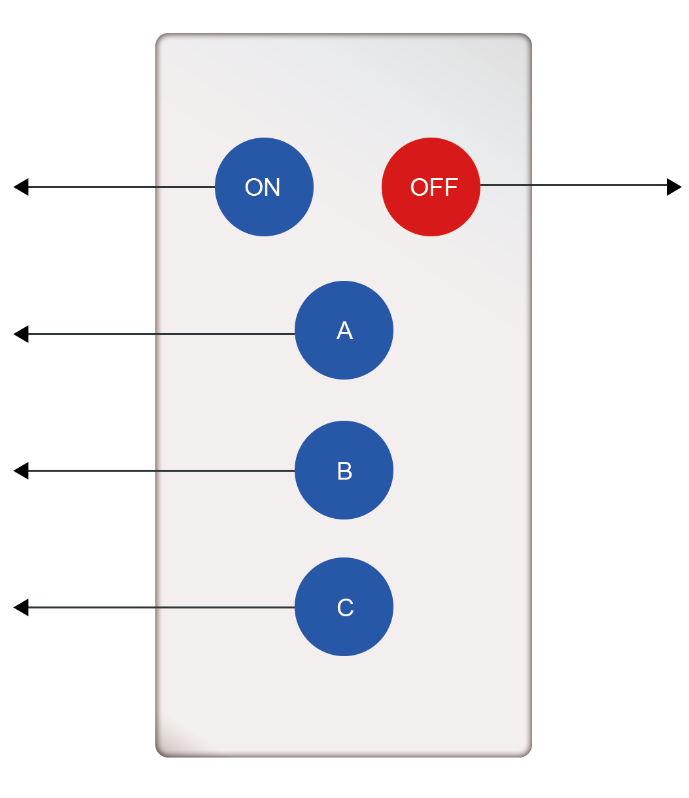

5 buttons on controller:
"NO","OFF","A", "B" and "C". The remote controller should aim at the sensor head on the fixture and press the corresponding key to send the signal. If it is written & received successfully, the indicator light will flash accordingly, else failed.

Energy-saving description:
Mode A: Medium
Mode B: Optimal (Economy)
Mode C: High performance (Energy consumed)
Please select or change the mode according to the condition of installation site.
