PSSRTB 16 - 125A
Phoenix EMS Sloped roof Robust range of field isolators are purpose-built for mining and heavy industrial environments, Built from 316 stainless steel with fully welded doors and polyurethane gasket sealing, it o ers superior corrosion resistance and weather protection.
safe operation, and long service life. With 16A - 125A current rating options, IP66 protection and flexible 3- or 4-pole configurations, our Field Isolators provide a robust, ready-toinstall solution that can also be customised for site-specific needs.

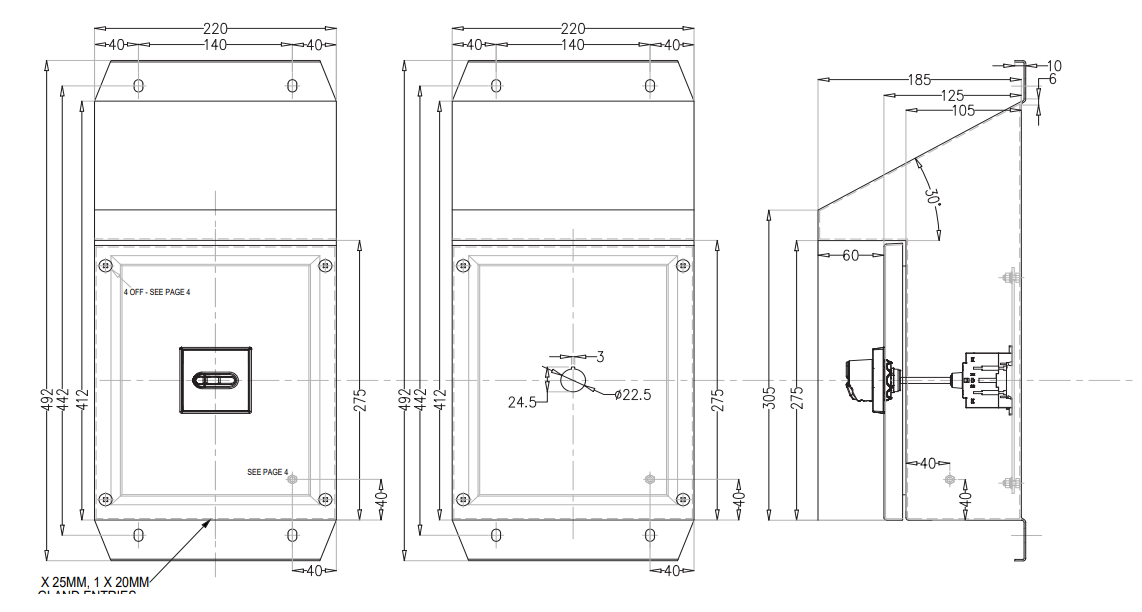

DIMENSIONS 16 - 80A
DIMENSIONS 100 - 125A
| SPECIFICATION / MODEL | PSSRTB16AXP | PSSRTB25AXP | PSSRTB40AXP | TB63AXP | PSSRTB80AXP | PSSRTB100AXP | PSSRTB125AXP |
|---|---|---|---|---|---|---|---|
| CURRENT RATING (A) | 16A | 25A | 40A | 63A | 80A | 100A | 125A |
| VOLTAGE RATING | 690V AC | ||||||
| OPERATIONAL CATEGORY | AC-21 / AC-23 | ||||||
| POLE CONFIGURATION | 3-POLE / 4-POLE | ||||||
| STANDARD EQUIPMENT INCLUDED | Yes | ||||||
| SHAFT (OXS6X85) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| HANDLE (OHYS2AJ) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| AUXILIARY CONTACT (OA1G01) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| ENCLOSURE PSSRTB272212 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| EARTH TERMINAL (WPE2.5) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| END STOP (EW35) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| INGRESS PROTECTION | IP66 | ||||||
| ENCLOSURE MATERIAL | STAINLESS STEEL 316 | ||||||
| AMBIENT OPERATING TEMP. | -40°C to +70°C | ||||||
| CABLE ENTRY OPTIONS | TOP / BOTTOM / SIDE | ||||||
| CABLE SIZE RANGE | 1.5–6mm² | 2.5–10mm² | 4–16mm² | 6–25mm² | 10–35mm² | 16–50mm² | 25–70mm² |
| AUXILIARY CONTACTS (OPTIONAL) | 1NO/1NC | ||||||
| HANDLE TYPE | LOCKABLE PADLOCK HANDLE | HEAVY-DUTY LOCKABLE | INDUSTRIAL METAL HANDLE | ||||
| TYPICAL APPLICATIONS | SMALL MOTORS, LIGHTING CIRCUITS | PUMPS, SMALL MACHINERY | MOTORS, CONVEYORS | LARGER MOTORS, HVAC | PROCESSING EQUIPMENT | HEAVY INDUSTRIAL EQUIPMENT | MINING PLANT, LARGE DRIVES |
