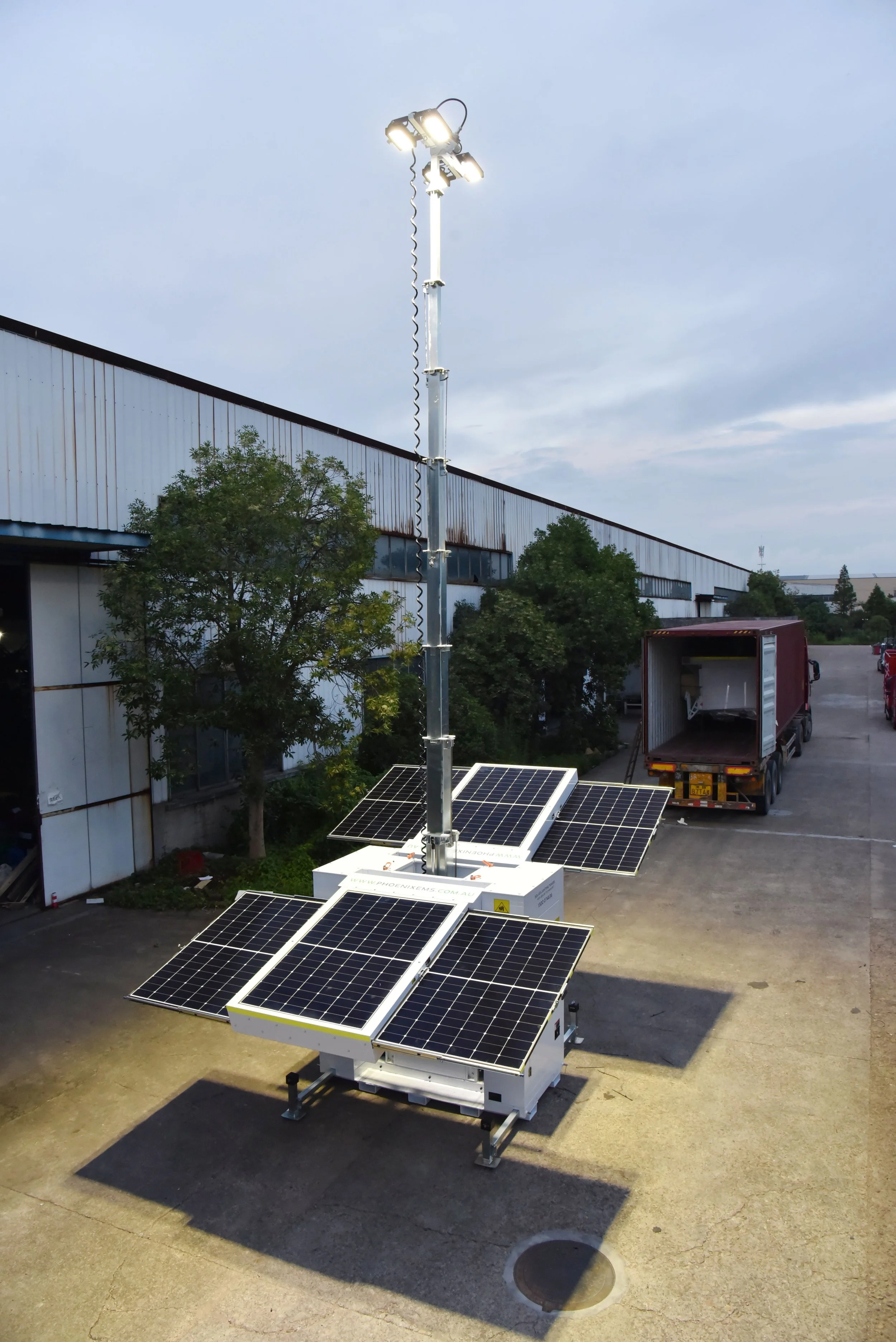

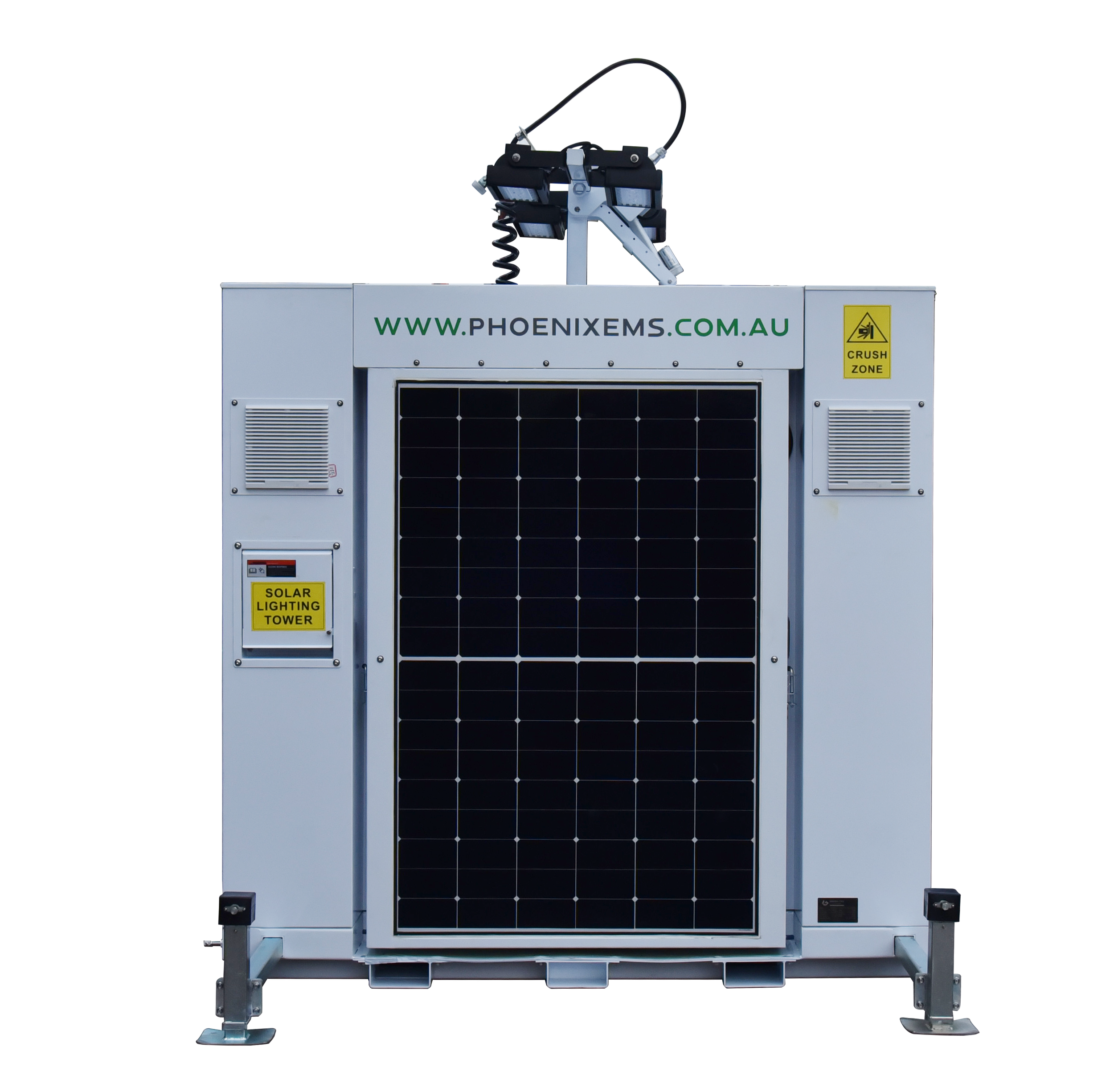

Solar cube
Technical Data
| BASE SYSTEM | |||
|---|---|---|---|
| Model | GTS-1200-SV-6.5H | Material | Steel Q235 |
| Powder | Outdoor Type | Dimension | L x W x H |
| Transport | 1150 × 1150 × 2200 (mm) 3.8 × 3.8 × 7.2 (ft) |
Operate | 4600 × 4600 × 7000 (mm) 15.1 × 15.1 × 30.2 (ft) |
| Weight | 1000kg / 2205lb | System Voltage | DC24V |
| Work Temperature | -35°C ~ 50°C / -31°F ~ 122°F | ||
| SOLAR SYSTEM | BATTERY SYSTEM | ||
| Solar Panel | 4 × 380W Monocrystalline Silicon 72pcs |
Gel | 8 × 150Ah Free-Main Deep-Cycle |
| Voltage | DC48V | Voltage | DC12V |
| Charging Time | 8.9 hours | Series & Parallel | 2 in series, then parallel |
| Power Capacity | 14400Wh | ||
| MAST SYSTEM | CONTROL SYSTEM | ||
| Body | Steel Q235, Galvanized | Solar Controller | MPPT 60A |
| Fastener | Stainless Steel 304 | Efficiency | 95%+ |
| Wire Rope | Stainless Steel 316, 5mm | Detection & Protection | Short-Circuit Overload High Voltage High Temperature |
| Type | Square, Telescopic | Timer | Dusk & Dawn |
| Height | 6.5m / 21ft | Whole Machine | Battery Isolator Light On-Off Mast Up-Down Rotation & Tilt |
| Section | 5 | ||
| Rotation | 360° Electric | ||
| Tilt | 90° Electric | ||
| Spring Cable | Power Supply | ||
| Lifting Method | Electric | ||
| Recommended Loading | 5kg ~ 70kg / 11lb ~ 154lb | ||
| Windproof | 117km/h / 73mph | ||
| ACCESSORIES | BASE SYSTEM | ||
| Operation Manual | Parts Manual | Standard | AU |
| Controller Manual | Allen Wrench | Forklift Hole | 2 |
| Hex Wrench | Fix Ring | 4 | |
| Outrigger | 4 × Manual | ||
| Outrigger | Galvanized | ||
| Warranty | 2 years | ||
