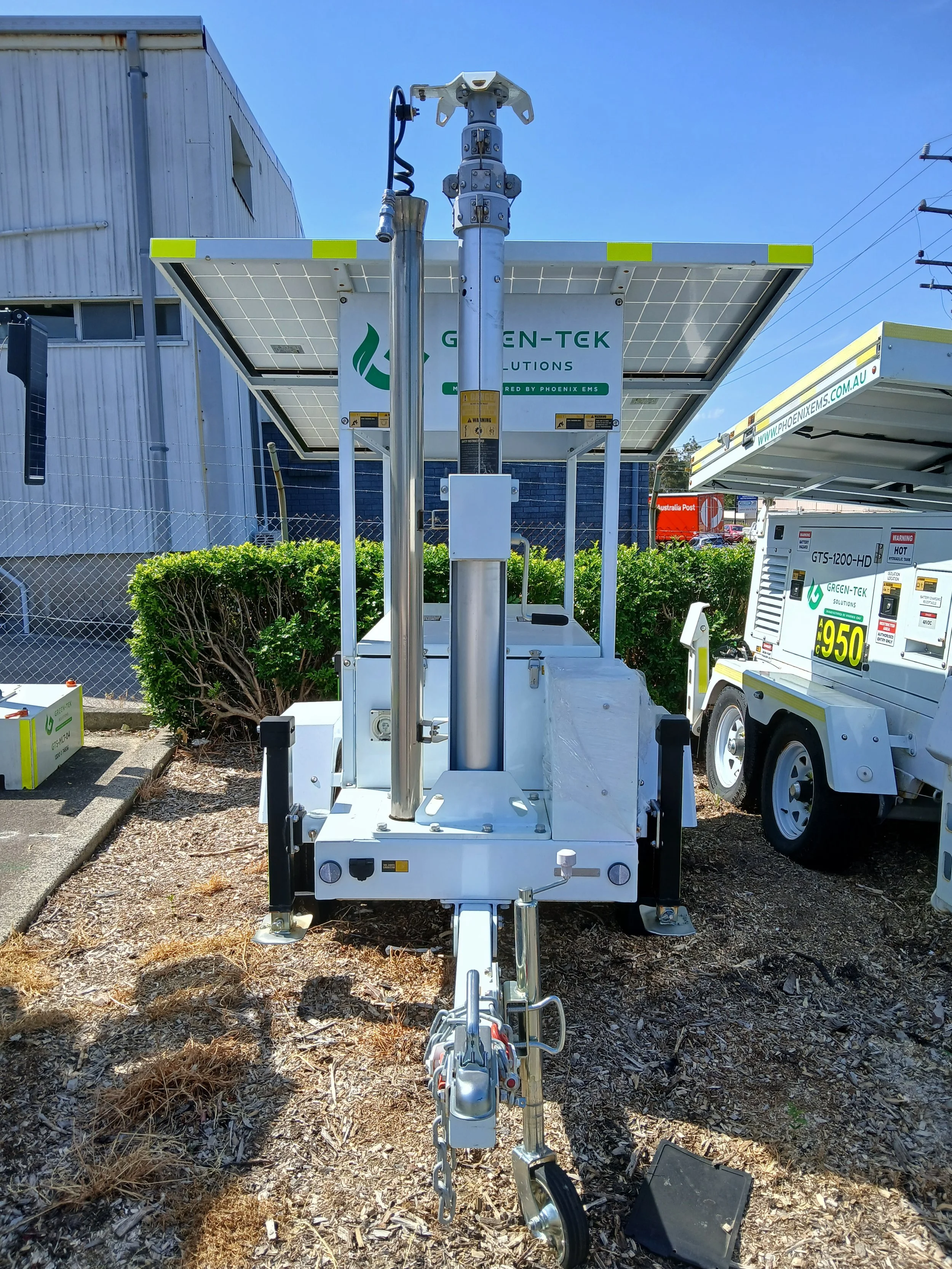

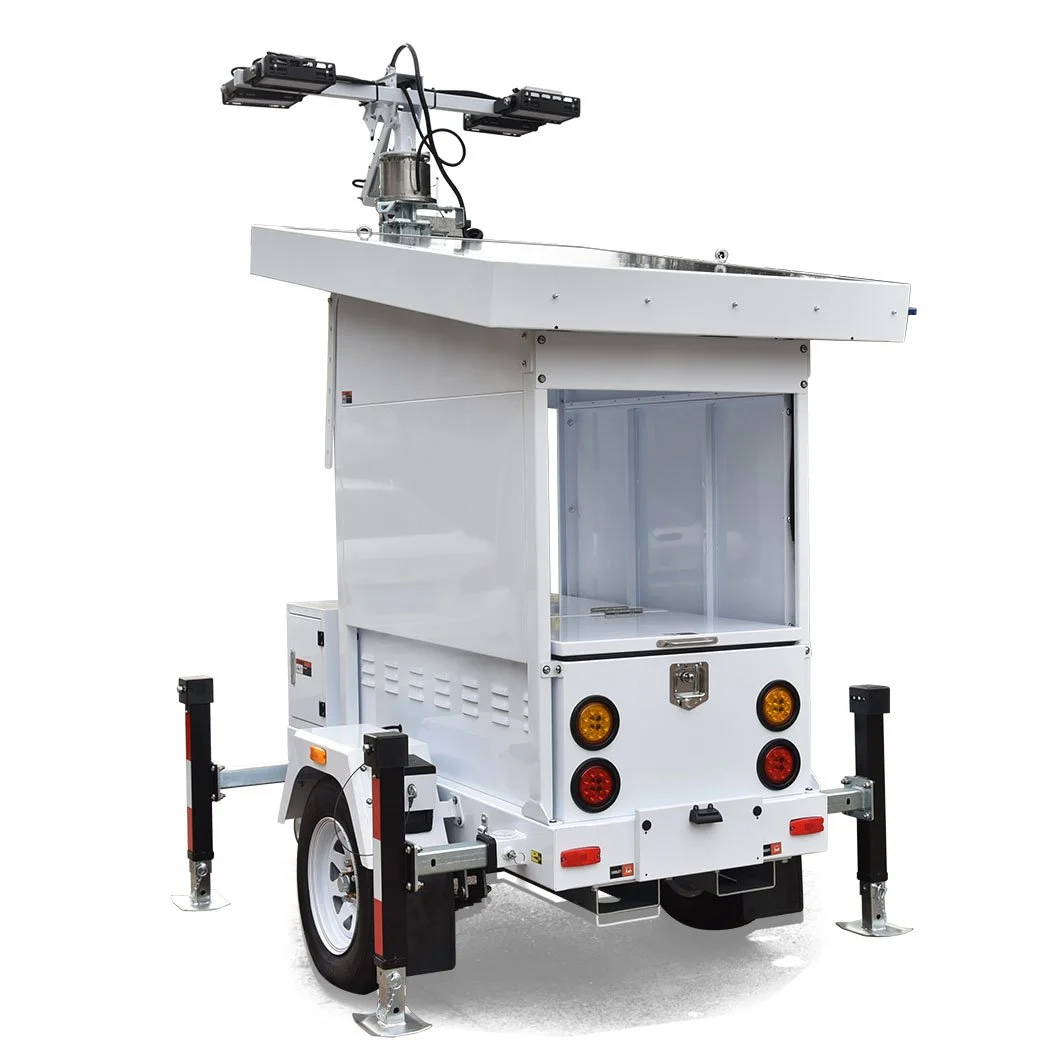

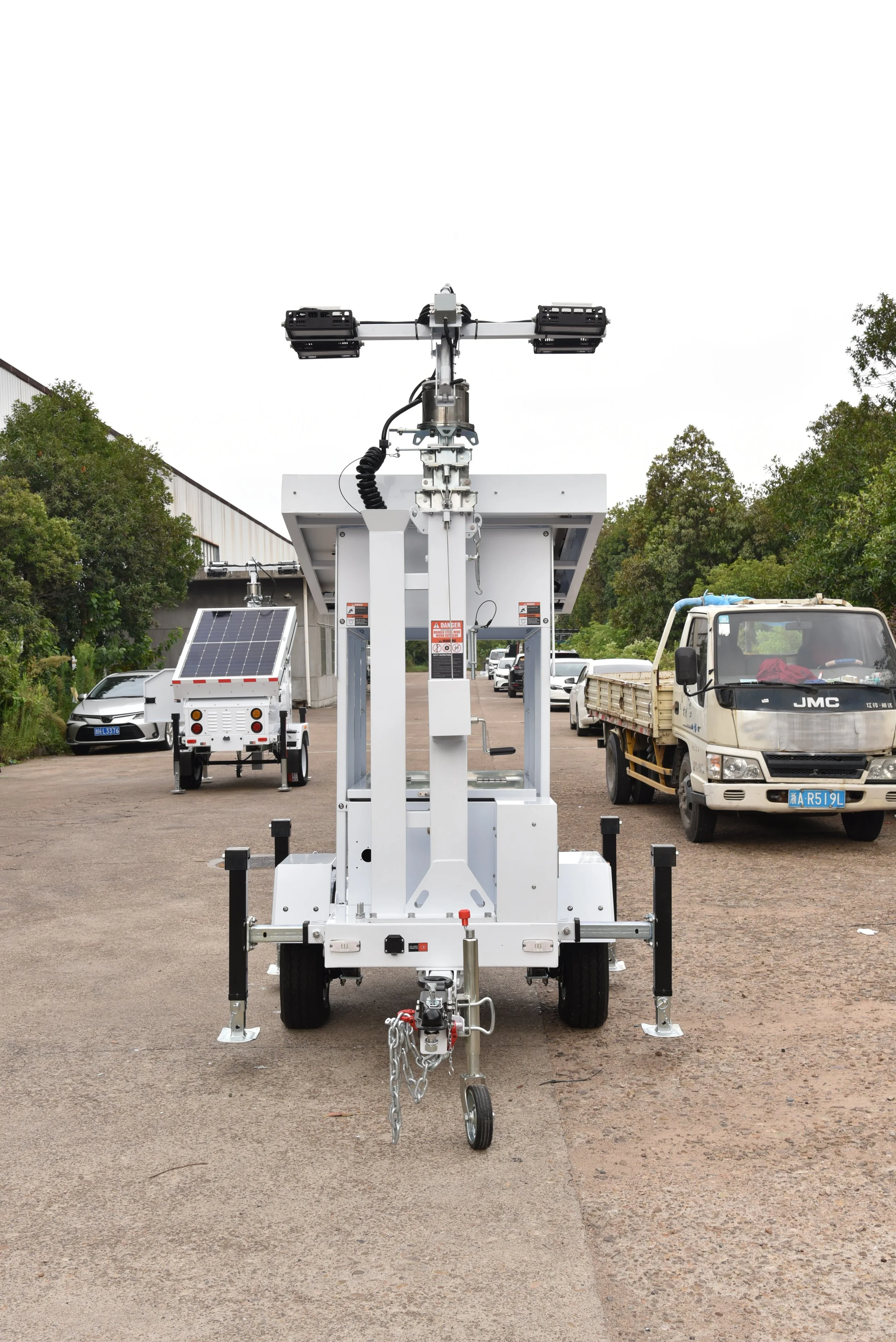

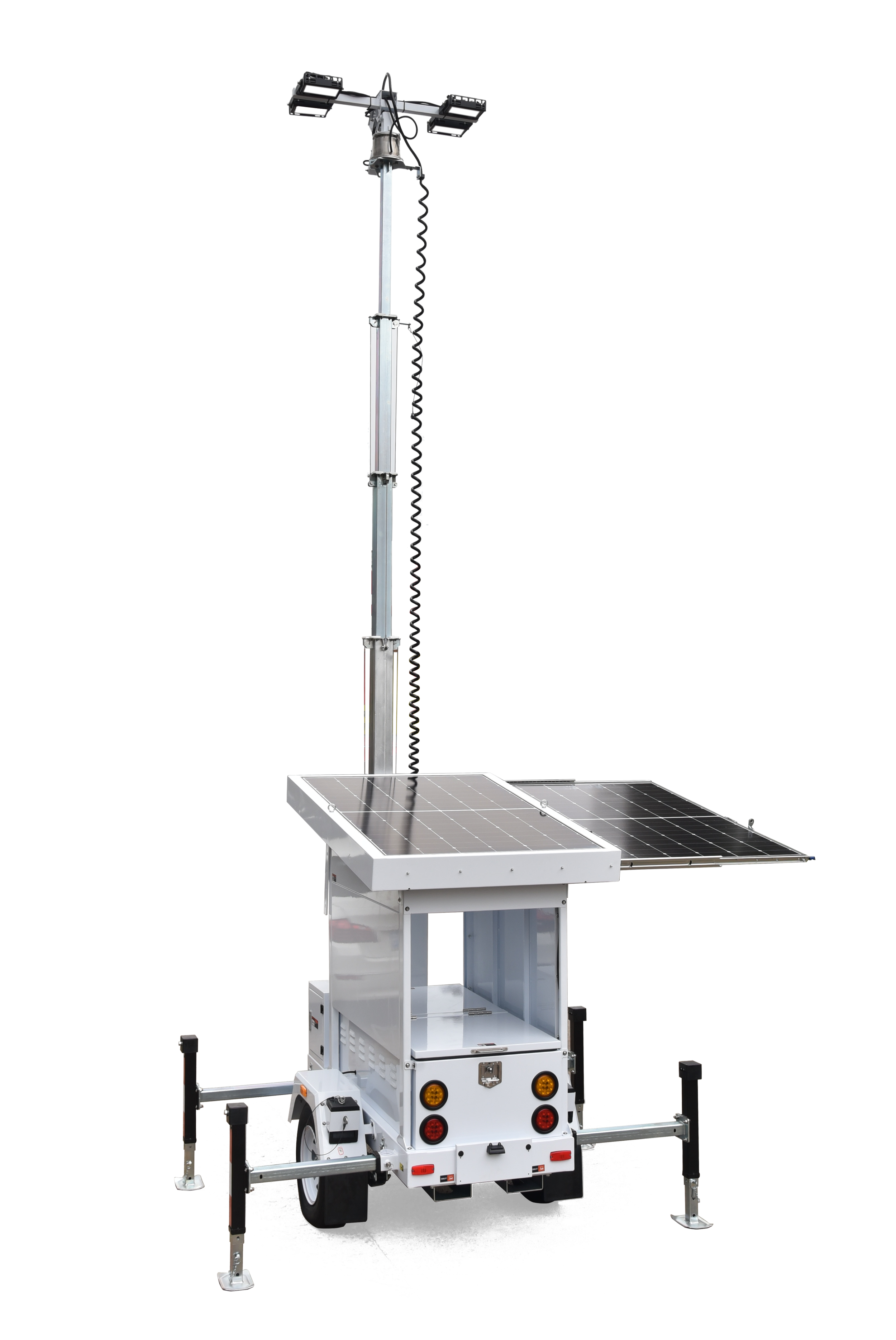

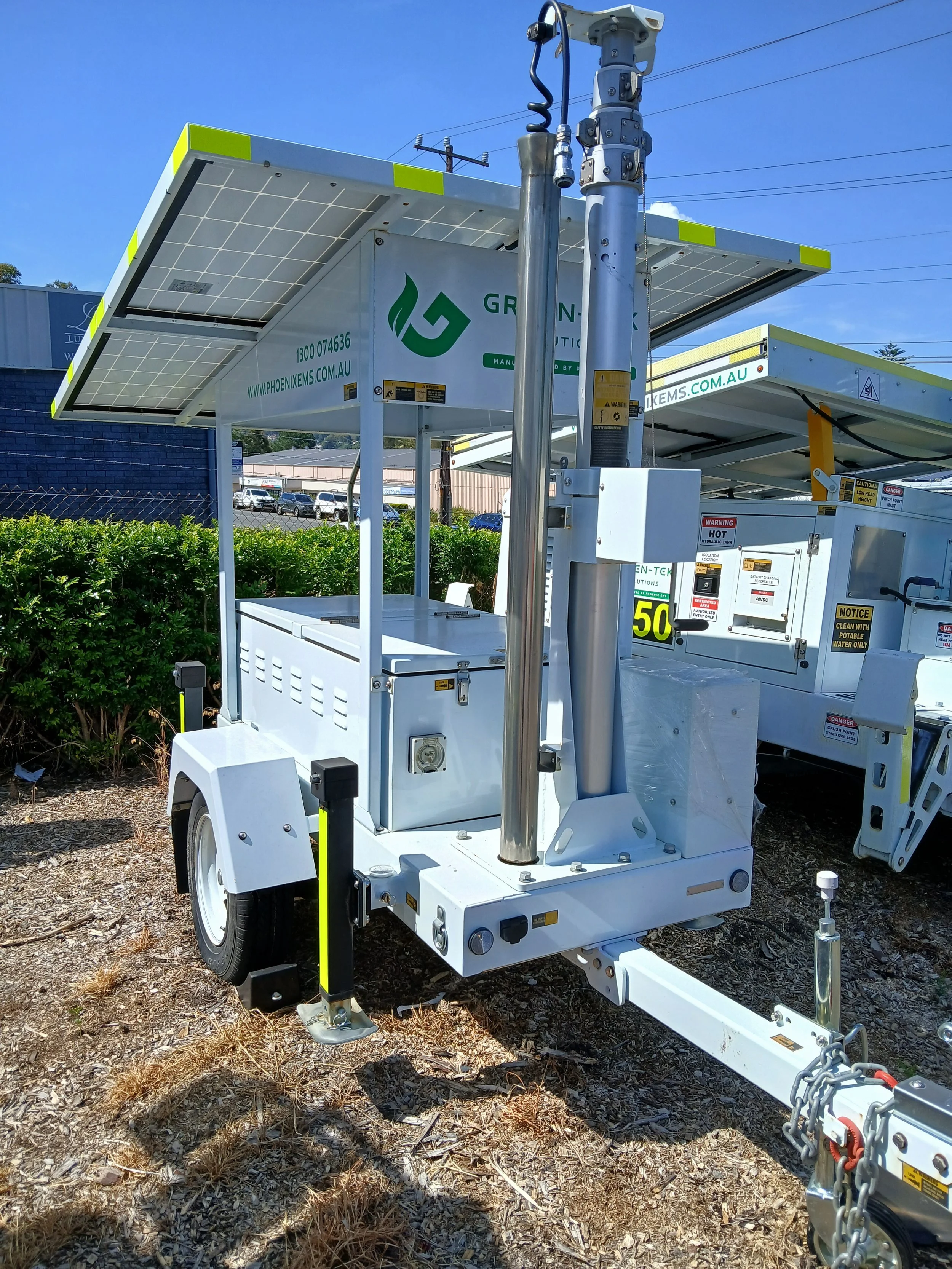

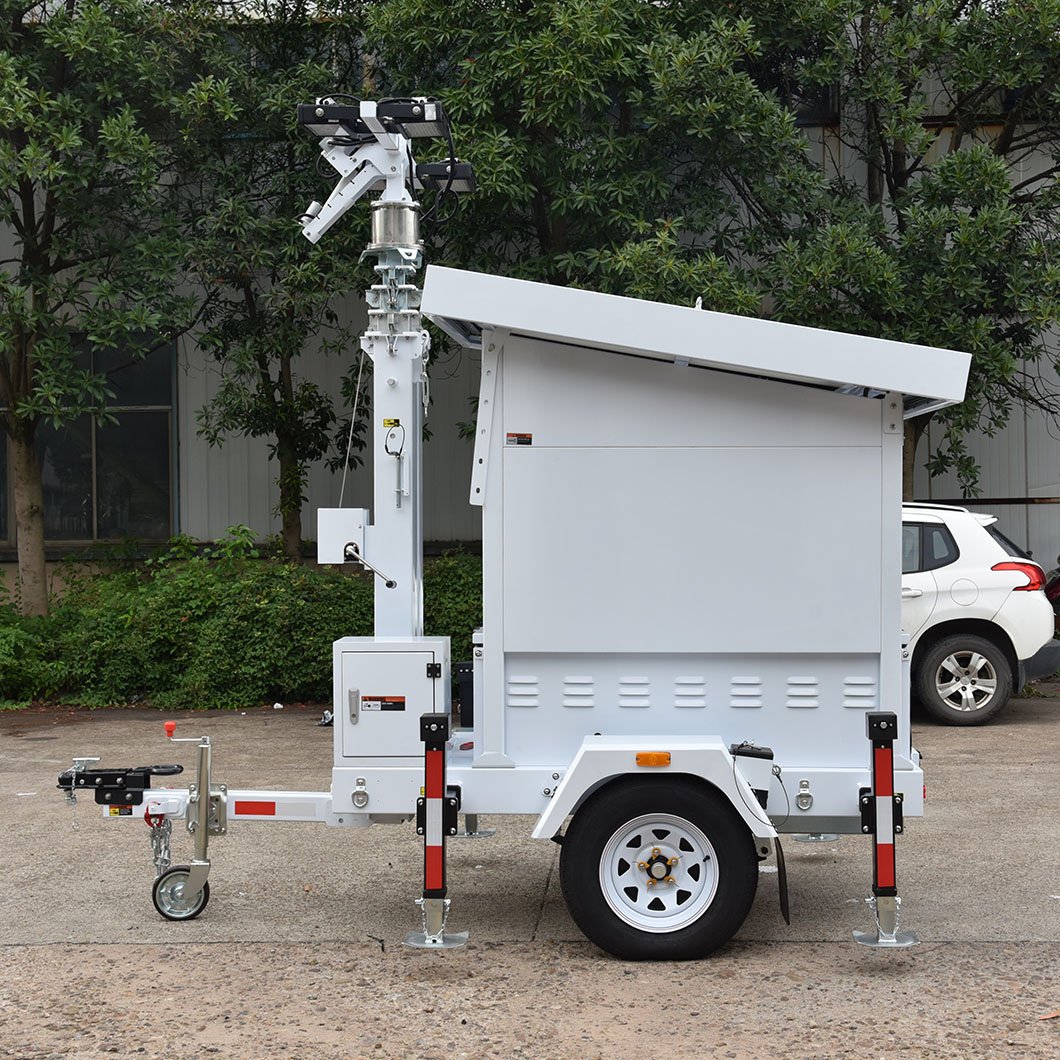

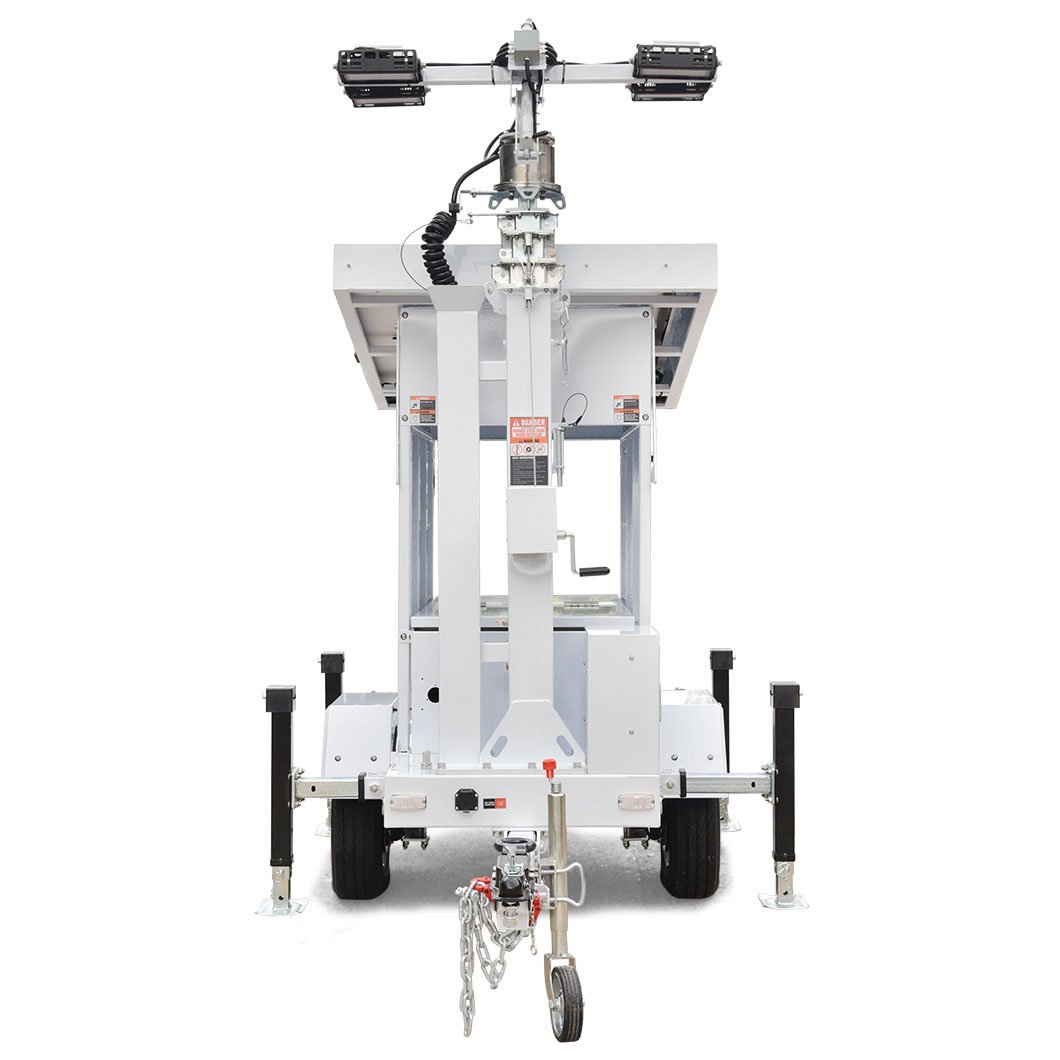

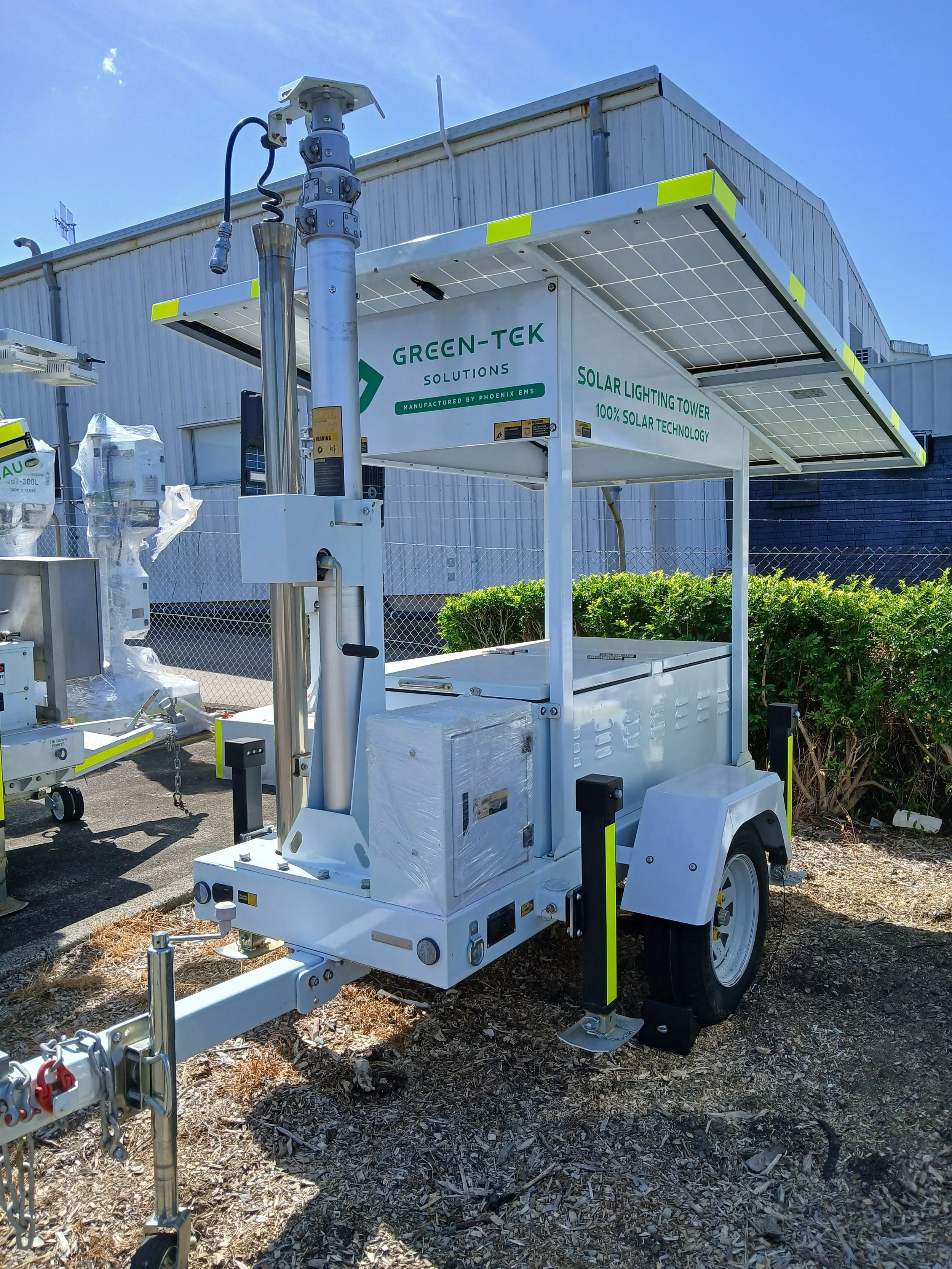

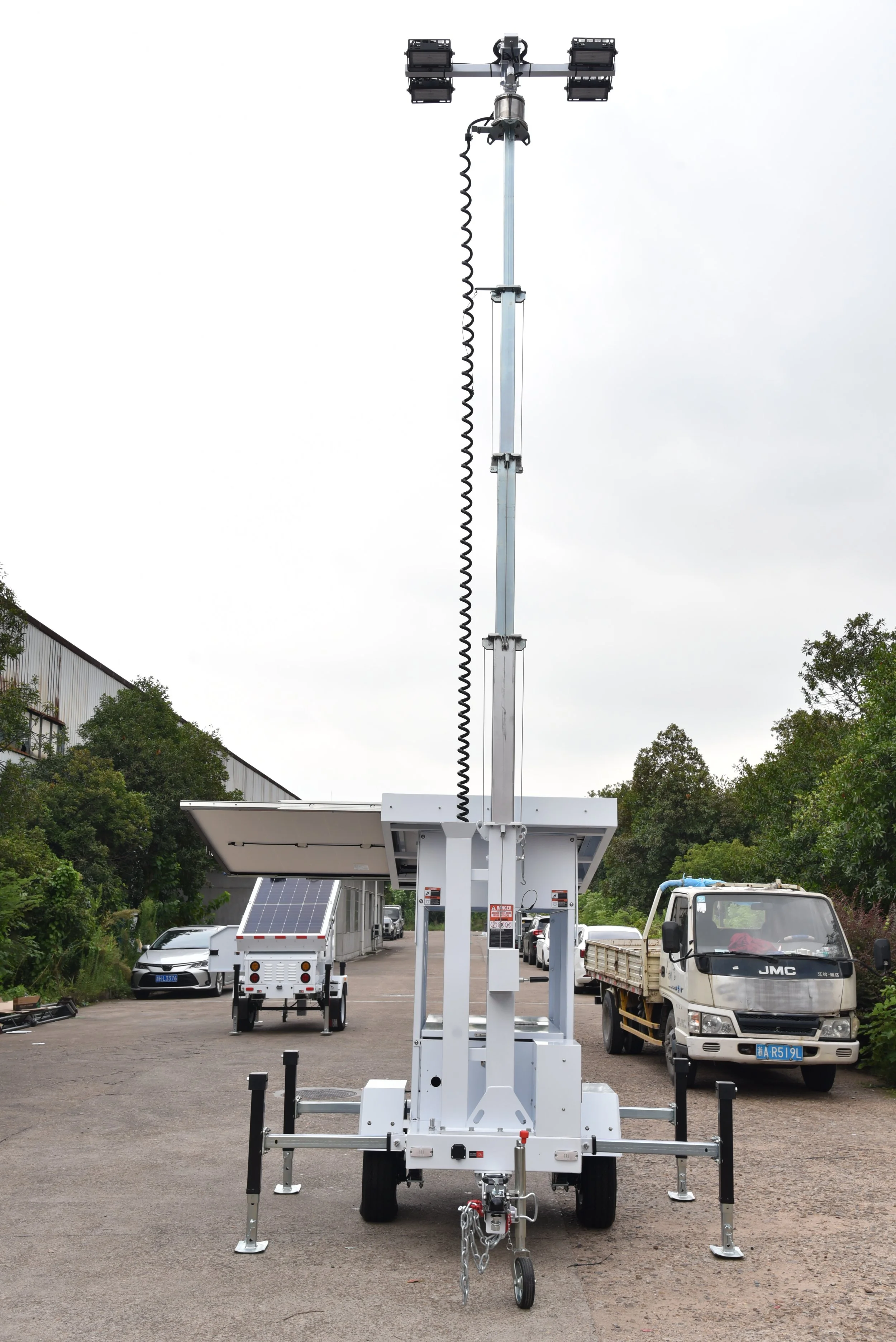

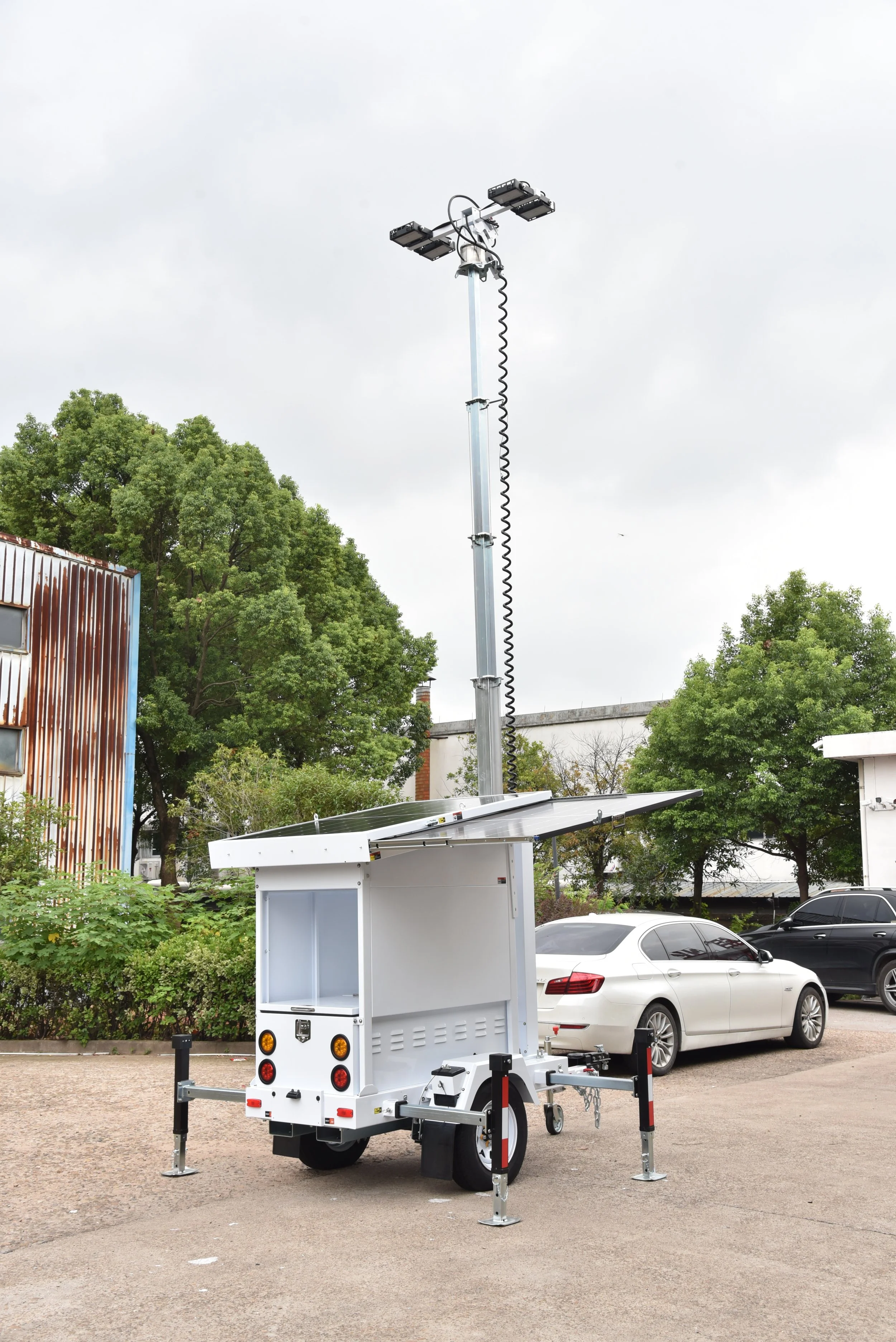

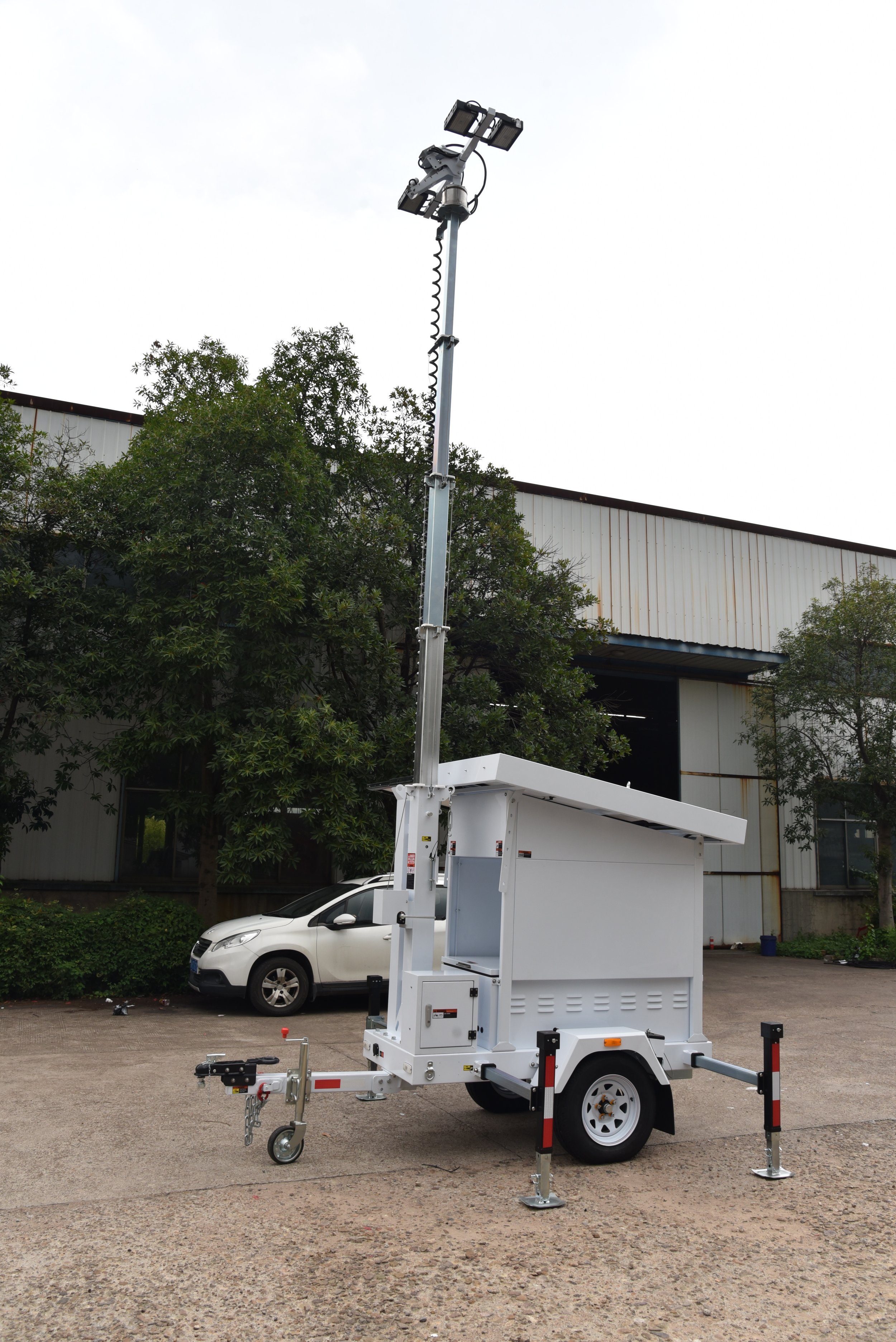

MOBILE SOLAR LIGHTING TRAILER - GTS SERIES 600
The GTS Series 600 by Green-Tek Solutions is a zero-emission, heavy-duty mobile lighting trailer designed for reliable illumination in demanding environments.
Whether for construction, mining, or emergency services, the GTS Series 600 offers a silent, maintenance-friendly alternative to traditional diesel towers without compromising on brightness or stability.
| MODEL | ECO GTS-600E4 |
PLUS GTS-600S4 |
PLUG GTS-600P4 |
PLUS GTS-600SS |
ECO & PLUS & PLUG GTS-600PSS |
|---|---|---|---|---|---|
| Type of Lights | 4X60W LED | 4X60W LED | 4X60W LED | 4X60W LED | 4X60W LED |
| Lights Output | DC24V, 36,000LUMS | DC24V, 36,000LUMS | DC24V, 36,000LUMS | DC24V, 36,000LUMS | DC24V, 36,000LUMS |
| Solar Panel | Monocrystalline Silicon | Monocrystalline Silicon | Monocrystalline Silicon | Monocrystalline Silicon | Monocrystalline Silicon |
| Rate Power | 2x455W | 2x455W | 2x455W | 2x455W | 2x455W |
| PV Controller | MPPT 30A | MPPT 30A | MPPT 30A | MPPT 30A | MPPT 30A |
| Type of Battery | Gel-battery | Gel-battery | Gel-battery | Gel-battery | Gel-battery |
| No. of Battery | 4X150AH DC12V | 4X200AH DC12V | 4X150AH DC12V | 4X200AH DC12V | 4X200AH DC12V |
| Battery Capacity | 300AH | 400AH | 300AH | 400AH | 300AH |
| System Voltage | DC24V | DC24V | DC24V | DC24V | DC24V |
| Mast | Telescopic, Aluminium | Telescopic, Aluminium | Telescopic, Aluminium | Telescopic, Galvanized | Telescopic, Galvanized |
| Maximum Height | 6.5m/21.3ft | 6.5m/21.3ft | 6.5m/21.3ft | 7m/9m | 7m/9m |
| Wind Rating Speed | 100KM/H | 100KM/H | 100KM/H | 100KM/H | 100KM/H |
| Lifting System | Manual / electric optional | Manual / electric optional | Manual / electric optional | Manual / electric optional | Manual / electric optional |
| Battery Charger | / | / | 1500W | / | 1500W |
| Axle | Single axle | Single axle | Single axle | Single axle | Single axle |
| Tyre and Rim | 14 inch | 14 inch | 14 inch | 14 inch | 14 inch |
| Stabilisers | 4PCS Manual | 4PCS Manual | 4PCS Manual | 4PCS Manual | 4PCS Manual |
| Tow Hitch | 50mm ball / 70mm Ring | 50mm ball / 70mm Ring | 50mm ball / 70mm Ring | 50mm ball / 70mm Ring | 50mm ball / 70mm Ring |
| Colour | White | White | White | White | White |
| Working Temperature | -35~60°C | -35~60°C | -35~60°C | -35~60°C | -35~60°C |
| Operate Time | 21 hours | 28 hours | 21 hours | 28 hours | 21 hours |
| Charge Time (Solar) | 8 hours | 10 hours | 8 hours | 10 hours | 8 hours |
| Charge Time (AC) | / | / | 10 hours | / | 10 hours |
| Dimensions | 2356x2104x2765mm | 2356x2104x2765mm | 2356x2104x2765mm | 3100x2104x2660mm | 3100x2104x2660mm |
| Dry Weight | 750kg | 780kg | 780kg | 850kg | 850kg |
