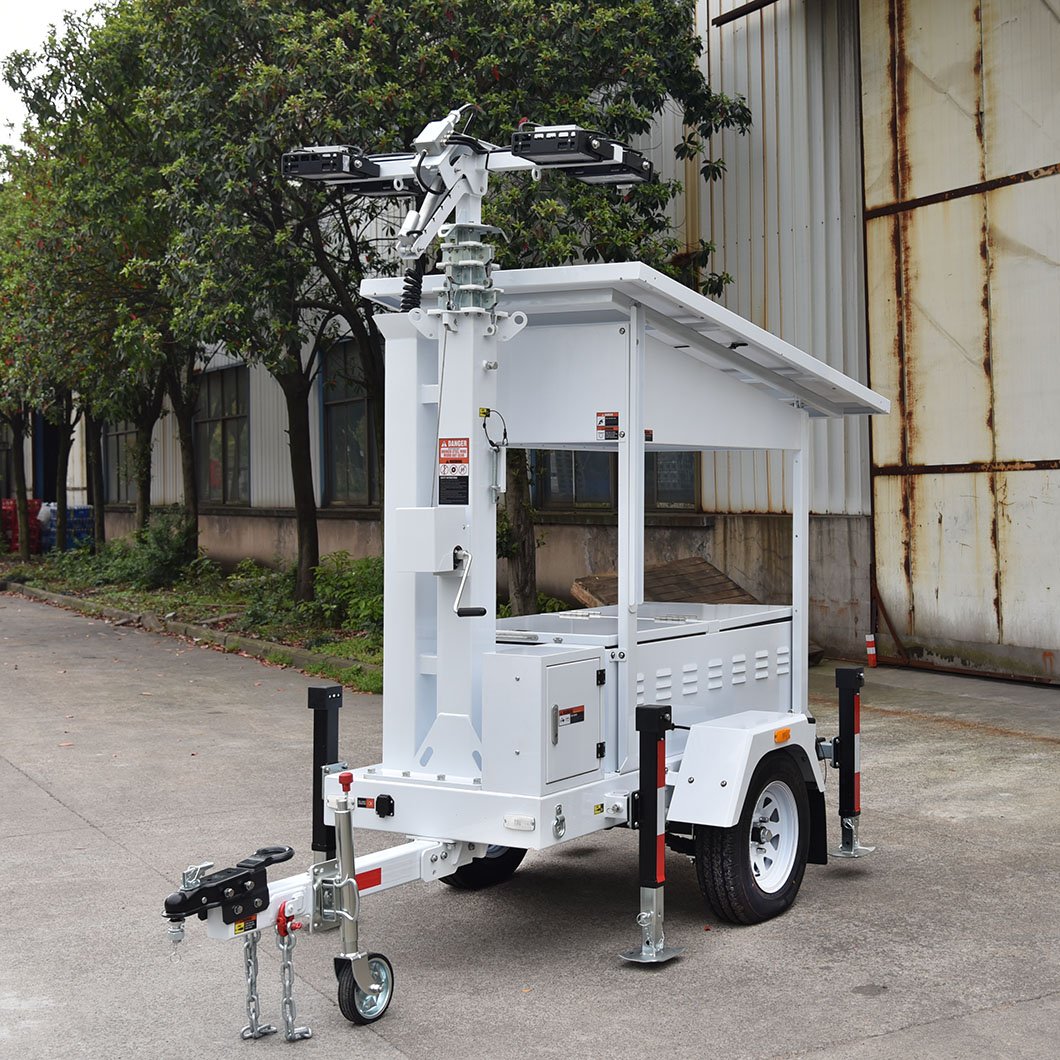

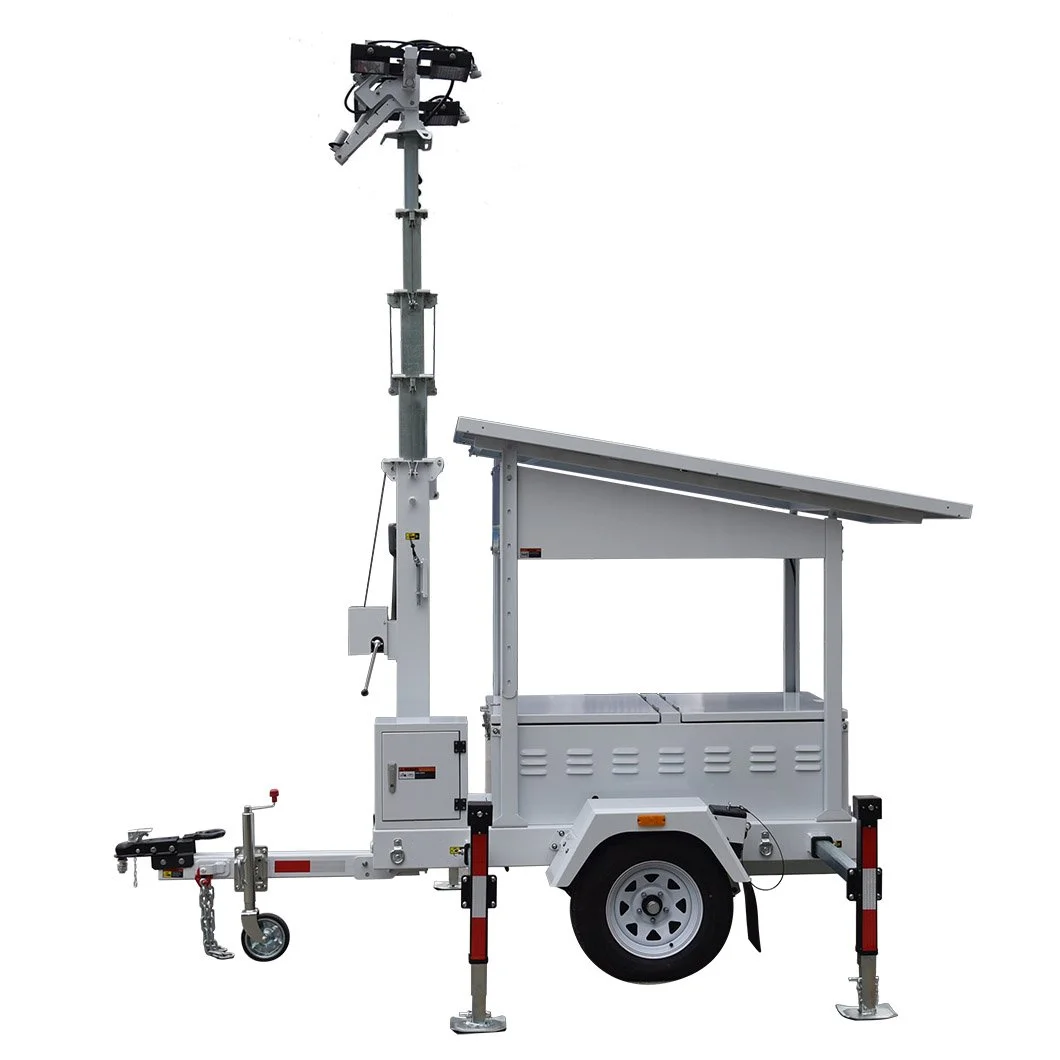

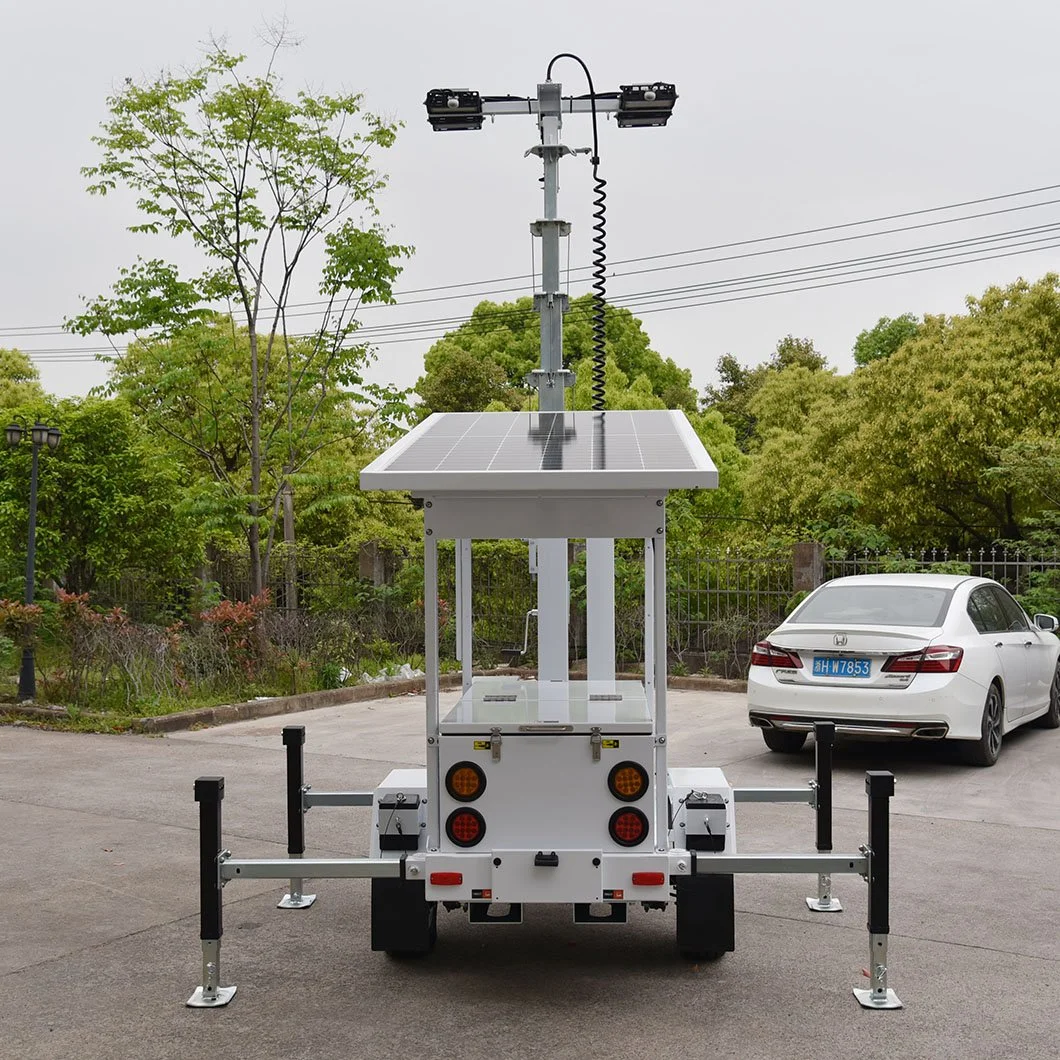

MOBILE SOLAR LIGHTING TRAILER - GTS SERIES 300
| MODEL | ECO | PLUS | PLUG | ECO & PLUS & PLUG |
|---|---|---|---|---|
| Model | GTS-300E | GTS-300S | GTS-300P | GTS-300PS |
| Type of Lights | 2X60W LED | 2X60W LED | 2X60W LED | 2X60W LED |
| Lights Output | DC24V, 12,000LUMS | DC24V, 12,000LUMS | DC24V, 12,000LUMS | DC24V, 12,000LUMS |
| Solar Panel | Monocrystalline Silicon | Monocrystalline Silicon | Monocrystalline Silicon | Monocrystalline Silicon |
| Rate Power | 1x455W | 1x455W | 1x455W | 1x455W |

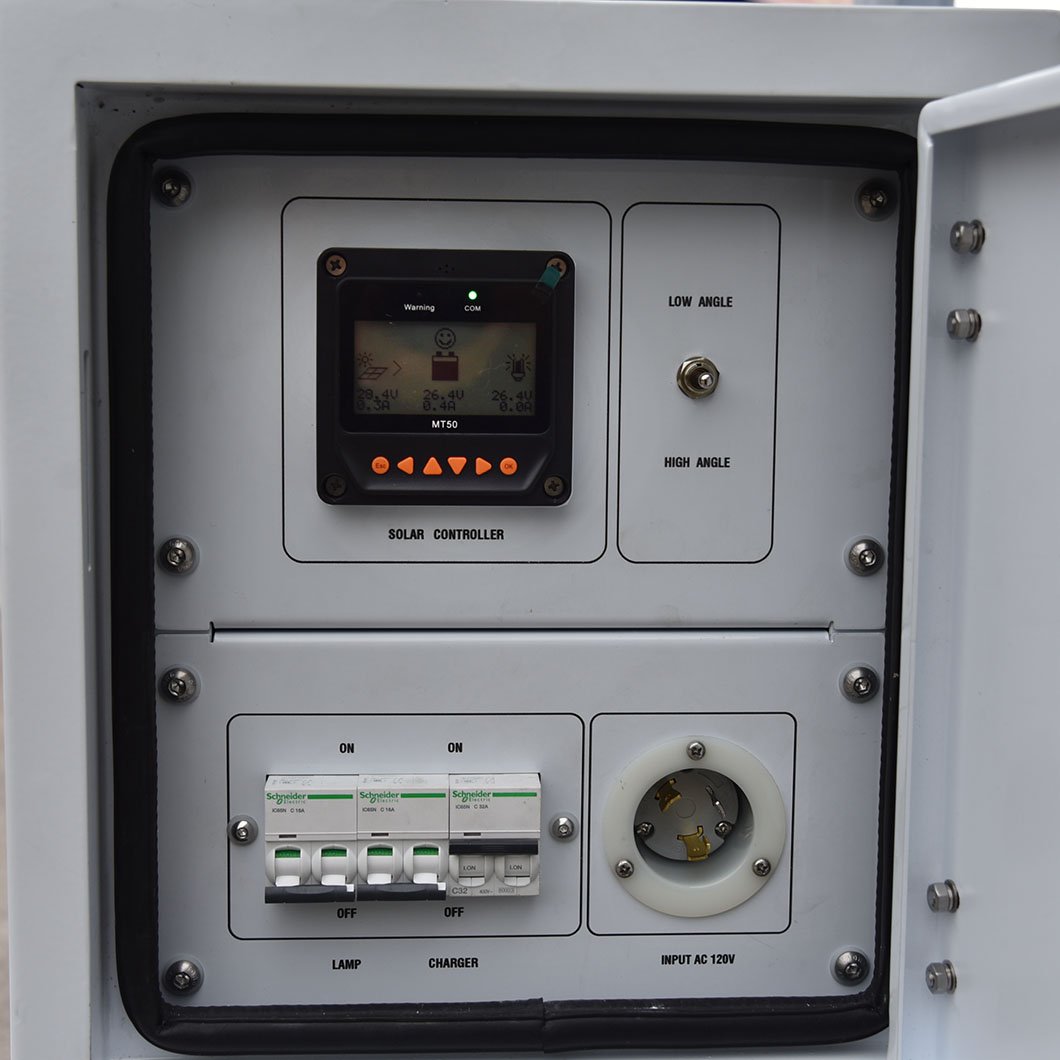

| PV Controller | MPPT 20A | MPPT 20A | MPPT 20A | MPPT 20A |
| Type of Battery | Gel-battery | Gel-battery | Gel-battery | Gel-battery |
| No. of Battery | 2x150AH DC12V | 2x200AH DC12V | 2x150AH DC12V | 2x200AH |
| Battery Capacity | 300AH | 400AH | 300AH | 400AH |
| System Voltage | DC12V | DC12V | DC12V | DC12V |
| Mast | Telescope, Aluminium | Telescope, Aluminium | Telescope, Aluminium | Telescope, Aluminium |

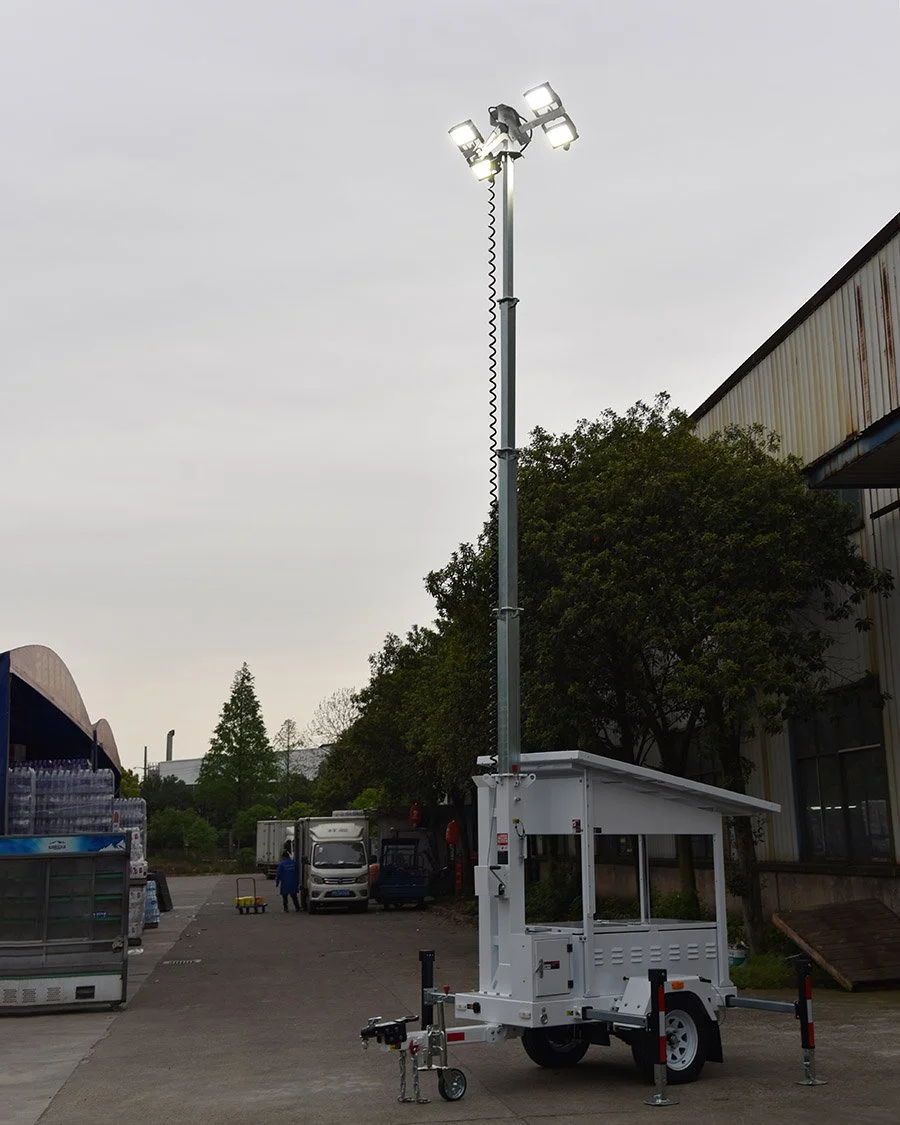

| Maximum Height | 4.5m/14.8ft | 4.5m/14.8ft | 4.5m/6m optional | 4.5m/6m optional |
| Wind Rating Speed | 100KM/H | 100KM/H | 100KM/H | 100KM/H |
| Lifting System | Manual / electric optional | Manual / electric optional | Manual / electric optional | Manual / electric optional |
| Battery Charger | / | / | 1000W | 1000W |
| Axle | Single axle | Single axle | Single axle | Single axle |
| Tyre and Rim | 14 inch | 14 inch | 14 inch | 14 inch |
| Stabilisers | 4PCS Manual | 4PCS Manual | 4PCS Manual | 4PCS Manual |

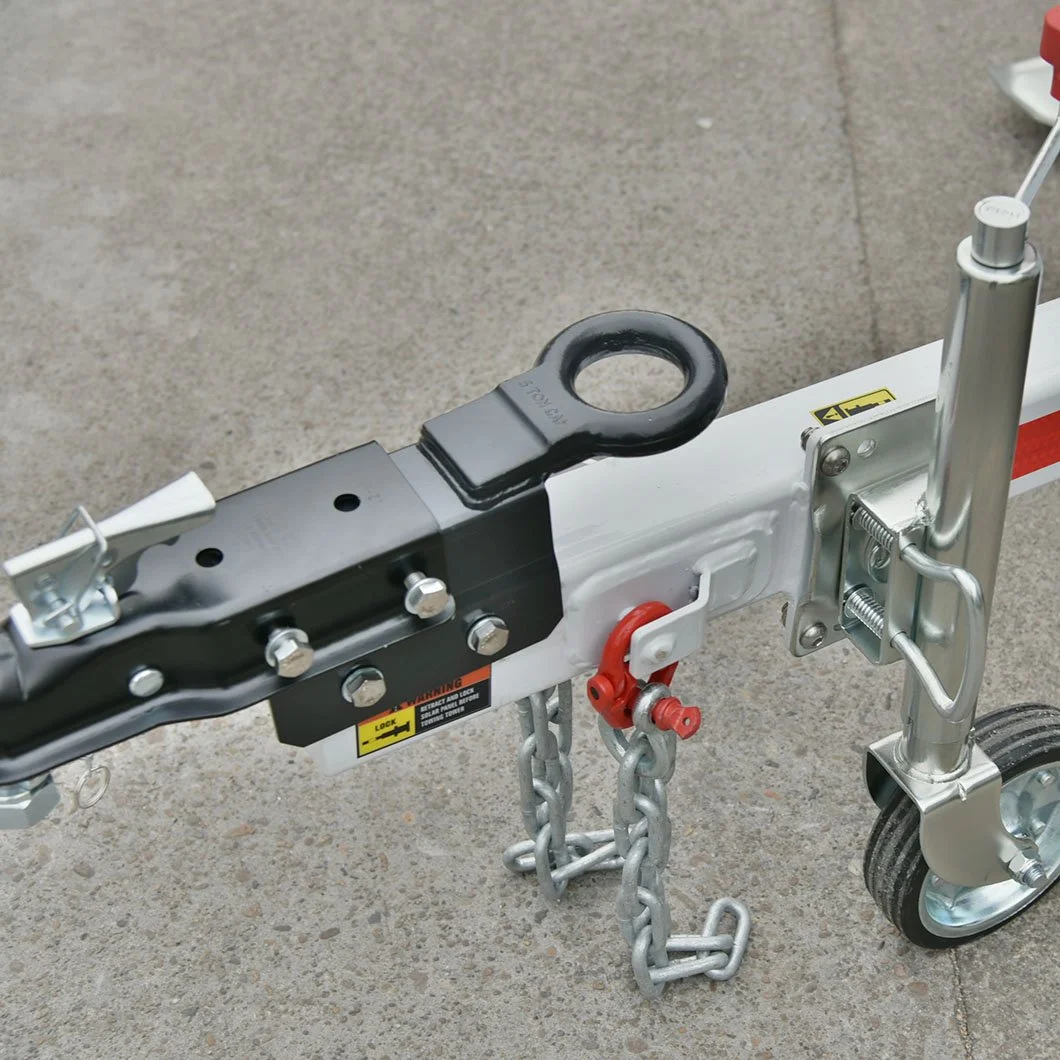

| Tow Hitch | 50mm ball / 70mm Ring | 50mm ball / 70mm Ring | 50mm ball / 70mm Ring | 50mm ball / 70mm Ring |
| Colour | White | White | White | White |
| Working Temperature | -35~60 C | -35~60 C | -35~60 C | -35~60 C |
| Operate Time | 21 hours | 28 hours | 21 hours | 28 hours |
| Charge Time (Solar) | 7 hours | 9 hours | 7 hours | 9 hours |
| Charge Time (AC) | / | / | 10 hours | 10 hours |
| Dimensions | 2356x2104x2415mm | 2356x2104x2415mm | 2356x2104x2415mm | 2356x2104x2415mm |
