GTS 2600 SOLAR CUBE

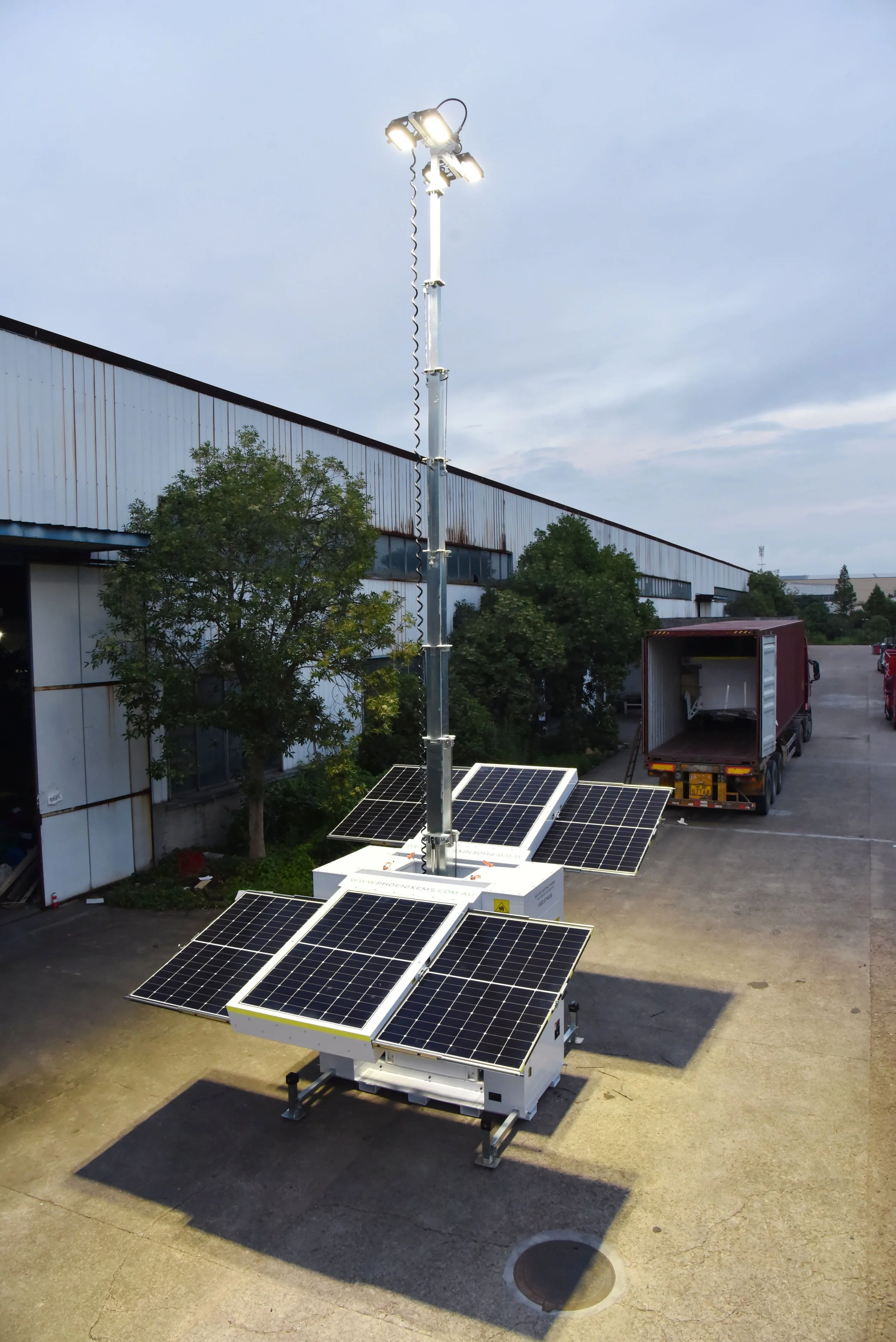

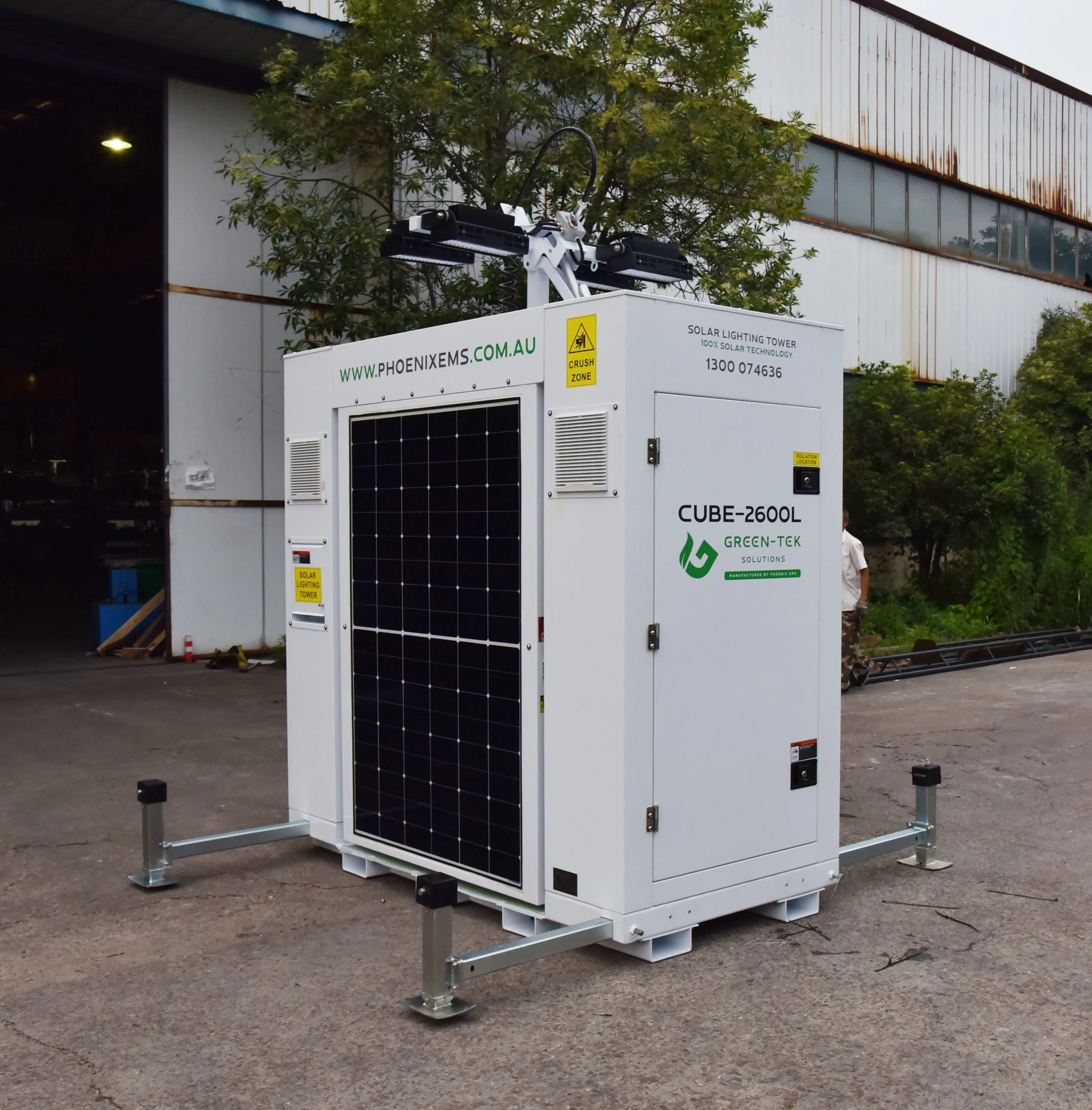

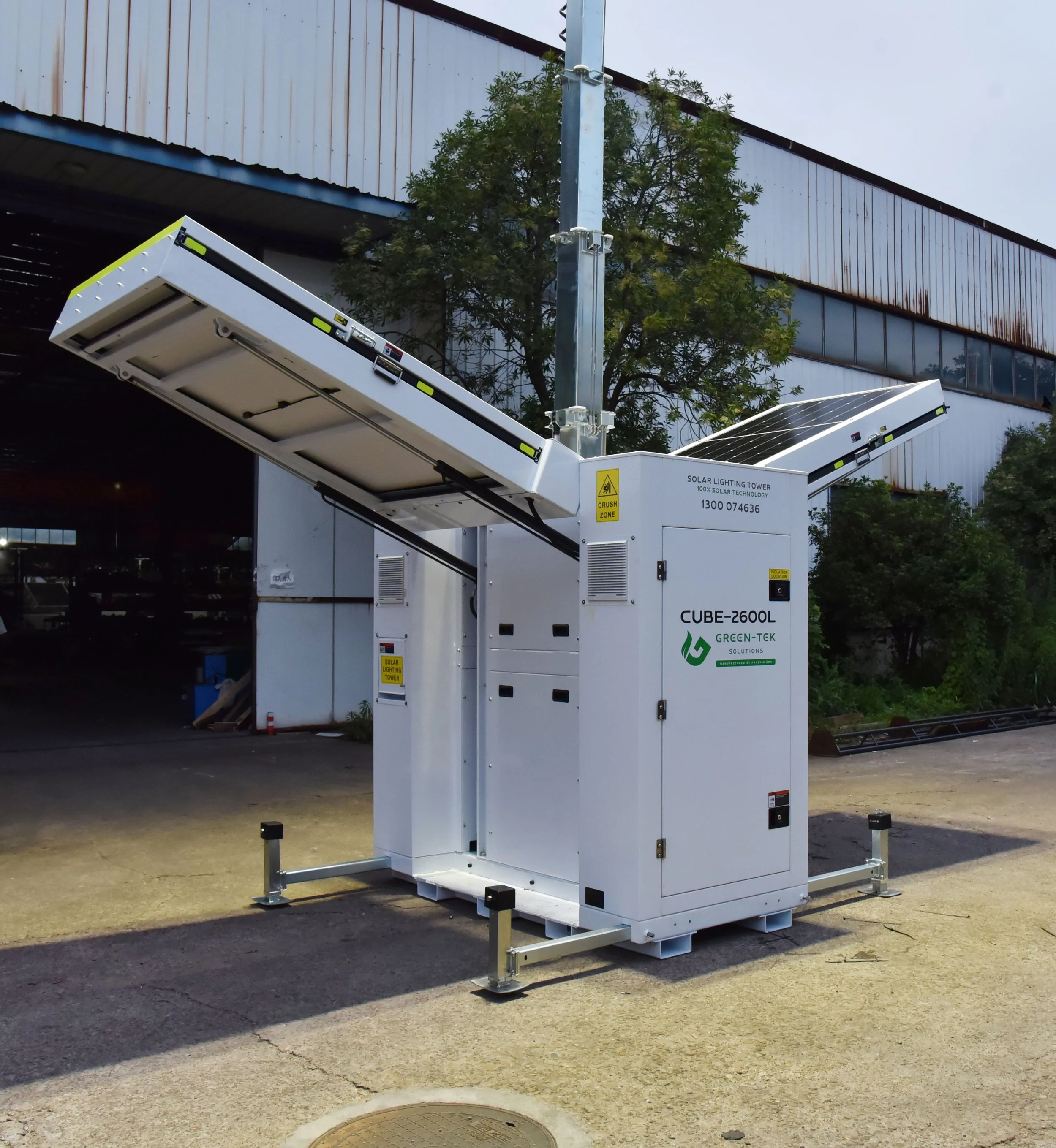

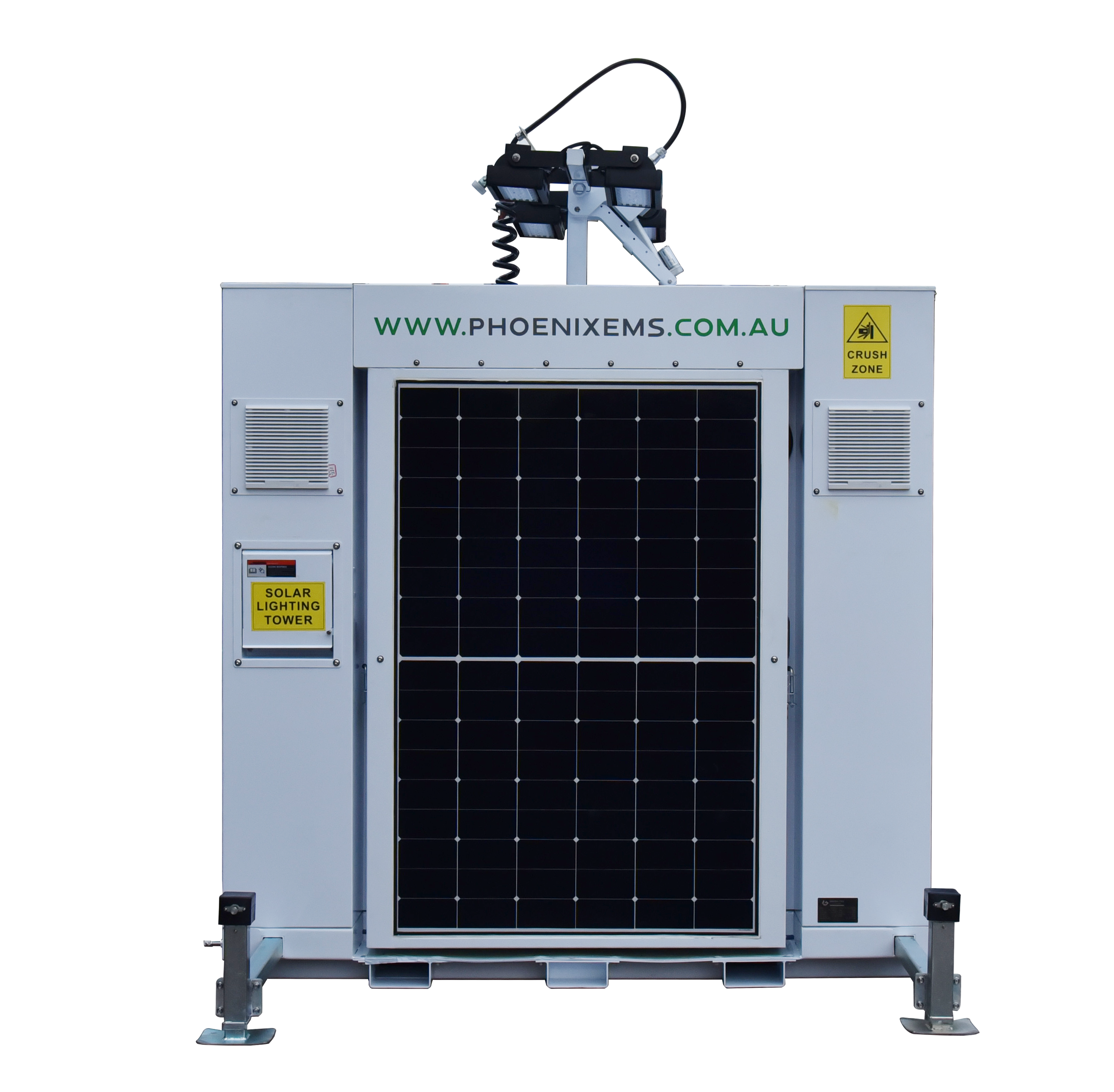

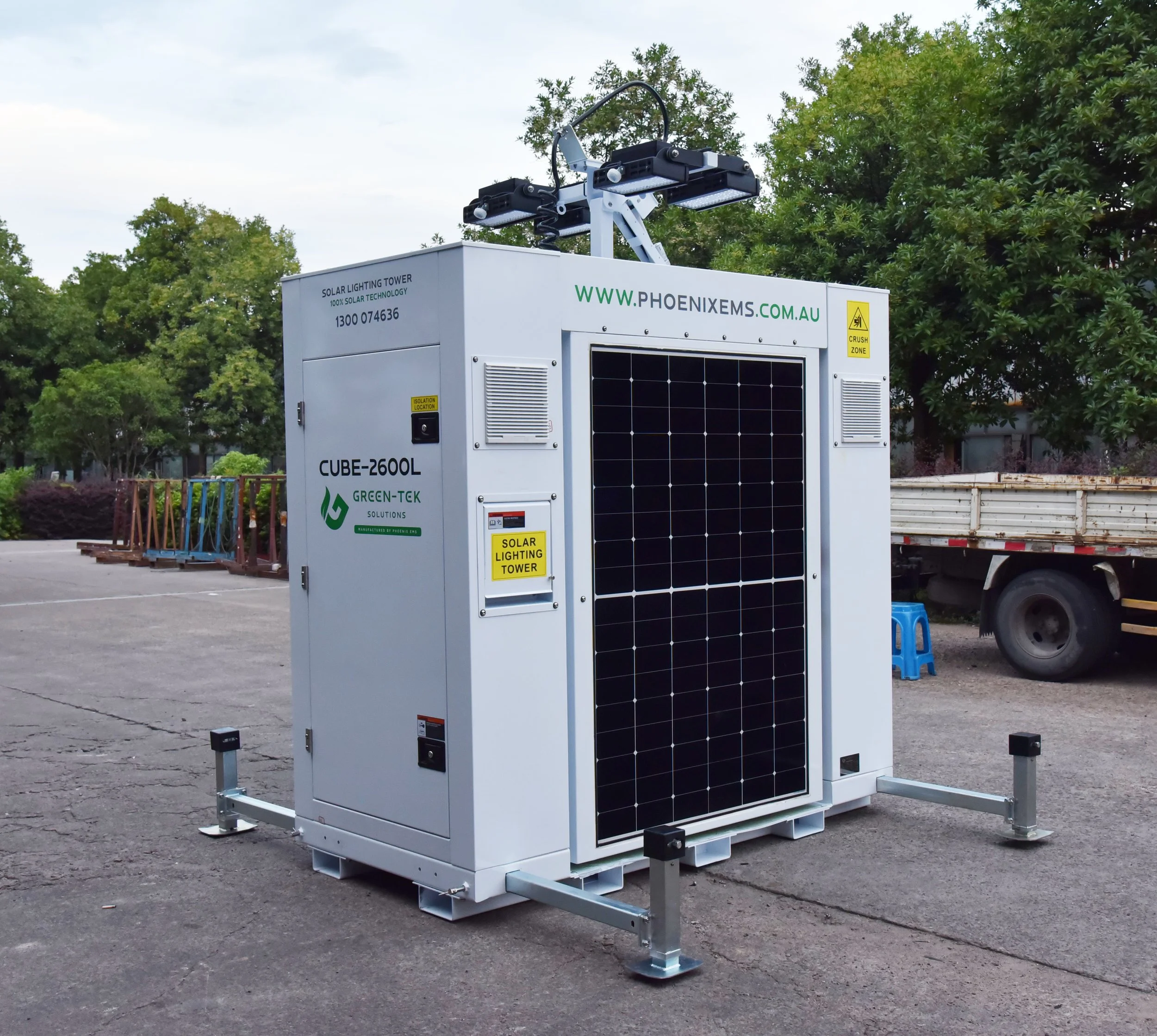

The GTS-2600-CUBE Solar light tower from Green-Tek Solutions is a versatile alternative for emergency lighting, surveillance, and telecom needs, harnessing clean energy with its 6 solar panels while offering an optional 9m telescopic mast, Fuel-free, and silent in operation. Its portable design enables rapid response in disaster zones, providing sustainable power without emissions or noise, suitable for diverse applications including emergency response, remote operations, and temporary installations.
TYPICAL APPLICATIONS
Mining, Civil & Construction, Rail, Power Generation & Utilities, Road/Cycleways/Walking Paths, Security & Surveillance Municipal Councils & Events
| Model | GTS-2600-CUBE |
|---|---|
| Base | |
| Material: | Steel Q235 |
| Powder: | Anti Corrosion Powder |

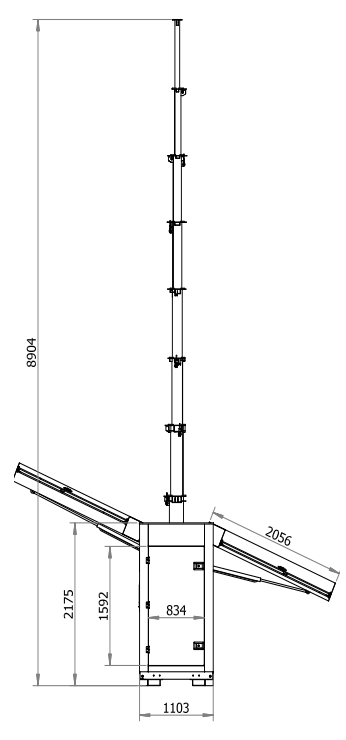

| Dimension: | Length×Width×Height |

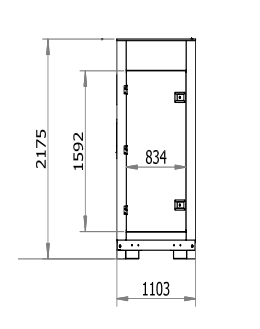

| Transporting: | 2200×1000×2175 (mm) |

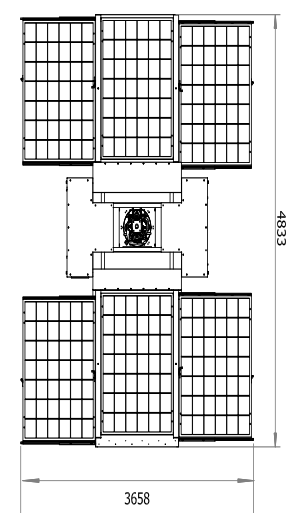

| Operating: | 3100×3100×9000 (mm) |
| Weight: | 1650kg |
| System Voltage: | DC48V |
| Work Temperature: | -35°C ~ 50°C |
| Solar | |
| Solar Panel | 6 × 435W Monocrystalline Panels Electric Lifting |
| Voltage: | 39V |
| Charging Time: | <9 hours Solar |
| Lamp | |
| LED: | 4 × 150W Module Outdoor Type, Smart-Lighting, Dimmable |
| Protection Class | IP65 |
| Lumens | 120000Lm |
| Beam angle | 20° 40° 60° 90° 110° |
| Voltage | DC48V |
| Running Time | 10 Hours @100% with 2 Days Autonomy |

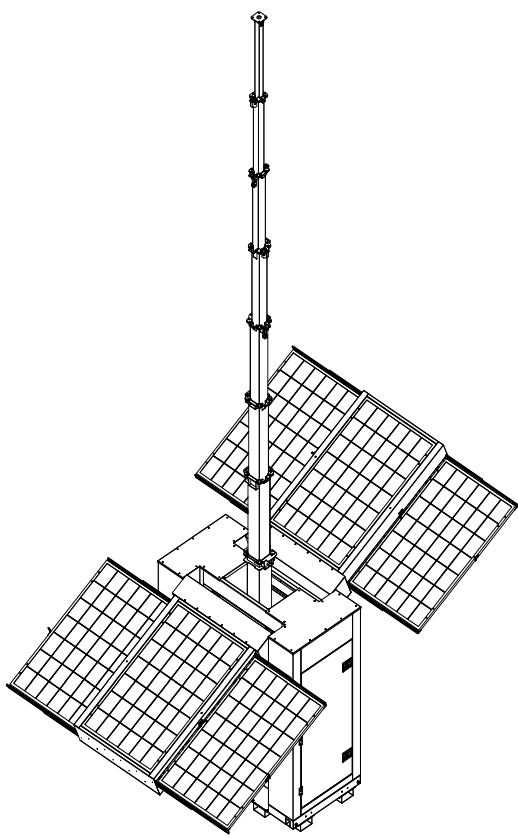

| Mast | |
| Body | Galvanized steel Q235 |
| Fastener | Stainless steel 304 |
| Wire Rope | Stainless steel 316 5mm |
| Type | Square Telescopic |
| Height | 7m |
| Section | 5 |
| Rotation | 360° Electric |
| Tilt | 90° Electric |
| Spring Cable | Power Supply |
| Lifting Method | Hydraulic |
| Recommended Loading | 100kg |
| Windproof | 117km/h |
| Charger | |
| Rated Power: | 2.5kW / 2.5kVA |
| Input Voltage: | AC220V |
| Charging Efficiency: | 95% |
| Charging Circuit: | 60A |
| Charging Time: | 8.9 Hours |
| Plug & Socket: | 1 × AC240V |
| Batteries | |
| GEL: | 8 × 200Ah (400Ah & 48V) |
| Voltage: | DC12V |
| Series & Parallel: | V4 in series then parallel |
| Power Capacity: | 15360Wh |
| Control | |
| Solar Controller: | MPPT 60A |
| Efficiency: | 95% |
| Detection & Protection: | Short-Circuit, Overload, High Voltage, High Temperature |
| Timer: | Dusk & Dawn |
| Whole Machine: | Battery Isolator, Light on-off, Mast / Panel up-down, Rotation & Tilt |
| Trailer System | |
| Standard: | US / AU / EU |
| lifting point | 4 |
| Forklift Hole: | 2 |
| Outrigger: | 4 × Manual, Galvanized |
| Warranty: | 2 years |
| Accessories: | |
| Operation Manual | Parts Manual |
| Controller Manual | Allen Wrench, Hex Wrench |
| Certification: | |
| Certifications: | ISO14001, ISO9001, OHSAS 18001, CE, SAA, UL |
