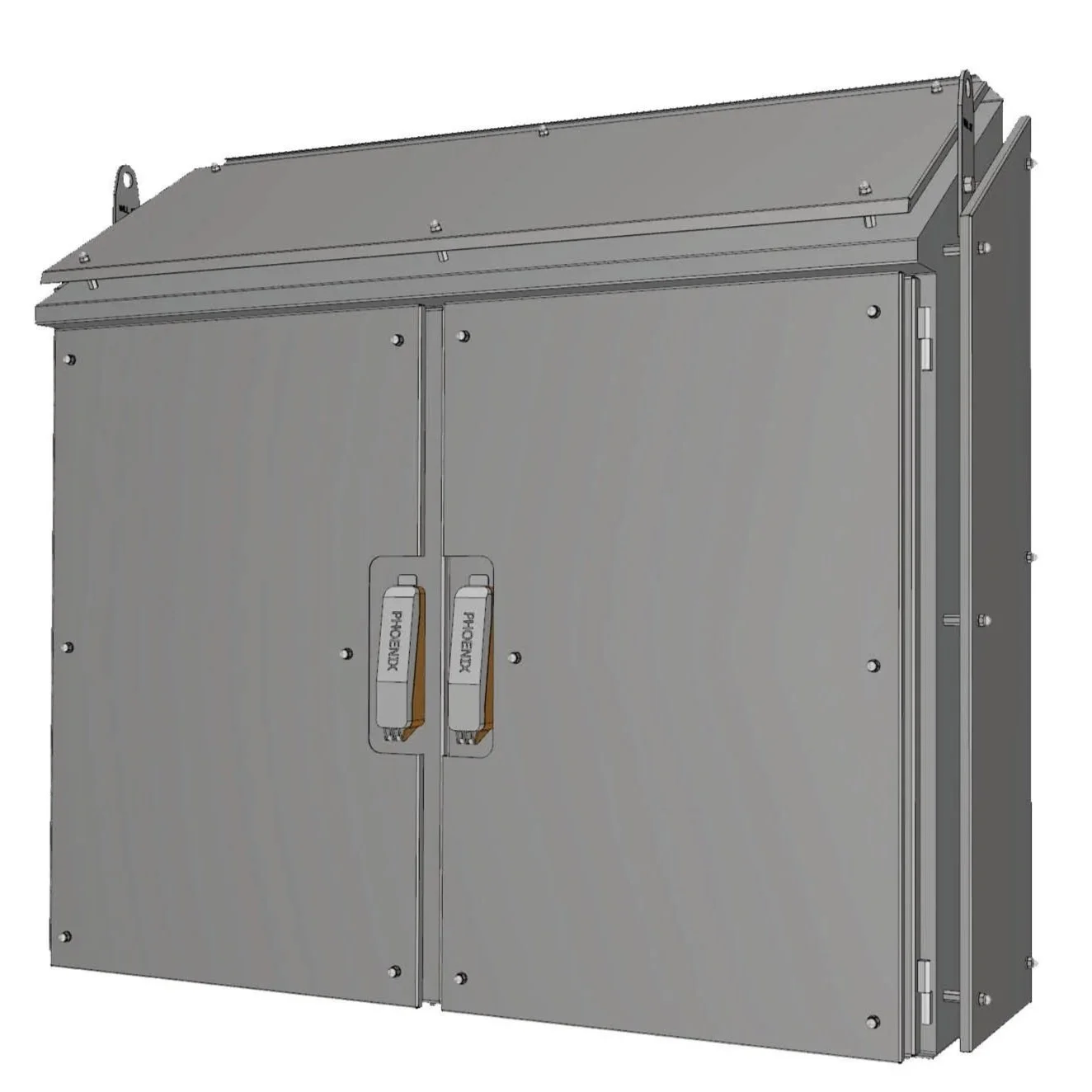

Stainless Steel Excalibur Mining Extreme Double Door Enclosure

20 Mar

Written By Nicole Steinmetz I Web Designer

Features

• 316 stainless steel 1.5mm & 2mm N4 finish
• Fully welded construction
• Panel rated at IP66
• Slotted mounting holes
• Polyurethane pour-in place gaskets
• Multiple sizes available
• Fully welded construction
• 30 degree sloped roof/ 60mm overhang
• Pintle hinges/ removable doors
• Padlockable Swing Handle MS860 series
• Sun shields (both sides/ top/ door)
• Lifting eyes and lugs, door stays (lifting lugs 1T rated)


            Model No (1.5mm Construction)
            Model No (2mm Construction)
            Enclosure Dimensions (mm) H x W x D
            Enclosure + Cage Dimensions (mm) H x W x D
            Useable Depth



            PSMED1008040-1
            PSMED1008040-2
            1377 x 800 x 400
            1377 x 890 x 467
            382


            PSMED10010040-1
            PSMED10010040-2
            1377 x 1000 x 400
            1377 x 1090 x 467
            382


            PSMED10014040-1
            PSMED10014040-2
            1377 x 1400 x 400
            1377 x 1490 x 467
            382


            PSMED12014040-1
            PSMED12014040-2
            1577 x 1400 x 400
            1577 x 1490 x 467
            382


            PSMED16016040-1
            PSMED16016040-2
            1977 x 1600 x 400
            1977 x 1690 x 467
            382


Model No (1.5mm Construction)	Model No (2mm Construction)	Enclosure Dimensions (mm) H x W x D	Enclosure + Cage Dimensions (mm) H x W x D	Useable Depth
PSMED1008040-1	PSMED1008040-2	1377 x 800 x 400	1377 x 890 x 467	382
PSMED10010040-1	PSMED10010040-2	1377 x 1000 x 400	1377 x 1090 x 467	382
PSMED10014040-1	PSMED10014040-2	1377 x 1400 x 400	1377 x 1490 x 467	382
PSMED12014040-1	PSMED12014040-2	1577 x 1400 x 400	1577 x 1490 x 467	382
PSMED16016040-1	PSMED16016040-2	1977 x 1600 x 400	1977 x 1690 x 467	382
