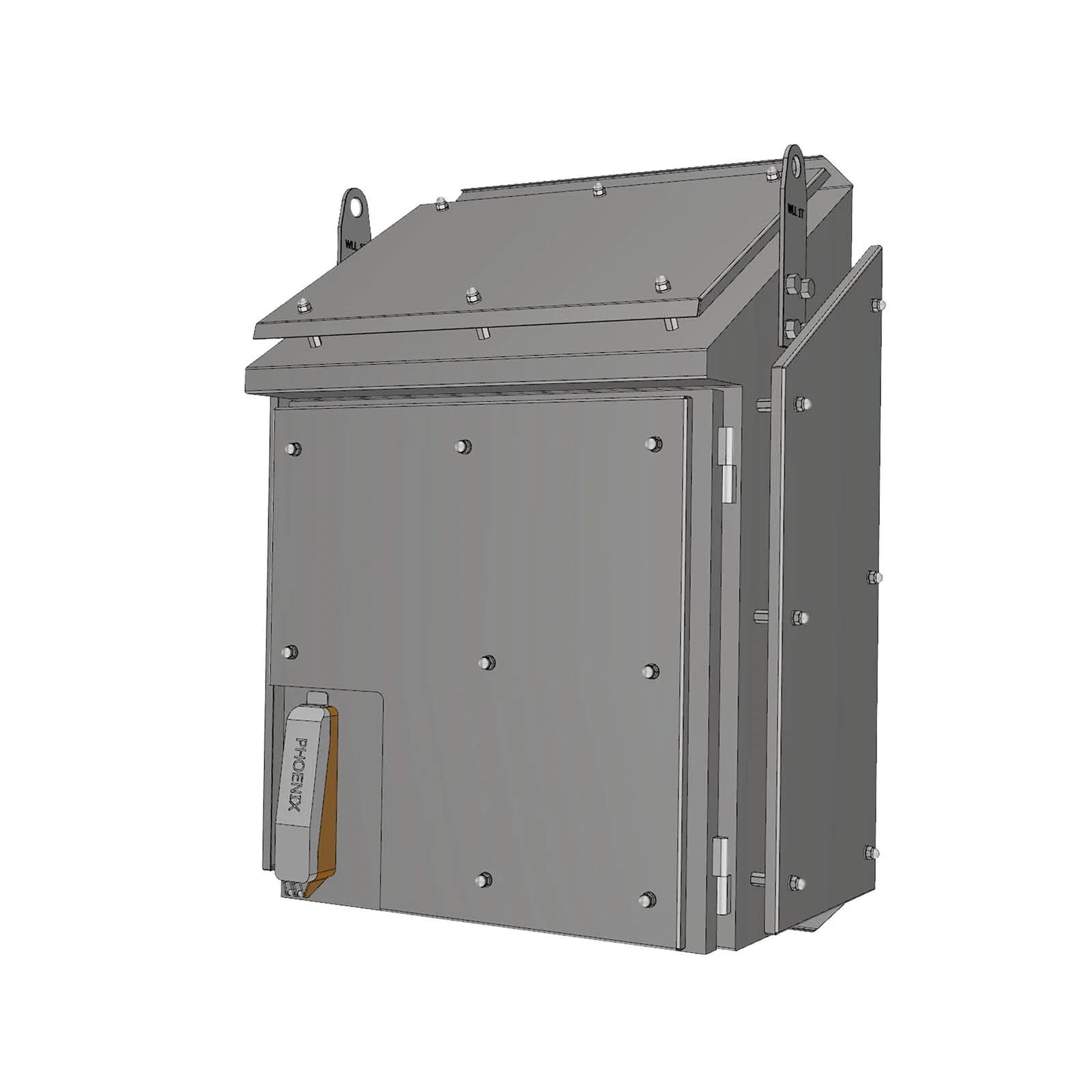

Stainless Steel Excalibur Mining Extreme Single Door Enclosure

21 Mar

Written By Nicole Steinmetz I Web Designer

Features

• 316 stainless steel 1.5mm & 2mm N4 finish
• Fully welded construction
• Panel rated at IP66
• Slotted mounting holes
• Polyurethane pour-in place gaskets
• Multiple sizes available
• Fully welded construction
• 30 degree sloped roof/ 60mm overhang
• Pintle hinges/ removable doors
• Padlockable Swing Handle MS860 series
• Sun shields (both sides/ top/ door)
• Lifting eyes and lugs, door stays (lifting lugs 1T rated)


Model No (1.5mm Construction)	Model No (2mm Construction)	Enclosure Dimensions (mm) H x W x D	Enclosure + Cage Dimensions (mm) H x W x D	Useable Depth
PSMES404025-1	PSMES404025-2	691 x 400 x 250	691 x 490 x 306	232
PSMES604025-1	PSMES604025-2	891 x 400 x 250	891 490 x 306	232
PSMES606035-1	PSMES606035-2	891 x 600 x 350	891 x 690 x 407	232
PSMES705025-1	PSMES705025-2	991 x 500 x 250	991 x 590 x 317	232
PSMES705035-1	PSMES705035-2	1048 x 500 x 350	1048 x 590 x 417	232
PSMES1008025-1	PSMES1008025-2	1291 x 800 x 250	1291 x 890 x 317	232
PSMES1008040-1	PSMES1008040-2	1377 x 800 x 400	1377 x 890 x 467	382
