GALACTIC PLUS – SOLAR LED
Features

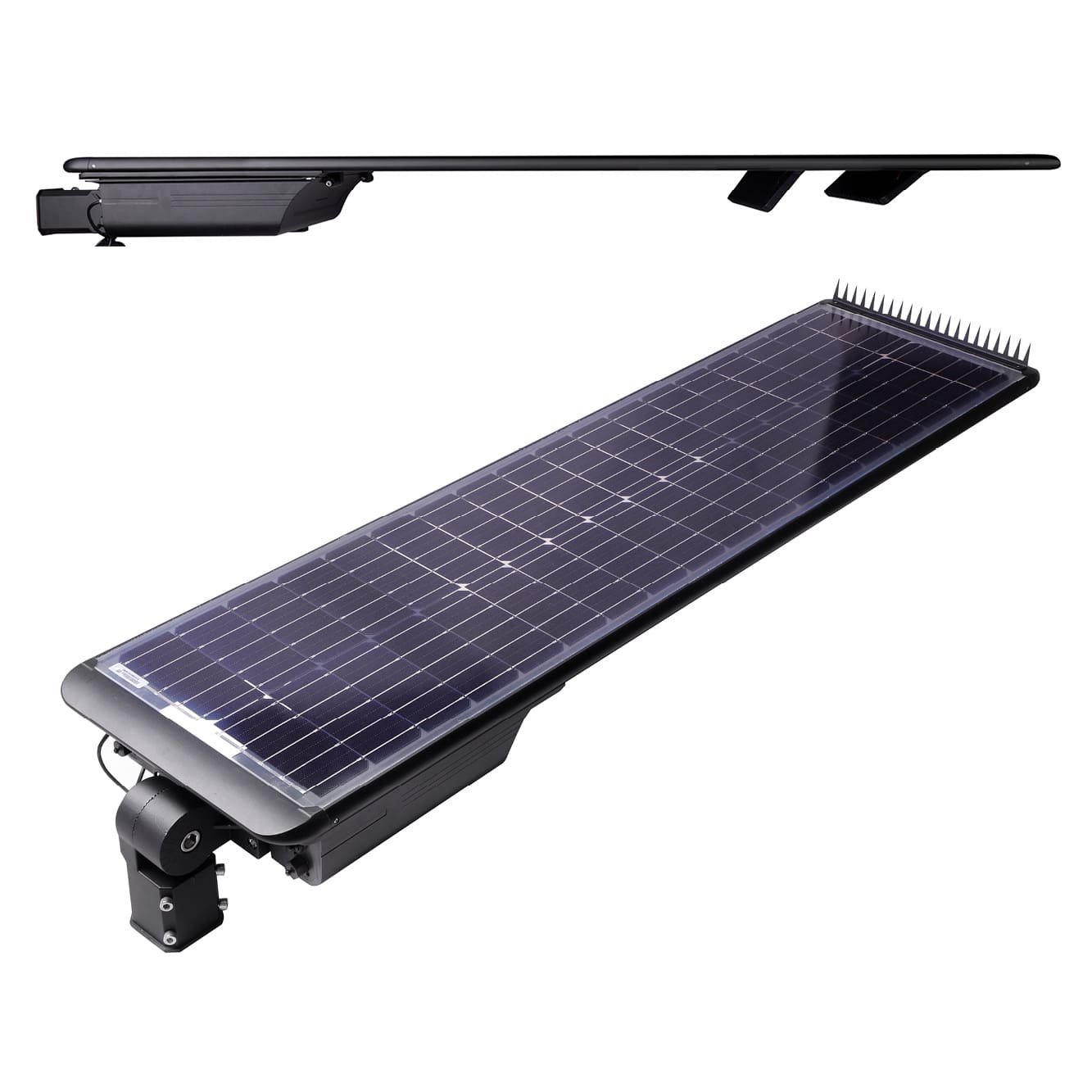

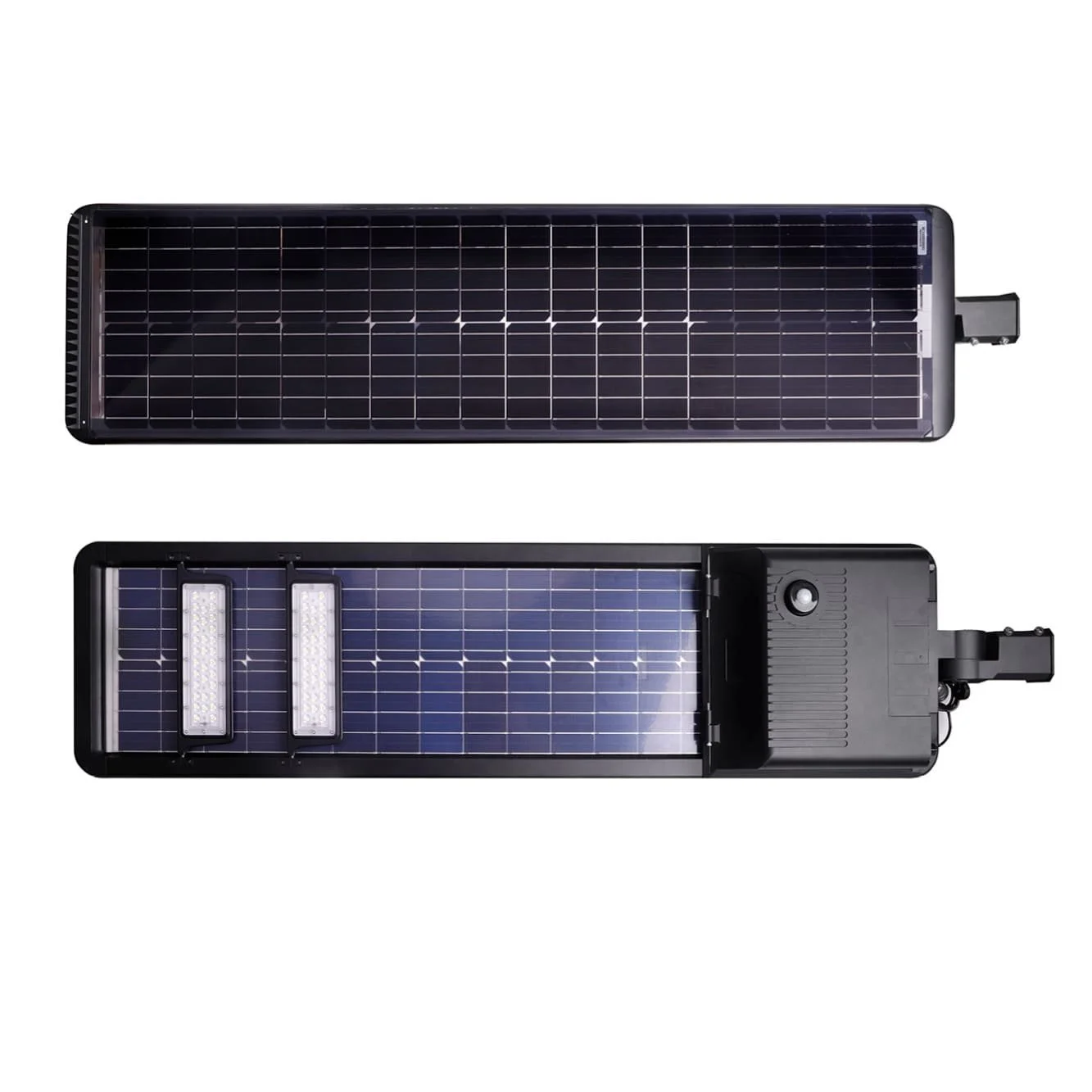

The Galactic Plus is a die-cast aluminum all in one solar light. It features an anti-UV polycarbonate lens with precision individual optics for uniform illumination and is designed for industrial applications that may have limited access to electrical supply. The PIR/microwave motion sensor and smart lighting controller are built in for remote monitoring, fault tracking and precise positioning, and an automatic fault alarm via a smart cloud platform to access on your mobile device or computer.
Typical Applications
Urban and Rural Roads,
Highways
Water Dikes
Bridges, Parks
Industrial Areas
City Squares
Residential Areas
Specifications
| Model | PUGAL-10W | PUGAL-15W | PUGAL-20W | PUGAL-25W | PUGAL-30W | PUGAL-35W | PUGAL-40W | PUGAL-45W | PUGAL-50W | PUGAL-60W |
|---|---|---|---|---|---|---|---|---|---|---|
| Optical Characteristics | ||||||||||
| Rated Wattage | 10W | 15W | 20W | 25W | 30W | 35W | 40W | 45W | 50W | 60W |
| Lumens | 2100 | 3300 | 4000 | 4950 | 6060 | 7070 | 8120 | 9000 | 9900 | 12000 |
| System Efficacy | 210Lm/W | 202Lm/W | 200Lm/W | 198Lm/W | 202Lm/W | 202Lm/W | 203Lm/W | 200Lm/W | 198Lm/W | 200Lm/W |
| Colour Temperature | 6500K / 5700K / 5000K / 4000K / 3000K | |||||||||
| CRI (Ra) | >70 (>80 Optional) | |||||||||
| Reported L70 | >50,000 Hours | |||||||||
| Lens Optic | 120° / Type I / Type II / Type IV | |||||||||
| Electrical Characteristics | ||||||||||
| Input | 12–24V | |||||||||
| Power Factor | >0.95 | |||||||||
| Solar Characteristics | ||||||||||
| Solar Panel | 30W/12V | 30W/12V | 40W/12V | 40W/12V | 50W/12V | 50W/12V | 60W/12V | 60W/12V | 70W/12V | 80W/12V |
| Photovoltaic Panel | Double Crystal Photovoltaic Panel | |||||||||
| Li-ion Battery | 12.8V/12AH | 12.8V/12AH | 12.8V/18AH | 12.8V/18AH | 12.8V/24AH | 12.8V/24AH | 12.8V/30AH | 12.8V/30AH | 12.8V/36AH | 12.8V/40AH |
| Charging Time | 5.12H | 5.12H | 5.76H | 5.76H | 6.14H | 6.14H | 6.40H | 6.40H | 6.58H | 6.72H |
| Run Time | 15 Hours | |||||||||
| Maximum Autonomy | 7 Rainy Days | |||||||||
| Environment | ||||||||||
| IP Rating | IP65 | |||||||||
| Impact Rating | IK08 | |||||||||
| Operating Temperature | -40°C to 50°C | |||||||||
| Product Material and Mounting | ||||||||||
| Option 1 | Universal Bracket | |||||||||
| Option 2 | Wall Mount | |||||||||
| Option 3 | Round Pole Mount | |||||||||
| Option 4 | Square Pole Mount | |||||||||
| Product Material | Powder-Coated Die Cast Aluminium (Anti Corrosion Coating) | |||||||||
| Lens / Optics | PC Lens | |||||||||
| Dimensions and Weights | ||||||||||
| Product Dimensions | 633×365×211 | 793×365×211 | 948×365×211 | 1103×365×211 | 1263×365×211 | 1418×365×211 | — | |||
| Product Weight | 12.0KG | 13.5KG | 15.0KG | 16.5KG | 18.1KG | 19.7KG | — | |||
| Packaging Dimensions | 825×190×435 | 985×190×435 | 1140×190×435 | 1295×190×435 | 1455×190×435 | 1610×190×435 | — | |||
| Gross Weight | 14.4KG | 16.2KG | 18.0KG | 19.9KG | 21.8KG | 23.6KG | — | |||
| Warranty & Certifications | ||||||||||
| Warranty | 3 Year Warranty | |||||||||
| Certifications | CE / RoHS / FCC | |||||||||
