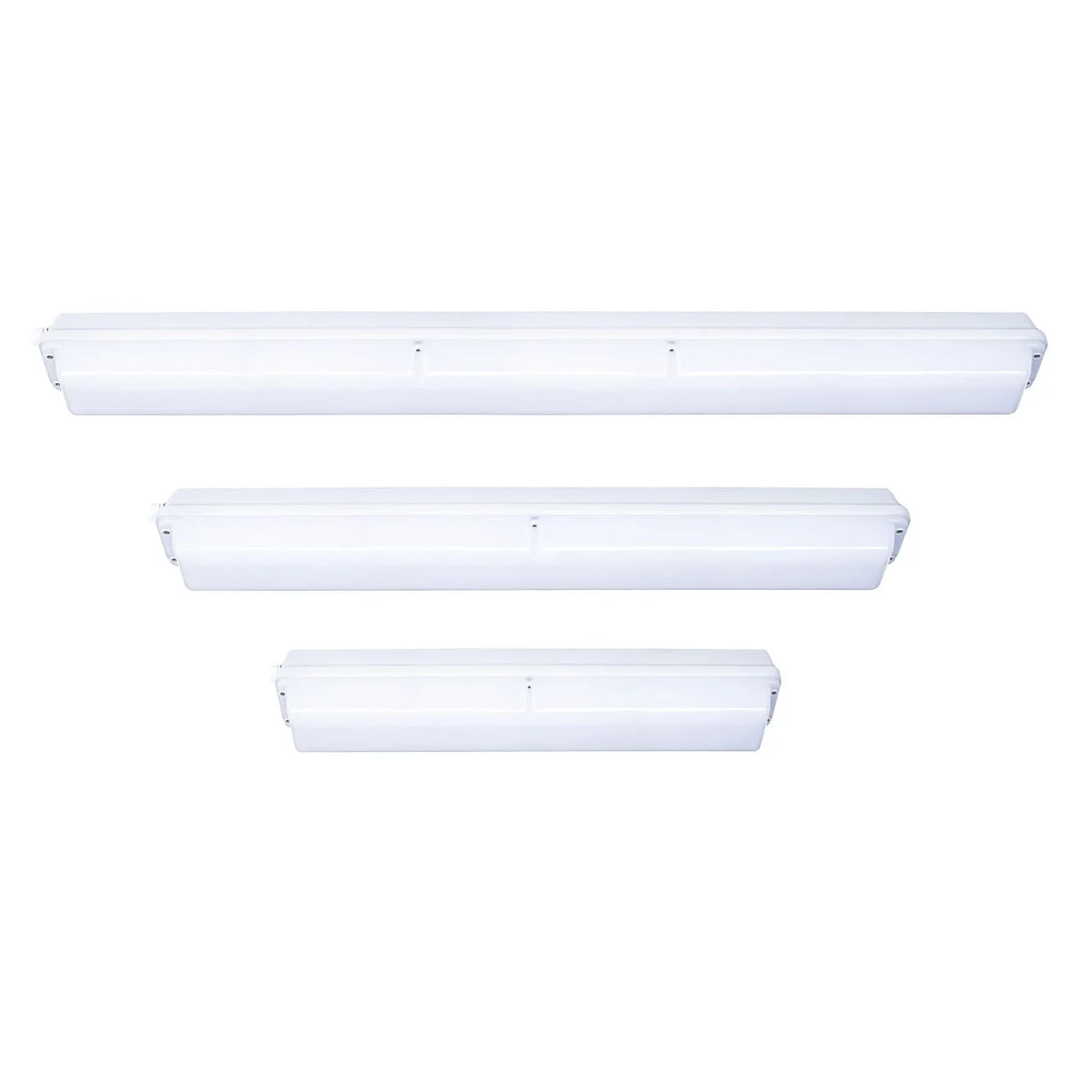

EAGLE – LED BATTENS WEATHERPROOF

22 Mar

Features

The polyester powder-coated aluminium enclosure combined with a high-impact polycarbonate diffuser makes the Eagle a good fit for corrosive atmospheres or where the risk of mechanical damage is possible. The IP66 rating of the Eagle allows it to be used in areas where cleanliness is of importance as it can withstand high-pressure cleaning and resistance from chemical cleaning agents. The diffuser is secured with stainless steel cap head screws making it suitable for areas where vandal resistance is required.

Typical Applications

Mining
Mining Infrastructure Area
Coal
Open Cuts
Metalliferous
Iron Ore
Industrial
Processing Plants
Materials Handling
Lithium Processing
Power Generation
Energy & Utilities
Water & Waste Water
Ports
Wharfs & Waterways
Chemical & Processing

Specifications



        Model
        PLIFLI75
        PLIFLI115
        PLIFLI145
        PLIFLI180
        PLIFLI200
        PLIFLI230
        PLIFLI300
        PLIFLI420



    Optical Characteristics

        Rated Wattage
        75W
        115W
        145W
        180W
        200W
        230W
        300W
        420W


        Lumens
        13125
        18745
        24795
        30960
        33200
        36340
        43500
        60060


        System Efficacy
        175 lm/W
        163 lm/W
        171 lm/W
        172 lm/W
        166 lm/W
        158 lm/W
        145 lm/W
        143 lm/W


        Colour Temperature
        5700K (5000K / 4000K / 3000K)


        CRI (Ra)
        >70


        Reported L70
        >50,000 Hours


        Lens Optic Type
        Type III / Type IV / Type V

Electrical Characteristics

        Input
        100–277V (347–480V Optional)


        Frequency
        50Hz


        Power Factor
        >0.96


        Total Harmonic Distortion
        <20%

Environment

        IP Rating
        IP65


        Impact Rating
        IK10


        Operating Temperature
        -40°C to 50°C

Product Material and Mounting

        Option 1
        Spigot Mount (Type A, B, C, D, E – Refer to Dimensions)


        Product Material
        Aluminium Alloy


        Lens / Optics Material
        PC Lens

Dimensions and Weights

        Product Dimensions
        585×270×56
        679×350×56
        750×360×75


        Product Weight
        4.8kg
        5.5kg
        10.5kg


        Packaging Dimensions
        690×370×180
        760×410×180
        810×430×180


        Gross Weight
        6.6kg
        8.5kg
        12.1kg

Warranty and Certifications

        Warranty
        5 Year Warranty


        Certifications
        SAA / CE / RoHS




Model	PLIFLI75	PLIFLI115	PLIFLI145	PLIFLI180	PLIFLI200	PLIFLI230	PLIFLI300	PLIFLI420
Optical Characteristics
Rated Wattage	75W	115W	145W	180W	200W	230W	300W	420W
Lumens	13125	18745	24795	30960	33200	36340	43500	60060
System Efficacy	175 lm/W	163 lm/W	171 lm/W	172 lm/W	166 lm/W	158 lm/W	145 lm/W	143 lm/W
Colour Temperature	5700K (5000K / 4000K / 3000K)
CRI (Ra)	>70
Reported L70	>50,000 Hours
Lens Optic Type	Type III / Type IV / Type V
Electrical Characteristics
Input	100–277V (347–480V Optional)
Frequency	50Hz
Power Factor	>0.96
Total Harmonic Distortion	<20%
Environment
IP Rating	IP65
Impact Rating	IK10
Operating Temperature	-40°C to 50°C
Product Material and Mounting
Option 1	Spigot Mount (Type A, B, C, D, E – Refer to Dimensions)
Product Material	Aluminium Alloy
Lens / Optics Material	PC Lens
Dimensions and Weights
Product Dimensions	585×270×56	679×350×56	750×360×75
Product Weight	4.8kg	5.5kg	10.5kg
Packaging Dimensions	690×370×180	760×410×180	810×430×180
Gross Weight	6.6kg	8.5kg	12.1kg
Warranty and Certifications
Warranty	5 Year Warranty
Certifications	SAA / CE / RoHS

Download brochure
