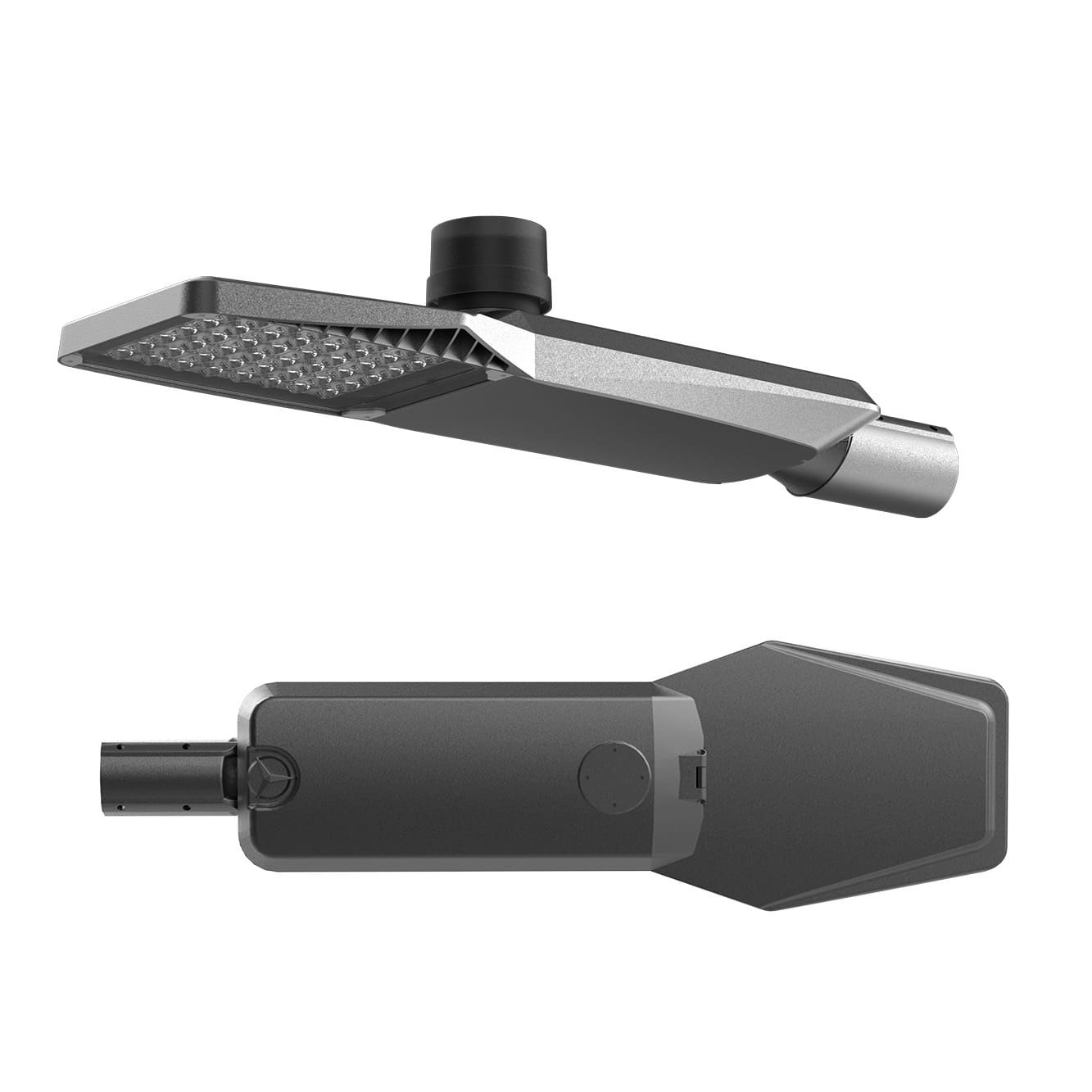

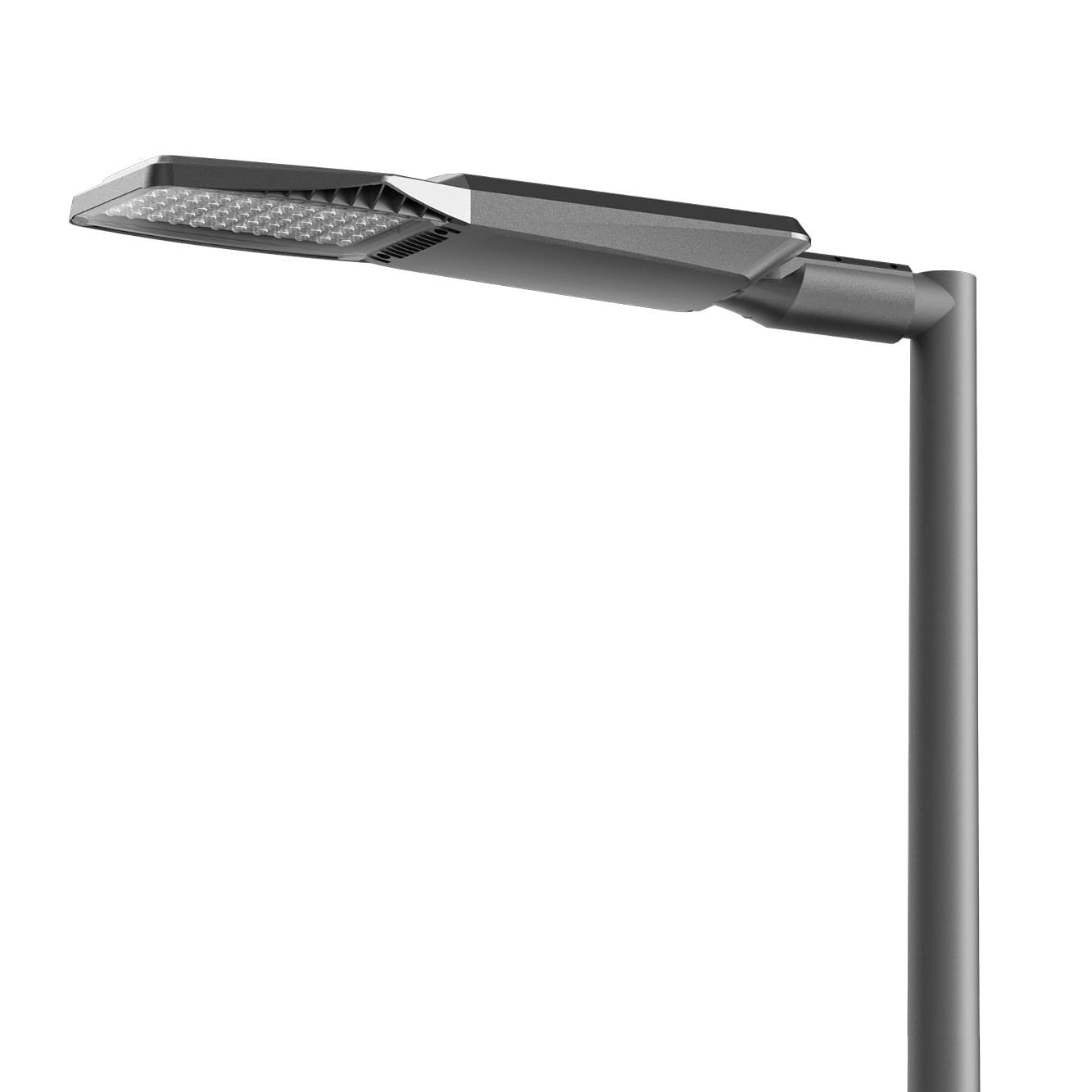

CRUSADER – AREA LIGHTING
Features
The Crusader is a uniquely designed area light and represents the trend of municipal and roadway lighting. Compatible with the latest version of Zigbee Smart Control, the Crusader is an intelligent lighting solution fit for a wide range of applications.
Typical Applications
Mining
MIA (Mining Infrastructure Area)
Coal
Metalliferous
Iron Ore, Industrial
Processing Plants
Materials Handling
Lithium Processing
Power Generation
Energy & Utilities
Water & Waste Water
Ports, Wharfs & Waterways
Chemical & Processing
Ports & Wharves
Airports
Car Parks
General Area Lighting
Container Terminals
Specifications
| Model | PLICRU70 | PLICRU80 | PLICRU90 | PLICRU100 | PLICRU110 | PLICRU120 | PLICRU130 | PLICRU140 | PLICRU150 |
|---|---|---|---|---|---|---|---|---|---|
| Optical Characteristics | |||||||||
| Rated Wattage | 70W | 80W | 90W | 100W | 110W | 120W | 130W | 140W | 150W |
| Lumens | 9800 | 11200 | 12600 | 14000 | 15400 | 16800 | 18200 | 19600 | 21000 |
| System Efficacy | 140 lm/W | ||||||||
| Colour Temperature | 6500K / 5700K / 5000K / 4000K / 3000K | ||||||||
| CRI (Ra) | >70 (≥80 Optional) | ||||||||
| Reported L70 | >50,000 Hours | ||||||||
| Lens Optic Type | Type II-M / Type II-S / Type III / Type IV / Type V | ||||||||
| Electrical Characteristics | |||||||||
| Input | 220–240V | ||||||||
| Frequency | 50Hz | ||||||||
| Power Factor | >0.95 | ||||||||
| Total Harmonic Distortion | <19% | ||||||||
| Environment | |||||||||
| IP Rating | IP66 | ||||||||
| Impact Rating | IK08 | ||||||||
| Operating Temperature | -40°C to 50°C | ||||||||
| Product Material and Mounting | |||||||||
| Option 1 | Spigot Mount 60mm | ||||||||
| Option 2 | Spigot Mount 76mm | ||||||||
| Product Material | Die Casting Aluminium | ||||||||
| Lens / Optics Material | Tempered Glass | ||||||||
| Dimensions and Weights | |||||||||
| Product Dimensions | 670×201×72 | 745×284×96 | |||||||
| Product Weight | 6.5kg | 9.1kg | |||||||
| Packaging Dimensions | 828×285×285 (Ctn 2) | 942×320×160 (Ctn 1) | |||||||
| Gross Weight | 15.5kg | 11.2kg | |||||||
| Warranty and Certifications | |||||||||
| Warranty | 5 Year Warranty | ||||||||
| Certifications | CE / SAA | ||||||||
