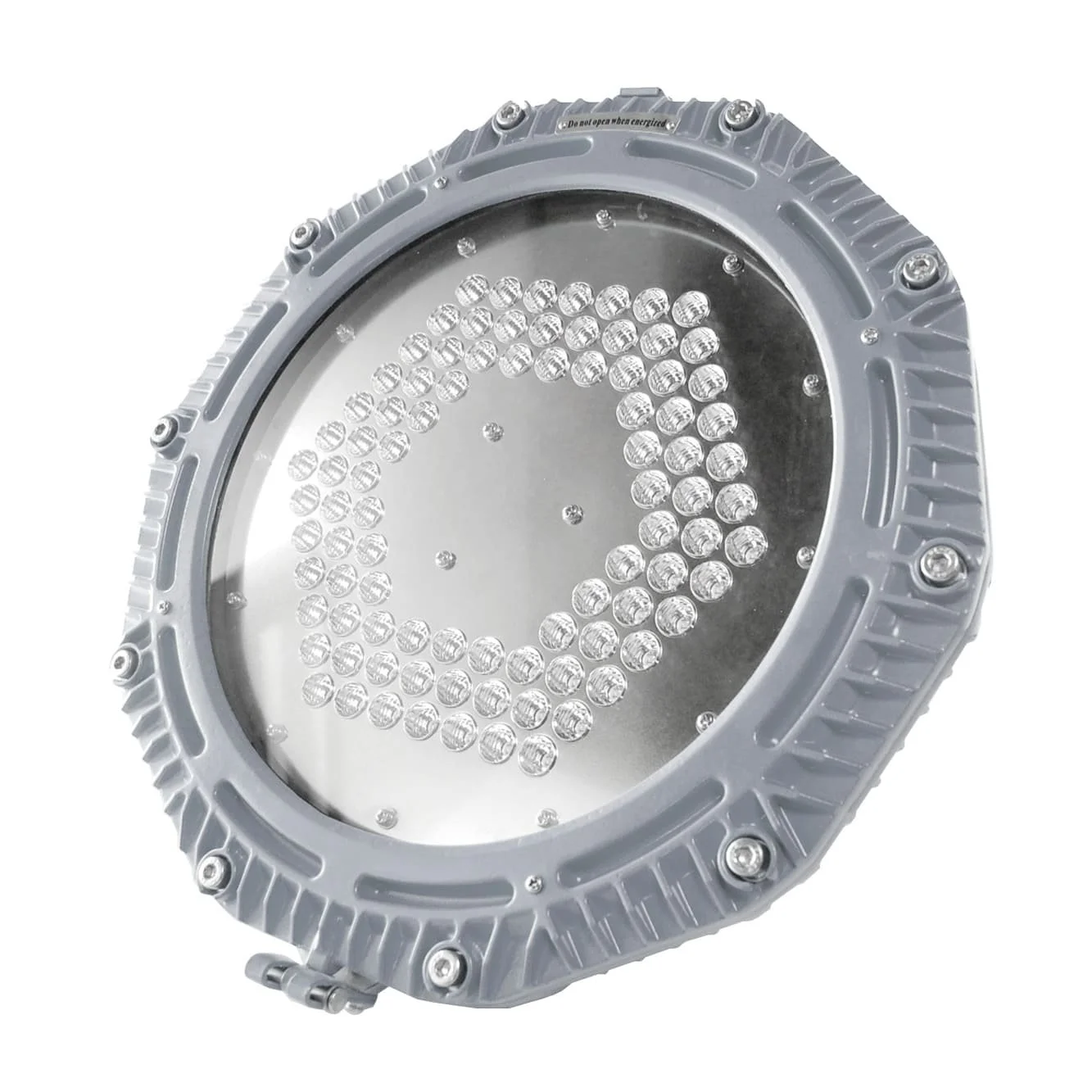

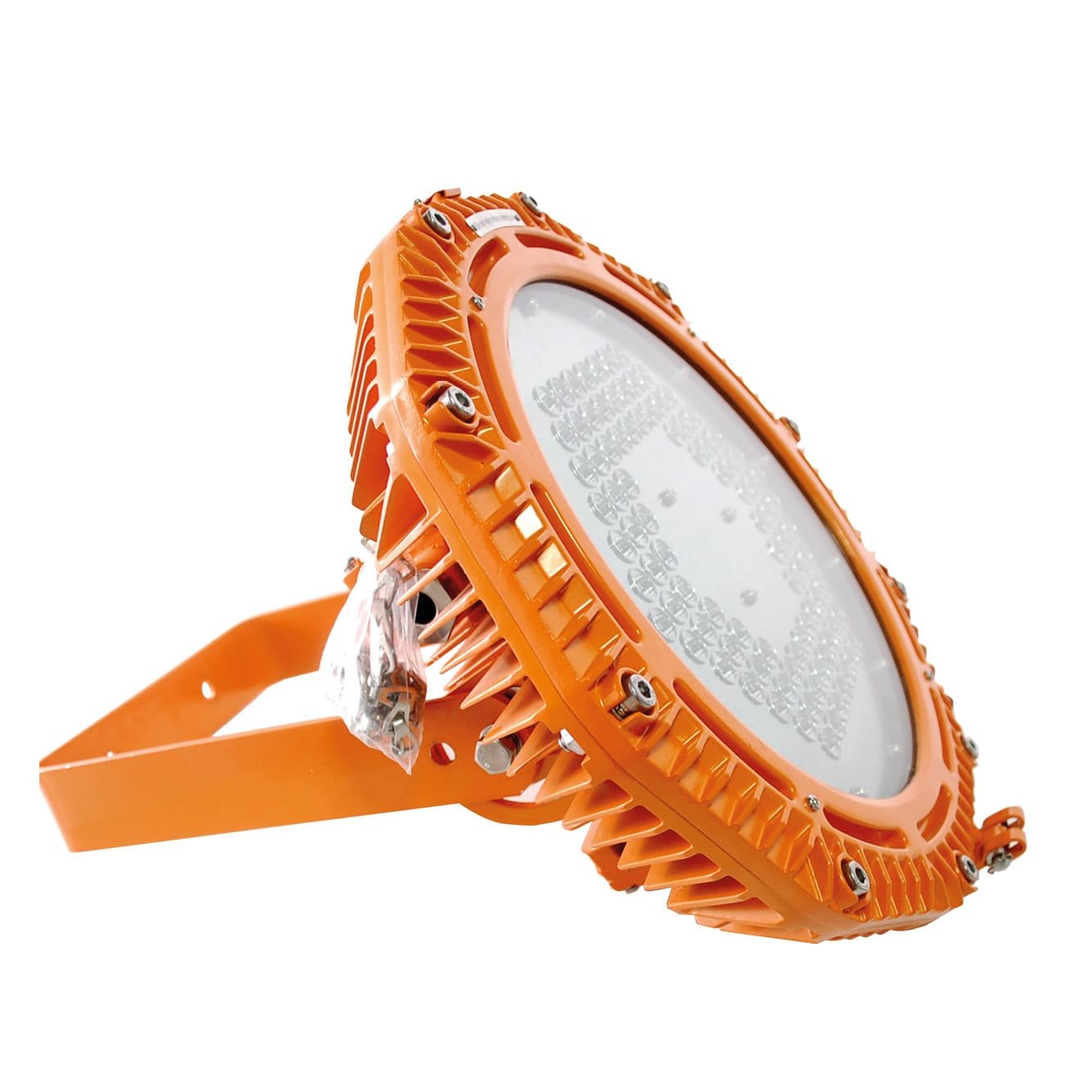

CONDOR SERIES – HAZARDOUS AREA
Features
The Condor is an LED floodlight best suited to industrial environments. It features a powder-coated marine grade aluminium die cast body and PC lens. It is particularly suited to harsh environmental conditions where high temperatures and harsh chemical are present.

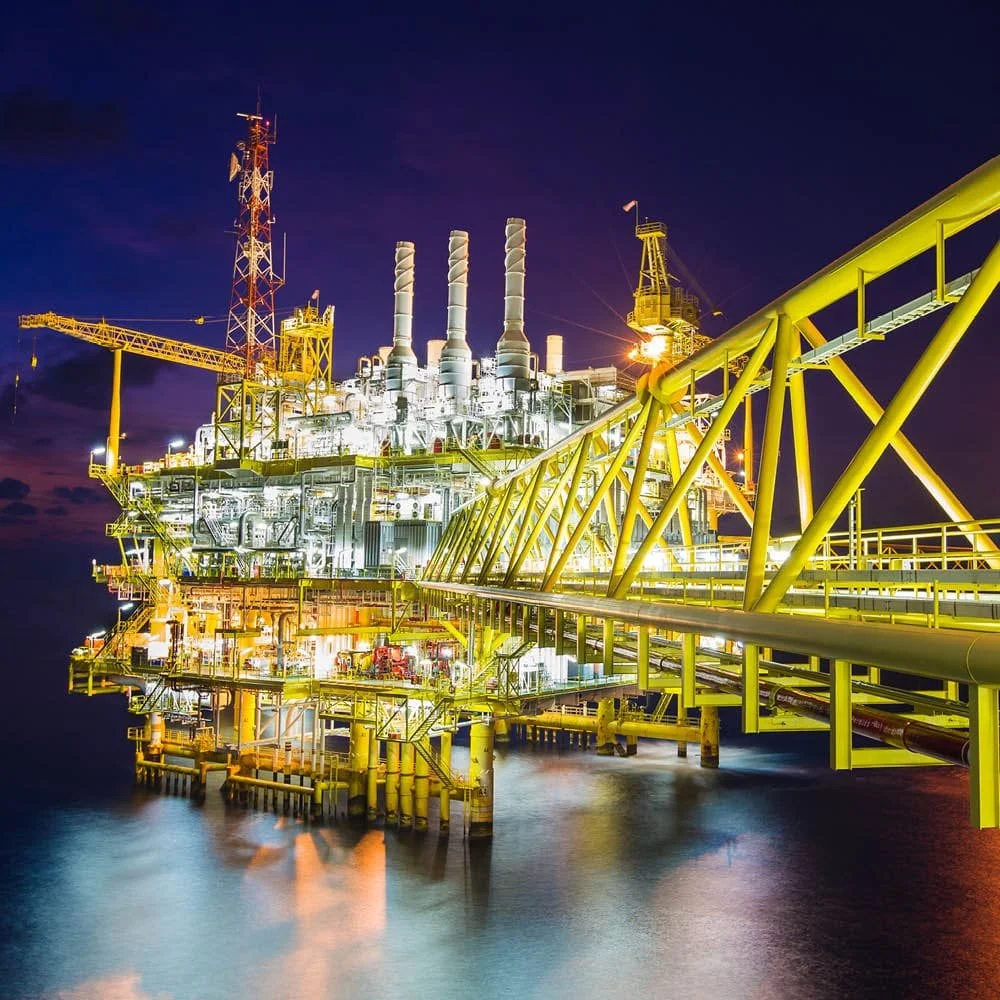

Typical Applications
Security
Pathway Lighting
Perimeter Lighting
Building Facades
Specifications
| Model | PLICON120 | PLICON150 |
|---|---|---|
| Optical Characteristics | ||
| Rated Wattage | 120W | 150W |
| Lumens | 18240 | 22050 |
| System Efficacy | 152Lm/W | 147Lm/W |
| Colour Temperature CCT | 5700K (4000K / 3000K) | |
| CRI (Ra) | >70 | |
| Reported L70 | >50,000 Hours | |
| Lens Optic Type | 60° / 120° | |
| Electrical Characteristics | ||
| Input | 180–277VAC | |
| Frequency | 50Hz | |
| Power Factor | >0.98 | |
| Total Harmonic Distortion | <10% | |
| Environment | ||
| IP Rating | IP66 | |
| Impact Rating | IK08 | |
| Operating Temperature | -40°C to 55°C | |
| Product Material and Mounting | ||
| Option 1 | Ceiling Mount Bracket | |
| Option 2 | Stanchion Wall Mount Bracket | |
| Option 3 | Pole Mount Bracket | |
| Option 4 | Pipe Clamp | |
| Option 5 | Eyebolt Pendant Mount | |
| Product Material | Die-casting Aluminium Housing | |
| Lens / Optics Material | PC Lens | |
| Dimensions and Weights | ||
| Product Dimensions | 426 × 410 × 187 | |
| Product Weight | 13.9KG | |
| Packaging Dimensions | 450 × 450 × 290mm | |
| Gross Weight (Ctn) | 18KG (including bracket inside) | |
| Warranty & Certifications | ||
| Warranty | 5 Year Warranty | |
| Certifications | IECEx / CE / RoHS | |
| Classification | Zone 1 & 21 / Zone 2 & 22 | |
| Rating |
IECEx/Gas: II 2 G Ex db eb IIB T5 or T6 Gb IECEx/Dust: II 2 D Ex tb IIIC T95°C or T80°C Db |
|
