GALACTIC PLUS GEN II
Features

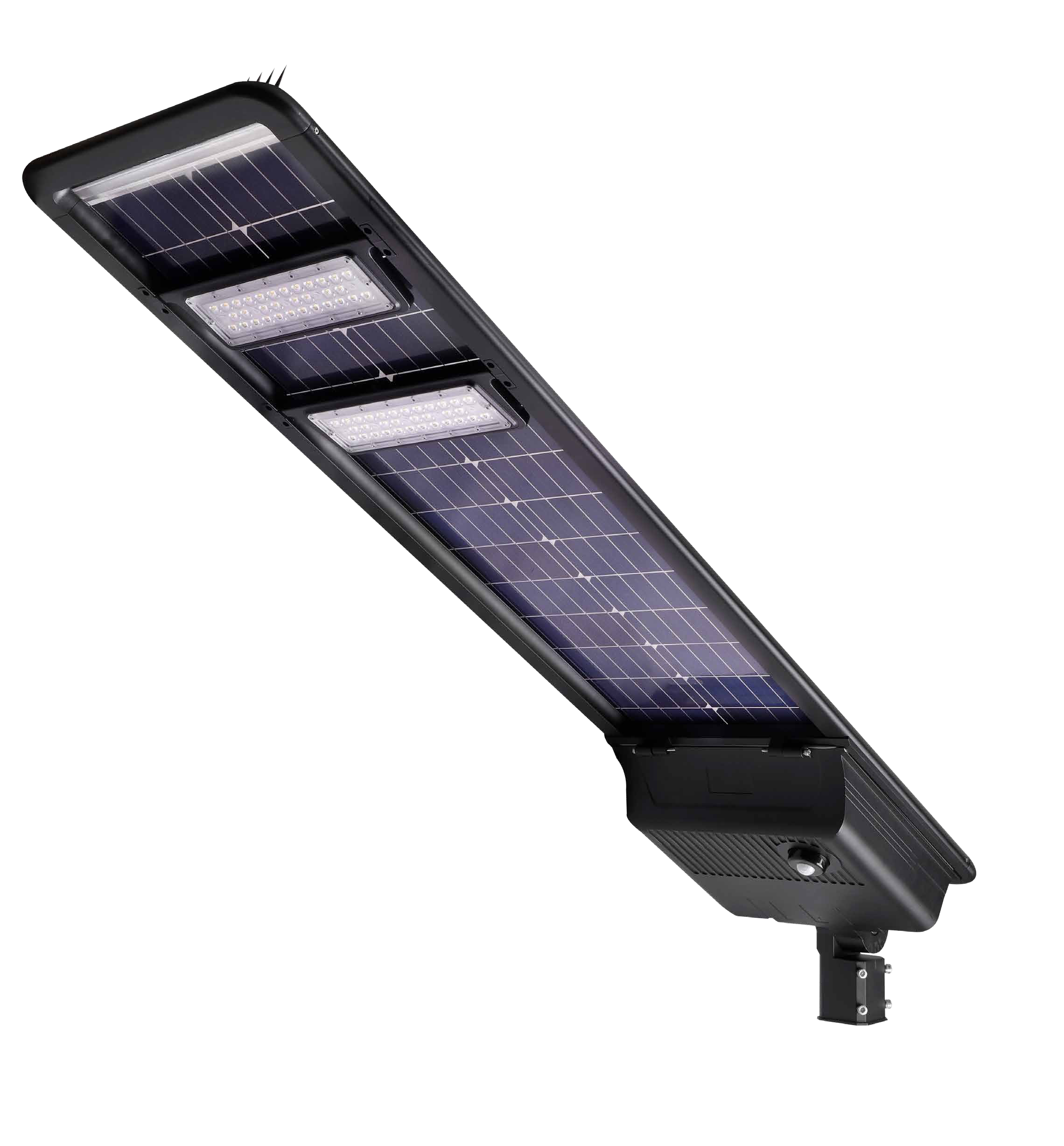

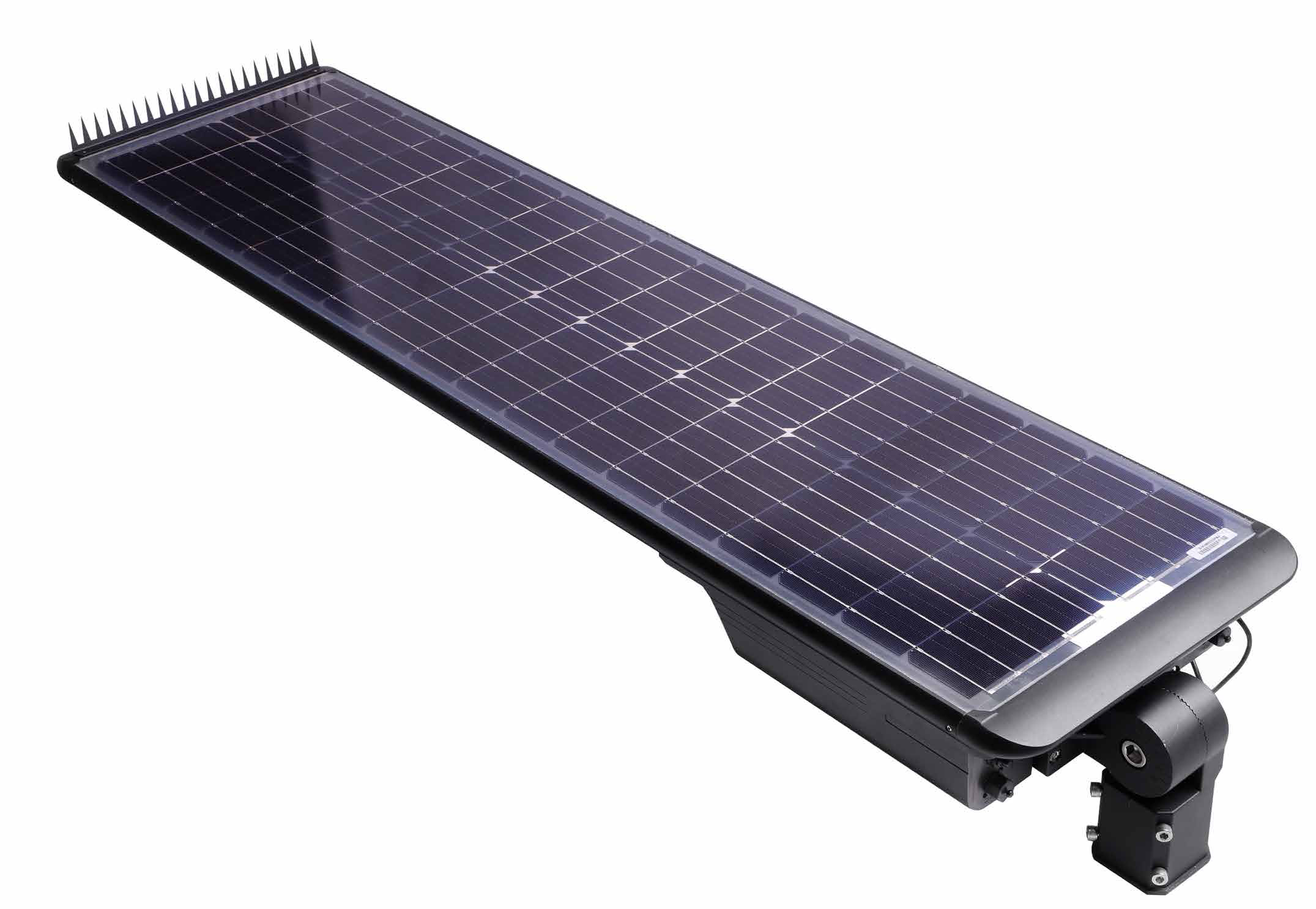

The Galactic Plus is a die-cast aluminum all in one solar light. It features an anti-UV polycarbonate lens with precision individual optics for uniform illumination and is designed for industrial applications that may have limited access to electrical supply. The Galactic Plus Gen II is designed to operate continuously at 100% light output from dusk to dawn.
Typical Applications
Urban and Rural Roads
Highways
Water Dikes
Bridges
Parks
Industrial Areas
City Squares
Residential Areas
ACCESSORIES
UNIVERSAL MOUNTING BRACKET PLIGALP/UNI
WALL MOUNT BRACKET PLIGALP/WM
ROUND POLE BRACKET PLIGALP/RP
SQUARE POLE BRACKET PLIGALP/SP
DIMMABLE 1-10V DRIVER PLIGALP/D
MOTION SENSOR PLIGALP/M
CCTV CAMERA PLIGALP/CCTV
BIRD SCARER PLIGALP/BS
Specifications
| Model | PLI-GALP-GENII-20 | PLI-GALP-GENII-30 | PLI-GALP-GENII-50 |
|---|---|---|---|
| Optical Characteristics | |||
| Model | PLI-GALP-GENII-20 | PLI-GALP-GENII-30 | PLI-GALP-GENII-50 |
| Power | 20W | 30W | 50W |
| Control Option | non-sensor / microwave sensor / PIR sensor, upon request | ||
| Grid Hybrid Power Solution (optional Driver) | Inventronics/Meanwell | ||
| Work Mode | Upon request | ||
| Photometric Data | |||
| LED Model | 5050, custom on request | ||
| Lens | Polycarbonate | ||
| Efficacy | 200lm/W | 210lm/W | 210lm/W |
| Luminous Flux | 4000lm | 6300lm | 10500lm |
| ULOR | = 0%, @ Luminaire inclination 0° | ||
| CCT | 4000K STANDARD, (OPTIONAL 3000K, 5000K, 5700K, 6500K) | ||
| CRI | 70Ra/80Ra optional | ||
| Beam Angle | T203(65°-150°) / T212(75°-165°) / T304(75°-160°) / T402(80°-150°) / T502(150°-150°) CONFIRM BEAM ANGLE | ||
| Mechanical Data | |||
| SCx (EPA) | Top View: 0.470m² Side View: 0.077m² Front View: 0.052m² |
Top View: 0.590m² Side View: 0.085m² Front View: 0.052m² |
Top View: 0.750m² Side View: 0.084m² Front View: 0.062m² |
| Fixed Module | IP65, according to standard EN 60529 | ||
| IP Rating | IP65, according to standard EN 60529 | ||
| Housing | Heavy-duty die-cast aluminum (EN AC-46100)+PA66 | ||
| Surface Treatment | Anti-UV thermosetting polyester / die micron epoxy primer + Anti-UV thermosetting polyester (for extremely corrosive environments) |
||
| Painting | Black, custom color on request, C5-grade painting. | ||
| Mounting | Post Top | ||
| Configuration Data | |||
| Photovoltaic Panel | Single side monocrystalline solar panel | ||
| Solar Panel Voltage(W) | 18V 60W | 18V 80W | 36V 120W |
| Battery Voltage(AH) | 12.8V 24AH | 12.8V 36AH | 25.6V 30AH |
| Li-ion Battery(WH) | 307.2WH | 460.8WH | 768WH |
| Charing Time | 5.0Hrs | 6.1Hrs | 6.8Hrs |
| Run Time (@full power) | 14.2Hrs | 14.4Hrs | 14.4Hrs |
| Battery Lifespan | >2000 times cycle | ||
| Ambient Temperature | -10°C to 50°C | ||
| Storage Temperature | -20°C to 45°C | ||
| Control System | MPPT/PWM optional, custom IOT or remote control on request | ||
| Maximum Autonomy | Operate 2-3 rainy days under intelligent mode. ( please confirm this in hours considering peak sun hour ) | ||
| Others | |||
| Lifespan | L90B10 - 100000 hrs, @Tq 25°C | ||
| Warranty | 3 years as standard (Warranty extension to 5 years on request) | ||
| Certification | CE/FCC/RoHs, For other certificates please request | ||
| Product Size | 1080*366*106 mm | 1345*366*106 mm | 1145*550*110 mm |
| Net Weight | 13kg | 16kg | 28kg |
| Carton Size | 1195*440*195 mm | 1460*440*195 mm | 1265*640*240 mm |
| Gross Weight | 15kg | 18kg | 30kg |
| Recommend Installation Height | 5-7m | 6-8m | 8-10m |
| Application Field | Road & street, residential area, garden, parks, parking lot, industrial and commercial parks, railway & station side, riverside & jogging track | ||
| Storage Instruction | For long-term storage, it is advisable to first fully charge the battery, then discharge it for 2 to 3 hours. This should be done every 3 months to prevent battery damage. | ||
| Important Note! | The provided information is solely for reference, the official measurement report holds higher authority. | ||
