FALCON X
Features

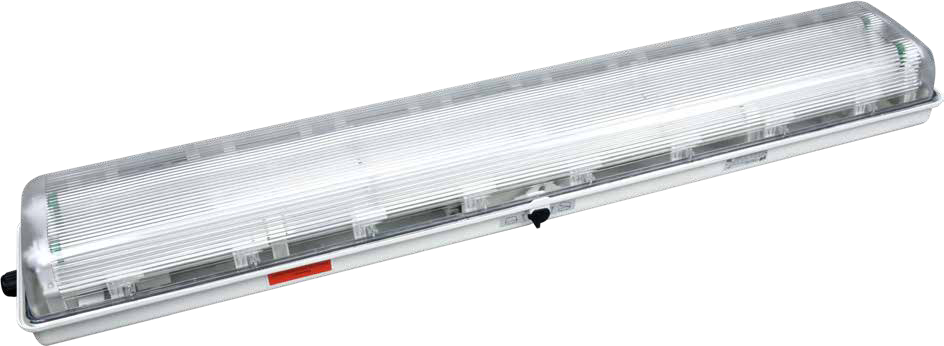

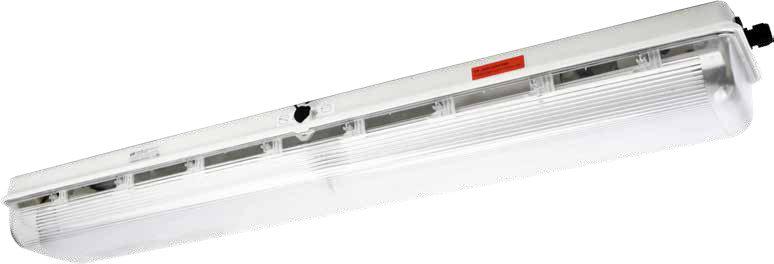

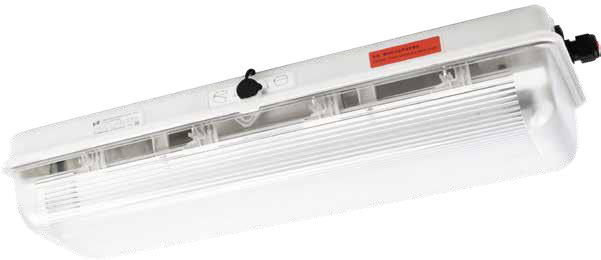

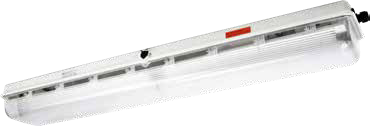

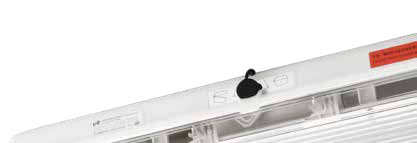

The Falcon X is a corrosion resistant luminaire designed for use in hazardous areas that are subject to flammable liquids, gases, vapors and combustible dusts. It features a corrosion resistant GRP body and polycarbonate diffuser with a central locking device that disconnects the supply when the luminaire is opened.
Typical Applications
Mining
MIA (Mining Infrastructure Area)
Coal
Open Cuts
Metalliferous
Iron Ore
Industrial
Processing Plants
Materials Handling
Lithium Processing
Power Generation
Energy & Utilities
Water & Waste Water
Ports
Wharfs & Waterways
Chemical & Processing
ACCESSORIES
PENDANT MOUNT PLIFALX/PD
CHAIN MOUNT PLIFALX/CH
ADJUSTABLE CLAMP BRACKET PLIFALX/ADJ
ADJUSTABLE CLAMP BRACKET STAINLESS STEEL PLIFALX/ADJ-SS
PIPE MOUNT 42MM PLIFALX/PM42
PIPE MOUNT STAINLESS STEEL 42MM PLIFALX/PM42-SS
PIPE MOUNT 48MM PLIFALX/PM48
PIPE MOUNT STAINLESS STEEL 48MM PLIFALX/PM48-SS
PIPE MOUNT 60MM PLIFALX/PM60
PIPE MOUNT STAINLESS STEEL 60MM PLIFALX/PM60-SS
CEILING MOUNT BRACKET PLIFALX/CM
CEILING MOUNT BRACKET STAINLESS STEEL PLIFALX/CM-SS
WALL MOUNT BRACKET FOR POLE MOUNT PLIFALX/WM
Specifications
| Model: | PLIFALX30 | PLIFALX60 |
|---|---|---|
| Optical Characteristics | ||
| Rated Wattage | 30W | 60W |
| Lumens | 3000 | 4800 |
| System Efficacy | 100Lm/W | 80Lm/W |
| Colour Temperature CCT | 5700K | |
| CRI (Ra) | >75 | |
| Reported L70 | >50,000 Hours | |
| Lens Optic Type | PC | |
| Electrical Characteristics | ||
| Input | 100-250V AC | |
| Frequency | 50Hz | |
| Powerfactor | >0.95 | |
| Total Harmonic Distortion | 20% | |
| Environment | ||
| IP Rating | IP66 | |
| Impact Rating | IK10 | |
| Operating Temperature | -20°C to 55°C | |
| Product Material and Mounting | ||
| Option 1 | Adjustable Clamp Mount | |
| Option 2 | Chain Mount | |
| Option 3 | Adjustable Bracket | |
| Option 4 | Pipe Mount | |
| Option 5 | Ceiling Mount | |
| Option 6 | Wall Mount | |
| Product Material | Full Plastic Explosion Proof | |
| Lens / Optics Material | PC Diffuser | |
| Dimensions and Weights | ||
| Product Dimensions | 705*225*152 | 1308*225*152 |
| Product Weight | 5.5KG | 9.1KG |
| Packaging Dimensions | 748*272*195 | 1358*272*195 |
| Gross Weight | 6.1KG | 10.0KG |
| Warranty and Certifications | ||
| Warranty | 18 Month Warranty | |
| Certifications | IECEx | |
| Classification | Zone 1 & 21 / Zone 2 & 22 | |
| Rating |
IECEx/Gas: Ex db eb mb op is q II C T6/T5 Gb IECEx/Dust: Ex tb IIIC T80°C/ T85°C Db ATEX/Gas: II 2 G D Ex db eb mb op is q II C T6/T5 Gb Dust: Ex tb IIIC T80°C/ T85°C Db |
|
