PEX2 ISOLATION ENCLOSURE

Isolation Switches

20 Feb

3 Pole 56 Series switch fitted to lid
GRP (Glass Reinforced Polycarbonate)
Valox FR Resin 553 (UV Rated)
110 MPA Tensile Strength
IK10 Impact Rating
Silicone Gaskets UV Rated
Entries 3 X 20MM + 2 X 25MM
Terminals Standard 6 X 6MM2 Screw
Terminals, 2 X 6MM2 Earth
Range of Terminal Sizes Available
Metal Threaded Inserts

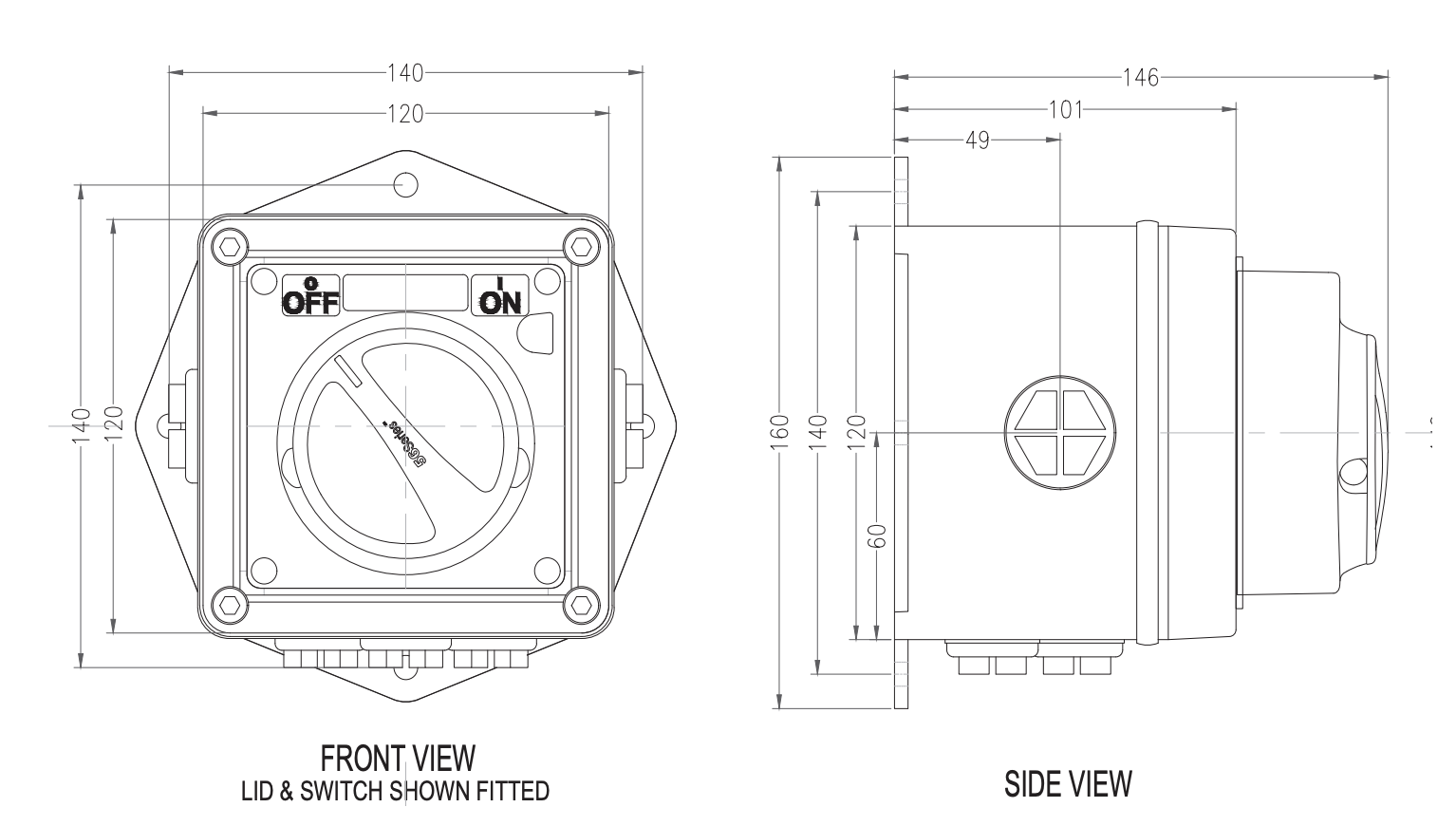

                MODEL NO.
                DIMENSIONS MM
                USEABLE DEPTH

                H
                W
                D

                PEX2
                164
                120
                120
                100

MODEL NO.	DIMENSIONS MM	USEABLE DEPTH
PEX2	164	120	120	100

Download brochure

PEX2 ISOLATION ENCLOSURE (pdf)
