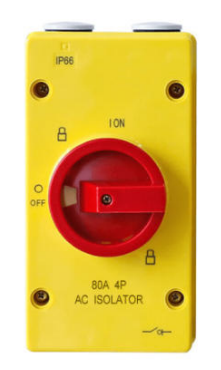

PEMSEAS AC ISOLATOR 690V 20 - 80A

The PEMSEAS isolation switch is designed for reliable performance in industrial control systems, machinery, and various electrical applications. It eectively addresses emergency disconnection, safety isolation, machine control, motor control, and more.

High Reliability: Alloy contacts with specialized silver plating for extended lifespan and superior electrical performance.

Compact Design: Small footprint for space-saving installations. Enhanced Safety: Built-in protective finger guard to ensure secure operation.

Versatile Installation: Multiple mounting options for broad applicability, including panel mount, rail mount, and sealed switch box types. Robust Protection: IP66-rated enclosure for dust and water resistance.

---

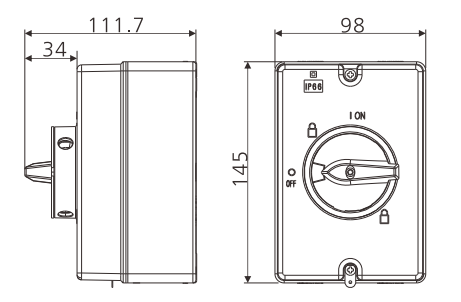

DIMENSION 20 - 40A

View fullsize

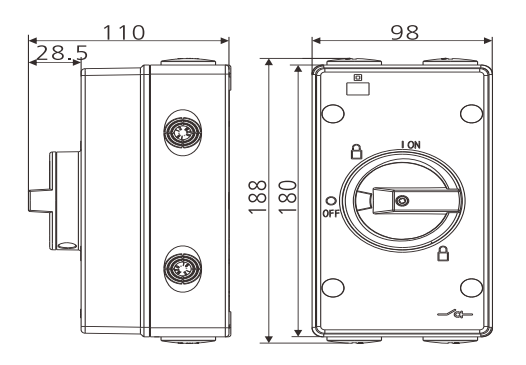

DIMENSION 63 - 80A

View fullsize

MAIN PARAMETERS	Unit	PEMSEAS 20	PEMSEAS 32	PEMSEAS 40	PEMSEAS 63	PEMSEAS 80
RATED CURRENT	A	20	32	40	63	80
RATED OPERATING CURRENT AC-23A	A	16A	25A	32A	45A	45A
RATED OPERATING CURRENT AC-3	A	12A	23A	32A	37A	37A
RATED POWER CONTROL AC-23A @240V	KW	4KW	7.5KW	9KW	15KW	15KW
RATED POWER CONTROL AC-23A @440V	KW	7.5KW	12.5KW	16KW	22KW	22KW
RATED POWER CONTROL AC-3 @240V	KW	3KW	5.5KW	7.5KW	11KW	11KW
RATED POWER CONTROL AC-3 @440V	KW	5.5KW	11KW	15KW	18.5KW	18.5KW
MOTOR LOAD @ 240V	KW	3KW	5KW	5KW	10KW	10KW
MOTOR LOAD @ 440V	KW	7.5KW	10KW	10KW	20KW	20KW
RATED SHORT TIME WITHSTAND CURRENT	A	250A	400A	500A	600A	850A
POLES		3/4P				3P
CABLE	mm	0.5-10mm				1-16mm
SCREW TORQUE	Nm	0.8-1.7Nm				1.5-2Nm
RATED INSULATION VOLTAGE	V	690V
KNOB POSITIONS		9 O’CLOCK OFF, 12 O’CLOCK ON
ELECTRICAL LIFE - STANDARD		3000 CYCLES
ELECTRICAL LIFE - ACTUAL		3000 CYCLES
MECHANICAL LIFE - STANDARD		10000 CYCLES
MECHANICAL LIFE - ACTUAL		10000 CYCLES
OPERATION TEMPERATURE		-40 TO +85°C
STORAGE TEMPERATURE		-40 TO +85°C
IP RATING OF SHAFT AND MOUNTING NUT		IP66

---
