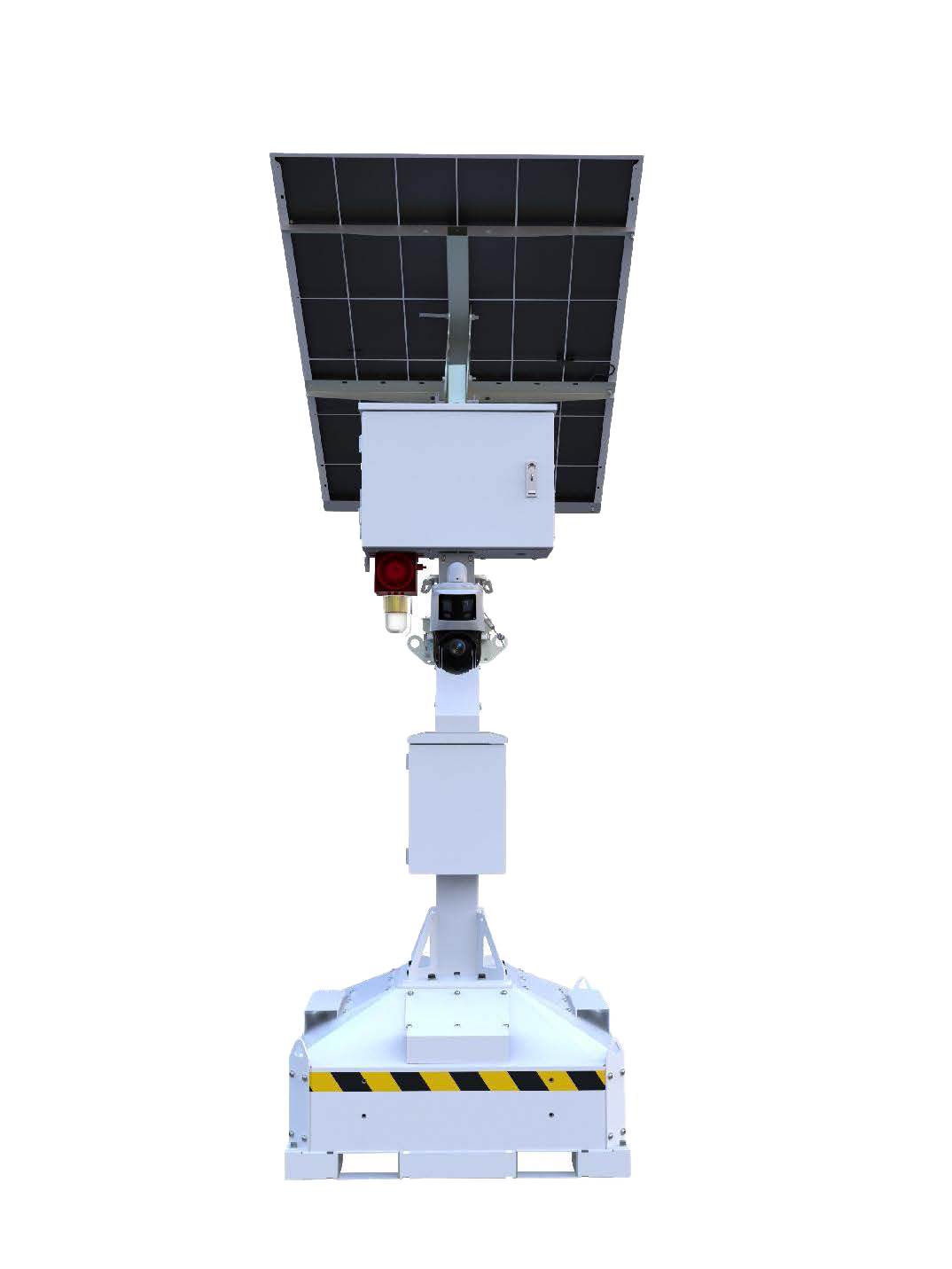

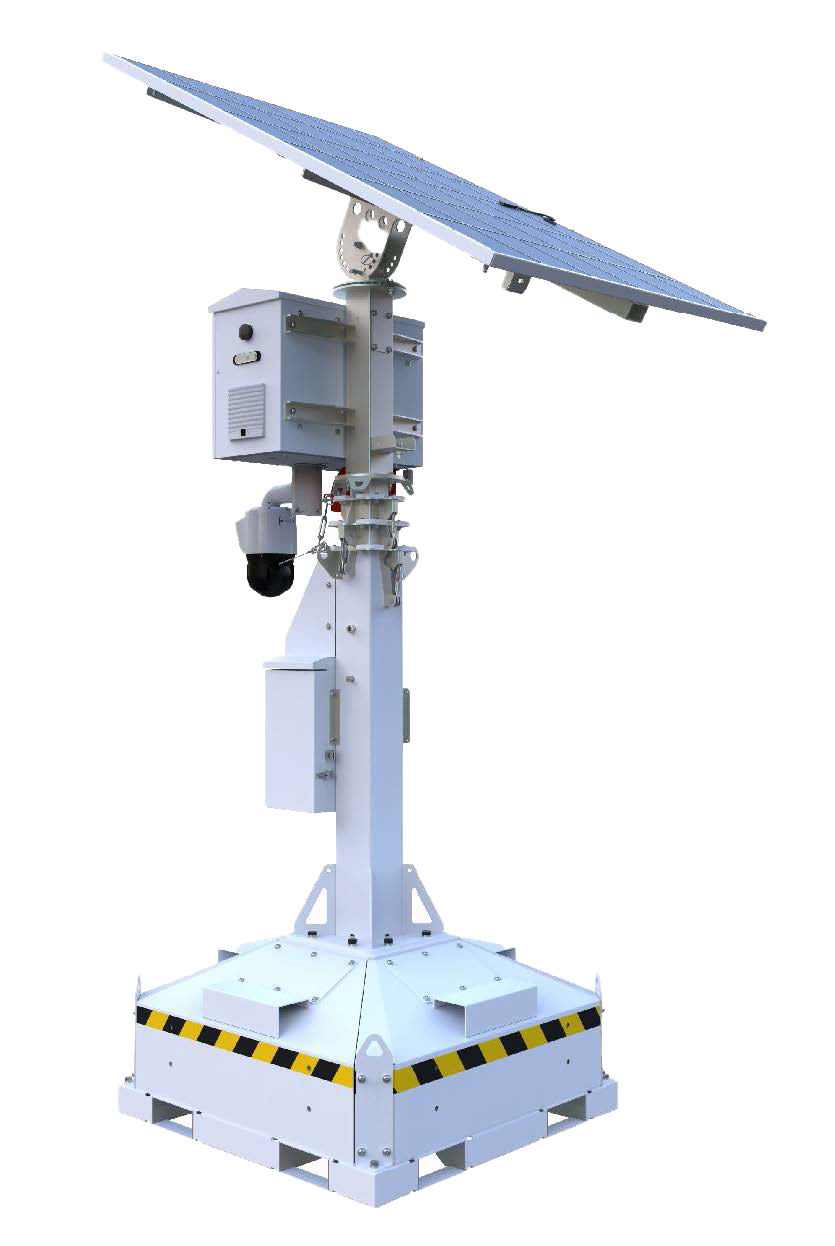

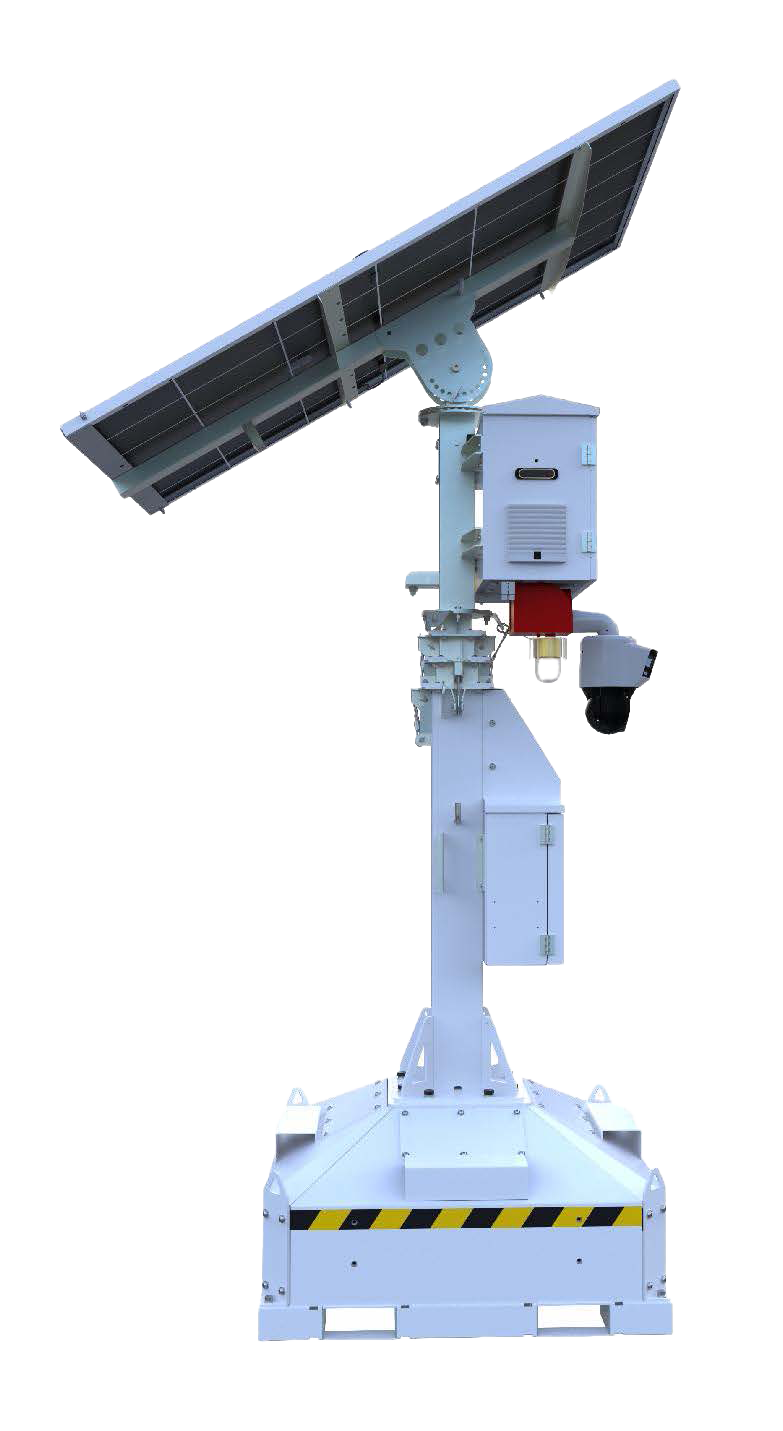

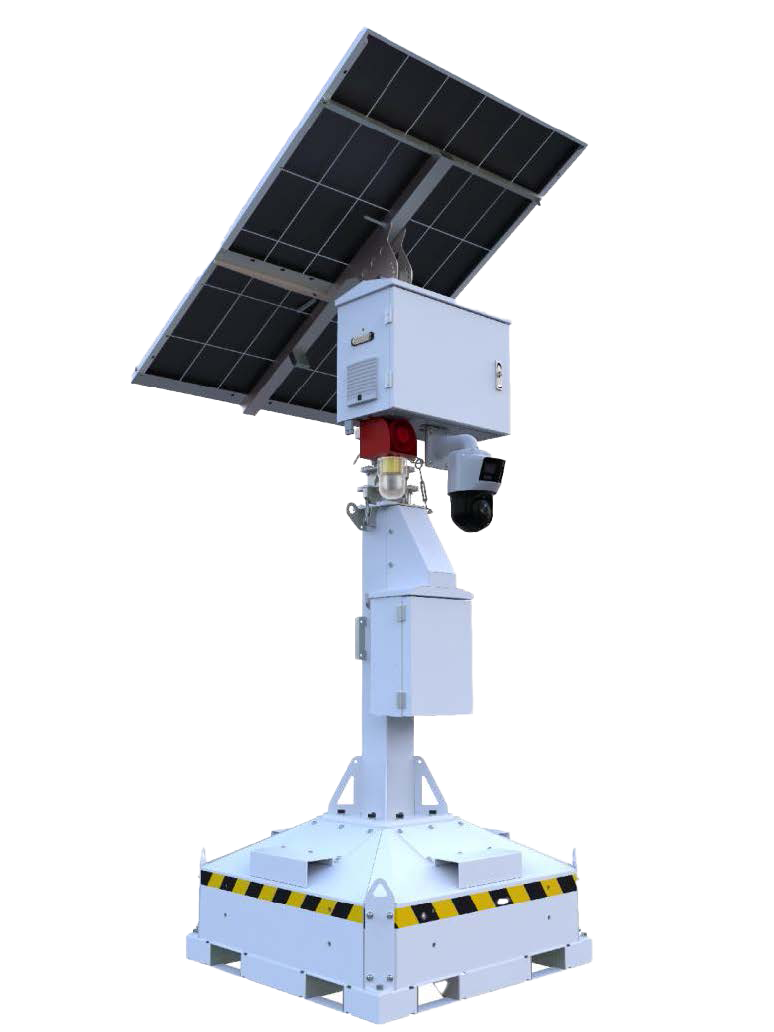

GTS-PST-SCC SOLAR CCTV TOWER

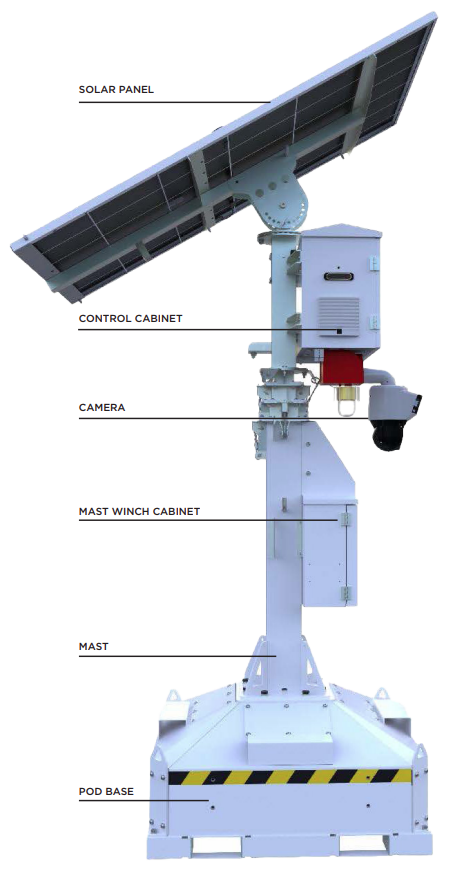

The GTS-PST-SSC Solar CCTV Tower from Green-Tek Solutions is a rugged, self-contained surveillance solution designed for remote or temporary site security. Featuring a high-efficiency 420W solar panel, robust battery storage, and integrated high-definition CCTV cameras, this tower ensures reliable, off-grid monitoring with minimal maintenance.
Its heavy-duty mast, quick deployment design, and extended runtime make it ideal for construction sites, events, mining operations, and critical infrastructure protection.
TYPICAL APPLICATIONS
Mining, Civil & Construction, Rail, Power Generation & Utilities, Road/Cycleways/Walking Paths, Security & Surveillance Municipal Councils & Events, Mining site perimeter surveillance, Temporary security for remote infrastructure, Critical asset protection, Event security, Emergency response and disaster relief zones, Defence and military temporary surveillance
| Model | GTS-PST-SCC Solar Security Camera |
|---|---|
| Solar Panel | 1 x 420W, Bifacial includes Anti Bird Spikes |
| Battery | 1 x 230Ah, DC12.8V, 2944W-h, 6000 Cycles |
| CCTV | 1 x 4MP PTZ & 6MP 180° Bullet, 2 Days storage |
| Indicators and Audio | Red Blue Flashing Lights and Warning Beacon Audible Siren and Audio speaker |
| Controller | 40A MPPT, 95% Efficiency |

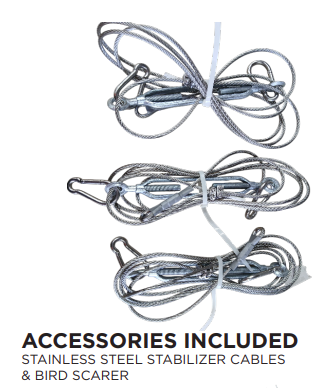

| Mast | Steel Square Telescopic type, 3.5m, 4 Sections Manual Winch Lifting includes Stainless steel mast stabilising cables. |

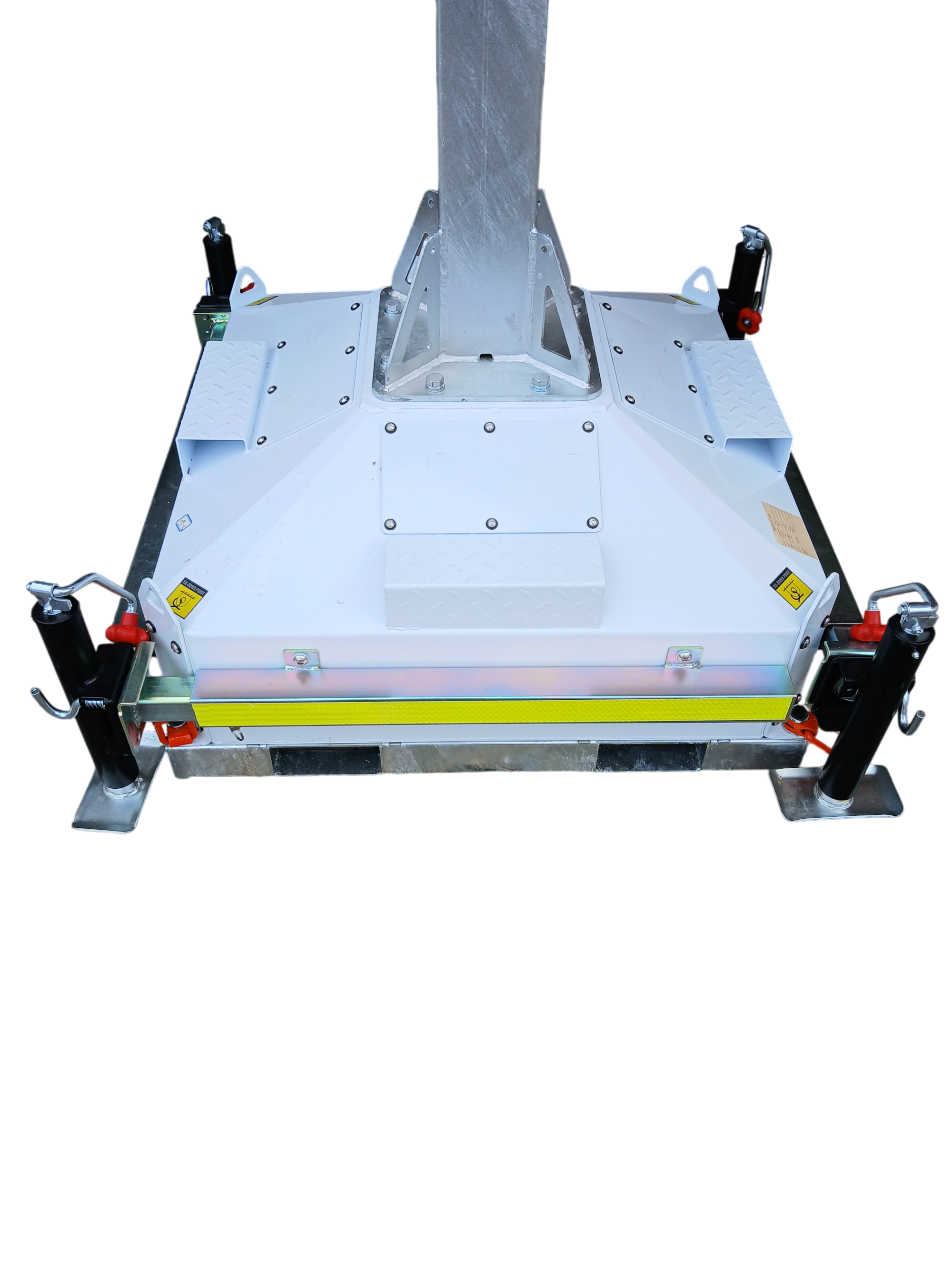

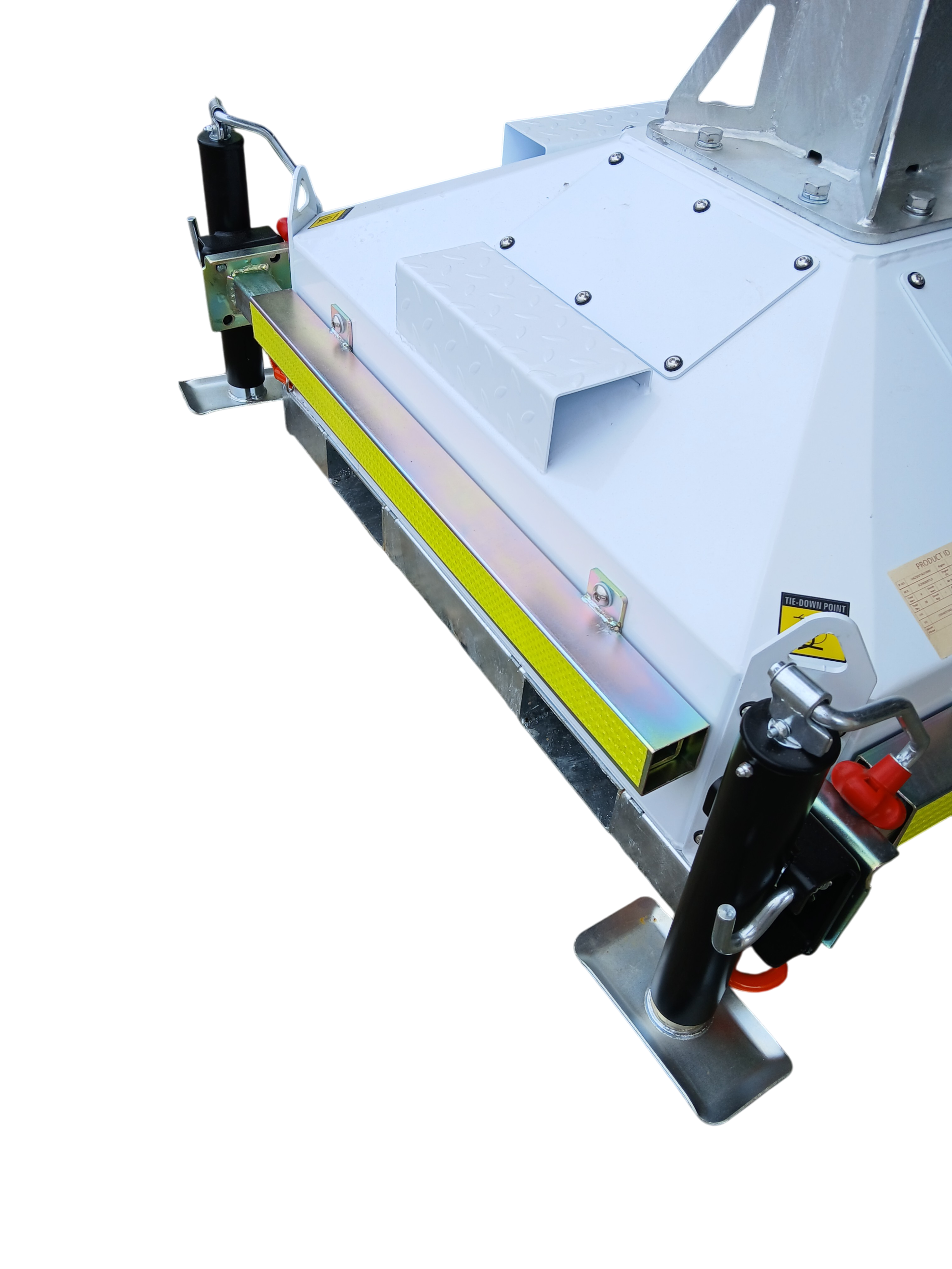

| POD | Steel Fillable Base Steel base complete with 4x Forklift lifting points |
| Charging Time | 6.8 hours |
| Running Time | 24hr operation with required solar charging time met 2 days of autonomy from batteries alone. |
| Coating | Hot-dip galvanized Anti-Corrosion Powder coating |

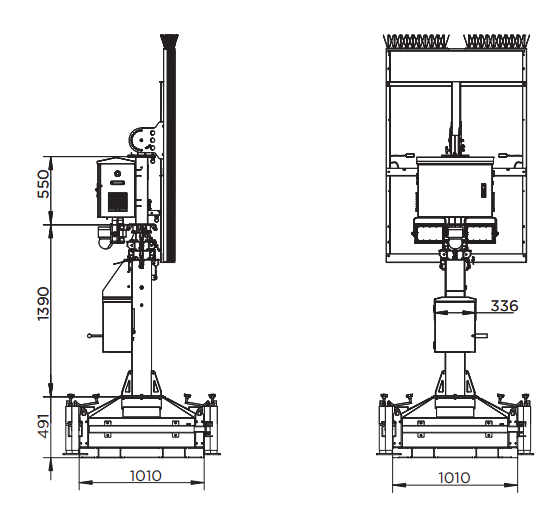

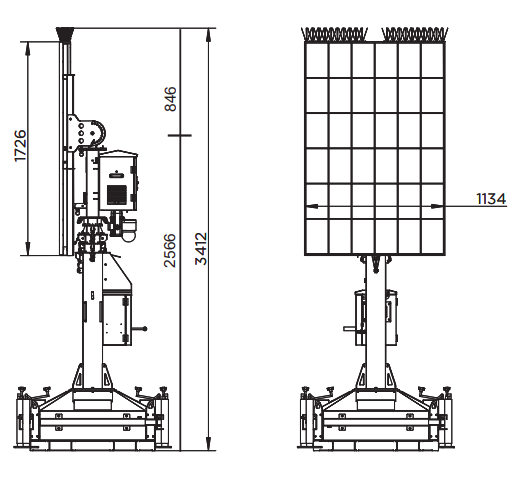

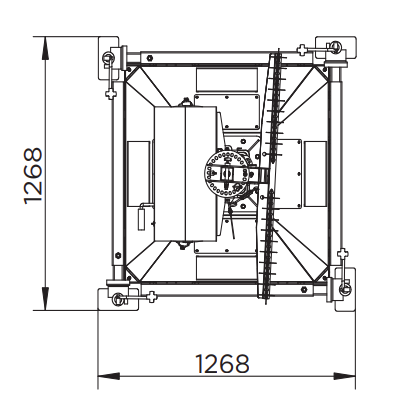

| Transporting Size (mm) | 1010 x 1010 x 3412 (No Stabilizer Legs) 1268 x 1268 x 3412 (With Stabilizer legs) |
| Operating Size (mm) | 1010 x 1010 x 5430 Verticle Panel 2000 x 1010 x 4725 Horizontal Panel (No Stabilizer Legs) |
| Weight | 385kg Dry Weight |

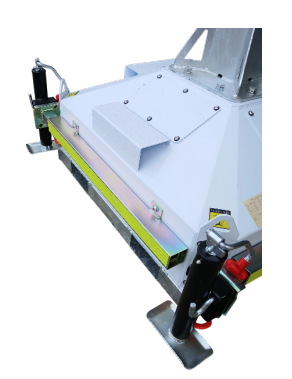

| Optional Accessories | Stabilising Legs (25kg) |
