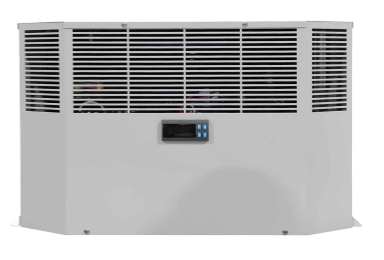

EXCALIBUR ROOF MOUNTED AIR CONDITIONERS 2000W, 2500W
Features
• Efficient cooling for industrial enclosures
• Enhances the space management and efficiency of your
enclosure setup.
• Suitable for medium-sized electric cabinets.
• Zero Condensed Water Discharge:
• Self-Adjustable Thermostat
• Provides real-time display of cabinet temperature.
• Allows for precise temperature control and monitoring.
• Optimizes air circulation within the cabinet.
• Ensures superior performance and efficient cooling.
• Reliable enclosure Air Conditioner designed for Australian climate to ensure.
| Model No. | PVARC2000T | PVARC2500T |
|---|---|---|
| Factory ID No. | 30200014 | 30200015 |
| Dimensions (W × H × D) | 600 × 460 × 497 mm | |
| Refrigeration Data (L35 / L35) | 2000 W | 2500 W |
| Cooling Capacity (ISO / 35) | 1500 W | 2000 W |
| Refrigerant | R134a | |
| Temperature Setting | Adjustment range: +20°C (+68°F) to +40°C (+104°F), factory set +35°C (+95°F) | |
| Air Volume, Internal Circuit | 500 m³/h | 540 m³/h |
| Air Volume, External Circuit | 900 m³/h | 1000 m³/h |
| Condensate Discharge | (with condensate discharge hose) | |
| Refrigerant Quantity | 1000 g / 1050 g | |
| Rated Voltage | AC 230V | |
| Rated Frequency | 50 Hz | |
| Range of Operation | 207–253 V | |
| Power Consumption at L35 / 35 | 828 W | 957 W |
| Rated Current at L35 / 35 | 3.6 A | 4.2 A |
| Starting Current at L35 / 35 | 21.6 A | 25.2 A |
| Connection | Plug-in connector | |
| Weight | 54 kg | 56 kg |
| Fitting Position | Top-of-Rack | |
| Housing | Galvanized sheet steel / power electroplating paint; stainless steel cover available on request | |
| Color | RAL 7035 | |
| Security Parameter | DIN 31001 | |
| Protection Level (Environment) | Max ambient temperature 55°C, max relative humidity 80%, L35/L35 (EN 814) | |
| Protection Level (IP) | IP54 | |
| Approval | CE | |
