EXCALIBUR ROOF MOUNTED AIR CONDITIONERS 3200W

Top Mounted Cooling Unit

25 Mar

Written By Mogulby

Features

• Efficient cooling for industrial enclosures

• Enhances the space management and efficiency of your

enclosure setup.

• Suitable for medium-sized electric cabinets.

• Zero Condensed Water Discharge:

• Self-Adjustable Thermostat

• Provides real-time display of cabinet temperature.

• Allows for precise temperature control and monitoring.

• Optimizes air circulation within the cabinet.

• Ensures superior performance and efficient cooling.

• Reliable enclosure Air Conditioner designed for Australian climate to ensure


        Model No.
        PVARC3200T

        Factory ID No.
        30200012

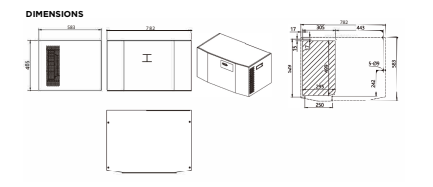

        Dimensions (W × H × D)
        782 × 465 × 583 mm

        Refrigeration Data (L35 / L35)
        3200 W

        Cooling Capacity (ISO / 35)
        2500 W

        Refrigerant
        R134a

        Temperature Setting

          Adjustment range: +20°C (+68°F) to +40°C (+104°F), factory set +35°C (+95°F)

        Air Volume, Internal Circuit
        1150 m³/h

        Air Volume, External Circuit
        1750 m³/h

        Condensate Discharge
        (with condensate discharge hose)

        Refrigerant Quantity
        1100 g

        Rated Voltage
        230 VAC / 380 VAC

        Rated Frequency
        50 Hz

        Range of Operation
        207–253 V / 342–418 V

        Power Consumption at L35 / 35
        1335 W / 1310 W

        Rated Current at L35 / 35
        6.0 A / 3.3 A

        Starting Current at L35 / 35
        34.1 A / 30.8 A

        Connection
        Plug-in connector

        Weight
        70 kg

        Fitting Position
        Top-of-Rack

        Housing

          Galvanized sheet steel / power electroplating paint; stainless steel cover available on request

        Color
        RAL 7035

        Security Parameter
        DIN 31001

        Protection Level (Environment)

          Max ambient temperature 55°C, max relative humidity 80%, L35/L35 (EN 814)

        Protection Level (IP)
        IP54

        Approval
        CE

Model No.	PVARC3200T
Factory ID No.	30200012
Dimensions (W × H × D)	782 × 465 × 583 mm
Refrigeration Data (L35 / L35)	3200 W
Cooling Capacity (ISO / 35)	2500 W
Refrigerant	R134a
Temperature Setting	Adjustment range: +20°C (+68°F) to +40°C (+104°F), factory set +35°C (+95°F)
Air Volume, Internal Circuit	1150 m³/h
Air Volume, External Circuit	1750 m³/h
Condensate Discharge	(with condensate discharge hose)
Refrigerant Quantity	1100 g
Rated Voltage	230 VAC / 380 VAC
Rated Frequency	50 Hz
Range of Operation	207–253 V / 342–418 V
Power Consumption at L35 / 35	1335 W / 1310 W
Rated Current at L35 / 35	6.0 A / 3.3 A
Starting Current at L35 / 35	34.1 A / 30.8 A
Connection	Plug-in connector
Weight	70 kg
Fitting Position	Top-of-Rack
Housing	Galvanized sheet steel / power electroplating paint; stainless steel cover available on request
Color	RAL 7035
Security Parameter	DIN 31001
Protection Level (Environment)	Max ambient temperature 55°C, max relative humidity 80%, L35/L35 (EN 814)
Protection Level (IP)	IP54
Approval	CE
