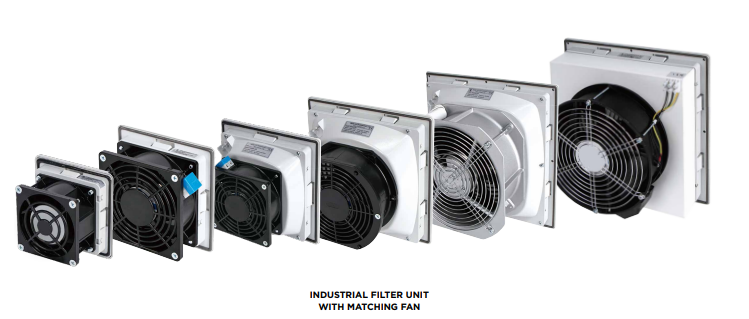

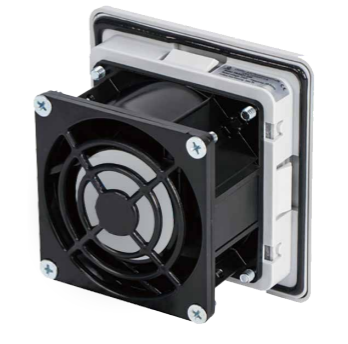

EXCALIBUR FILTER FANS (FULL RANGE)
Features
• Voltage: 230VAC and 24VDC options.
• Quick and simple mounting for hassle-free installation.
• Cabinet Ventilation: Tailored for ventilating control
cabinets and enclosures.
• Space-Saving: Compact size with small external dimensions
• Versatile Mounting: Compatible with various setups
• RAL7035
• IP Rating: IP54
Filter With Fan Selection Table
| Filter Fans | Description | Air Throughput | Unimpeded Airflow | Voltage | Dimensions | Matching Filter |
|---|---|---|---|---|---|---|
| PVA500BPB | Filter with Fan | 24 m³/h | 35 m³/h | 230VAC | 109×109 mm | PVA000BPB |
| PVA524BPB | Filter with Fan | 24 m³/h | 35 m³/h | 24VDC | 109×109 mm | PVA000BPB |
| PV1600BPB | Filter with Fan | 50 m³/h | 67 m³/h | 230VAC | 150×150 mm | PV1000BPB |
| PV1524BPTB | Filter with Fan | 50 m³/h | 67 m³/h | 24VDC | 150×150 mm | PV1000BPB |
| PVB500BPB | Filter with Fan | 85 m³/h | 120 m³/h | 230VAC | 204×204 mm | PVB000BPB |
| PVB1524BPB | Filter with Fan | 85 m³/h | 120 m³/h | 24VDC | 204×204 mm | PVB000BPB |
| PV2300BPB | Filter with Fan | 120 m³/h | 240 m³/h | 230VAC | 250×250 mm | PV2000BPB |
| PV2500BPB | Filter with Fan | 170 m³/h | 265 m³/h | 230VAC | 250×250 mm | PV2000BPB |
| PV3500BPB | Filter with Fan | 360 m³/h | 600 m³/h | 230VAC | 325×325 mm | PV3000BPB |
| PV3600BPB | Filter with Fan | 500 m³/h | 800 m³/h | 230VAC | 325×325 mm | PV3000BPB |
