Stainless Steel Push Button Station Sloped Roof

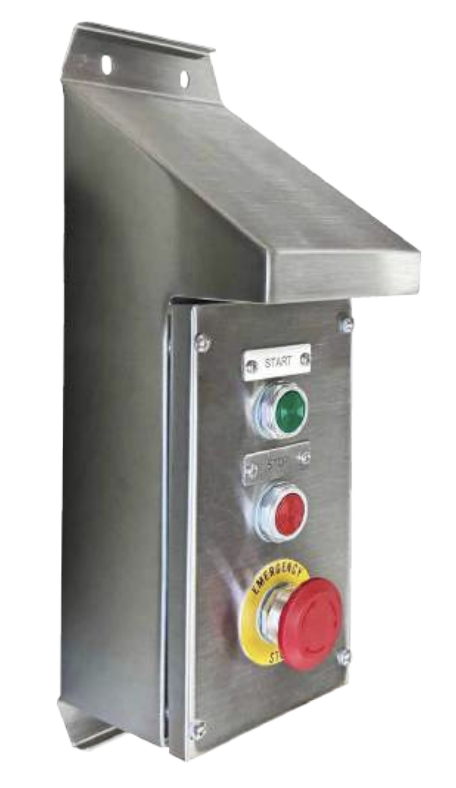

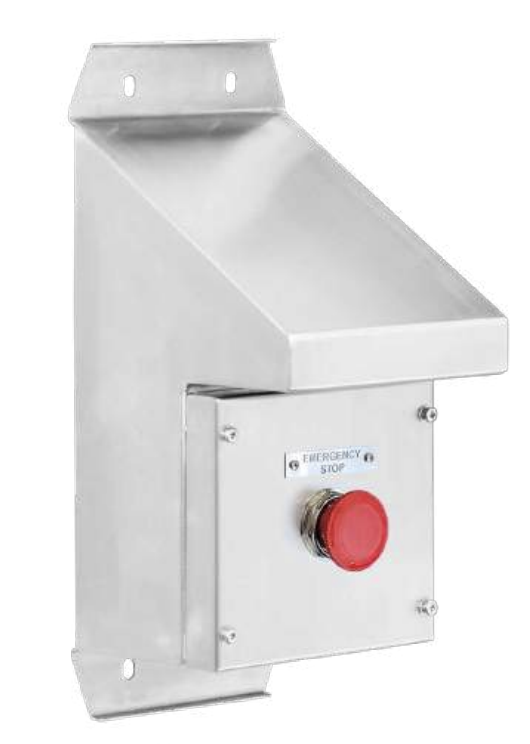

Designed to prevent debris and water buildup, our sloped roof stainless steel enclosures offer superior protection in hygienic and outdoor environments. Constructed from 316 stainless steel with a 30° sloped roof and 60mm overhang, this IP66-rated unit combines durability with practical design. Featuring flange mounting, a fully welded body, powder-coated internal mounting pan, and optional cowling, it’s ideal for washdown areas, foodgrade sites, or anywhere water runoff is critical.
FEATURES
• IP66
• 316 stainless steel, N4 finish
• Body construction 1.5mm
• 30 degree sloped roof / 60mm overhang
• Flange mounted
• Fully welded construction
• Captive screws
• Mounting pan 2mm powder coated white mild steel
• Earth strap kit
• 30mm PB holes
• 25mm conduit entry holes
OPTIONS
• 22mm holes (CI)
• Cowling (CI)
PUSH BUTTON STATION SLOPED ROOF SELECTION TABLE
| Part No. | External Dimensions (mm) | No. of Push Button Holes (22.5 or 30.5 mm) |
No. of conduit Entry Holes |
Useable Depth (mm) | ||
|---|---|---|---|---|---|---|
| Height | Width | Depth | ||||
| PSSPRB1 | 120 | 120 | 125 | 1 | 2 | 105 |
| PSSPRB2 | 160 | 120 | 125 | 2 | 2 | 105 |
| PSSPRB3 | 220 | 120 | 125 | 3 | 2 | 105 |
| PSSPRB4 | 280 | 120 | 125 | 4 | 2 | 105 |
| PSSPRB5 | 340 | 120 | 125 | 5 | 2 | 105 |
| PSSPRB6 | 400 | 120 | 125 | 6 | 2 | 105 |
| PSSPRB7 | 280 | 180 | 125 | 7 | 2 | 105 |
| PSSPRB8 | 280 | 180 | 125 | 8 | 2 | 105 |
| PSSPRB9 | 340 | 180 | 125 | 9 | 2 | 105 |
| PSSPRB10 | 340 | 180 | 125 | 10 | 2 | 105 |
*Add -22.5MM to model number for 22.5mm push button cutouts (eg. PSSRBP1-22.5MM)

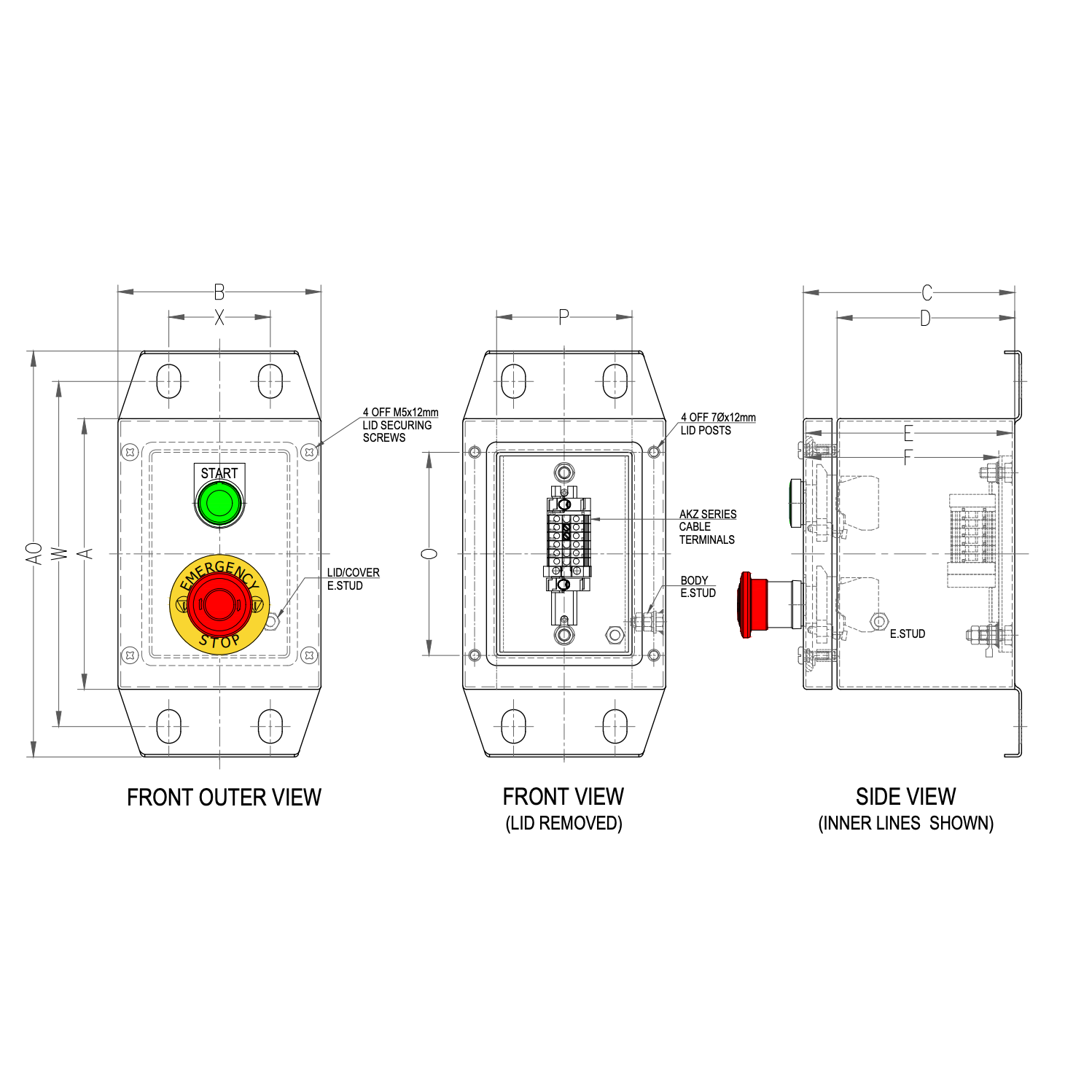

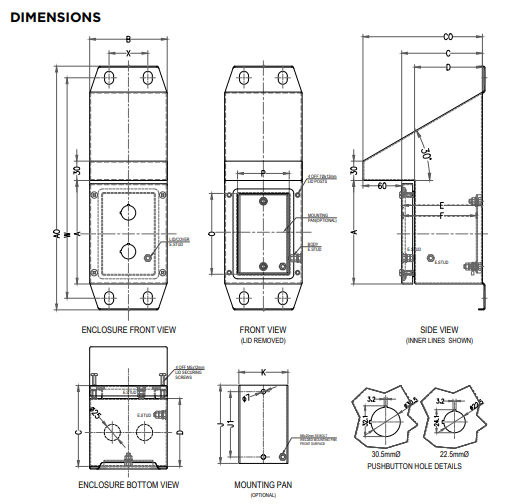

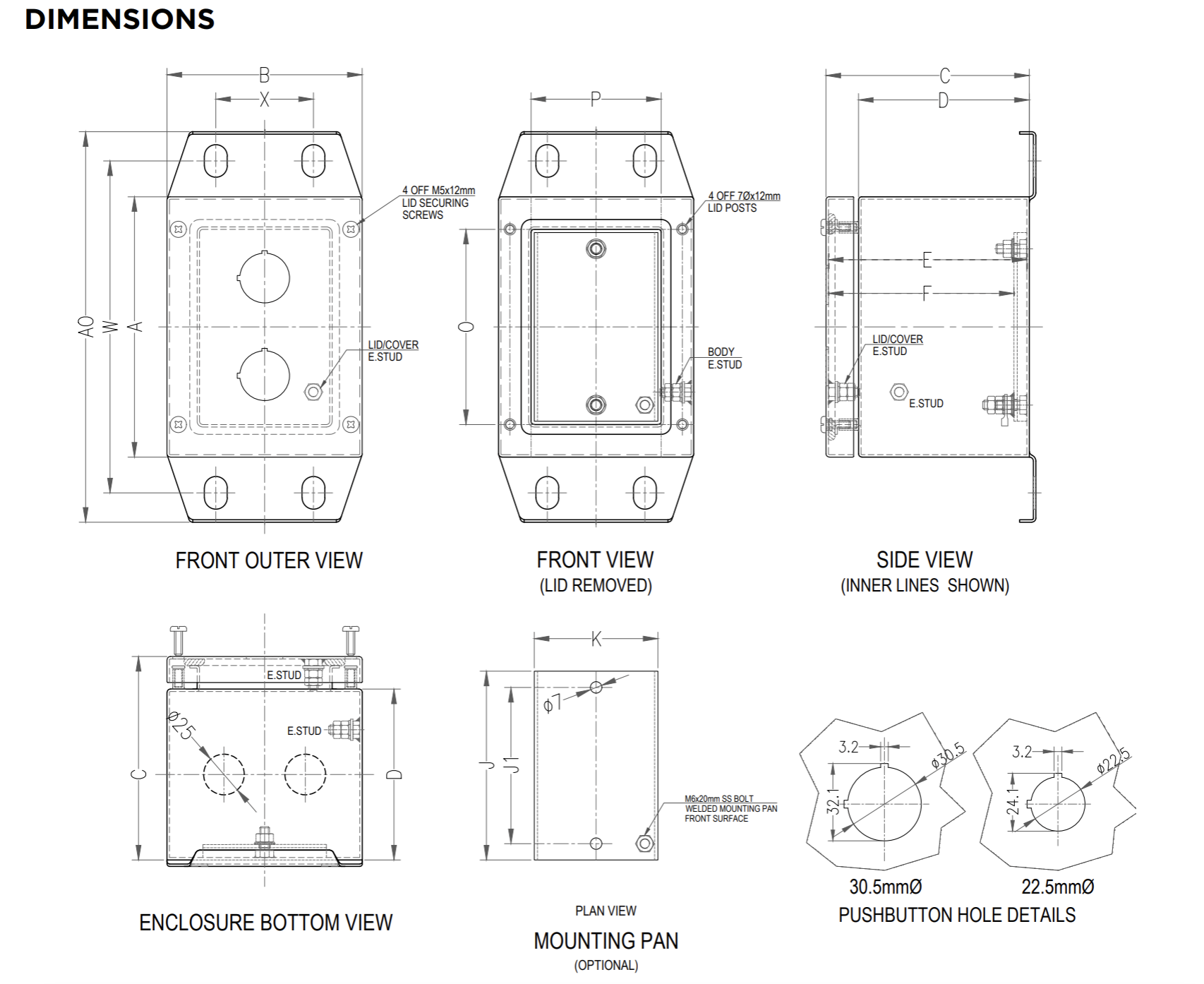

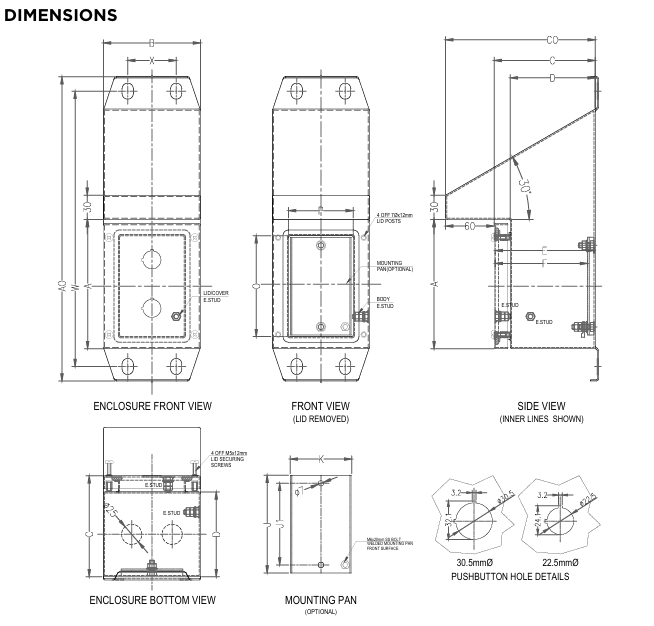

| PART NO. | External Dimensions | Internal Dimensions | Mounting Pan | Opening Size | Fixing Centres | No. of Push Button Holes | Cable Entry Holes | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | AO | E | F | J | J1 | K | O | P | W | X | |||
| PSSPRB1 | 120 | 120 | 125 | 105 | 337 | 122 | 114 | 81 | 61 | 76 | 85 | 80 | 301 | 60 | 1 | 1 x 25Ø |
| PSSPRB2 | 160 | 120 | 125 | 105 | 377 | 122 | 114 | 121 | 101 | 76 | 125 | 80 | 341 | 60 | 2 | 2 x 25Ø |
| PSSPRB3 | 220 | 120 | 125 | 105 | 437 | 122 | 114 | 181 | 161 | 76 | 185 | 80 | 401 | 60 | 3 | 3 x 25Ø |
| PSSPRB4 | 280 | 120 | 125 | 105 | 497 | 122 | 114 | 241 | 221 | 76 | 245 | 80 | 461 | 60 | 4 | 4 x 25Ø |
| PSSPRB5 | 340 | 120 | 125 | 105 | 557 | 122 | 114 | 301 | 281 | 76 | 305 | 80 | 521 | 60 | 5 | 5 x 25Ø |
| PSSPRB6 | 400 | 120 | 125 | 105 | 617 | 122 | 114 | 361 | 341 | 76 | 365 | 80 | 581 | 60 | 6 | 6 x 25Ø |
| PSSPRB7 | 280 | 180 | 125 | 105 | 497 | 122 | 114 | 241 | 221 | 136 | 245 | 140 | 461 | 120 | 7 | 7 x 25Ø |
| PSSPRB8 | 280 | 180 | 125 | 105 | 497 | 122 | 114 | 241 | 221 | 136 | 245 | 140 | 461 | 120 | 8 | 8 x 25Ø |
| PSSPRB9 | 340 | 180 | 125 | 105 | 557 | 122 | 114 | 301 | 281 | 136 | 305 | 140 | 521 | 120 | 9 | 9 x 25Ø |
| PSSPRB10 | 340 | 180 | 125 | 105 | 557 | 122 | 114 | 301 | 281 | 136 | 305 | 140 | 521 | 120 | 10 | 10 x 25Ø |
