Stainless Steel Push Button Station

30 Mar

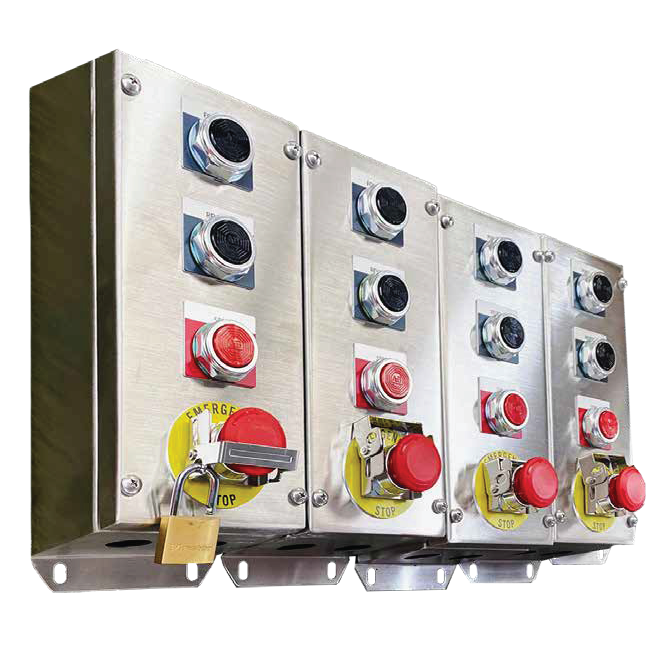

Engineered for control in the toughest environments, our stainless steel pushbutton stations are built from 316 stainless steel with a fully welded, IP66-rated body for maximum durability. Designed to house operator interface components, each unit comes flange-mounted with pre-drilled 30mm holes (or optional 22mm), a powder-coated internal mounting pan, and earth strap kit. Ideal for industrial, mining, and outdoor applications where reliability and longevity are critical

FEATURES

• IP66

• 316 Stainless Steel, N4 Finish

• Body construction 1.5mm

• Universal enclosure

• Flange mounted

• Fully welded construction

• Captive screws

• Mounting pan 2mm powder

coated white mild steel

• Earth strap kit

• 30mm PB holes

• 25mm conduit entry holes

OPTIONS

• 22mm holes (CI

TYPICAL APPLICATIONS

Coal & Metalliferous Mine Process Plants, Quarries, Campsite Area Lighting, General Area Lighting Car Parks, Conveyors, Pedestrian Access Road Ways, Stacker/Reclaimers, Stairwells, Tunnels, Walkways Bulkheads

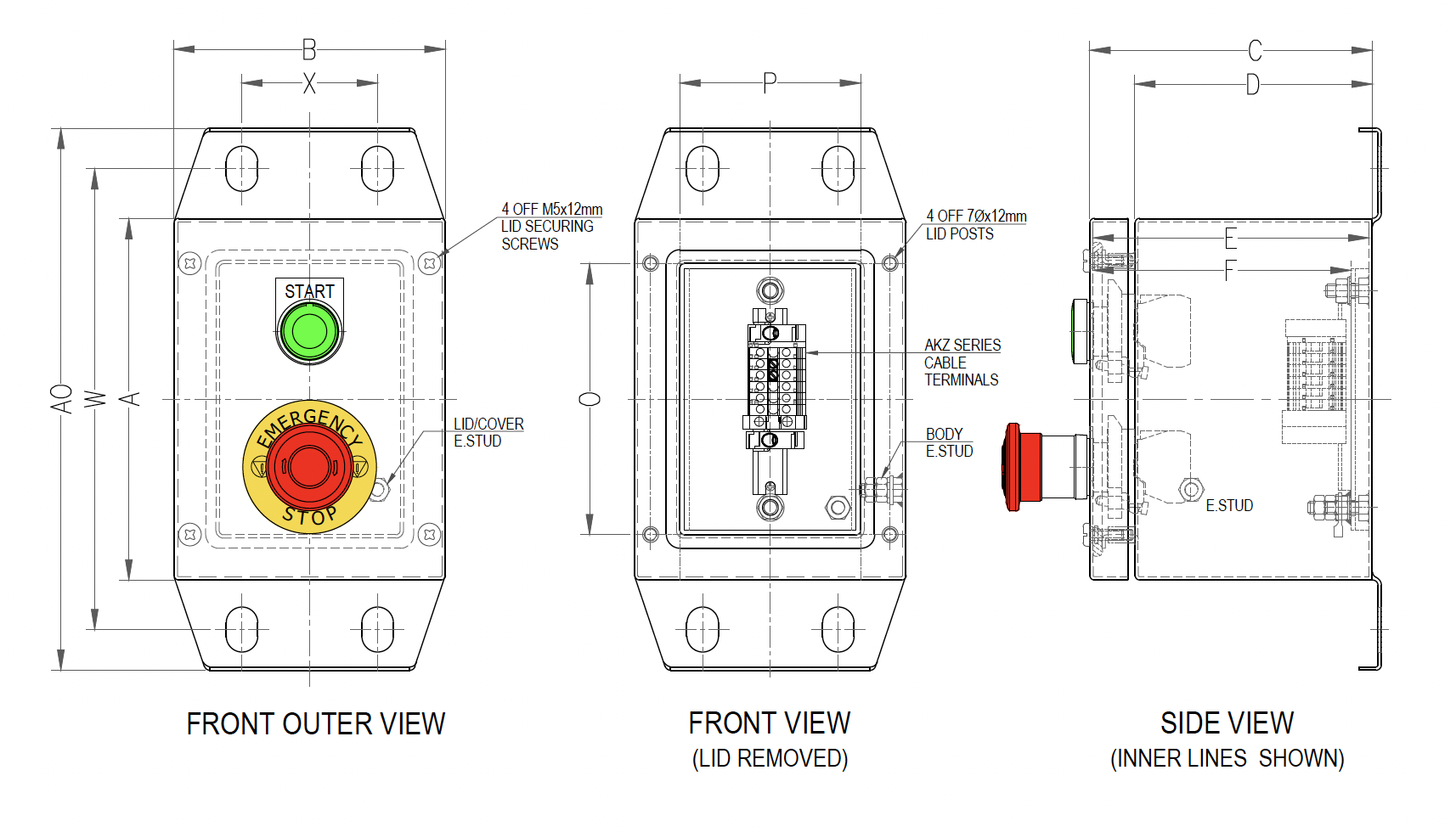

Screenshot+2026-03-17+at+5.07.42 am.webp

PUSH BUTTON STATION SELECTION TABLE



        Part No.
        External Dimensions (mm)

          No. of Push Button Holes

          (22.5 or 30.5 mm)

        No. of conduit Entry Holes
        Useable Depth (mm)


        Height
        Width
        Depth



        PSPB1
        120
        120
        125
        1
        2
        105


        PSPB2
        160
        120
        125
        2
        2
        105


        PSPB3
        220
        120
        125
        3
        2
        105


        PSPB4
        280
        120
        125
        4
        2
        105


        PSPB5
        340
        120
        125
        5
        2
        105


        PSPB6
        400
        120
        125
        6
        2
        105


        PSPB7
        280
        180
        125
        7
        2
        105


        PSPB8
        280
        180
        125
        8
        2
        105


        PSPB9
        340
        180
        125
        9
        2
        105


        PSPB10
        340
        180
        125
        10
        2
        105



          * Add -22.5MM to model number for 22.5mm push button cutouts
          (e.g. PSPB1-22.5MM)





Part No.	External Dimensions (mm)	No. of Push Button Holes (22.5 or 30.5 mm)	No. of conduit Entry Holes	Useable Depth (mm)
PSPB1	120	120	125	1	2	105
PSPB2	160	120	125	2	2	105
PSPB3	220	120	125	3	2	105
PSPB4	280	120	125	4	2	105
PSPB5	340	120	125	5	2	105
PSPB6	400	120	125	6	2	105
PSPB7	280	180	125	7	2	105
PSPB8	280	180	125	8	2	105
PSPB9	340	180	125	9	2	105
PSPB10	340	180	125	10	2	105
* Add -22.5MM to model number for 22.5mm push button cutouts (e.g. PSPB1-22.5MM)

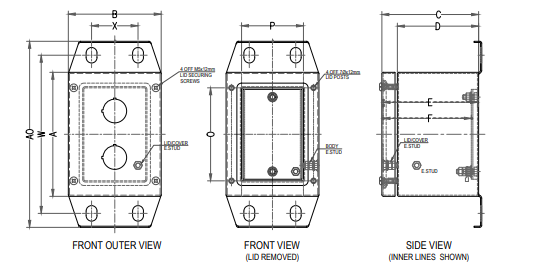

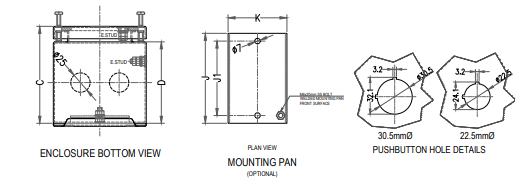

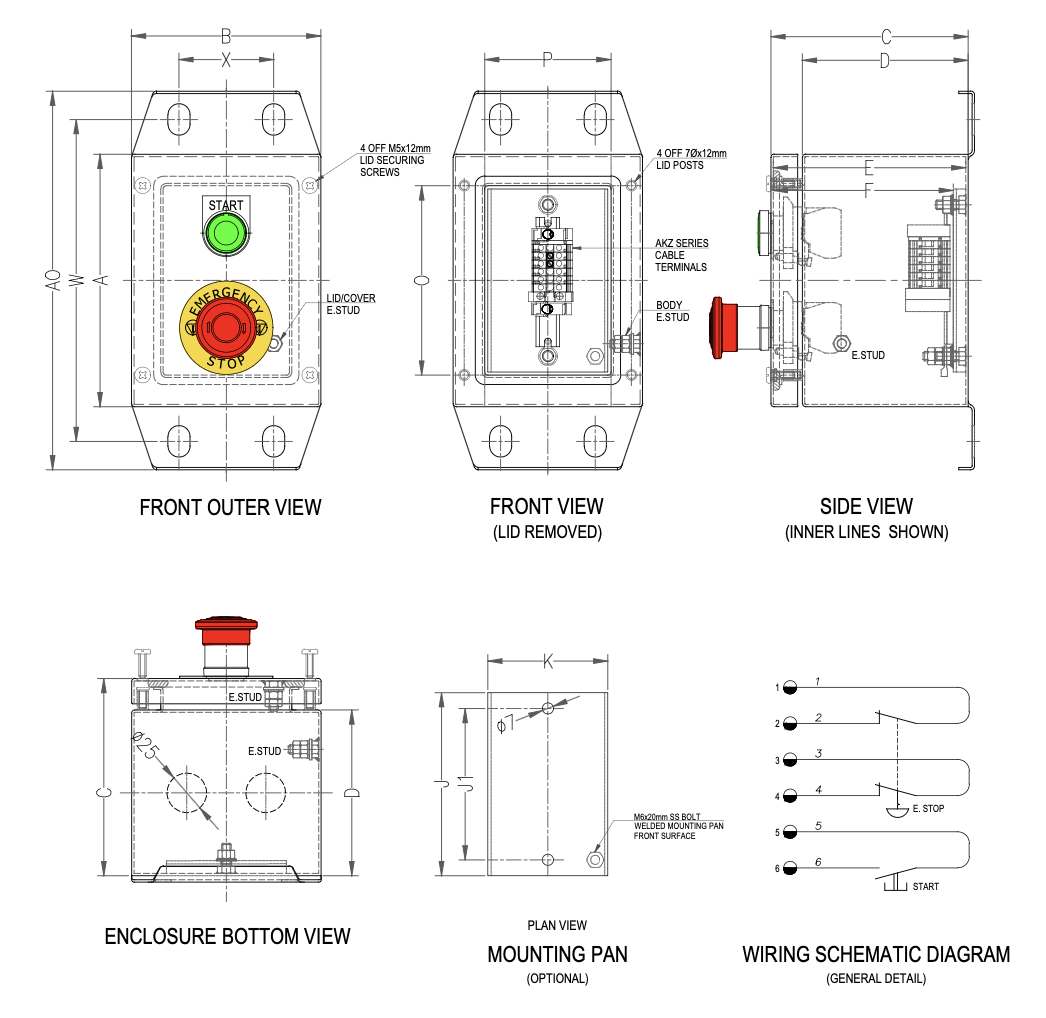

        Part No.
        External Dimensions
        Internal Dimensions
        Mounting Pan
        Opening Size
        Fixing Centers
        No. of Push Button Holes
        Cable Entry Holes


        ABCDAO
        EF
        JJ1K
        OP
        WX



    PSPB112012012510520012211476567680801646011 x 25Ø
PSPB21601201251052401221141169676120802046022 x 25Ø
PSPB322012012510530012211417615676180802646033 x 25Ø
PSPB428012012510536012211423621676240803246044 x 25Ø
PSPB534012012510542012211429627676300803846055 x 25Ø
PSPB640012012510548012211435633676360804446066 x 25Ø
PSPB728018012510536012211423621613624014032412077 x 25Ø
PSPB828018012510536012211423621613624014032412088 x 25Ø
PSPB934018012510542012211429627613630014038412099 x 25Ø
PSPB103401801251054201221142962761363001403841201010 x 25Ø



Part No.	External Dimensions	Internal Dimensions	Mounting Pan	Opening Size	Fixing Centers	No. of Push Button Holes	Cable Entry Holes
PSPB1	120	120	125	105	200	122	114	76	56	76	80	80	164	60	1	1 x 25Ø
PSPB2	160	120	125	105	240	122	114	116	96	76	120	80	204	60	2	2 x 25Ø
PSPB3	220	120	125	105	300	122	114	176	156	76	180	80	264	60	3	3 x 25Ø
PSPB4	280	120	125	105	360	122	114	236	216	76	240	80	324	60	4	4 x 25Ø
PSPB5	340	120	125	105	420	122	114	296	276	76	300	80	384	60	5	5 x 25Ø
PSPB6	400	120	125	105	480	122	114	356	336	76	360	80	444	60	6	6 x 25Ø
PSPB7	280	180	125	105	360	122	114	236	216	136	240	140	324	120	7	7 x 25Ø
PSPB8	280	180	125	105	360	122	114	236	216	136	240	140	324	120	8	8 x 25Ø
PSPB9	340	180	125	105	420	122	114	296	276	136	300	140	384	120	9	9 x 25Ø
PSPB10	340	180	125	105	420	122	114	296	276	136	300	140	384	120	10	10 x 25Ø

Download brochure

STAINLESS STEEL PUSH BUTTON STATION (pdf)

Download Technical Files

LOG IN TO ACCESS ALL THE TECHNICAL FILES
