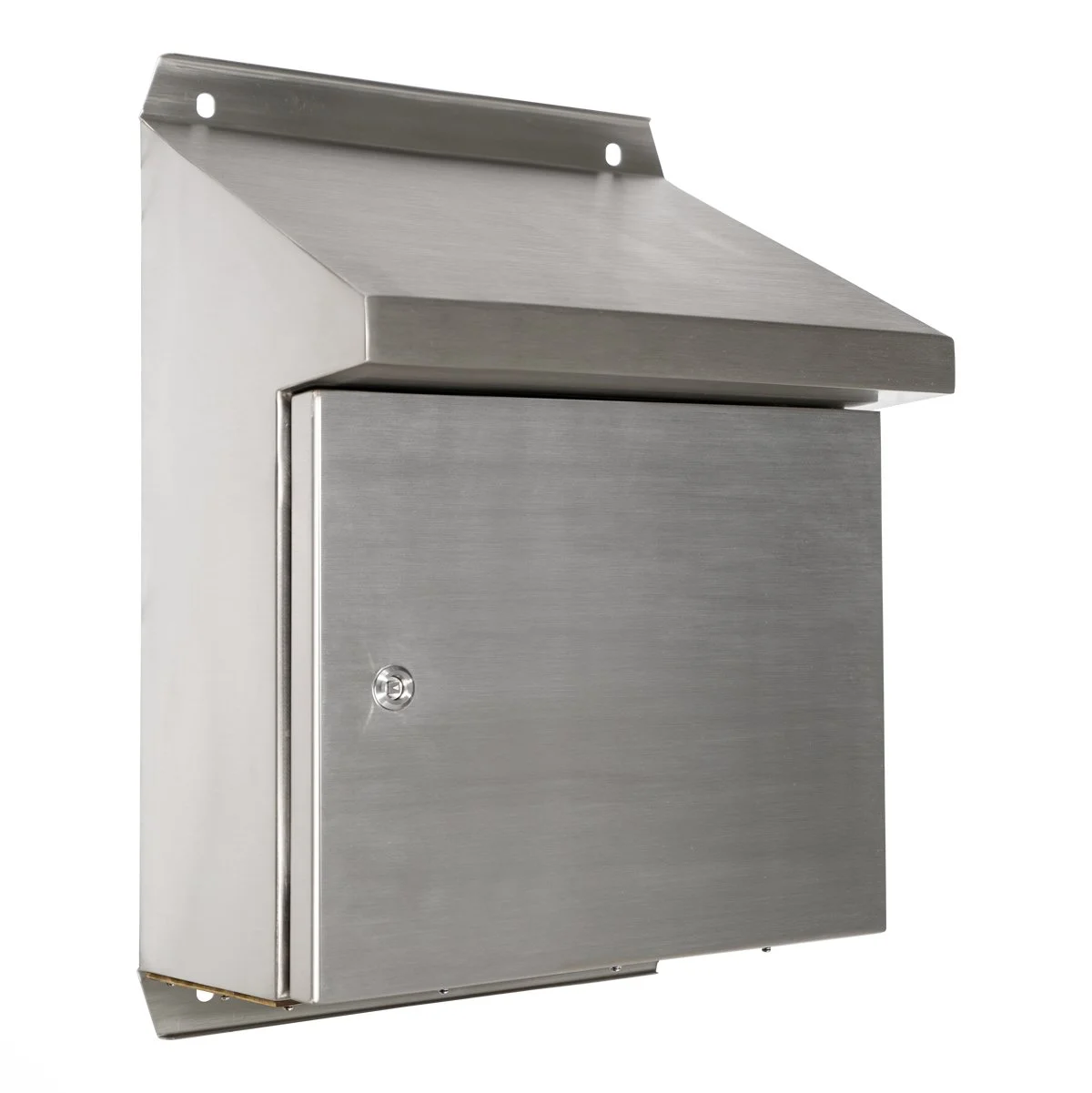

Stainless Steel Sloped Roof Enclosures Plus (Gland Plate)

Features

• IP66

• 316 stainless steel

• Body construction 1.5mm

• Universal enclosure

• Adjustable inner door kits and escutcheon options

• 2mm stainless steel gland plate

• 30 degree sloped roof / 60mm overhang

• Flange mounted

• Concealed stainless steel hinges

• Fully welded construction

• Polyurethane gasket

• 8mm stainless steel square drive spanner lock

• Mounting pan 2mm powder coated white mild steel

• Earth strap kit

Options

• RAL2000 orange powder coat (CI)

• Brass and aluminium gland plates

• 3 point locking available

Click to view full certification and compliance documentation

Model No	Height (mm)	Width (mm)	Depth (mm)	Useable Depth
PSSRPP222215	220	220	150	132
PSSRP303015	300	300	150	132
PSSRP303020	300	300	200	182
PSSRP403020	400	300	200	182
PSSRP403025	400	300	250	232
PSSRP404025	400	400	250	232
PSSRP406025	400	600	250	232
PSSRP507035	500	700	350	332
PSSRP601025	600	1000	250	232
PSSRP601035	600	1000	350	332
PSSRP604025	600	400	250	232
PSSRP604035	600	400	350	332
PSSRP606025	600	600	250	232
PSSRP608025	600	800	250	232
PSSRP806025	800	600	250	232
PSSRP1007025	1000	700	250	232
PSSRP1208025	1200	800	250	232

Downloads

GLAND PLATES.pdf

Download Technical Files

LOG IN TO ACCESS ALL THE TECHNICAL FILES
