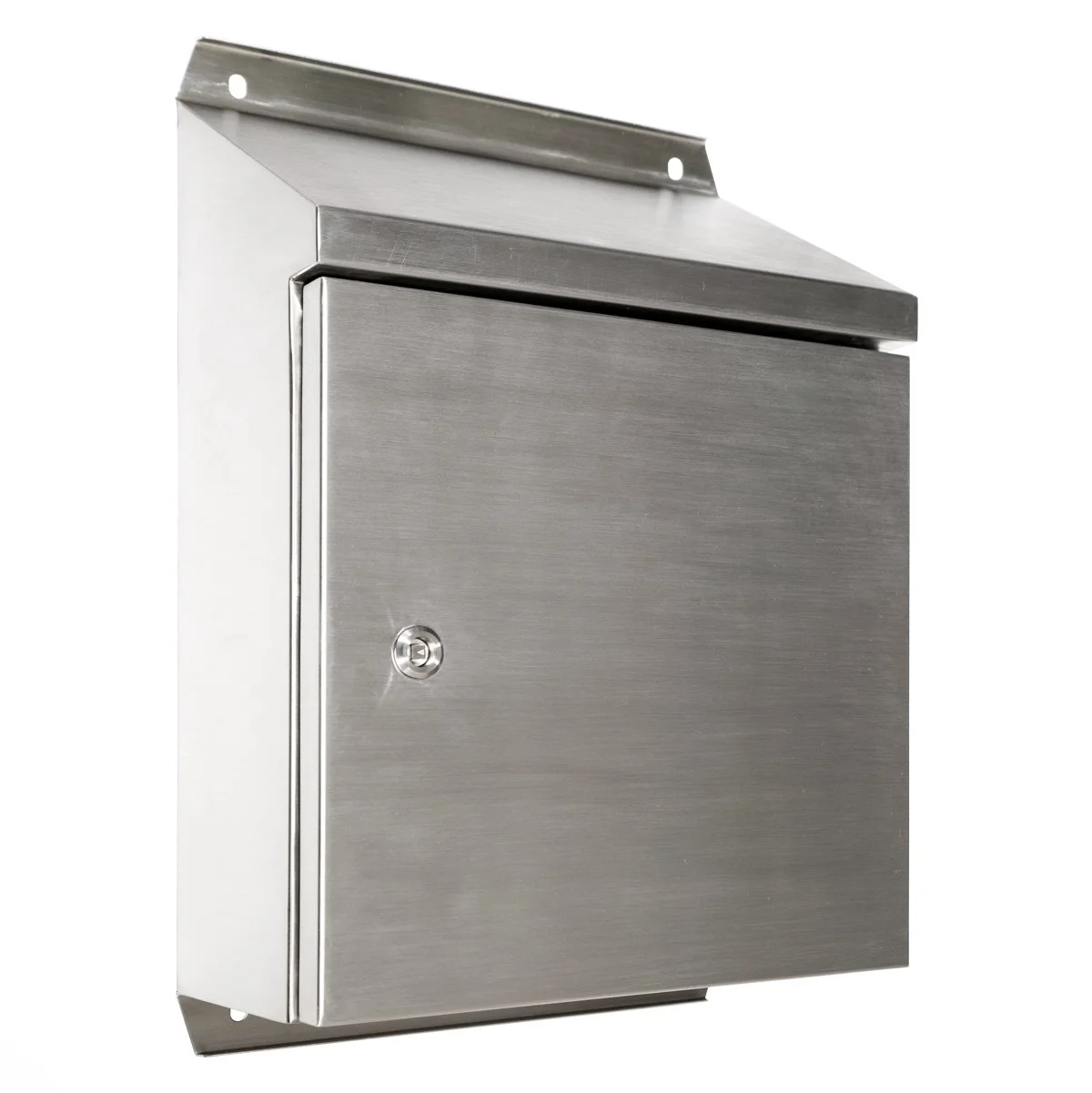

Stainless Steel Sloped Roof Enclosures
Features
IP66
316 stainless steel
Body construction 1.5mm
Sloped roof enclosure
Universal enclosure
Adjustable inner door kits and escutcheon options
Flange mounted
Concealed stainless steel hinges
Fully welded construction
Polyurethane gasket
8mm stainless steel square drive spanner lock
Mounting pan 2mm powder coated white mild steel
Earth strap kit
Click above view full certification and compliance documentation
| Model No |
Height (mm) |
Width (mm) |
Depth (mm) |
Useable |
|---|---|---|---|---|
| PSSR222215 |
200 | 220 | 150 |
132 |
| PSSR303020 | 300 | 300 | 200 | 182 |
| PSSR403020 | 400 | 300 | 200 | 182 |
| PSSR404020 | 400 | 400 | 200 | 182 |
| PSSR406025 | 400 | 600 | 250 | 232 |
| PSSR604025 | 600 | 400 | 250 | 232 |
| PSSR606025 | 600 | 600 | 250 | 232 |
| PSSR806025 | 800 | 600 | 250 | 232 |
| PSSR1006035 |
1000 |
600 | 350 | 332 |
