ROOF TOP VENTILATION FAN
The Phoenix Roof Top Ventilation Fan is designed to efficiently extract hot air from electrical enclosures, supporting natural convection to reduce heat build-up and prevent hot spots. Installed at the top of the enclosure, it works in conjunction with filtered air inlets to promote effective airflow while maintaining internal cleanliness. The unit features integrated filters to prevent dust and moisture ingress, with the system designed to pressurise the enclosure and minimise the risk of contaminants entering. With a low-profile design, IP54 protection as standard (upgradable to IP55), and easy filter maintenance access, the Phoenix Roof Top Ventilation Fan is a high-quality solution for demanding industrial environments.
Efficient Heat Extraction
Supports Natural Convection
Filtered Airflow
Pressurised Enclosure Design
Low-Profile Housing
High Ingress Protection
Easy Maintenance
| Model No. | Unit | PNTORR0600BF | PNTORR0860BF | PNTORR01250BF |
|---|---|---|---|---|
| Rated voltage | V | 230 | 230 | 230 |
| Rated frequency | Hz | 50/60 | 50/60 | 50/60 |

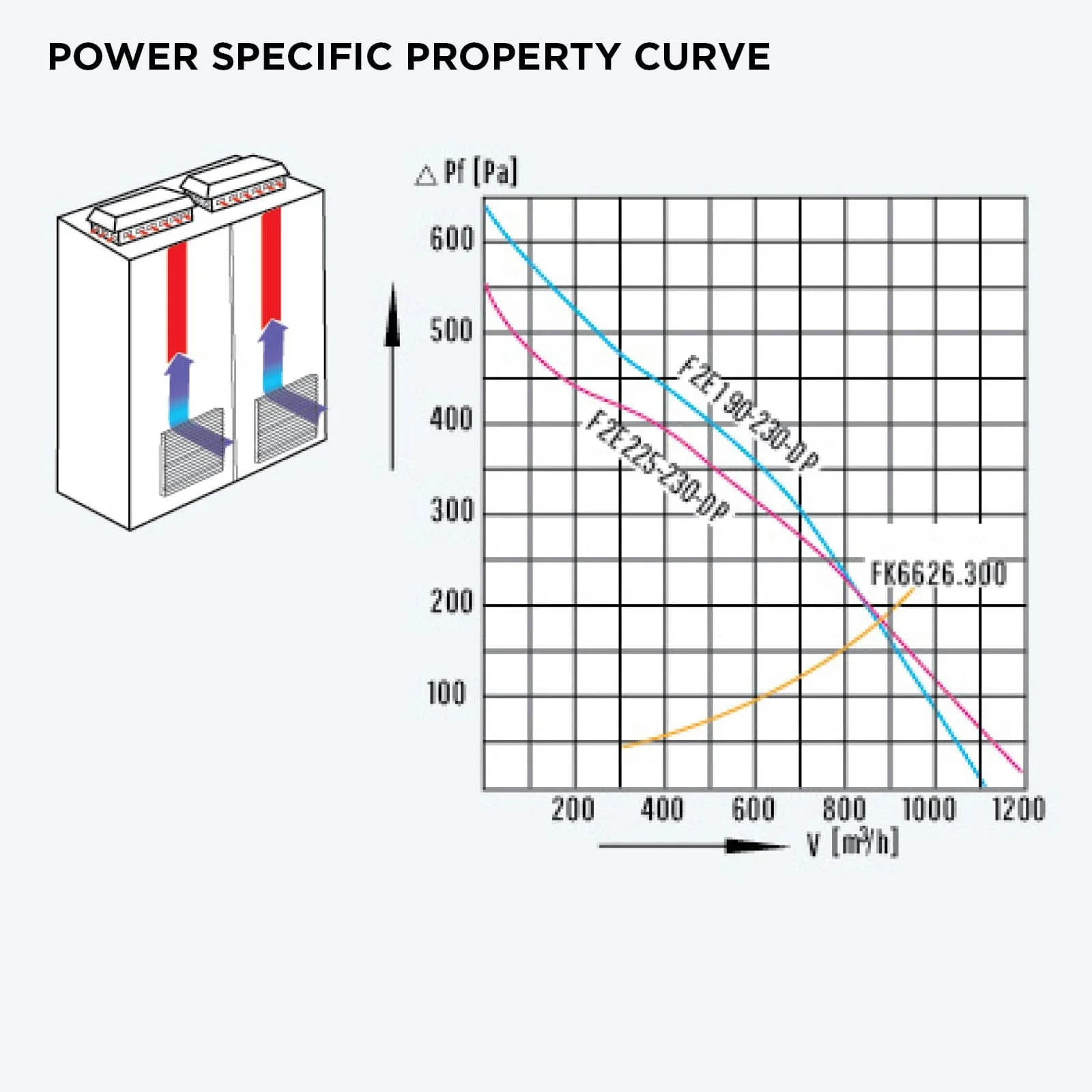

| Air flow, Ventilation free | m³/h | 570–620 | 860–900 | 1200–1340 |
| Axle flow blower | Electromotion Capacitor | Electromotion Capacitor | Electromotion Capacitor | |
| Rated current | A | 0.34–0.26 | 0.40–0.38 | 0.88–0.60 |
| Rated Power | W | 75–58 | 90–85 | 200–135 |
| Noise level | dB(A) | 62–64 | 73–74 | 69–71 |
| Operating temperature | °C | -65 | -65 | -70 |
| Colour | RAL | RAL 7035 | RAL 7035 | RAL 7035 |
| Protection Category | IP54 standard, IP55 optional | IP54 standard, IP55 optional | IP54 standard, IP55 optional |

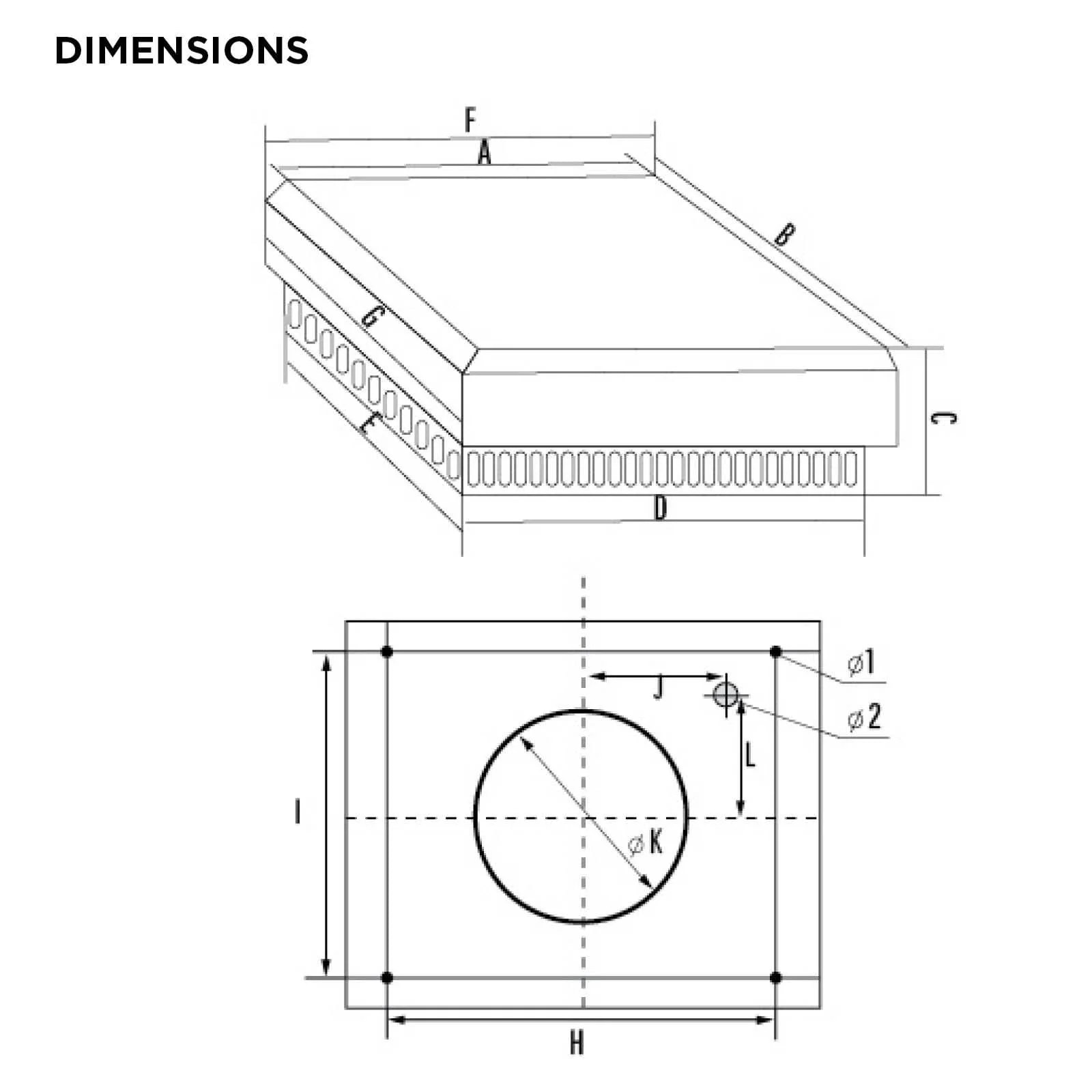

| Type | A/B | C | D/E | F/G | H/I | J | ΦK | Φ1 | Φ2 | L |
|---|---|---|---|---|---|---|---|---|---|---|
| PNTOR… | 270 | 130 | 267 | 310 | 226.8 | 98.4 | 195 | 7.8 | 15 | 97 |
| PNTOR… | 270 | 130 | 267 | 310 | 226.8 | 98.4 | 195 | 7.8 | 15 | 97 |
| PNTOR… | 270 | 130 | 267 | 310 | 226.8 | 98.4 | 195 | 7.8 | 15 | 97 |
