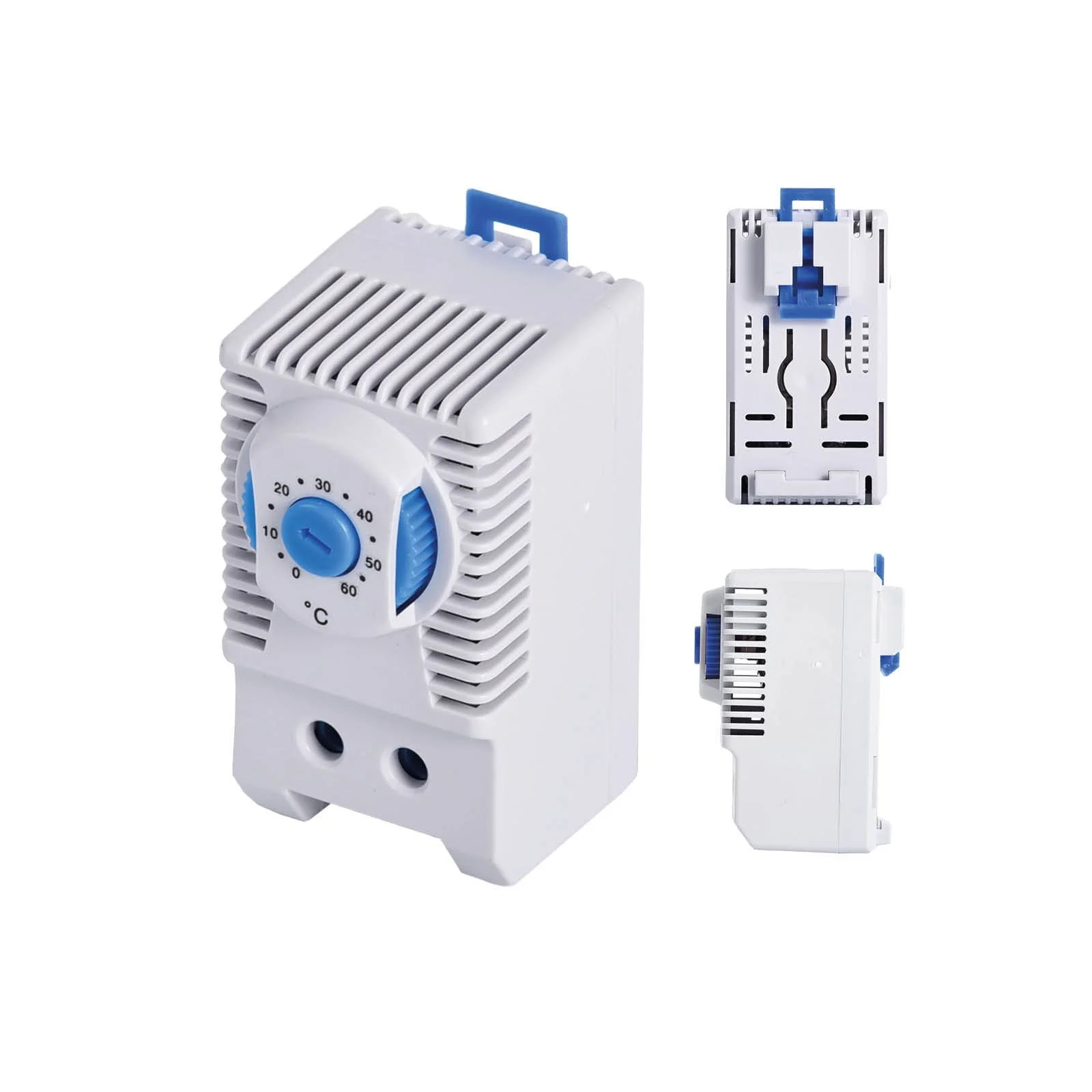

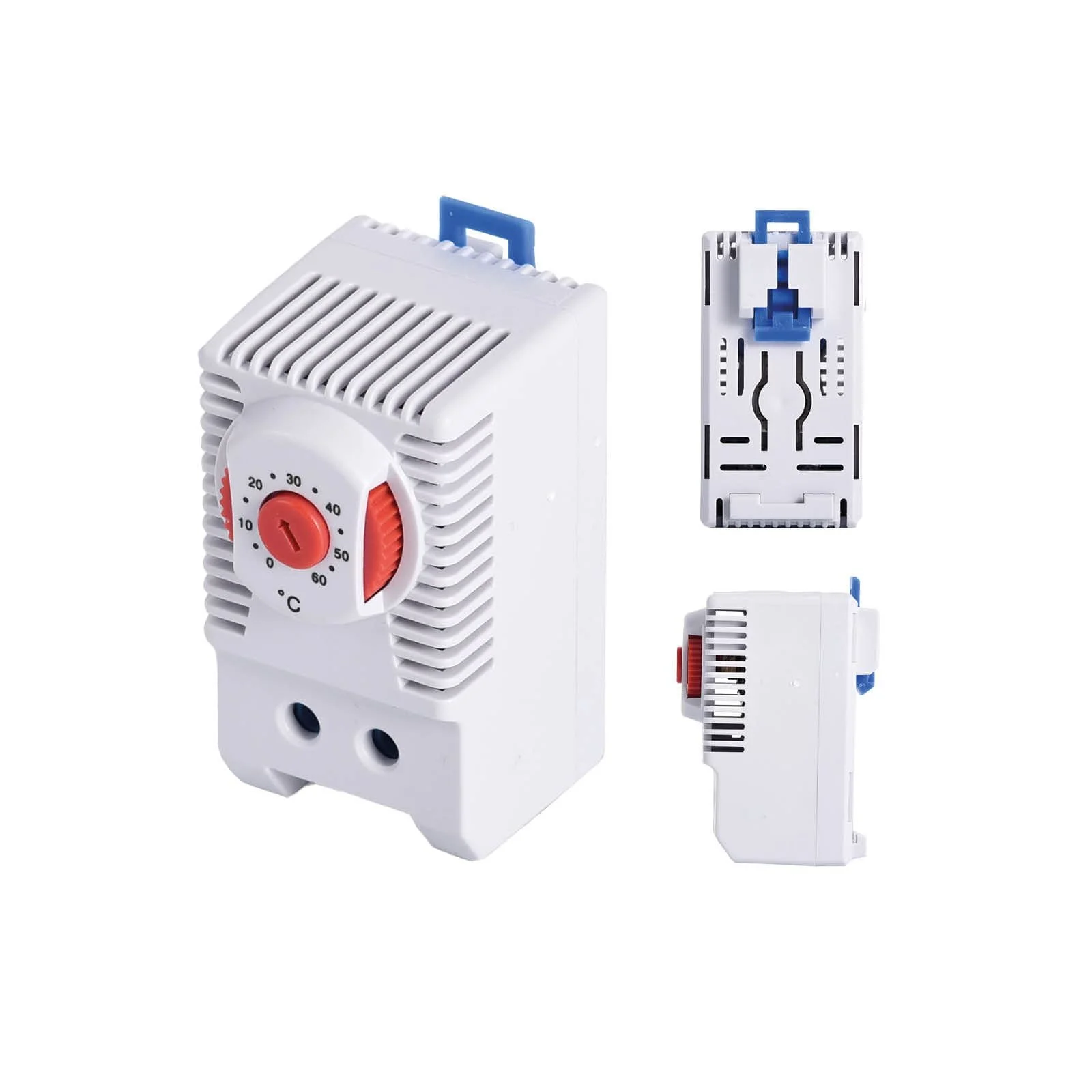

EXCALIBUR PVTHV2 THERMOSTAT
Reliable and easy to install, the Excalibur Thermostat is ideal for regulating filter fans, heat exchangers, or triggering alarms when temperature limits are exceeded. It features a wide setting range, high switching capacity, and durable performance for industrial environments.
• Thermostat (normally open)

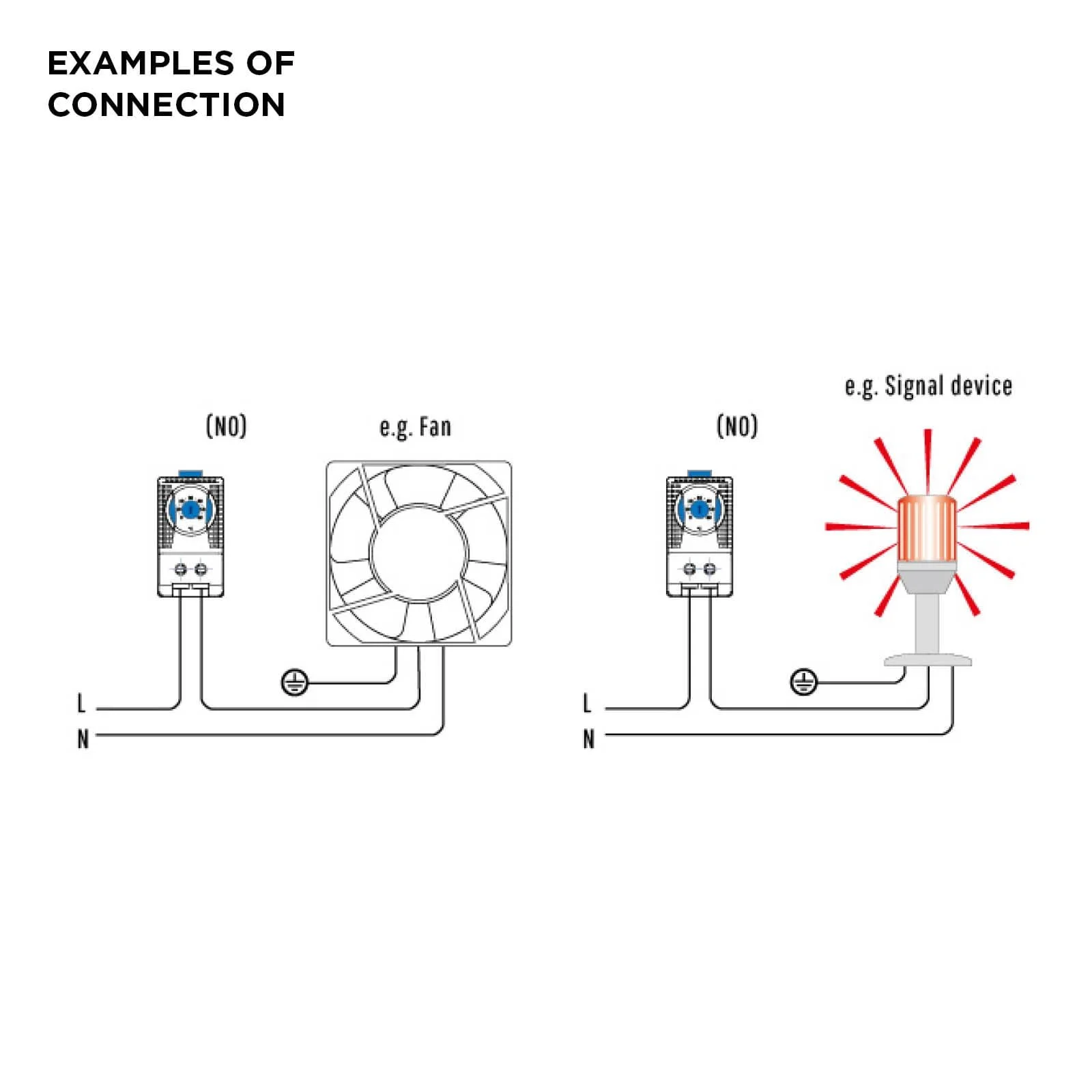

• Contact maker for regulating filter fans and heat exchangers or for switching signal device when temperature limit has been exceeded
• Large setting range
• Simple to mount
• High switching performance
| Model No. | PVHTR2 | PVHTV2 |
|---|---|---|
| Temperature range | 0~+60 °C | 0~+60 °C |

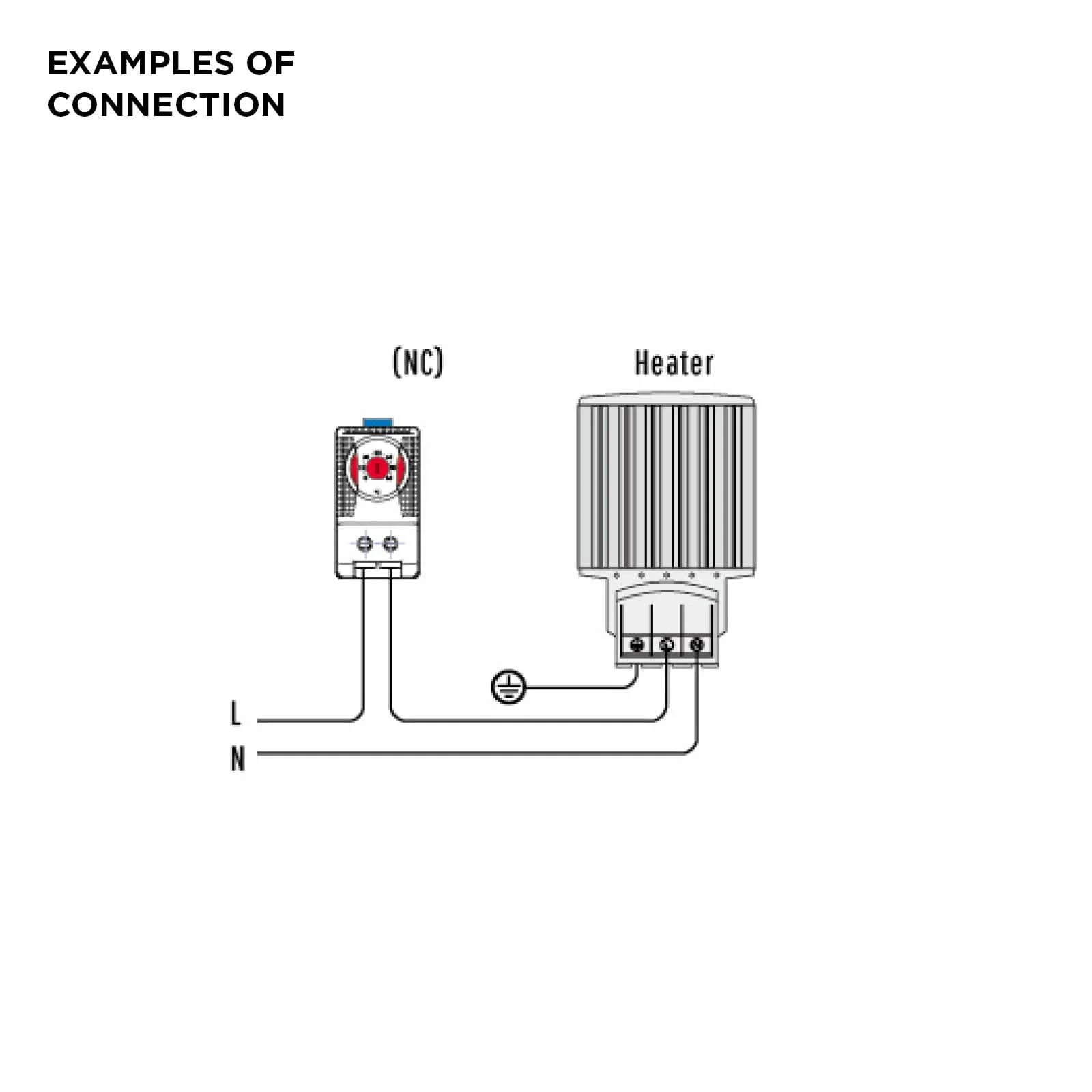

| NC (Normally closed) | When the temperature reaches the set value | – |
| NO (Normally open) | When the temperature exceeds the set value | When the temperature exceeds the set value |
| Switch temperature difference | 7K (+4K tolerance) | 7K (+4K tolerance) |
| Sensor element | Thermostatic bi-metal snap-action | Thermostatic bi-metal snap-action |
| Contact type | <10m ohm (Incidental connection line) | <10m ohm (Incidental connection line) |
| Contact resistance / Service life | 250VAC,10(2)A · 120VAC,15(2)A · 30W | 250VAC,10(2)A · 120VAC,15(2)A · 30W |
| Max. switching capacity / Connection | 2-pole terminal, clamping torque 0.5Nm | 2-pole terminal, clamping torque 0.5Nm |
| Casing | Plastic according to UL94 V-0, light grey | Plastic according to UL94 V-0, light grey |
| Installation | 35mm DIN installation guide | 35mm DIN installation guide |

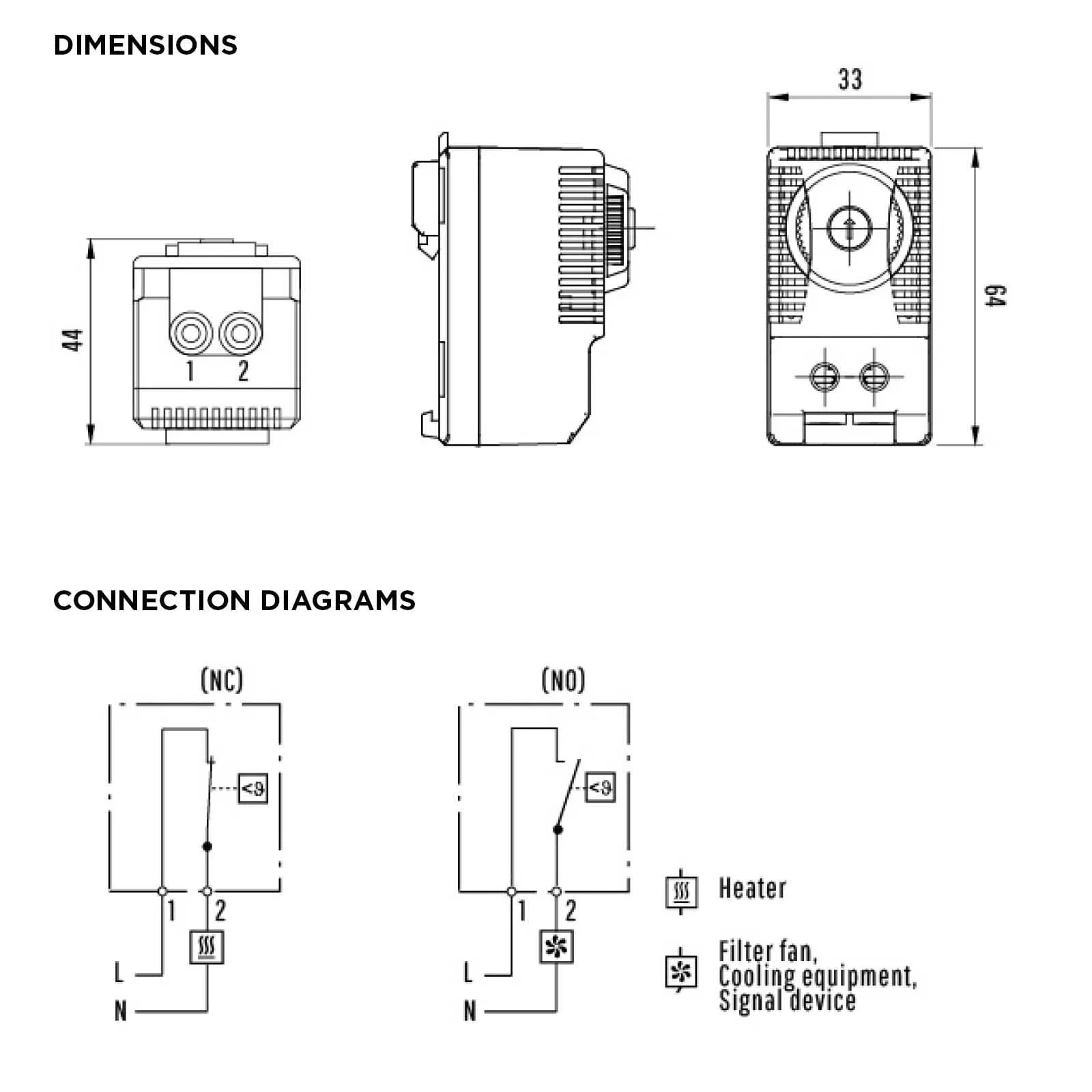

| Dimensions | 64 × 33 × 44 mm | 64 × 33 × 44 mm |
| Weight | 41.5 g | 41.5 g |
| Fitting position | Variable | Variable |
| Operating / Storage temperature | -20~+80 °C | -20~+80 °C |
| Protection type | IP20 | IP20 |
| Approvals | CE | CE |
