HEATERS 15-150W
Excalibur Enclosure Heaters are designed to provide reliable, energy-efficient heating for control cabinets and electrical enclosures. Featuring a durable aluminium profile body, they deliver even heat distribution through a natural chimney effect. With dynamic warm-up and a wide voltage range, these heaters adapt to varying conditions while built-in temperature limiting ensures safe operation. Quick to install with clip fixing, Excalibur heaters offer an easy, space-saving solution to prevent condensation and maintain optimal internal temperatures.
• Dynamic warm up
• Wide voltage range
• Aluminium profile heater body creates
a chimney effect even heating
• Temperature limiting
• Energy saving
• Clip fixing
• Quick installation
| Model No. | PVSHT15W | PVSHT30W | PVSHT45W | PVSHT60W | PVSHT75W | PVSHT100W | PVSHT150W |
|---|---|---|---|---|---|---|---|
| Operating voltage | 110–250V AC | 110–250V AC | 110–250V AC | 110–250V AC | 110–250V AC | 110–250V AC | 110–250V AC |
| Heating capacity | 15W | 30W | 45W | 60W | 75W | 100W | 150W |
| Inrush current | 1.5W | 2.5W | 3.0W | 3.5W | 3.5W | 4.5W | 9W |
| Heating element | PTC resistor, self regulating and temperature limiting | ||||||

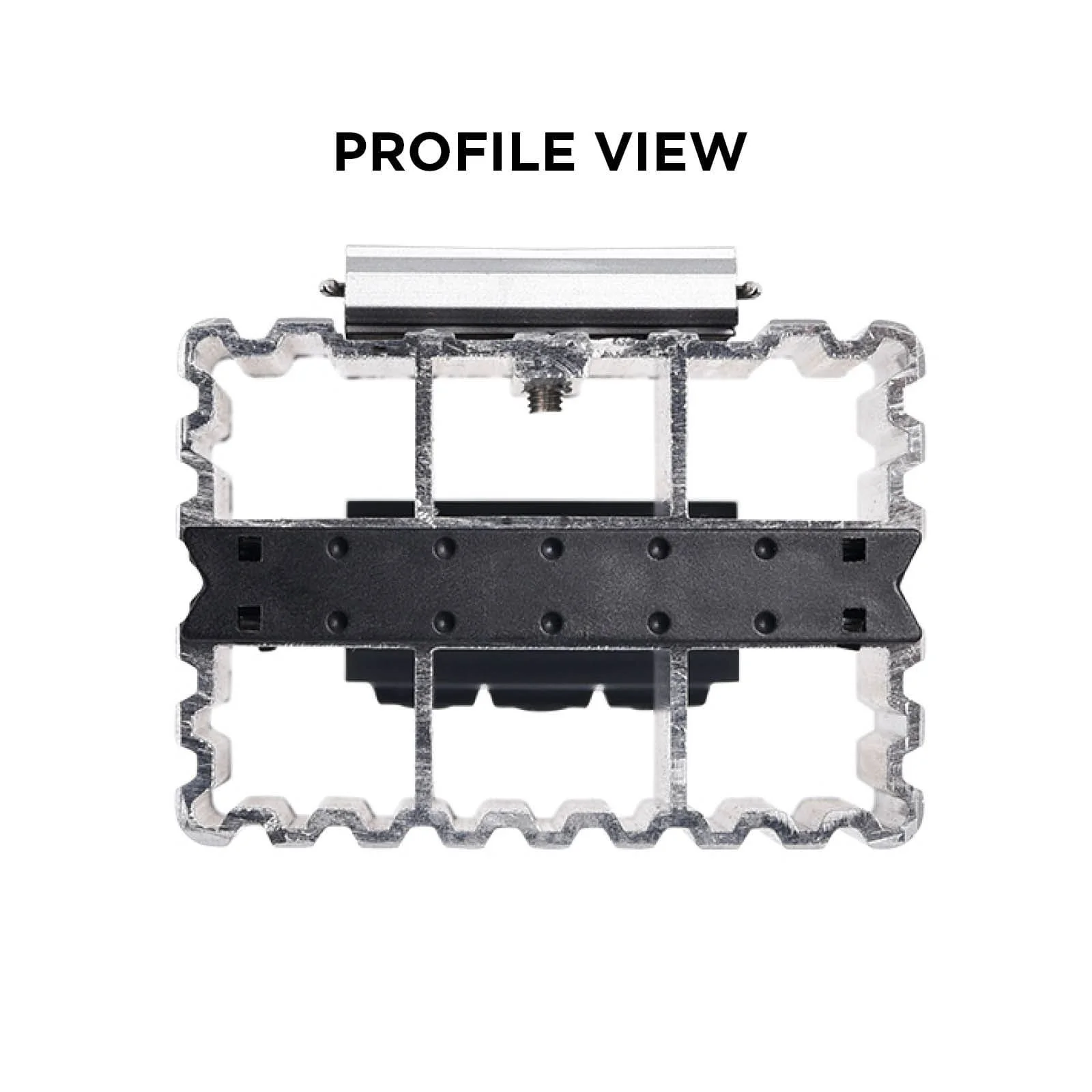

| Heater body | Extruded aluminium profile, anodised | ||||||

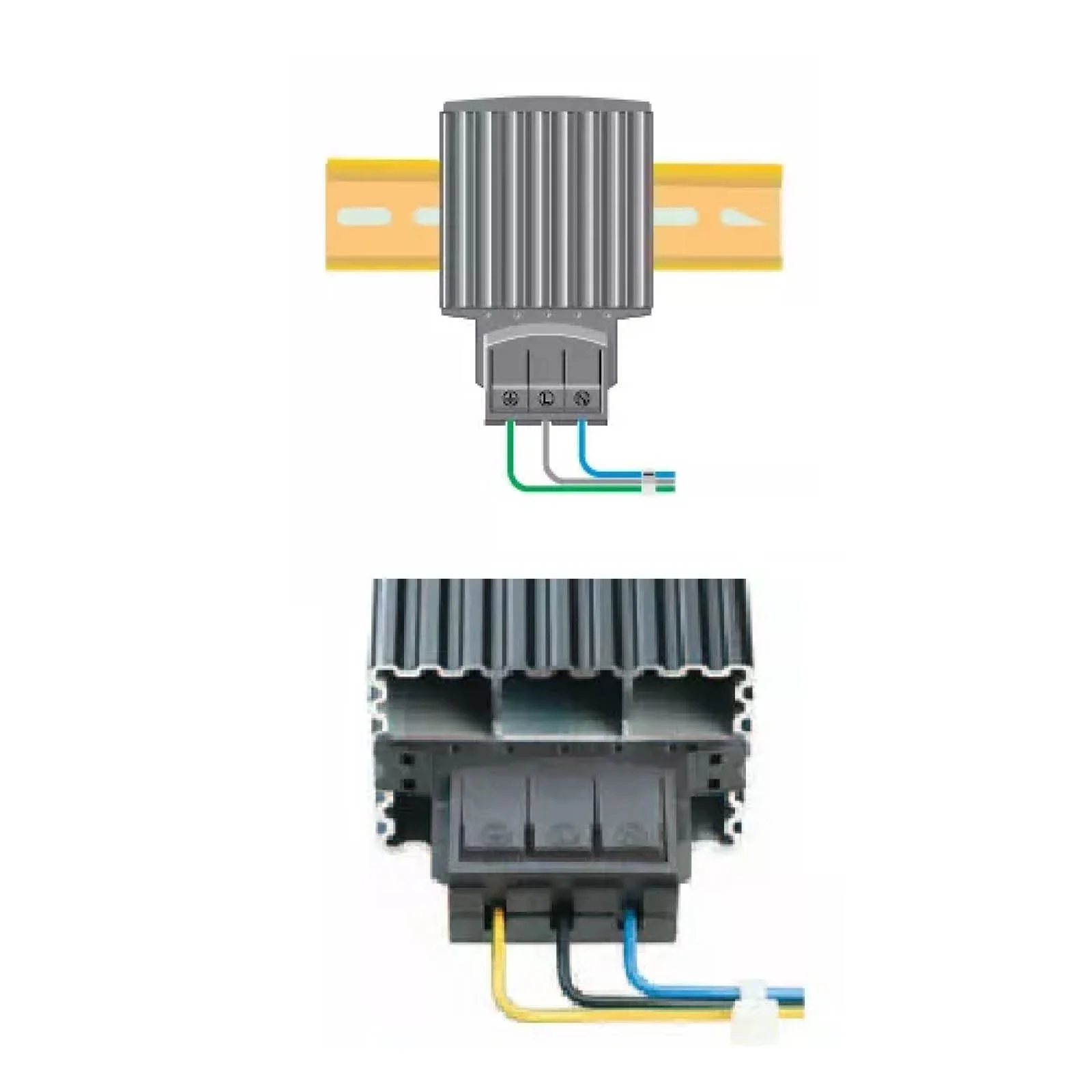

| Connection | 3 pressure clamps for stranded wire 0.5–1.5mm² (with wire and ferrule) and rigid wire 0.5–2.5mm², plastic | ||||||
| Mounting | Clip for 35mm DIN rail, EN 50022 | ||||||
| Fitting position | Vertical | ||||||
| Operating / Storage temperature | -45~70°C (-49~158°F) | ||||||
| Protection type | IP20 / 1 (earthed) | ||||||
| Certificate | CE | ||||||

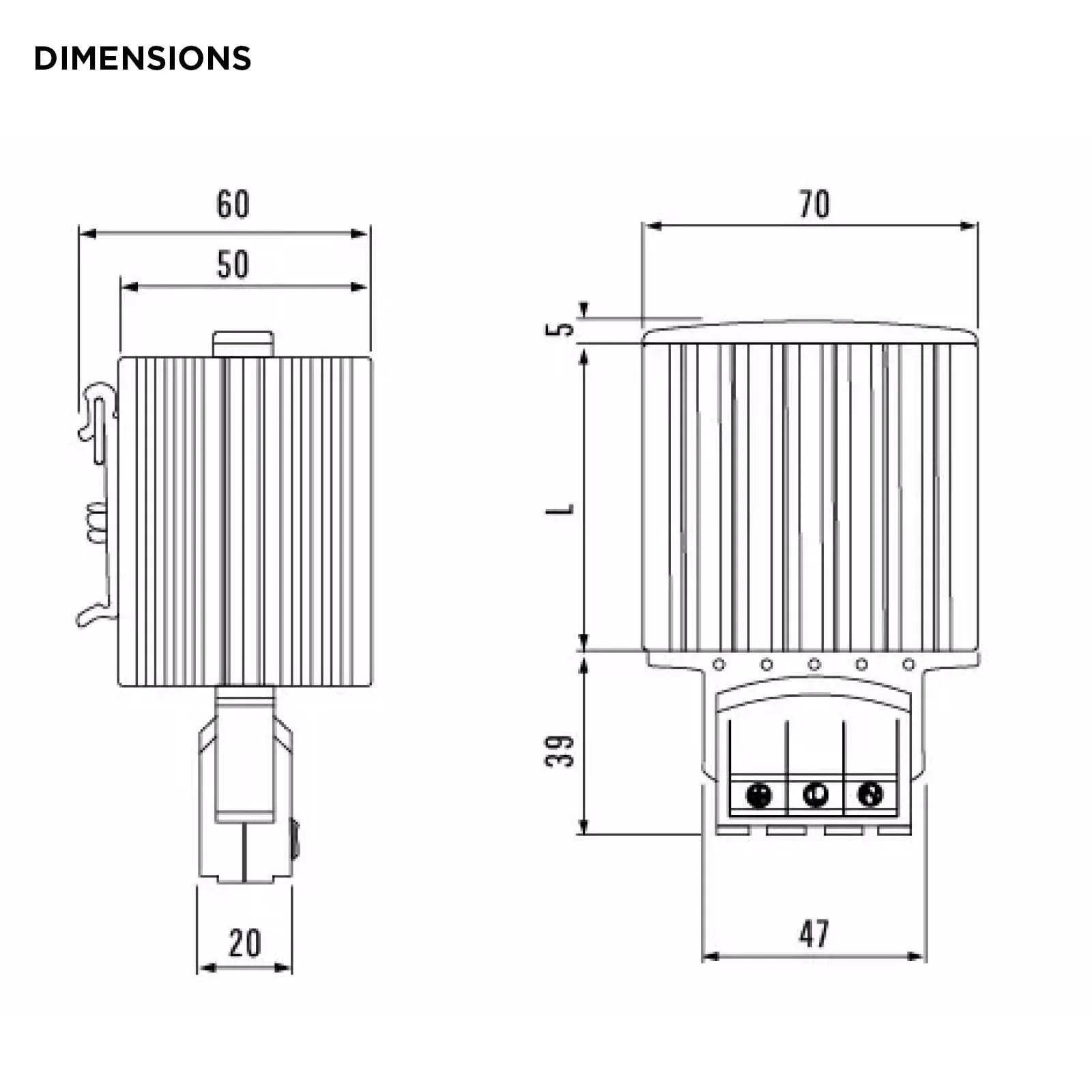

| Length (mm) | 70 | ||||||
| Weight (kg) | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.4 | 0.4 |
