TERMINAL BOX

TERMINATION BOXES
Written By REWATECHNO

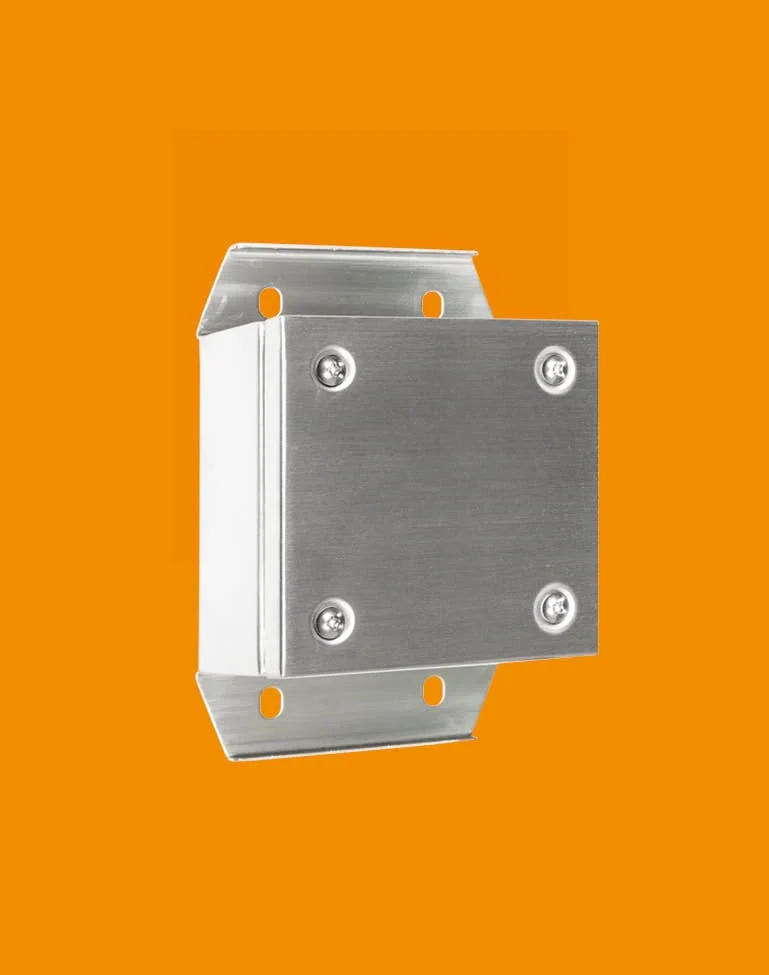

TERMINATION BOX
STAINLESS STEEL
TERMINAL BOX

• IP66
• 316 stainless steel
• Body construction 1.5mm
• Flange mounted
• Fully welded construction
• Captive screws
• Polyurethane gasket
• Mounting pan 2mm powder coated white mild
• Earth strap kit

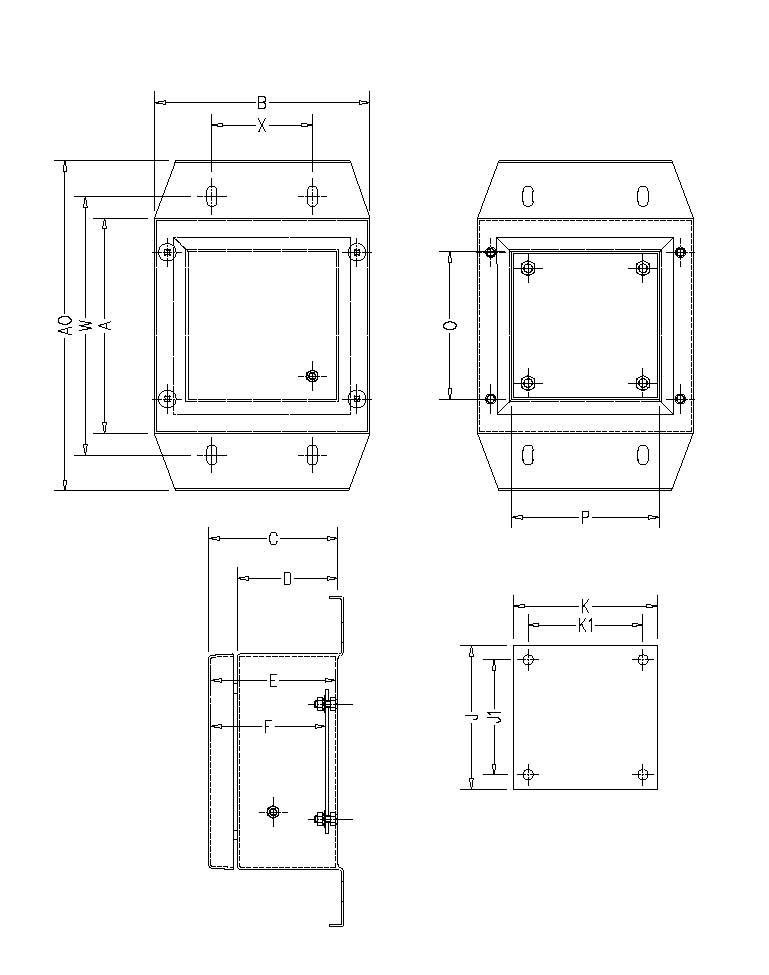

ORDERING CODES

MODEL NUMBER DIMENSIONS MM USEABLE DEPTH
H W D
PSTB111175 110 110 75 65
PSTB151512 150 150 125 115
PSTB151590 150 150 90 80
PSTB201512 200 150 125 115
PSTB201590 200 150 90 80
PSTB202012 200 200 125 115
PSTB202090 200 200 90 80
PSTB302012 300 200 125 115
PSTB302090 300 200 90 80
PSTB303012 300 300 125 115
PSTB402012 400 200 125 115
PSTB403012 400 300 125 115
PSTB503012 500 300 125 115
PSTB504012 500 400 125 115
PSTB604015 600 400 150 140
PSTB806015 800 600 150 140

Download brochure

TERMINAL BOX (Pdf)
